Product Comparison Clear filters

Name
Low Voltage MOSFET Medium Voltage MOSFET High Voltage MOSFET CoolMOS

Package	VDSS(V)	Id(A)	RDSON(Ω)	VTH	P/N
DFN5x6-8 PDFN(3.3x3.3) PDFN(5x6) SOP-8 SOT-223 SOT-23 SOT-23-3 SOT-323 SOT-363 SOT-523 SOT-89 TO-200 TO-220 TO-220-3L TO-220F TO-23-3L TO-252 TO-252-2 TO-252-2L TO-263	-100V -20V -40V -60V 100V 200V 240V 50V 60V 650V 70V 80V	-20A -2A -30A -3A -4A -6.0A -8.5A 0.1A 0.3A 1.6A 1.8A 100A 100mA 102A 10A 115mA 11A 12A 142A 150mA 15A 17A 18A 1A 2.0A 2.3A 20A 220mA 25A 2A 3.6A 300mA 30A 33A 340mA 3A 47A 48A 49A 4A 5.0A 50A 53A 5A 60A 64A 65A 68A 800mA 80A 87A	1.1Ω@4.5V,200mA 105mΩ@10V,3A 11.5mΩ@10V,30A 110mΩ@-10V,-2A 115mΩ@10V,8A 125mΩ@10V,3A 12mΩ@10V,13.5A 130mΩ@10V,10A 135mΩ@10V,1.8A 140mΩ@10V,1.5A 14mΩ@10V,20A 14mΩ@10V,25A 150mΩ@10V,11A 158mΩ@-10V,-2A 175mΩ@10V,3A 180mΩ@10V,3A 195mΩ@10V, 2A 2.2mΩ@10V,20A 2.5Ω@10V 234mΩ@10V,1.5A 23mΩ@-10V,-8A 26mΩ@-10V,-15A 27mΩ@10V,30A 2Ω@10V,0.3A 3.5Ω@10V,120mA 3.5Ω@10V,220mA 30mΩ@-10V,-20A 30mΩ@-4.5V, -4A 30mΩ@10V,4A 30Ω@10V,15A 310mΩ@10V,2A 320mΩ@4.5V,0.5A 35mΩ@10V,15A 35mΩ@10V,5A 3Ω@10V,500mA 3Ω@4.5V 4.2Ω@10V,1.0A 4.8mΩ@10V,20A 40Ω@-10V,-3A 45mΩ@10V,15A 5.3mΩ@10V,20A 560mΩ@-10V, -1A 58mΩ@10V,3A 5Ω@10V 6.4mΩ@10V,20A 6.5mΩ@10V,20A 6.6mΩ@10V,40A 7.2mΩ@10V,20A 7.5mΩ@5V, 50mA 7.5Ω@10V,500mA 7.6mΩ@10V,20A 70mΩ@10V 73mΩ@10V,6A 75mΩ@10V,6A 78mΩ@-10V,-10A 8.5mΩ@10V,20A 8.9mΩ@10V,20A 89mΩ@10V,3.6A 8mΩ@10V,20A 9.07Ω@4.5V,0.09A 90mΩ@10V,3A 95mΩ@10V,10A	-0.7V@-250μA -1.2V@-250uA -1.6V@250uA -1.7V@-250uA -1.8V@-250uA -1.8V@-250μA -1.9V@-250uA -2V@-250μA 1.4V@56μA 1.5V@250uA 1.5V@250μA 1.6V@1mA 1.6V@250uA 1.6V@250μA 1.7V@250uA 1.7V@250μA 1.8V@250μA 1V@1mA 1V@250uA 1V@250μA 2.3V@250uA 2.3V@250μA 2.4V@250uA 2.4V@250μA 2.5V@1mA 2.5V@250uA 2.5V@250μA 2.8V@1mA 2.8V@250uA 2V@250uA 2V@250μA 3V@250uA 3V@250μA 4V@250μA	Dual N-Channel N-Channel N-channel P-Channel P-channel

SL17N06DN1 N-Channel Enhancement MOSFET TO-252

SL20N10 N-channel Power MOSFET TO-252

SL2308 N-channel Power MOSFET SOT-23

SL2309 P-Channel Power MOSFET SOT-23-3

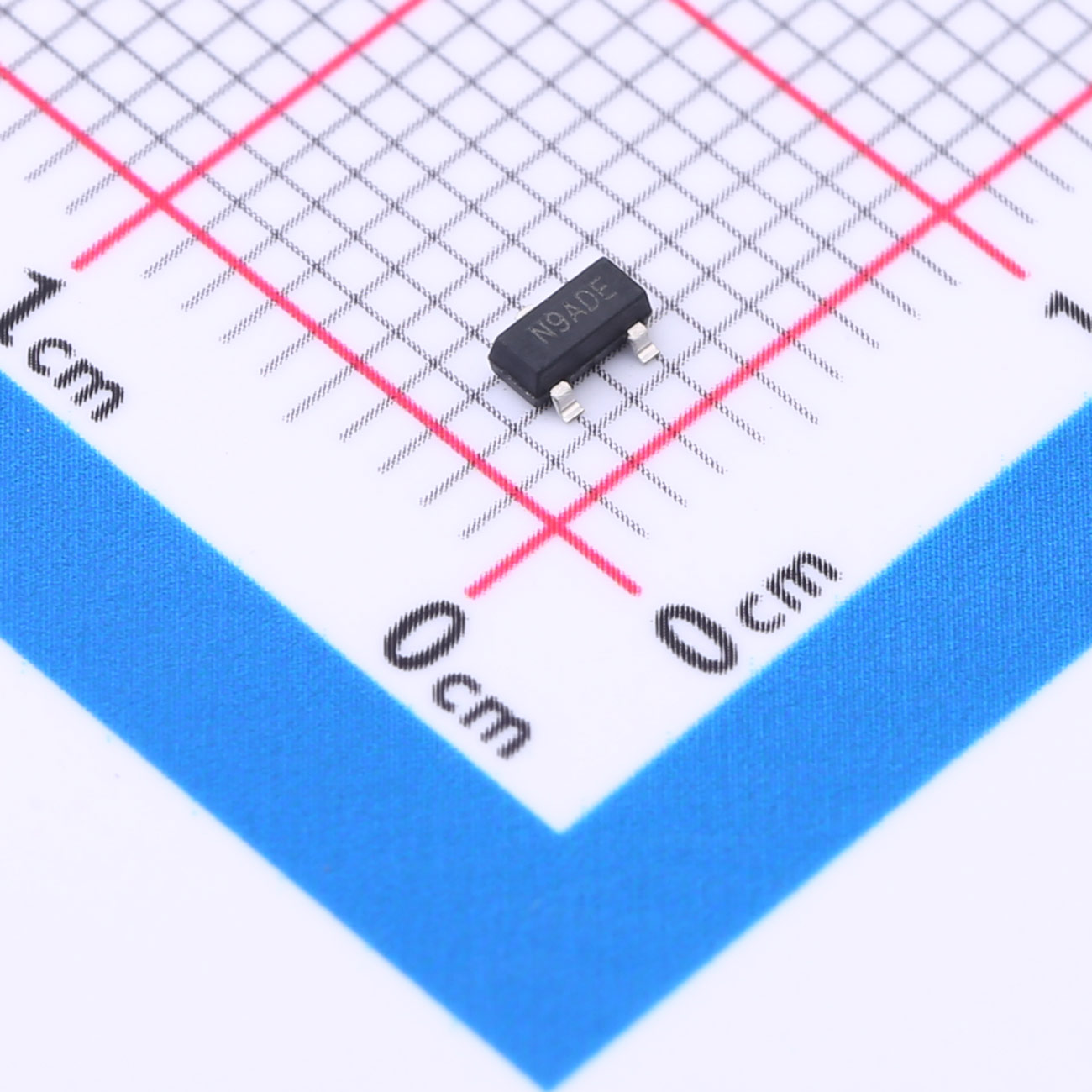

SL2309A P-channel Power MOSFET SOT-23

SL2310 N-Channel Power MOSFET SOT-23

SL2324 N-Channel Enhancement MOSFET SOT-23

SL2328A N-Channel Enhancement MOSFET SOT-23

SL25N10 N-channel Power MOSFET TO-252

SL2N65F N-Channel Enhancement MOSFET TO-220F

SL2P10A P-Channel Enhancement MOSFET SOT-23

SL30N06D N-channel Power MOSFET TO-252-2L

SL3422 N-Channel Power MOSFET SOT-23

SL3423 P-Channel Enhancement MOSFET SOT-23

SL3N06 N-Channel Power MOSFET SOT-23

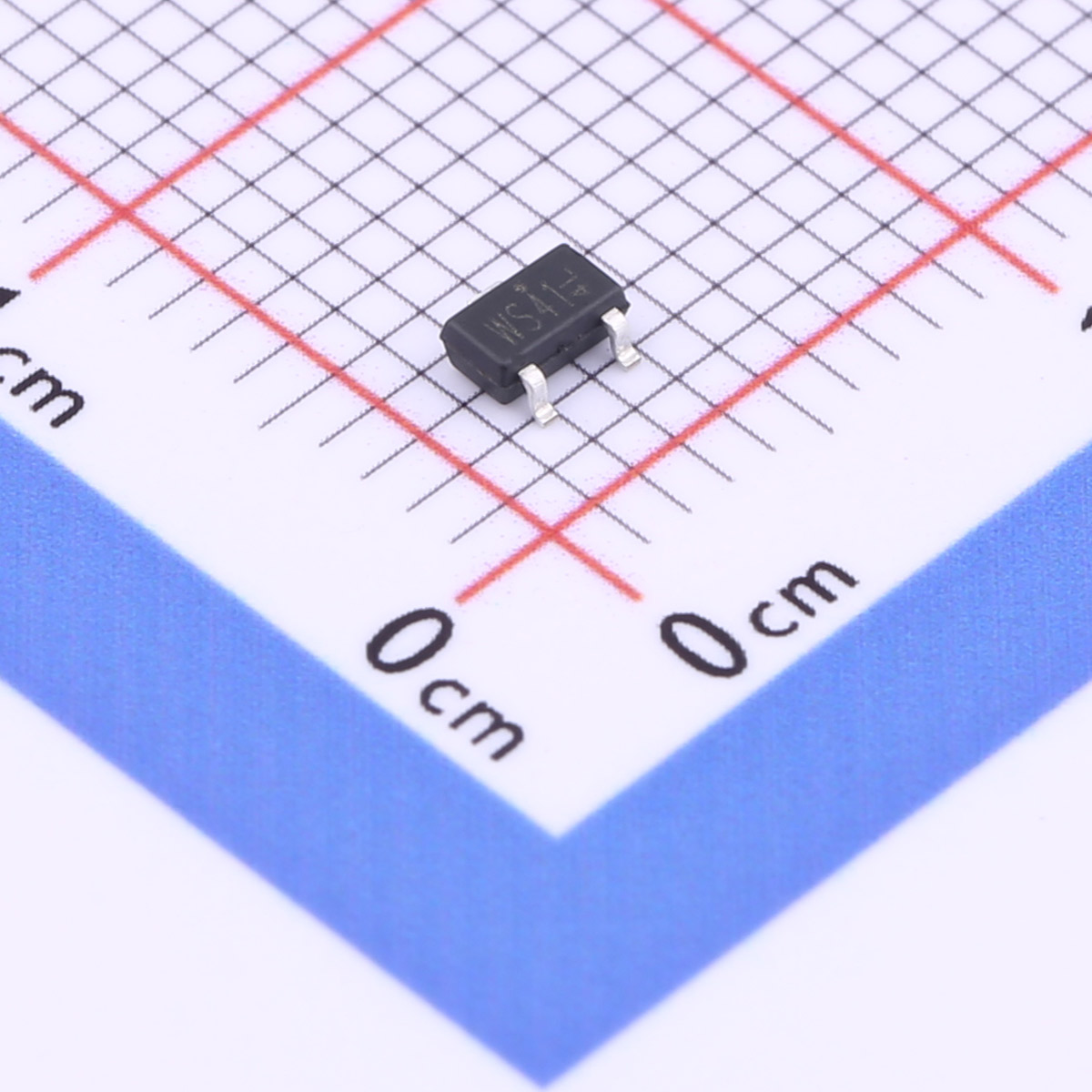

SL4041 P-Channel Enhancement MOSFET TO-23

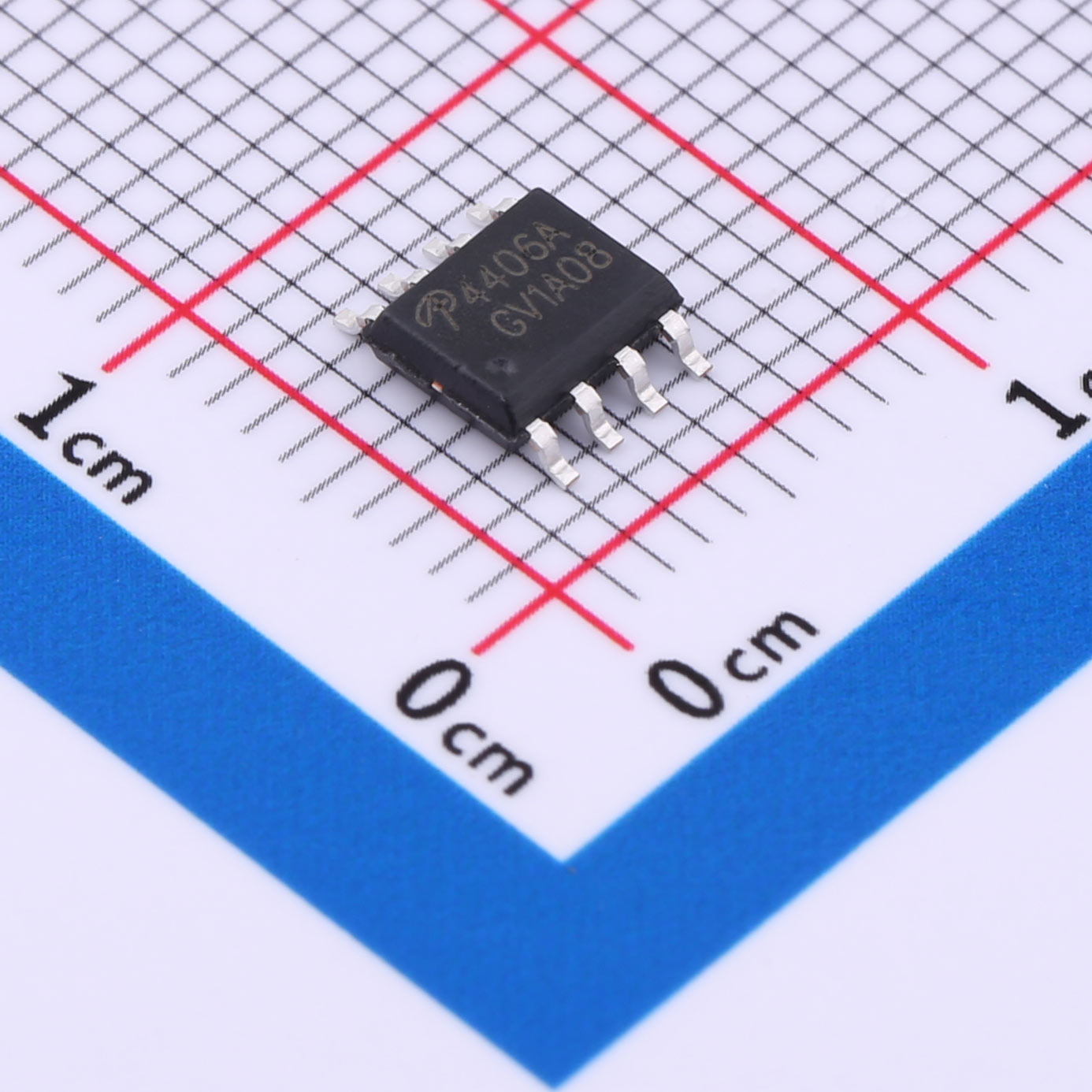

SL4421 P-channel Power MOSFET SOP-8

SL4612B N-Channel Enhancement MOSFET SOP-8

SL48N08Q N-Channel Power MOSFET DFN5x6-8

TO-252	60V	17A	73mΩ@10V,6A	2.5V@250μA	N-Channel
TO-252	100V	20A	70mΩ@10V	1.5V@250uA	N-channel
SOT-23	60V	1.8A	135mΩ@10V,1.8A	1V@250μA	N-channel
SOT-23-3	60V	1.6A	140mΩ@10V,1.5A	2V@250uA	P-Channel
SOT-23	-60V	-2A	158mΩ@-10V,-2A	-1.9V@-250uA	P-channel
SOT-23	60V	3A	105mΩ@10V,3A	2V@250μA	N-Channel
SOT-23	100V	2.3A	195mΩ@10V, 2A	1.8V@250μA	N-Channel
SOT-23	100V	2A	310mΩ@10V,2A	3V@250uA	N-Channel
TO-252	100V	25A	35mΩ@10V,15A	1.8V@250μA	N-channel
TO-220F	650V	2.0A	4.2Ω@10V,1.0A	2V@250uA	N-Channel
SOT-23	-100V	-2A	560mΩ@-10V, -1A	-2V@-250μA	P-Channel
TO-252-2L	60V	30A	27mΩ@10V,30A	1.6V@250uA	N-Channel
TO-252-2L	60V	30A	27mΩ@10V,30A	1.6V@250uA	N-channel
SOT-23	60V	3A	125mΩ@10V,3A	3V@250uA	N-Channel
SOT-23	-20V	-4A	30mΩ@-4.5V, -4A	-0.7V@-250μA	P-Channel
SOT-23	60V	3A	90mΩ@10V,3A	3V@250uA	N-Channel
TO-23-3L	-40V	-6.0A	40Ω@-10V,-3A	-1.2V@-250uA	P-Channel
SOP-8	-60V	-8.5A	23mΩ@-10V,-8A	-1.6V@250uA	P-channel
SOP-8	60V	4A	58mΩ@10V,3A	1.5V@250μA	N-Channel
DFN5x6-8	80V	48A	6.5mΩ@10V,20A	2.3V@250μA	N-Channel

20 Article/Page: 10 Article/Page 20 Article/Page 50 Article/Page 100 Article/Page 200 Article/Page 500 Article/Page 1000 Article/Page

Medium Voltage MOSFET
