Super high design for extremely low RDS(ON)
This is a Full RoHS compliance

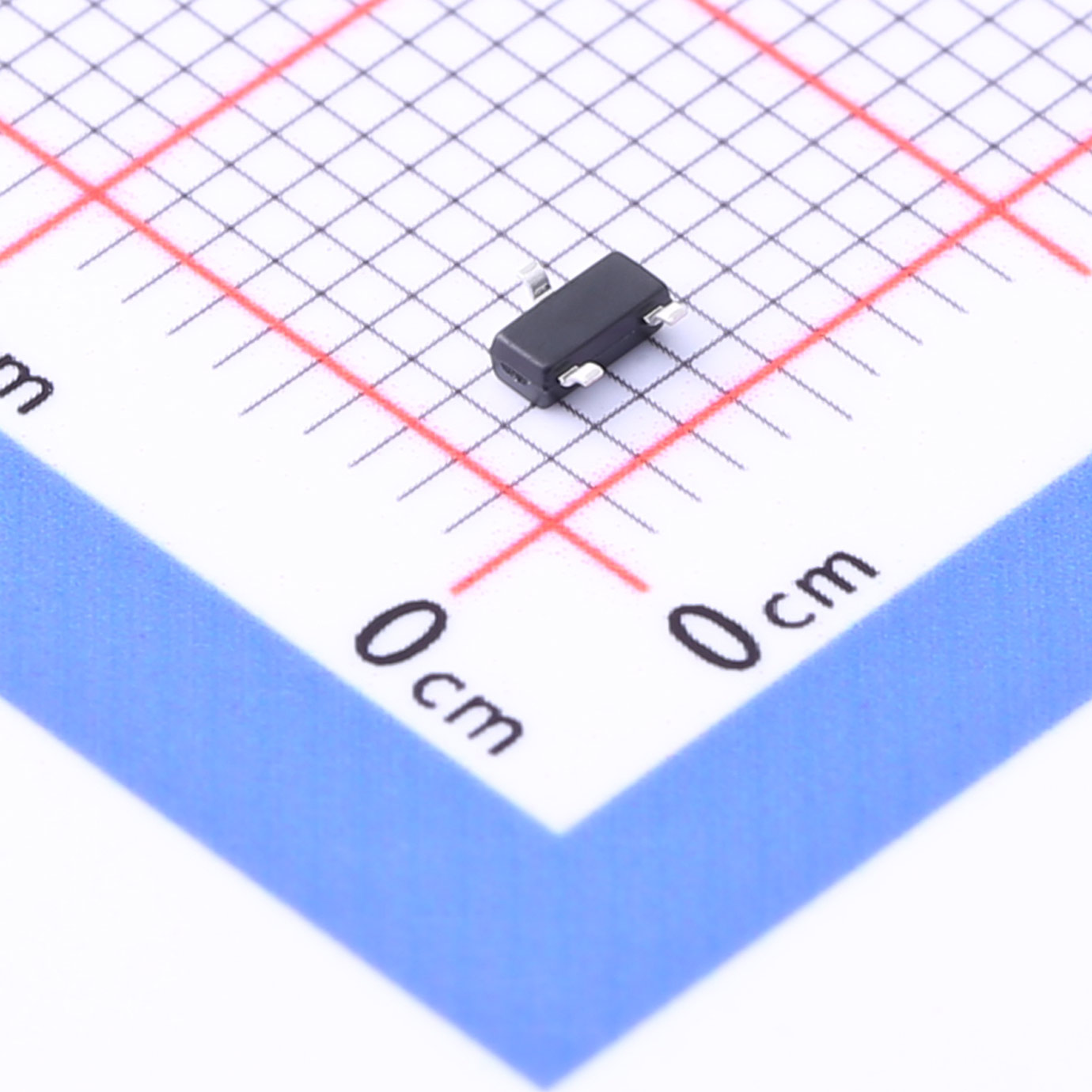

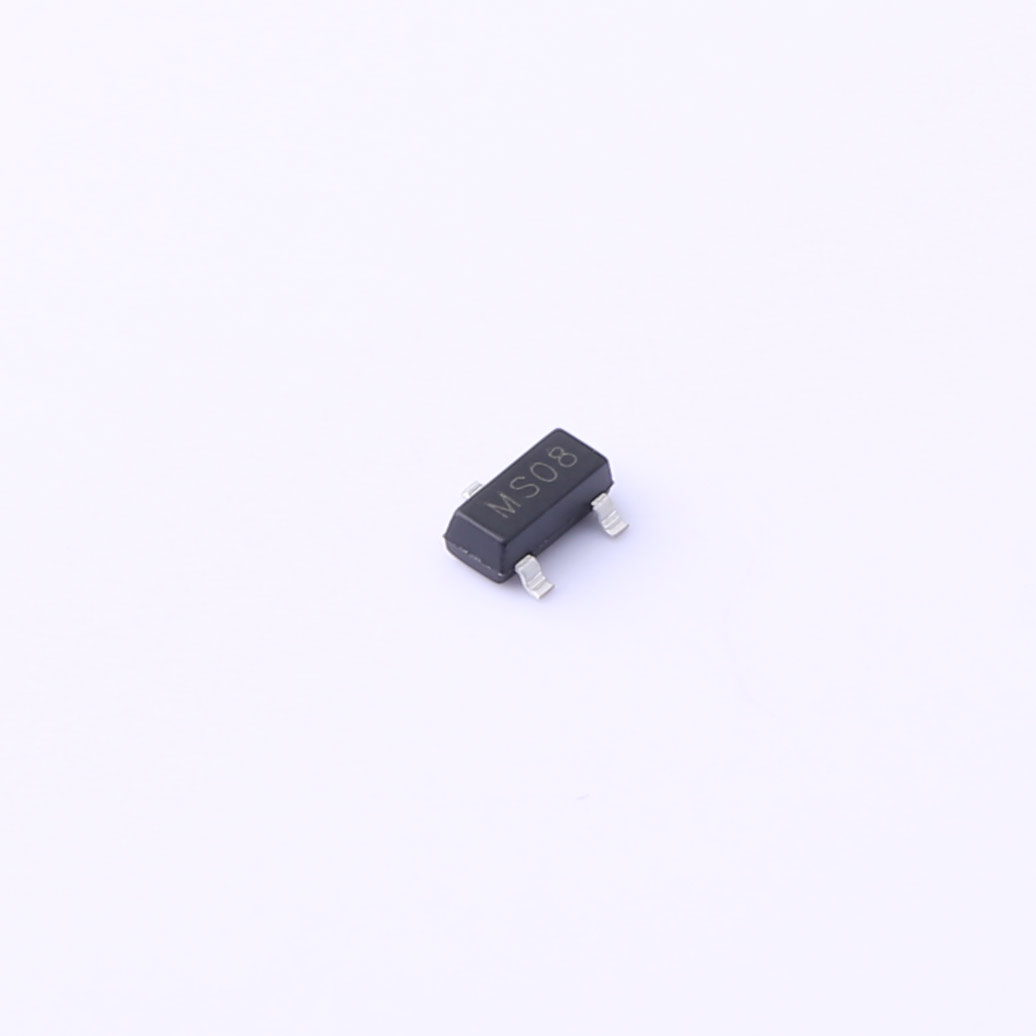

SOT23-3 package design
Description
lThe SL2308 is the N-Channel logic enhancement mode power field effect transistor is produced using high cell density advanced trench technology.. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application, and low in-line power loss are needed in a very small outline surface mount package.
Features
l60V/1 . 8 A, RDS(ON)=1 35m?(typ.)@VGS=1 0V
l60V/ 1 ..5 A, RDS(ON)= 1 54m? (typ.)@VGS=4.5V
lSuper high design for extremely low RDS(ON)
lExceptional on-resistance and Maximum DCcurrent capability
lThis is a Full RoHS compliance
lSOT23-3 package design
Application
lPower Management in Note Book
lPortable Equipment
lBattery Powered System
| File Name | Title | Description |
|---|---|---|
| SL2308.pdf | SL2308 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
