Switching Diode

A switching diode is a diode that has a switching function. This diode has the performance of current passage (ON) when voltage is applied in the forward direction and current stop (OFF) when voltage is applied in the reverse direction. The reverse recovery time (trr) is short and the switching characteristics are excellent compared to other diodes. Mainly used in electronic computers, pulse and switching circuits.

Product Comparison Clear filters
Name
VRRM(V) IO(A) VF(V) IR(uA) trr(ns) Package

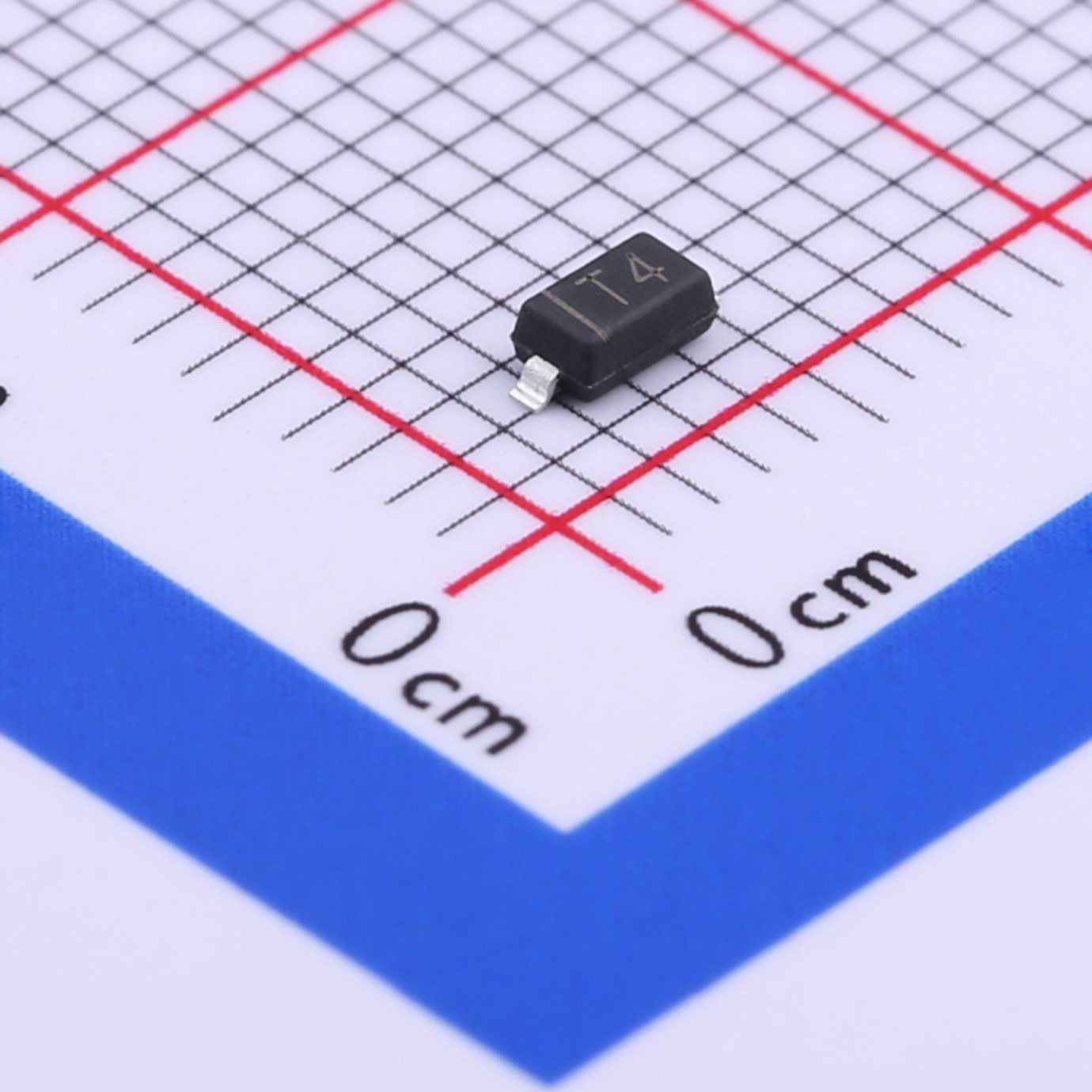

3D model 1N4148W-正面 1N4148W Fast Switching Diode SOD-123

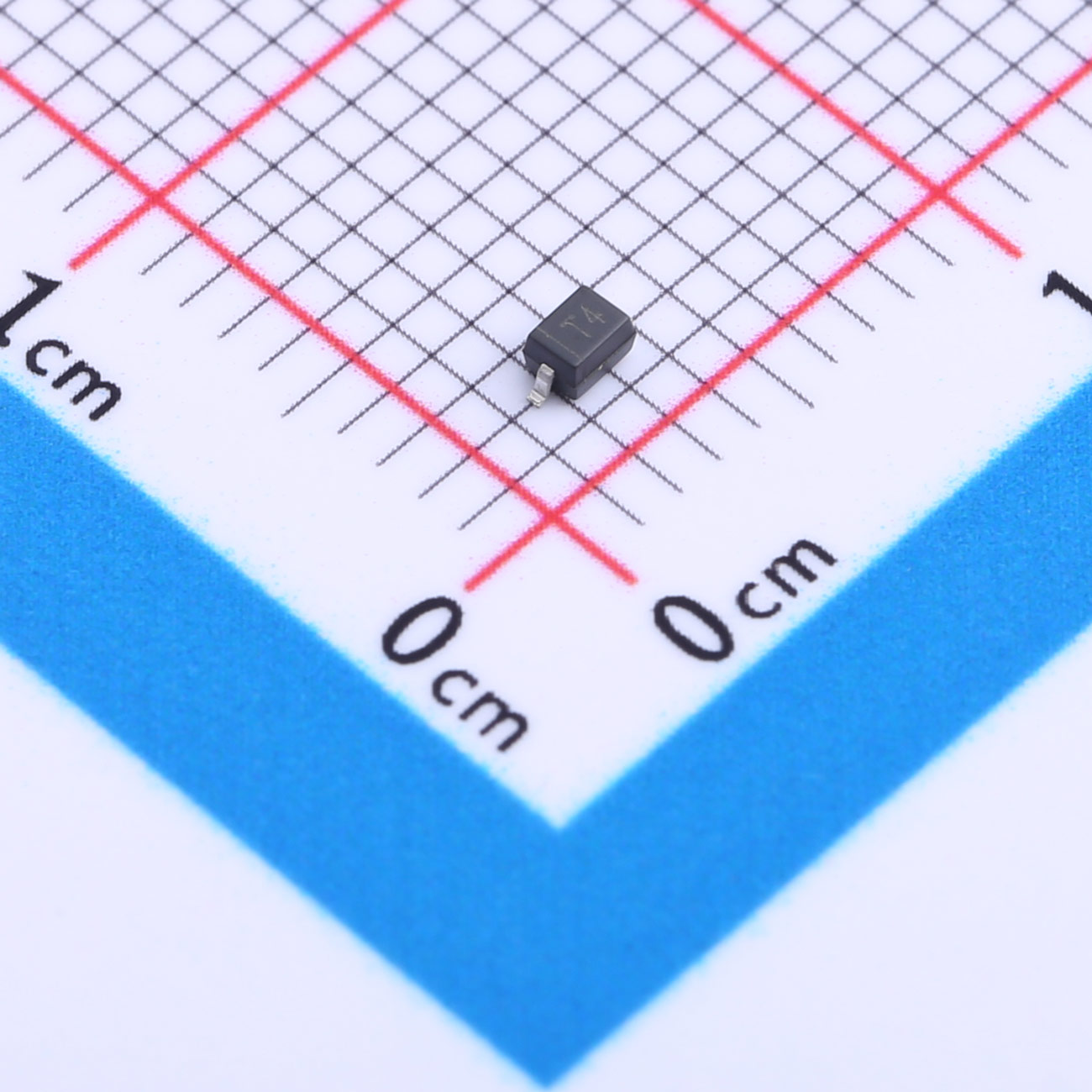

3D model 1N4148WS-正面 1N4148WS Surface Mount Switching Diode SOD-323

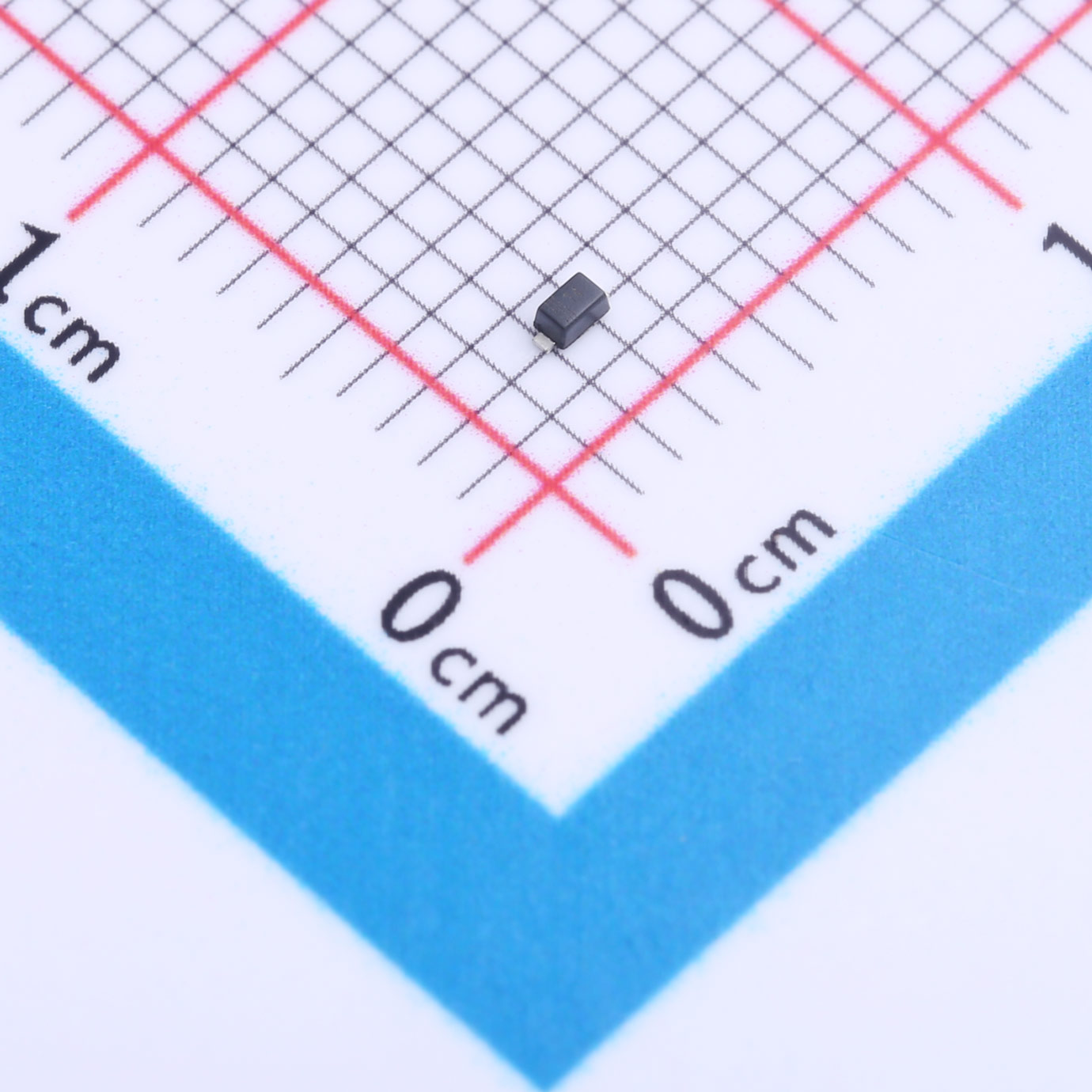

3D model 1N4148WT-正面 1N4148WT Small Signal Diode SOD-523
3D model 1N4448WS-正面 1N4448WS Fast Switching Diode

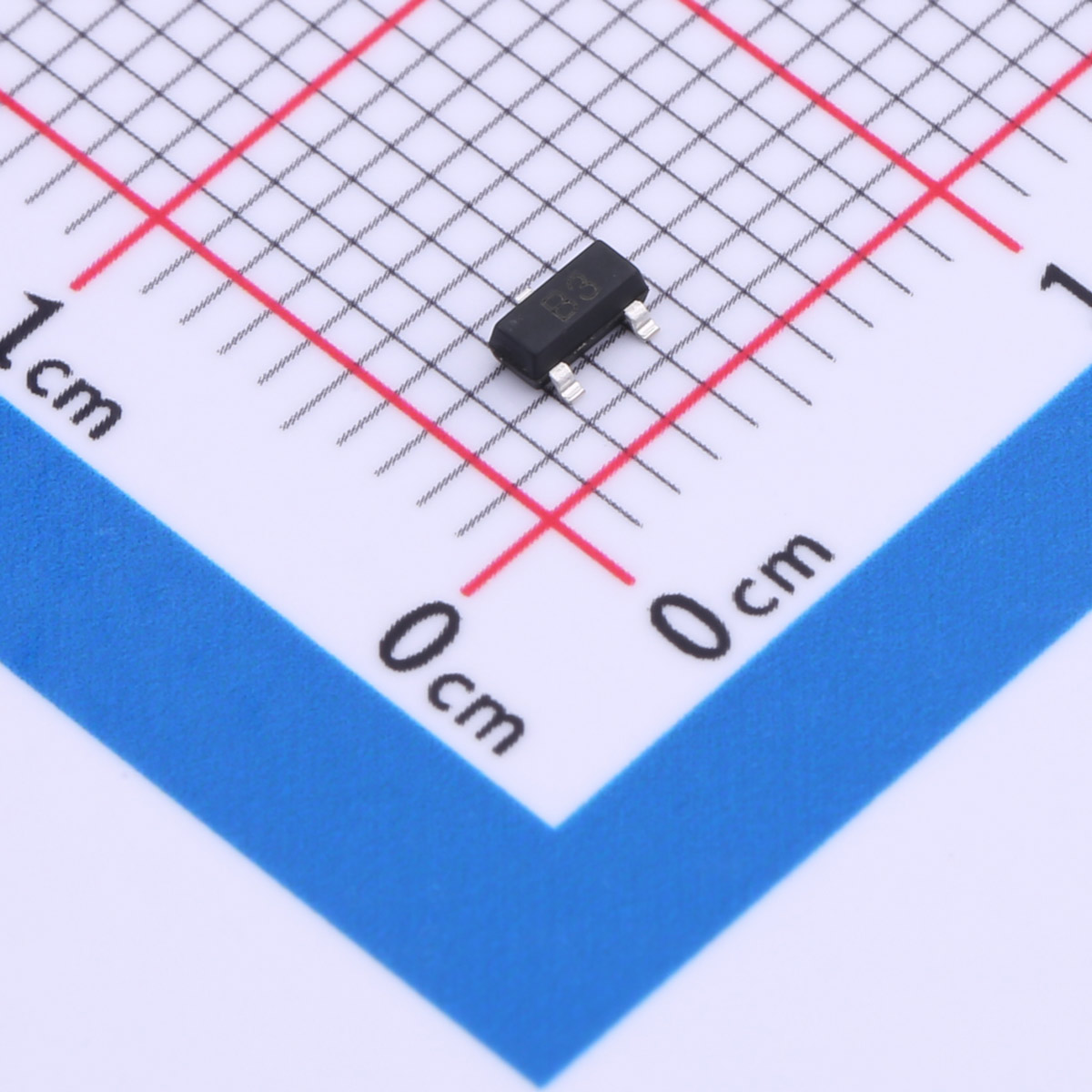

3D model 1SS184-正面 1SS184 Switching Diodes SOT-23

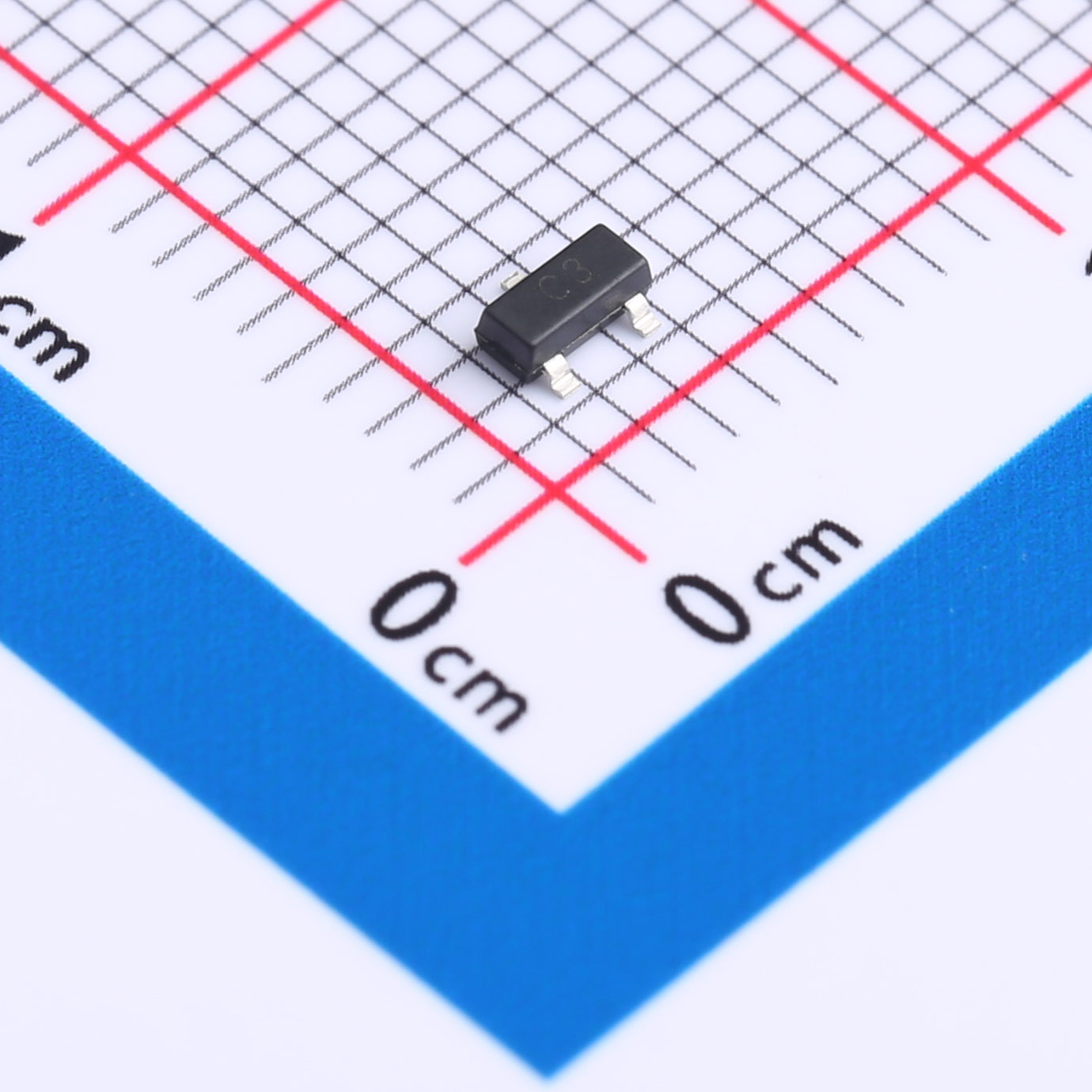

3D model 1SS226-正面 1ss226 Fast Switching Diodes SOT-23

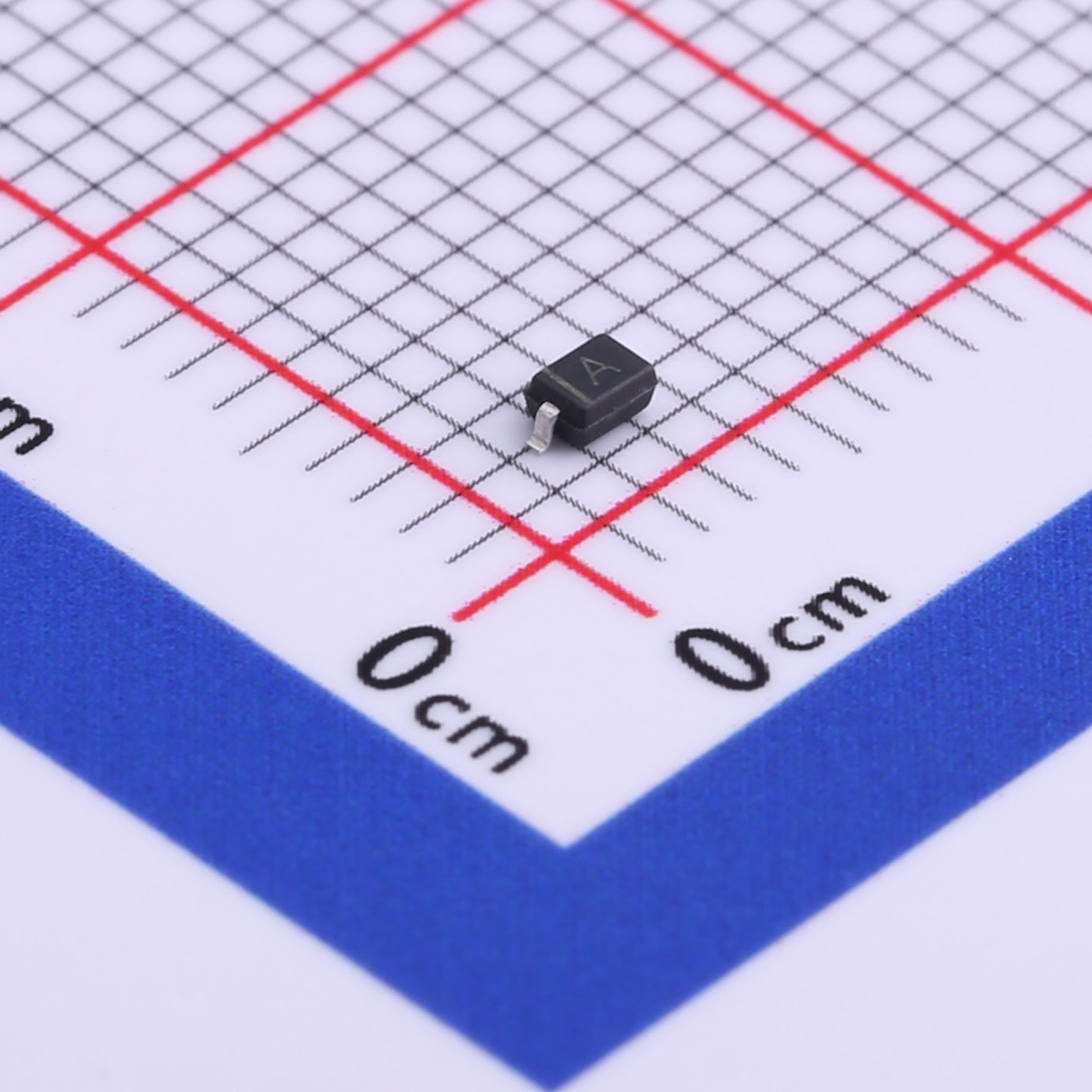

3D model 1SS355-正面 1SS355 Fast Switching Diodes SOD-323

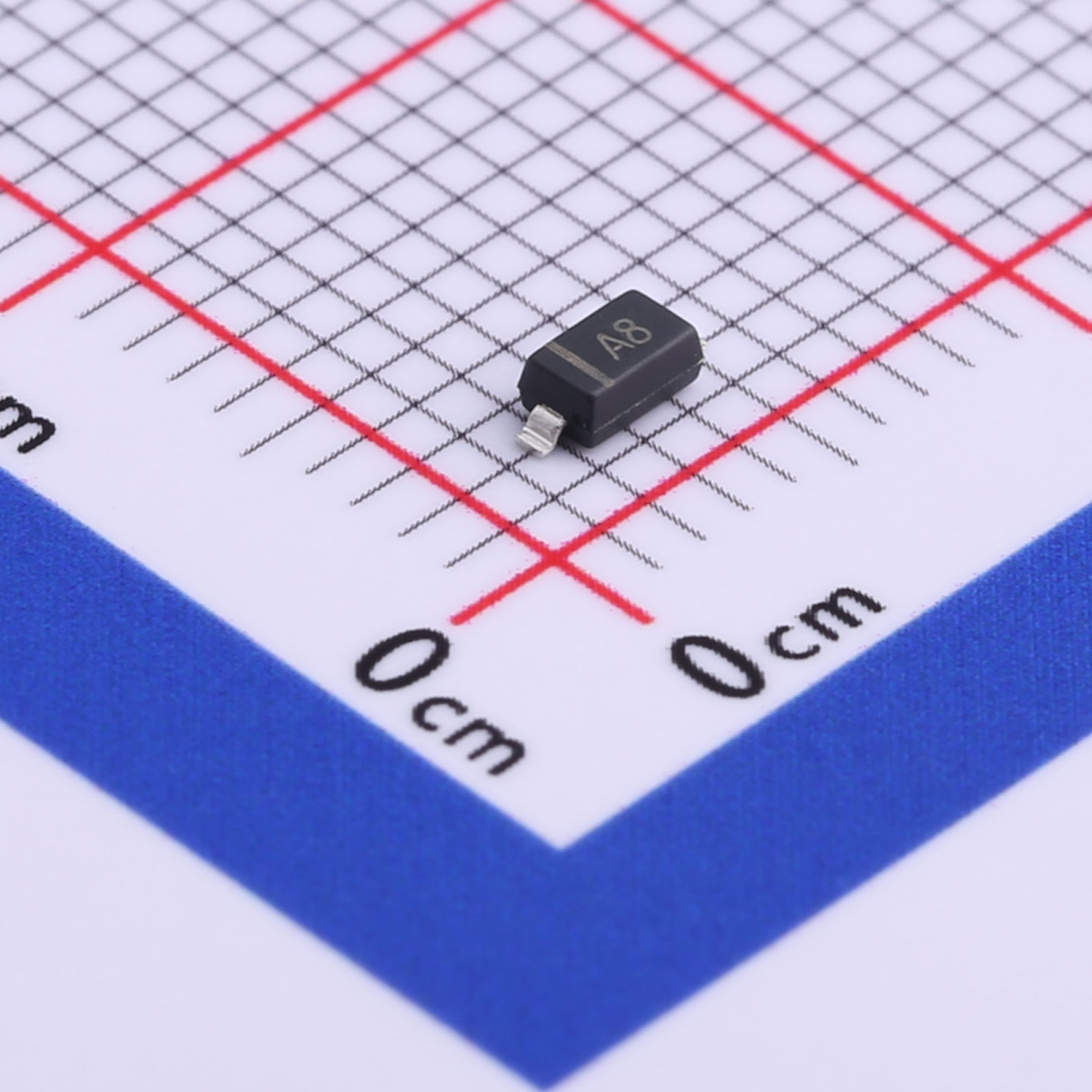

3D model BAV19W-正面 Alternative equivalent for DIODES BAV19W-7-F | Slkor BAV19W Surface Mount Switching Diode

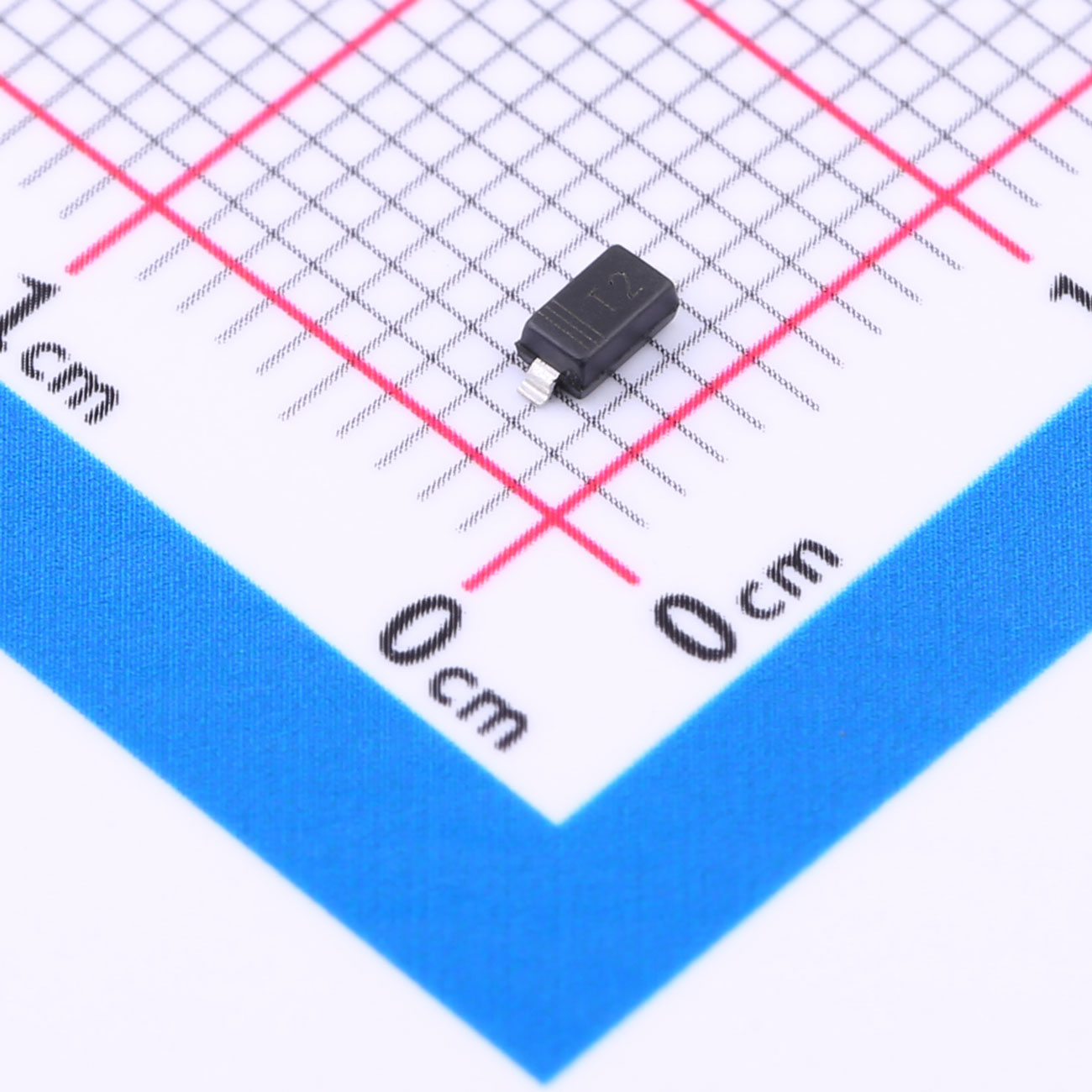

3D model BAV20W-正面 Alternative equivalent for DIODES BAV20W-7-F | Slkor BAV20W Fast Switching Diodes
3D model BAV21W-正面 Alternative equivalent for DIODES BAV21W-7-F | Slkor BAV21W High-speed Switching Diode

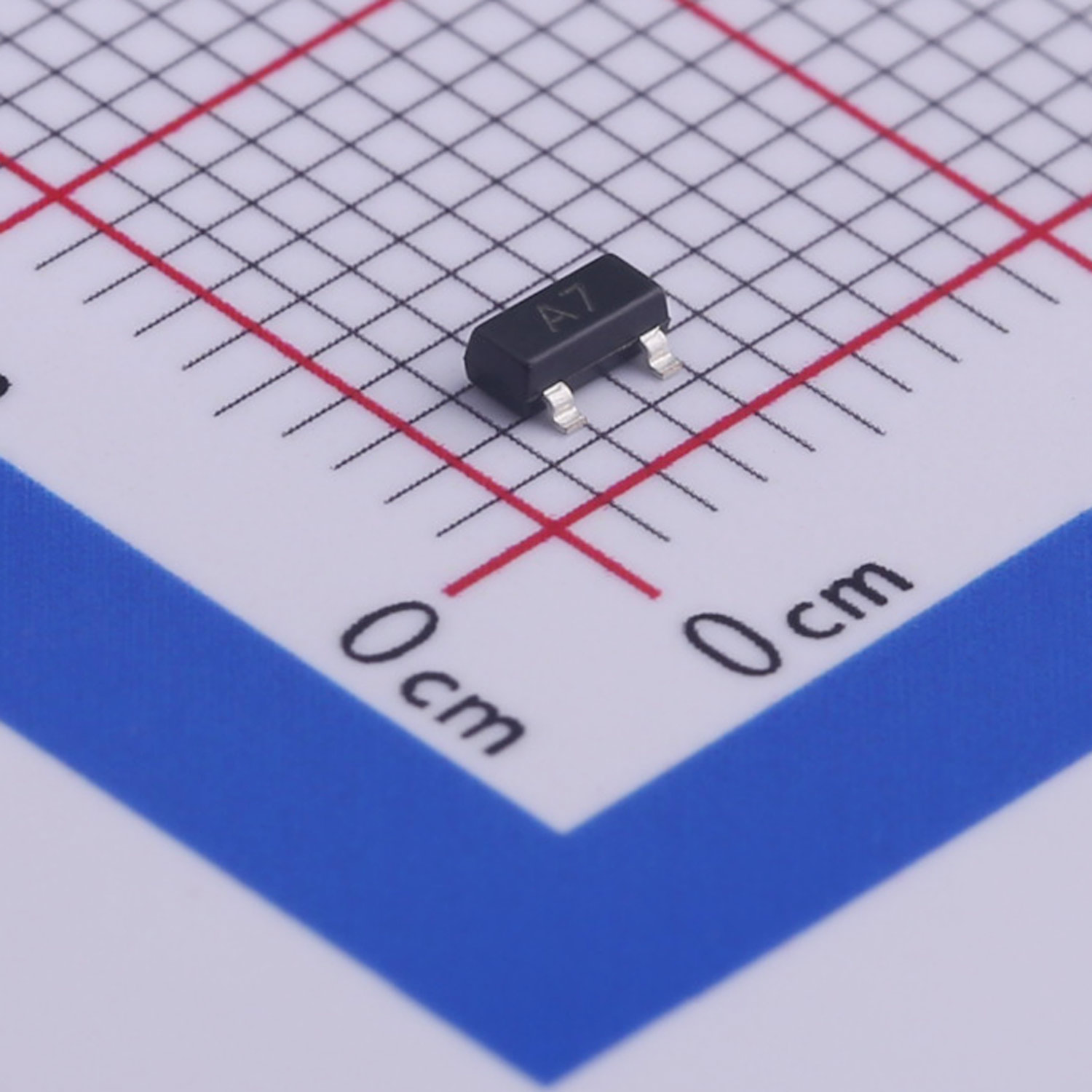

3D model BAV99-正面 Alternative equivalent for DIODES BAV99-13-F | Slkor BAV99 High-speed Switching Diode

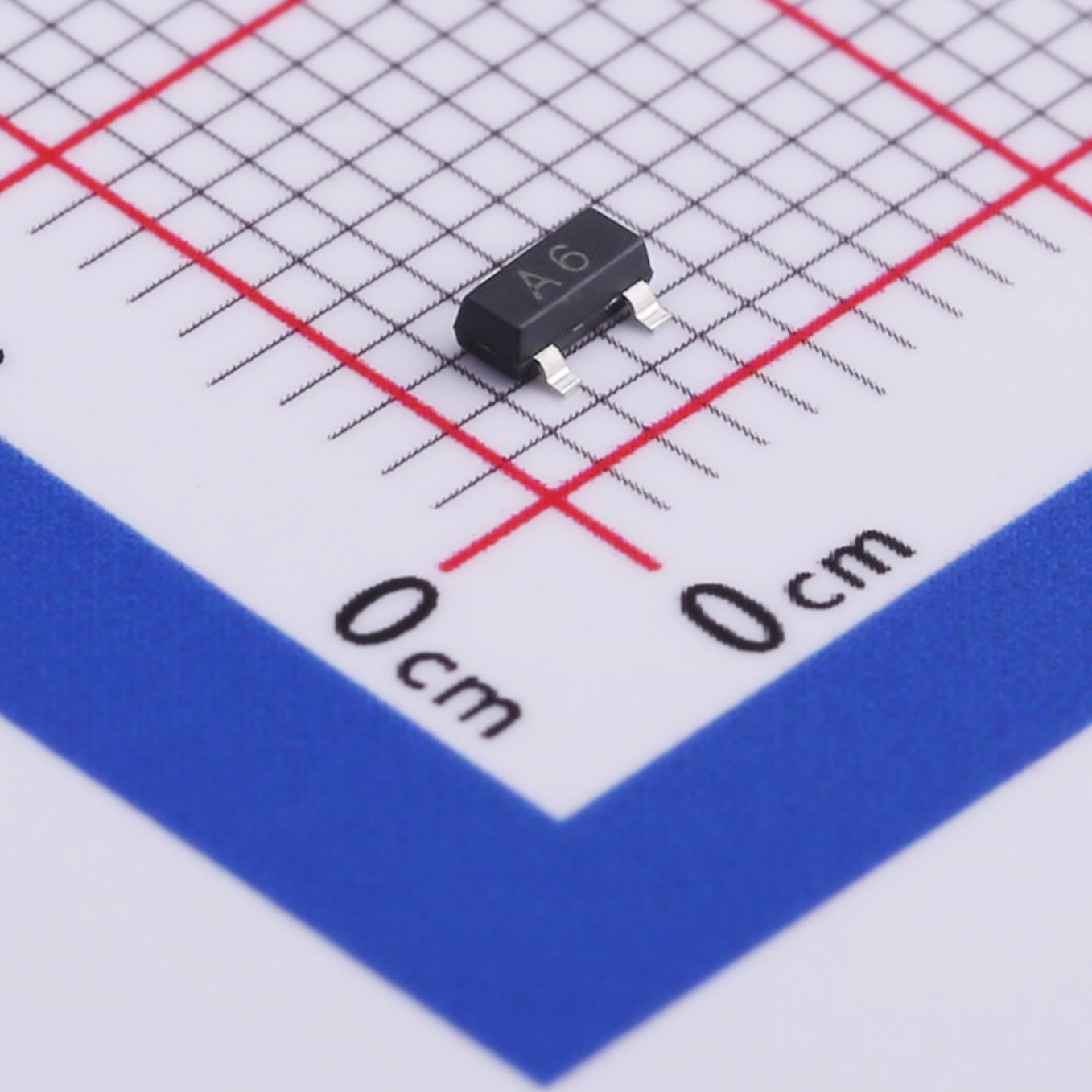

3D model MMBD4148-正面 Alternative equivalent for DIODES MMBD4148-7-F | Slkor MMBD4148 High-speed Switching Diode

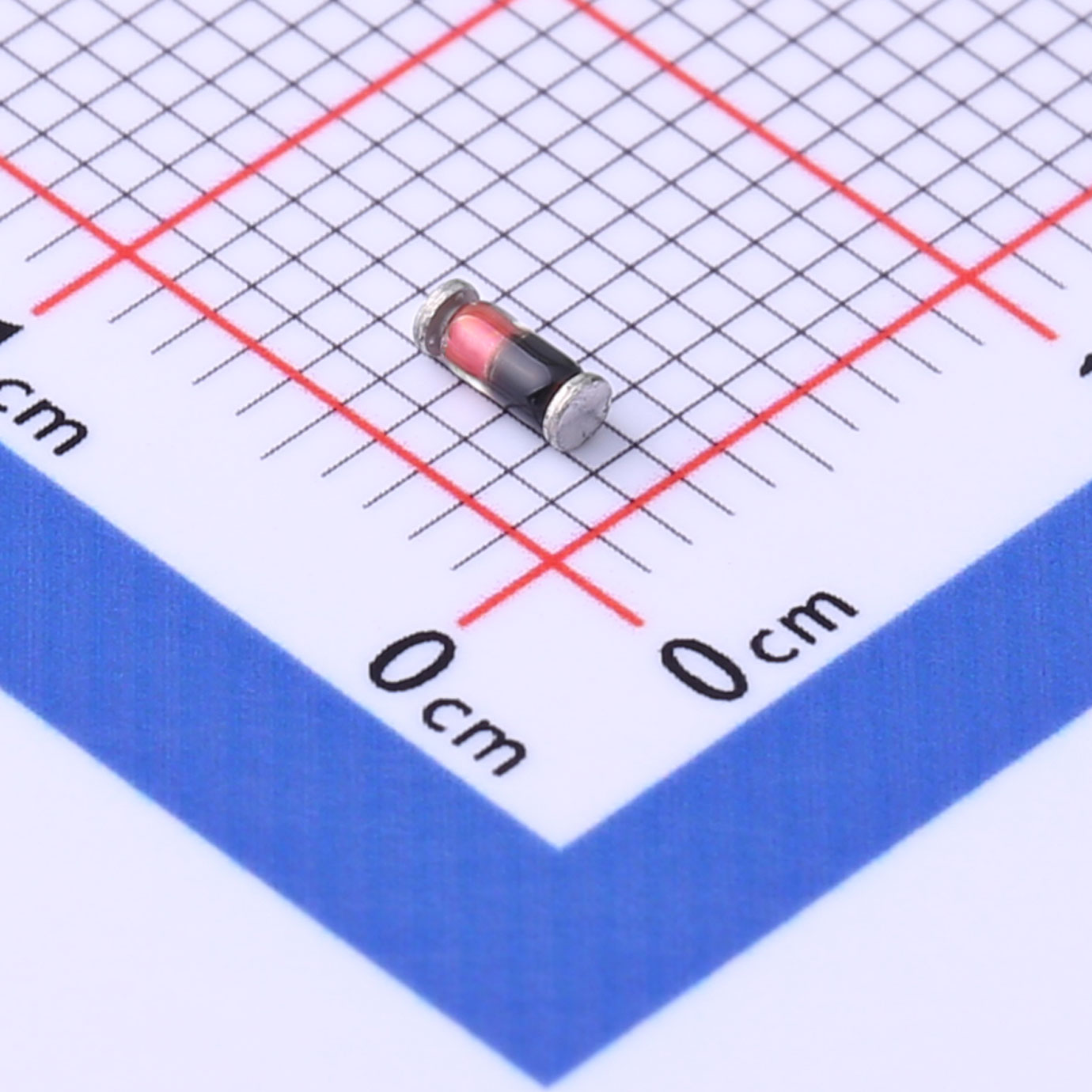

3D model LL4148-正面 Alternative equivalent for VISHA LL4148-GS08 | Slkor LL4148 Small Signal Fast Switching Diodes
3D model Switching Diode BAS16 Switching Diodes SOT-23
3D model Switching Diode BAS21A Switching Diodes SOT-23
3D model Switching Diode BAS21C Switching Diodes SOT-23

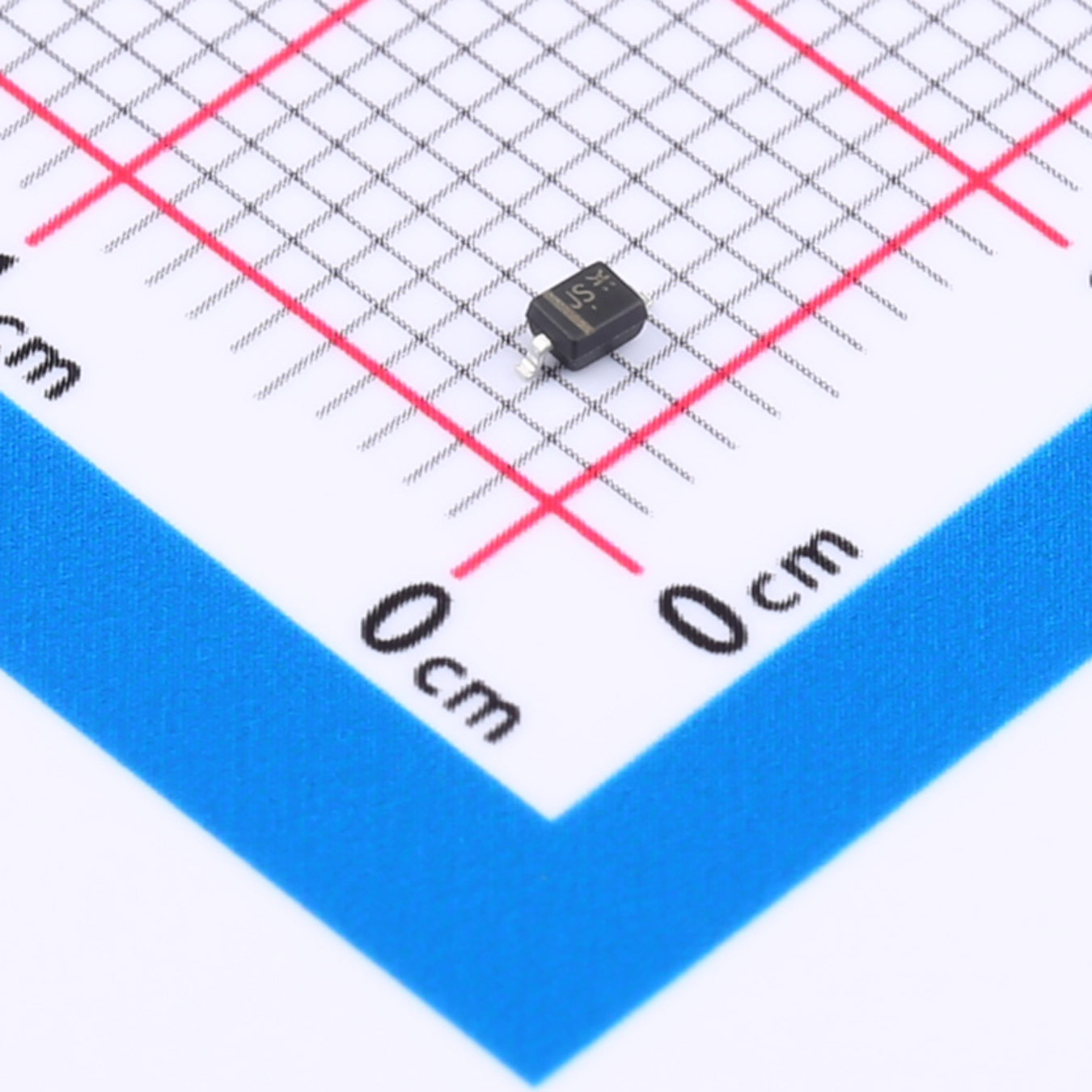

3D model BAS21H-正面 BAS21H Surface Mount Switching Diode SOD-323

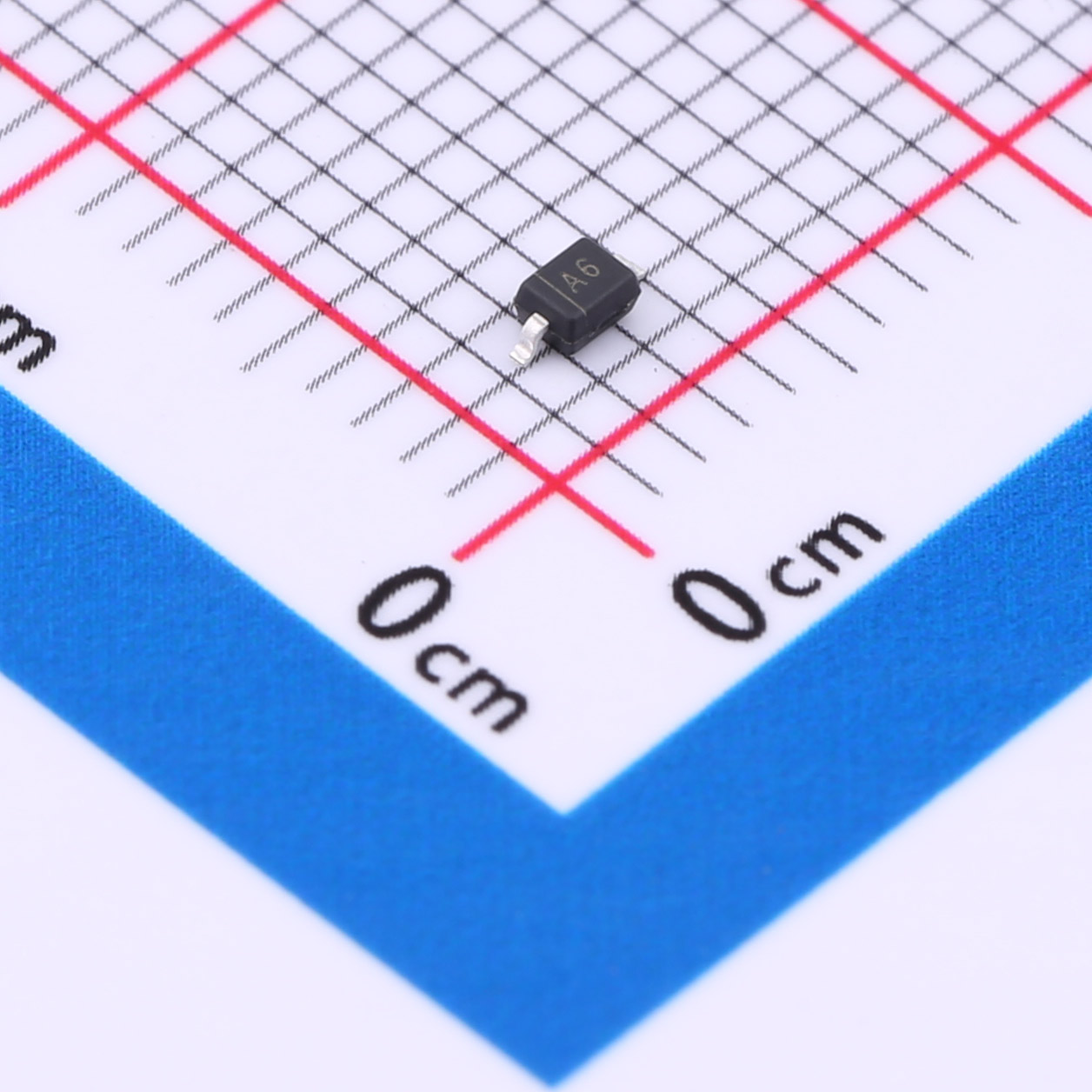

3D model BAS316-正面 BAS316 Surface Mount Switching Diode SOT-323

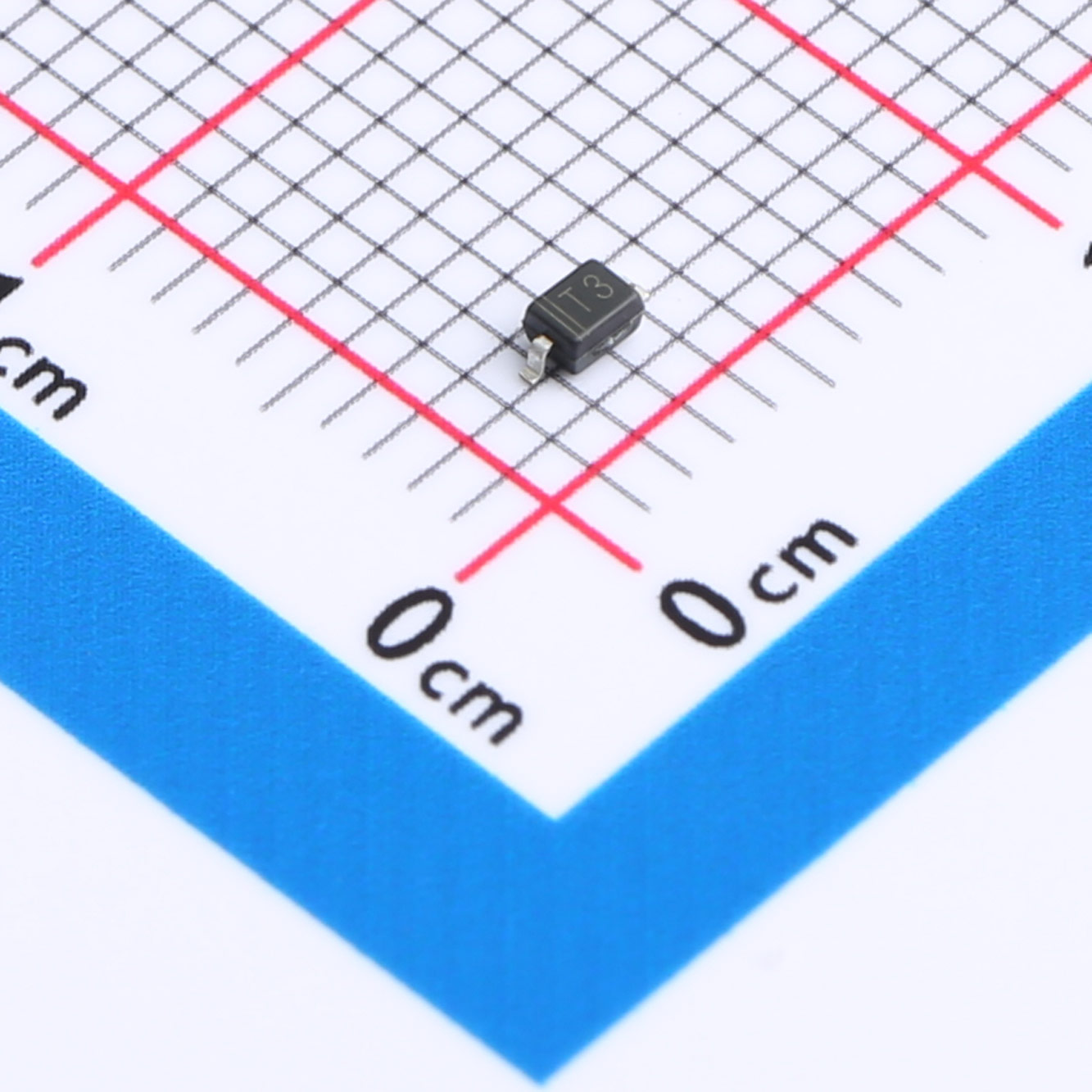

3D model BAS321-正面 BAS321 Switching Diodes SOD-323
3D model Switching Diode BAT54AW Switching Diodes SOT-323
75V 150mA 1V 25nA 4ns SOD-123
75V 150mA 1V 1μA 4ns SOD-323
80V 100mA 1.25V 100nA 4ns SOD-523
75V 250mA 0.62V 2.5μA 4ns SOD-323
85V 100mA 0.6V 0.1μA 1.6ns SOT-23
85V 100mA 0.9V 0.5μA@80V 4ns SOT-23
90V 100mA 1.2V 0.1μA 4ns SOD-323
120V 200mA 1V 0.1μA 50ns SOD-123
200V 200mA 1V 100nA 50ns SOT-123
250V 200mA 1.25V 0.1μA 50ns SOD-123
75V 125mA 1V 30nA 4ns SOT-23
100V 200mA 1V 5μA 4ns SOT-23
75V 150mA 1V 5μA 4ns LL-34
100V 200mA 0.715V 1μA 4ns SOT-23
250V 200mA 1000mV 0.1μA 50ns SOT-23
250V 200mA 1000mV 0.1μA 50ns SOT-23
250V 200mA 1V 0.1μA 50ns SOD-323
100V 150mA 1.25V 25μA@20V 4ns SOT-323
250V 200mA 1V 0.1μA 50ns SOD-323
30V 200mA 0.24V 2μA 5ns SOT-323
