High Voltage MOSFET

Suitable for a variety of high-voltage switching circuit applications, such as high-power motor drag.

Product Comparison Clear filters
Name
Package VDSS(V) Id(A) RDSON(Ω) VTH P/N

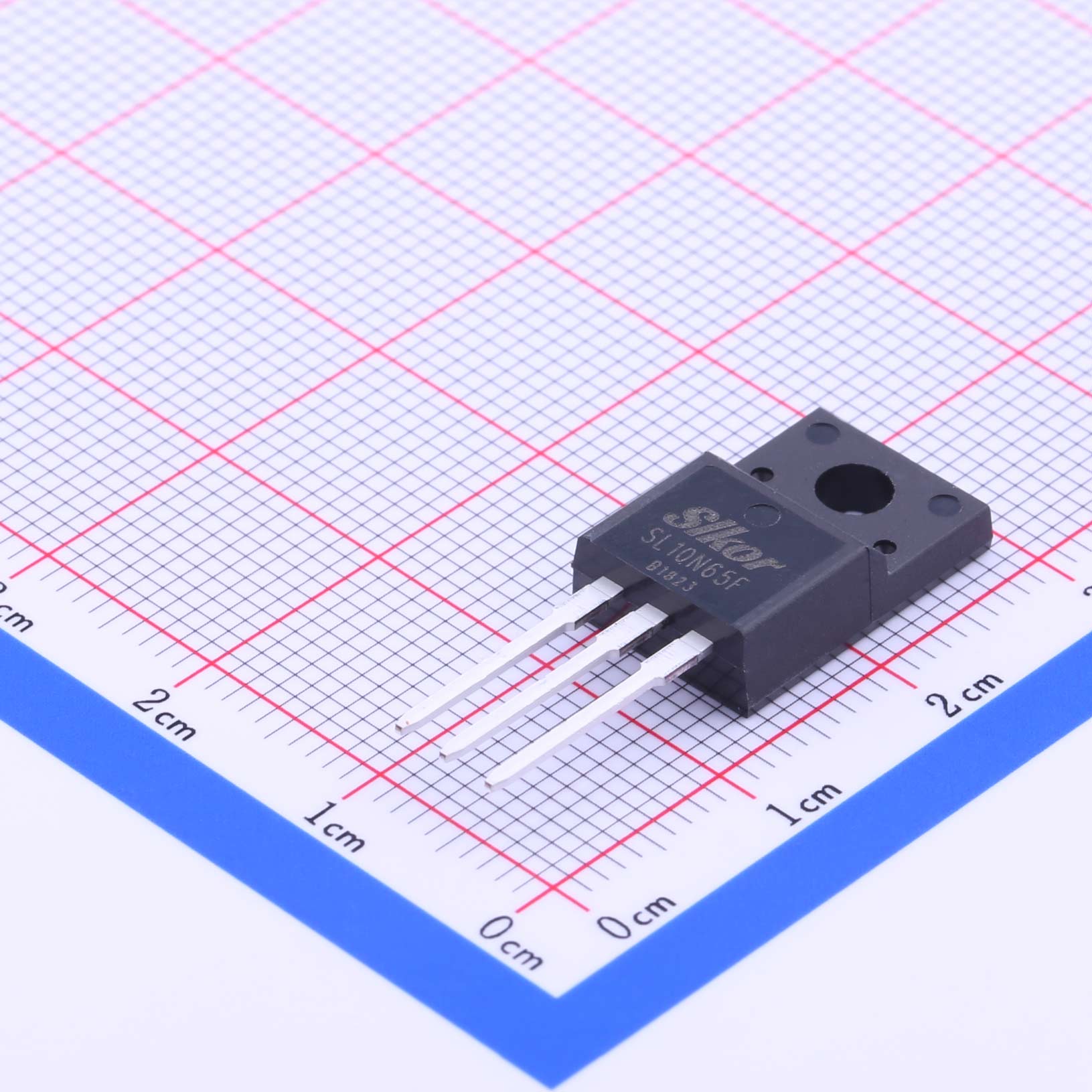

3D model SL10N65F-正面 SL10N65F N-Channel Power MOSFET TO-220F

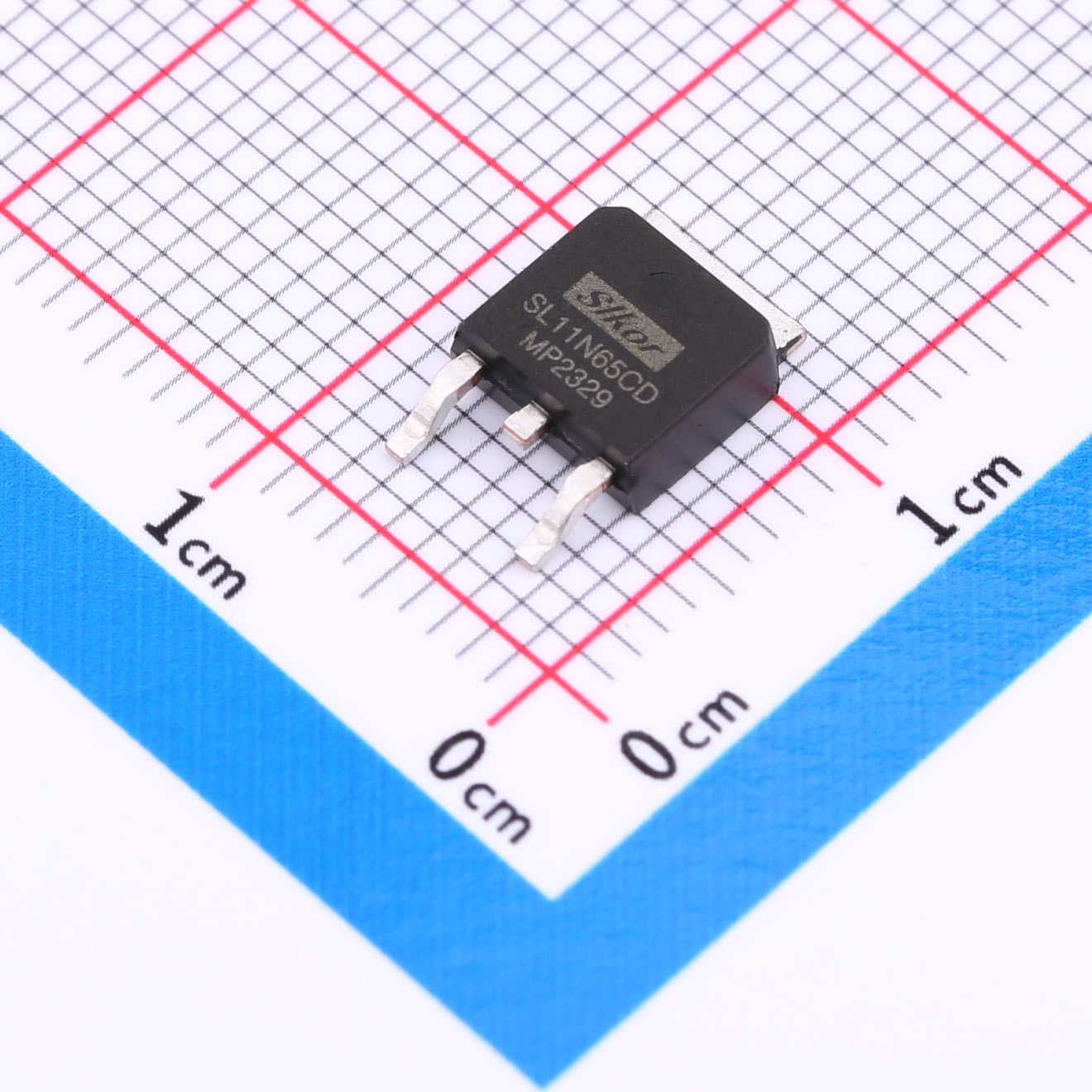

3D model SL11N65CD-正面 SL11N65CD N-channel Power MOSFET TO-252

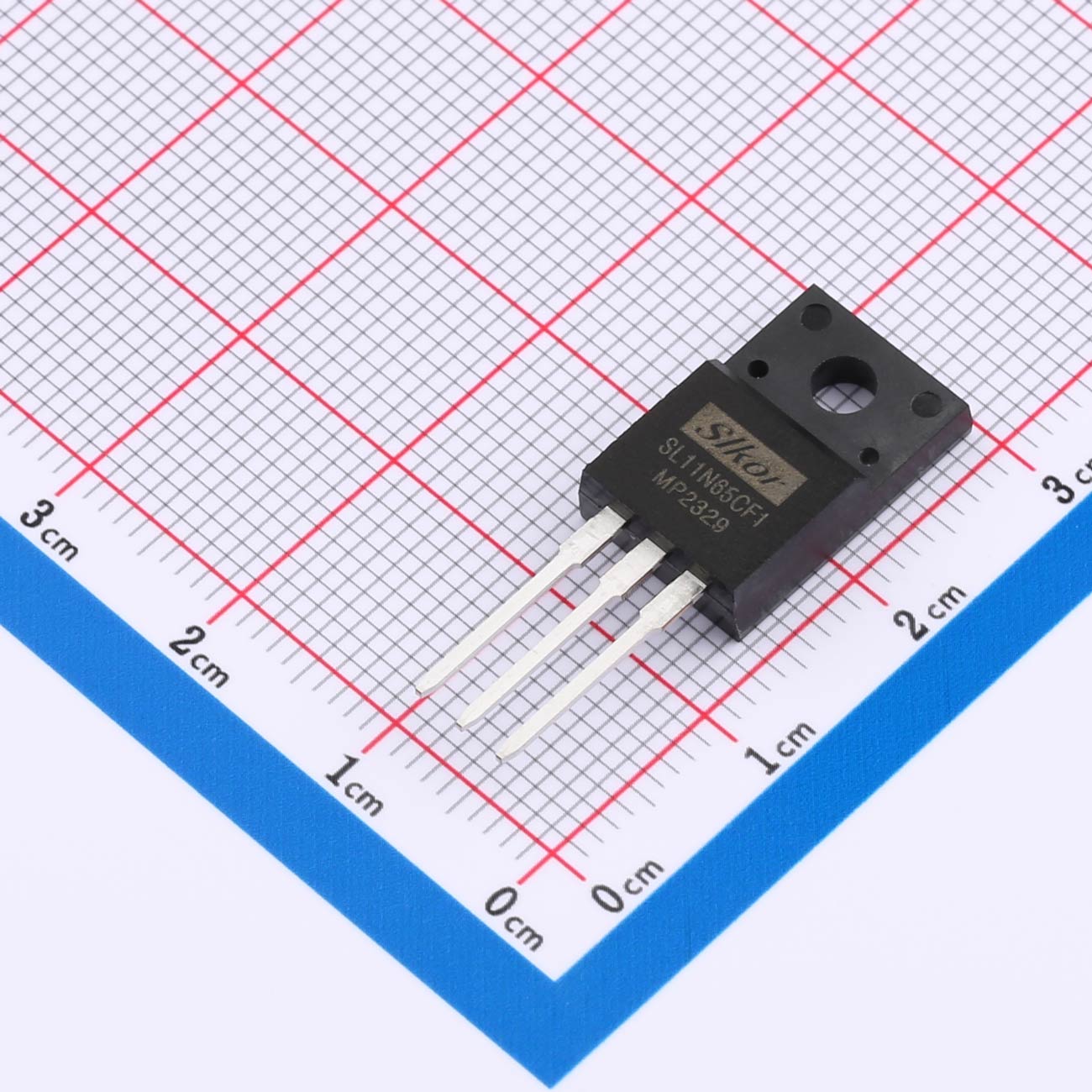

3D model SL11N65CF1-正面 SL11N65CF1 N-channel Power MOSFET TO-220F

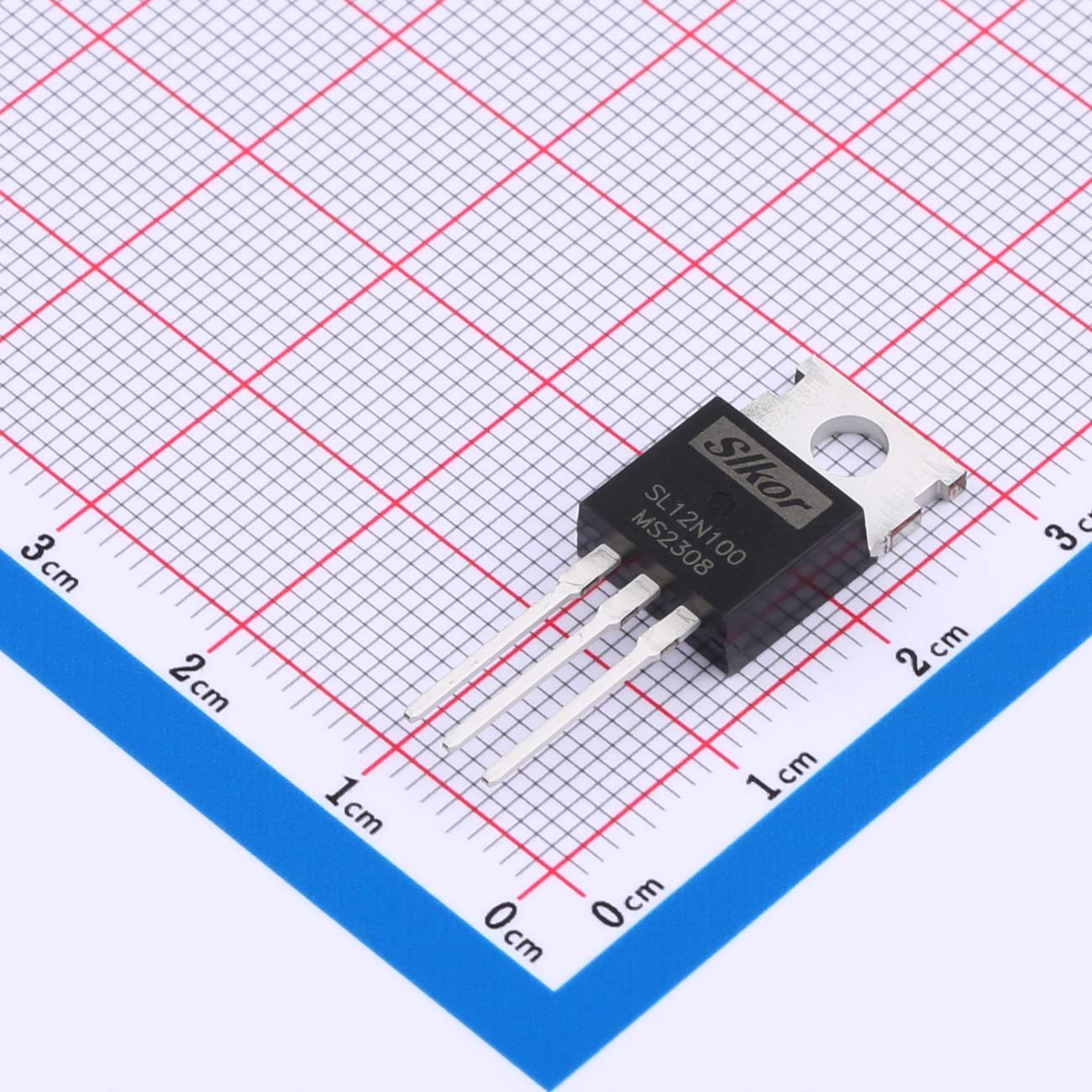

3D model SL12N100-正面 SL12N100 N-channel Power MOSFET TO-220

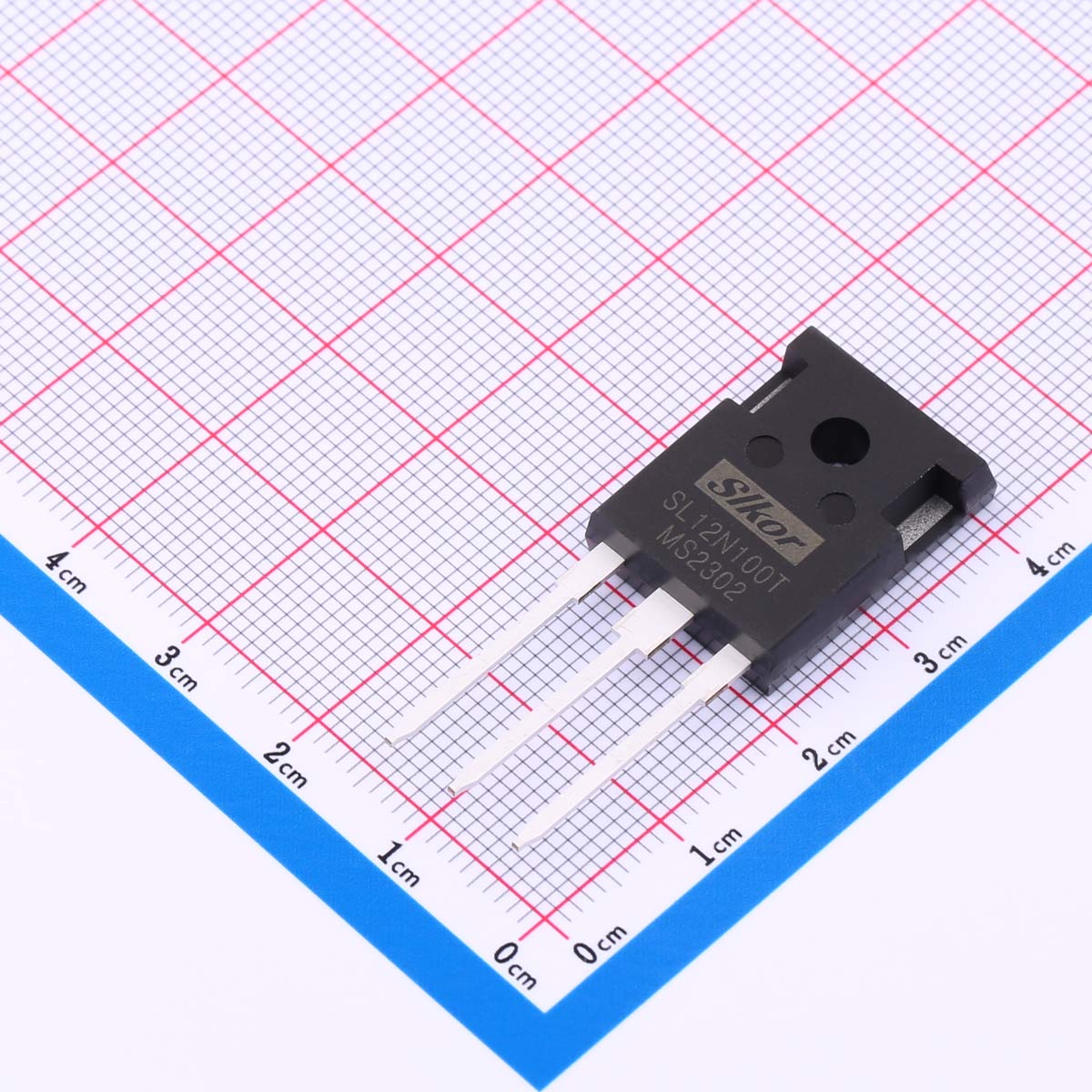

3D model SL12N100T-正面 SL12N100T N-channel Power MOSFET TO-247

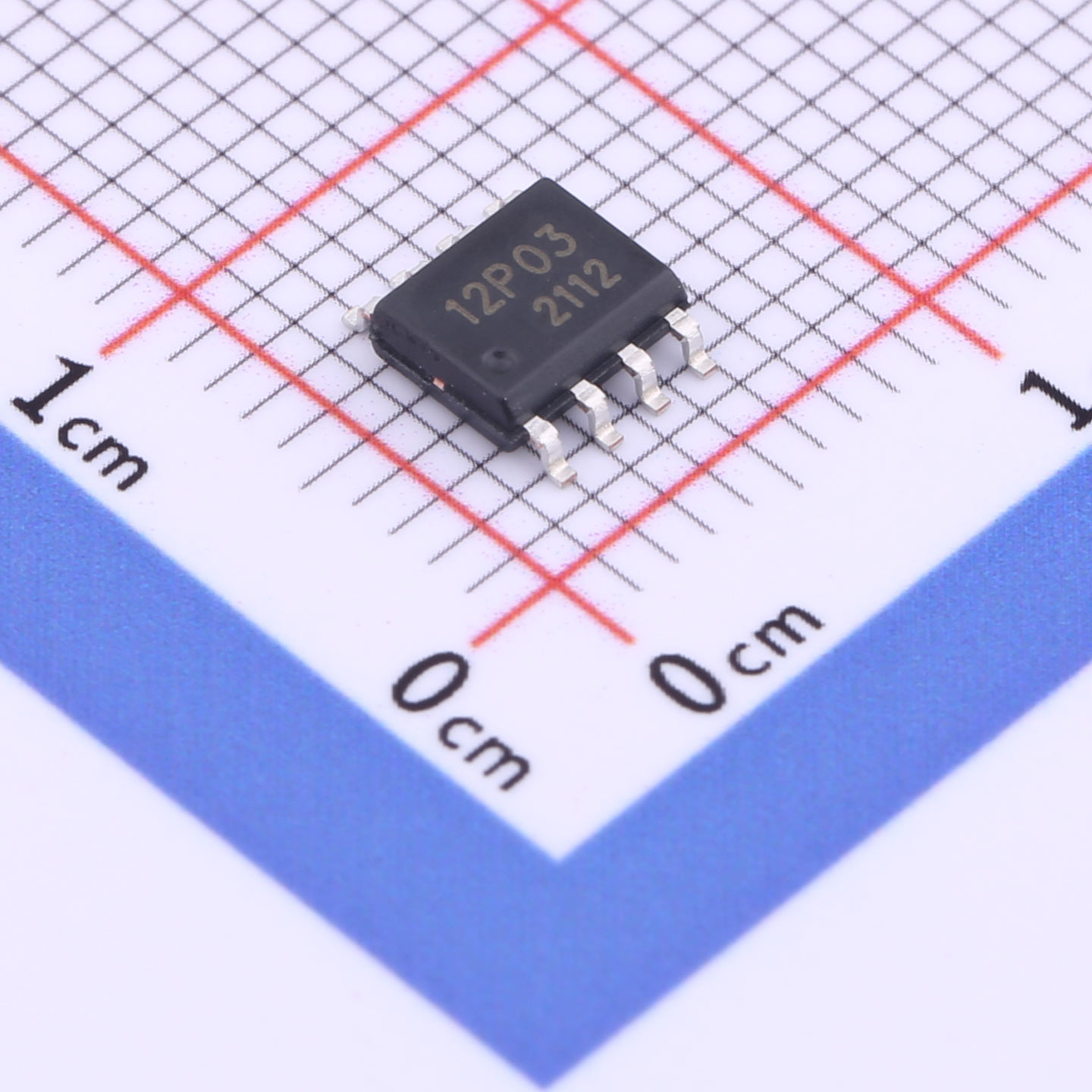

3D model SL12P03S-正面 SL12P03S P-channel Power MOSFET SOP-8

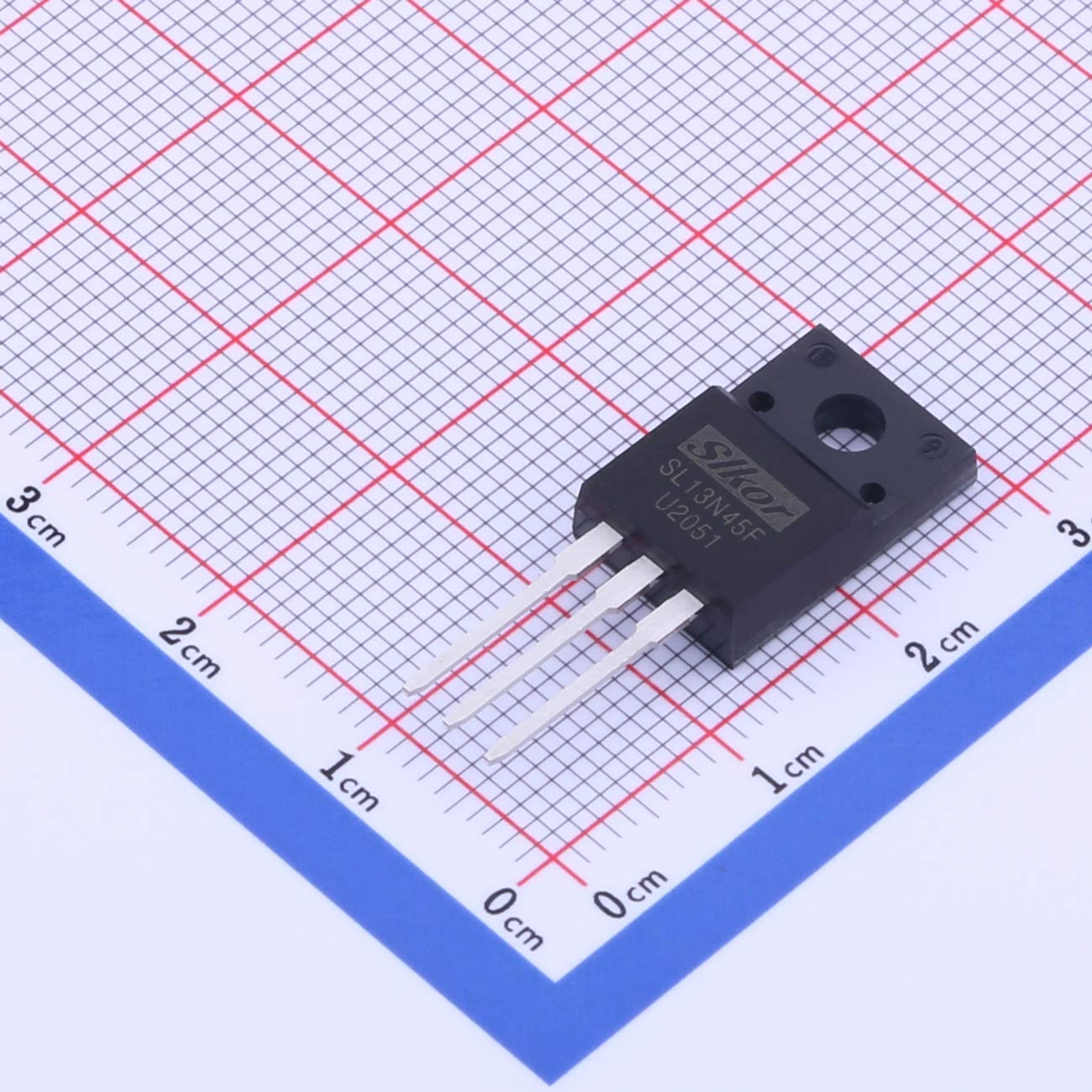

3D model SL13N45F-正面 SL13N45F N-Channel Enhancement MOSFET TO-220F
3D model SL13N50FS-正面 SL13N50FS N-Channel Enhancement MOSFET TO-220F

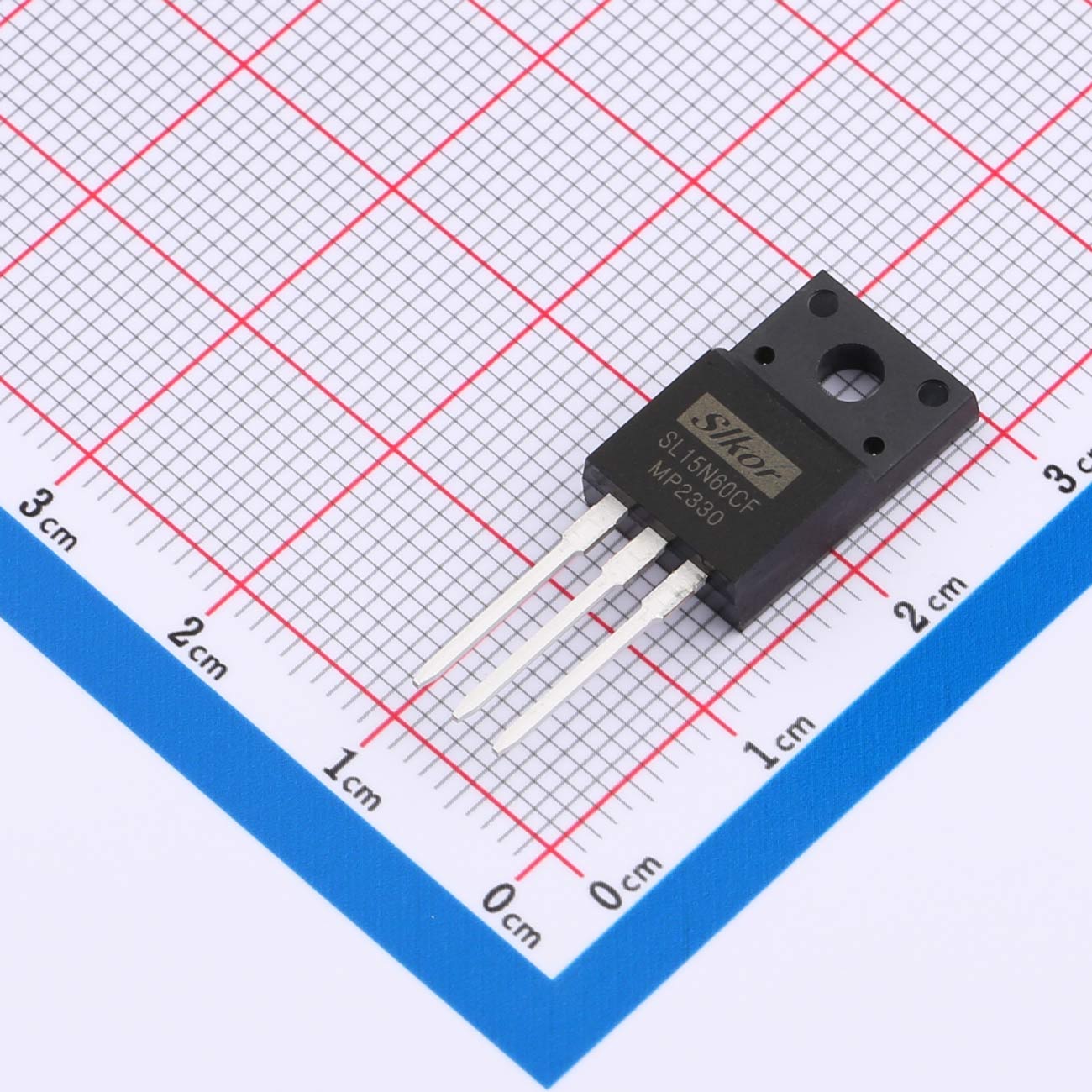

3D model SL15N60CF-正面 SL15N60CF N-channel Power MOSFET TO-220F

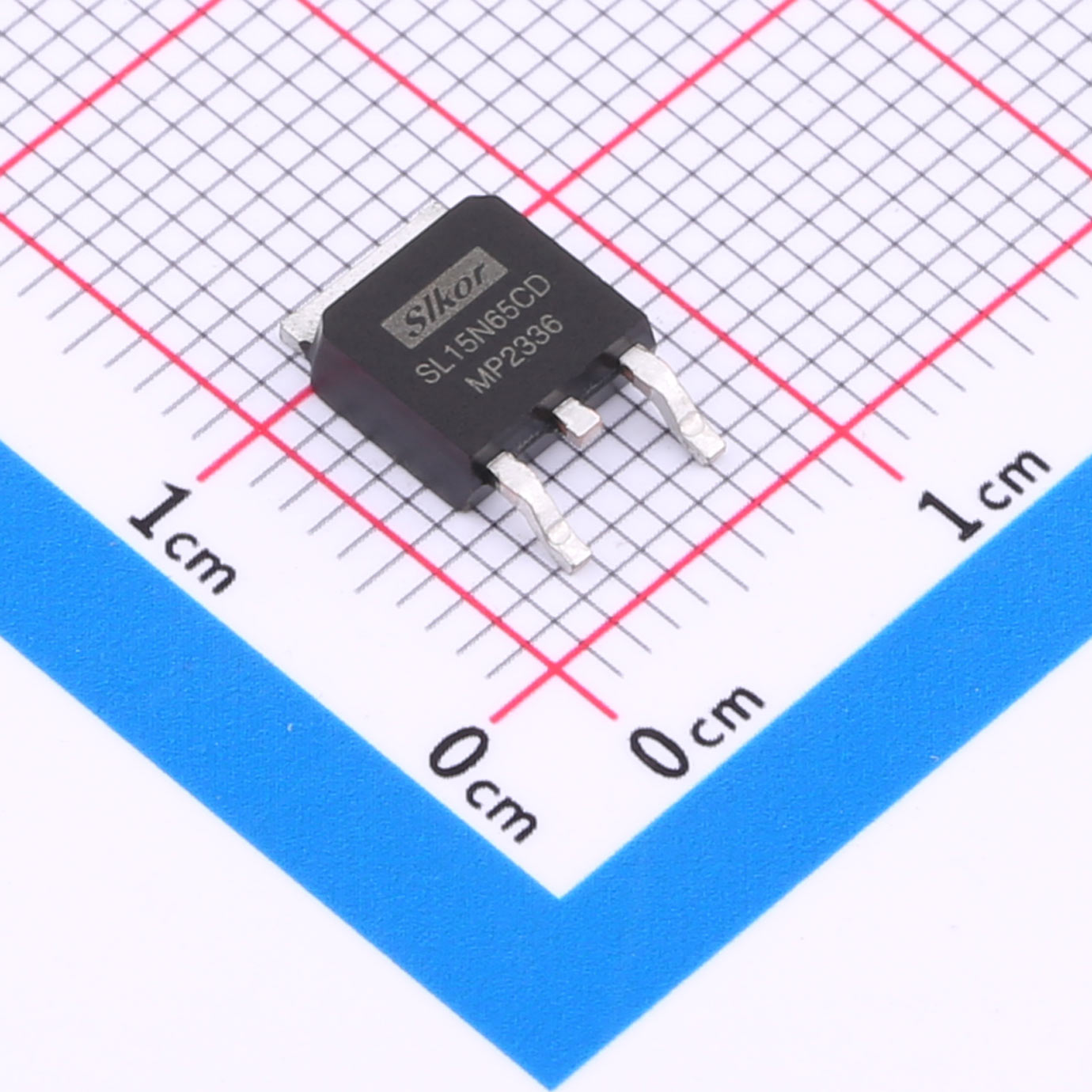

3D model SL15N65CD-正面 SL15N65CD N-channel Power MOSFET TO-252
3D model SL18N20-正面 SL18N20 N-channel Power MOSFET TO-220-3L

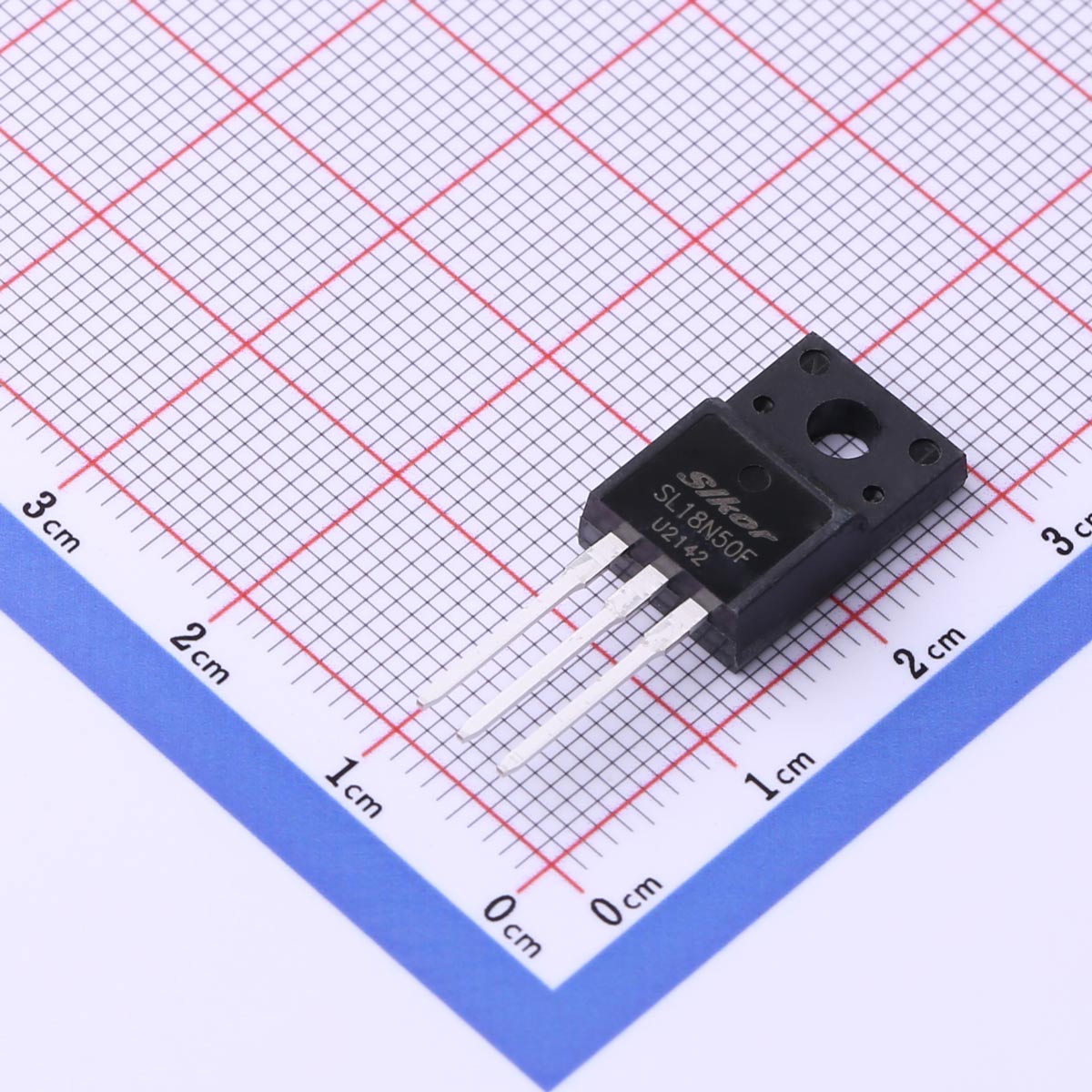

3D model SL18N50F-正面 SL18N50F N-Channel Power MOSFET TO-220F

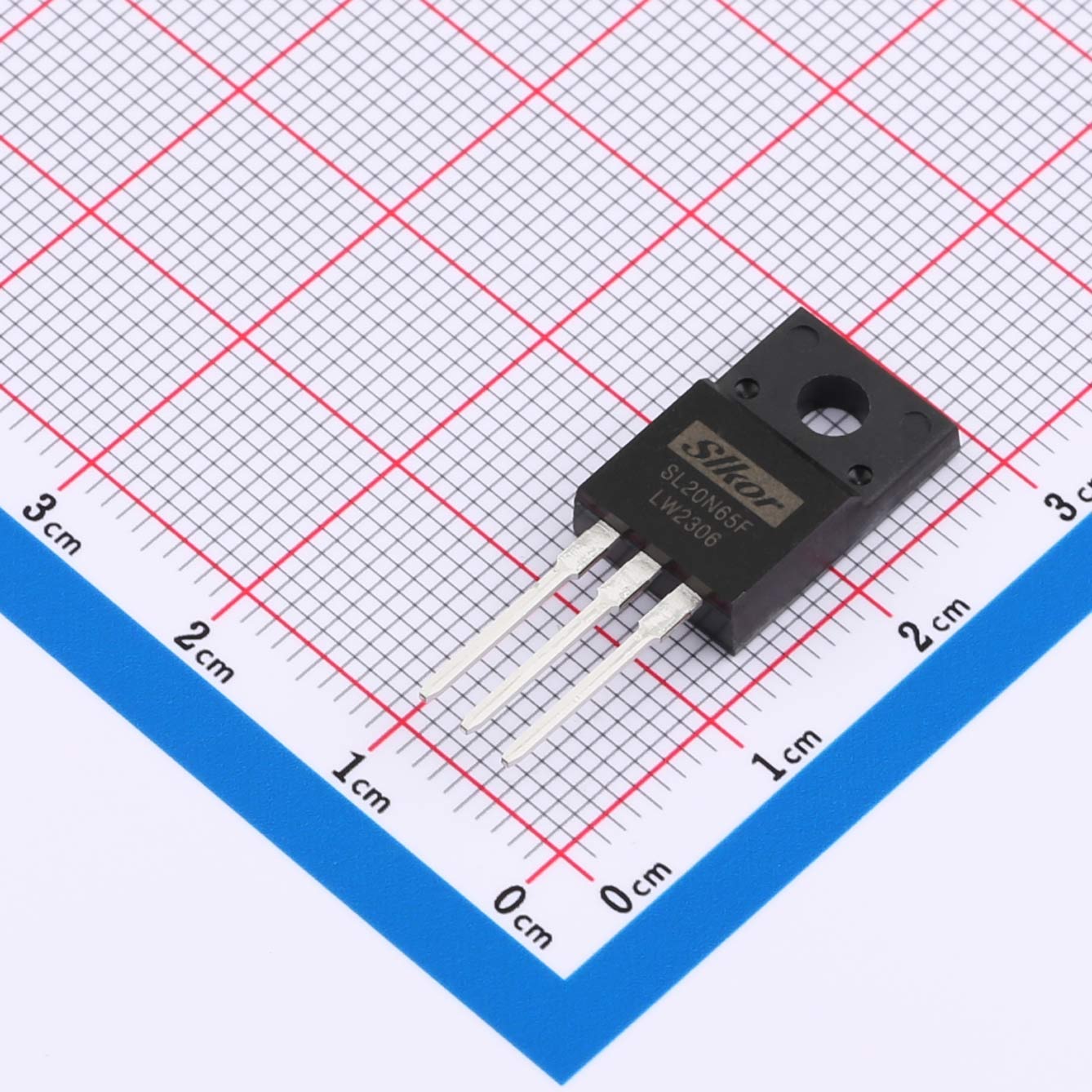

3D model SL20N65F-正面 SL20N65F N-channel Power MOSFET TO-220F

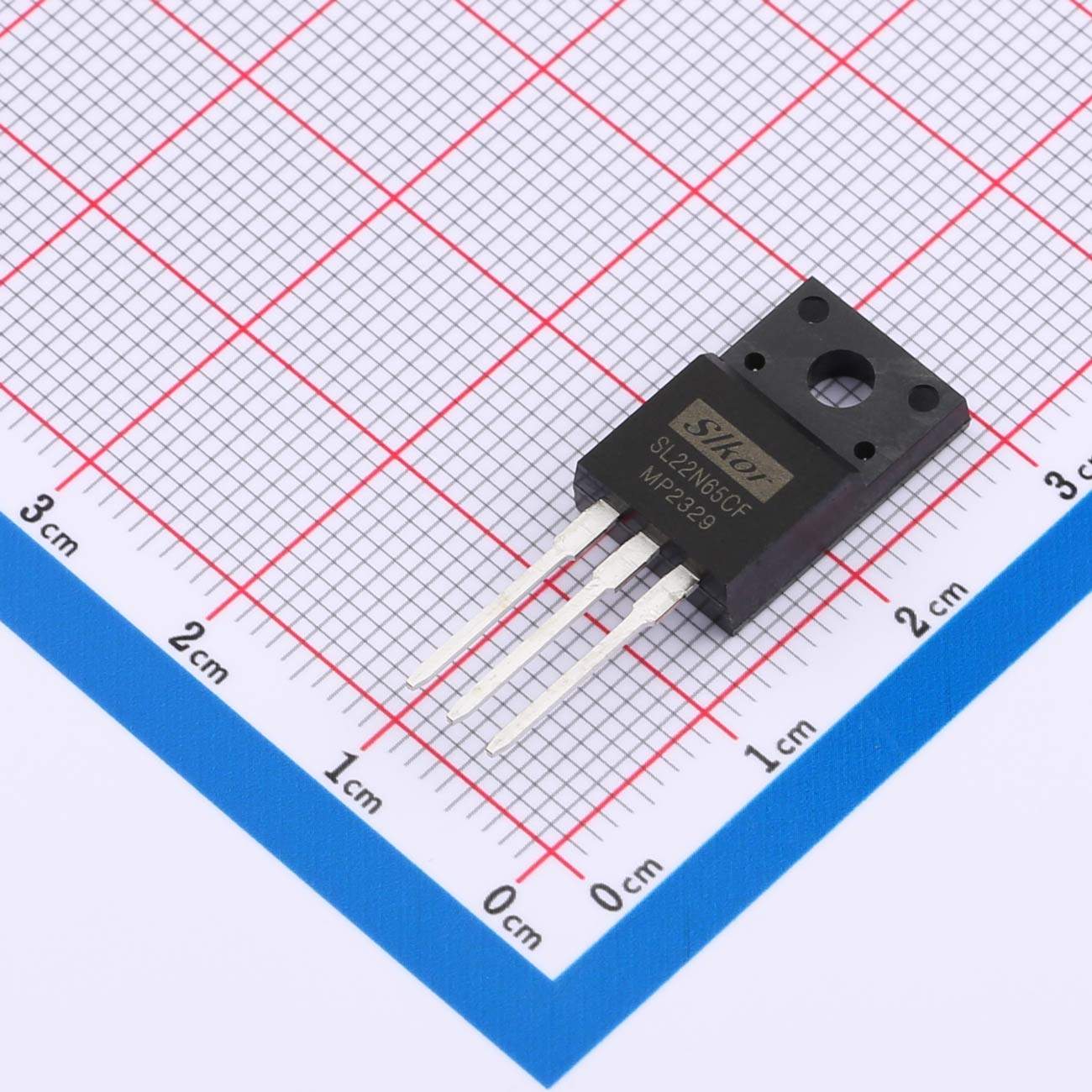

3D model SL22N65CF-正面 SL22N65CF N-channel Power MOSFET TO-220F

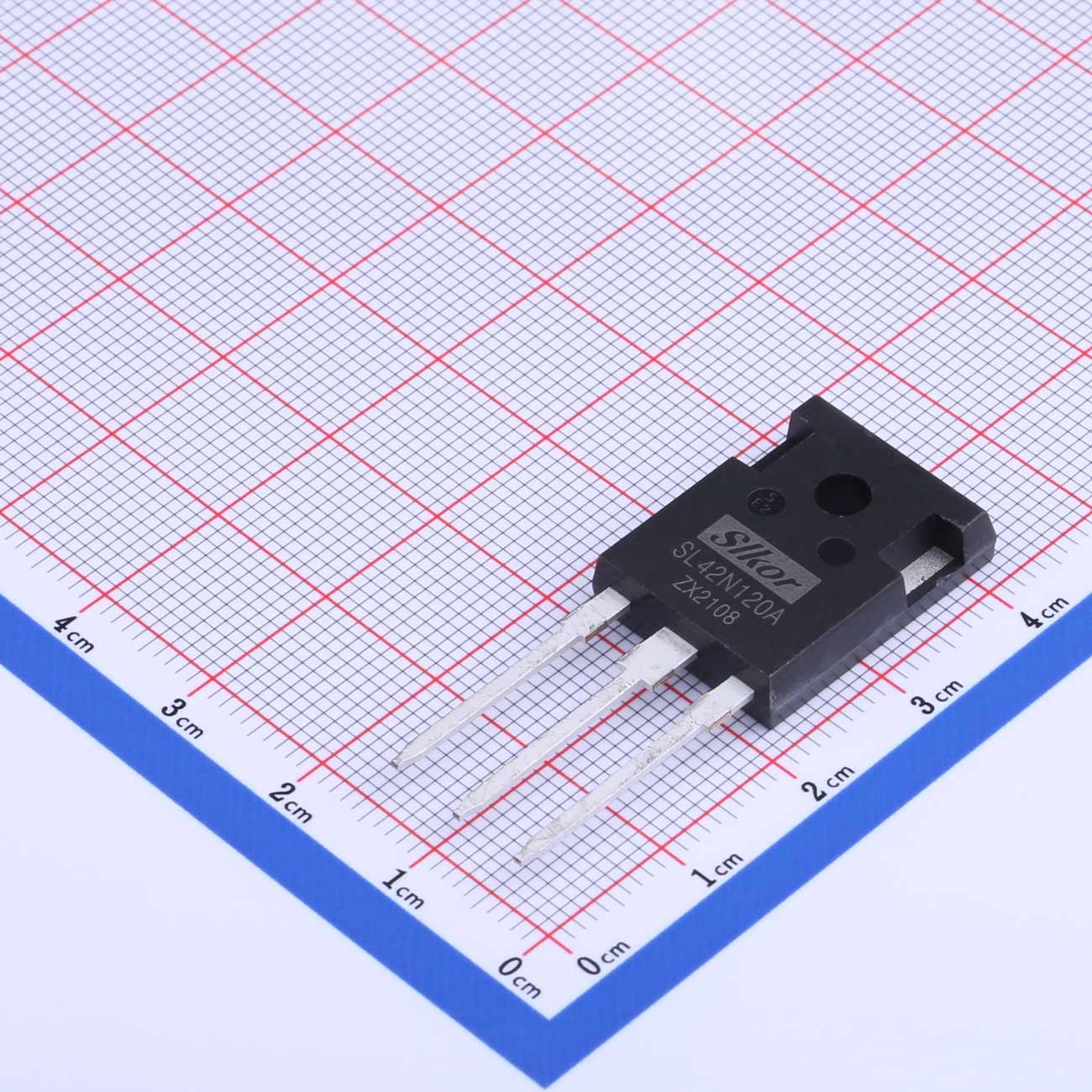

3D model SL42N120A-正面 SL42N120A High Voltage MOSFET TO-247-3

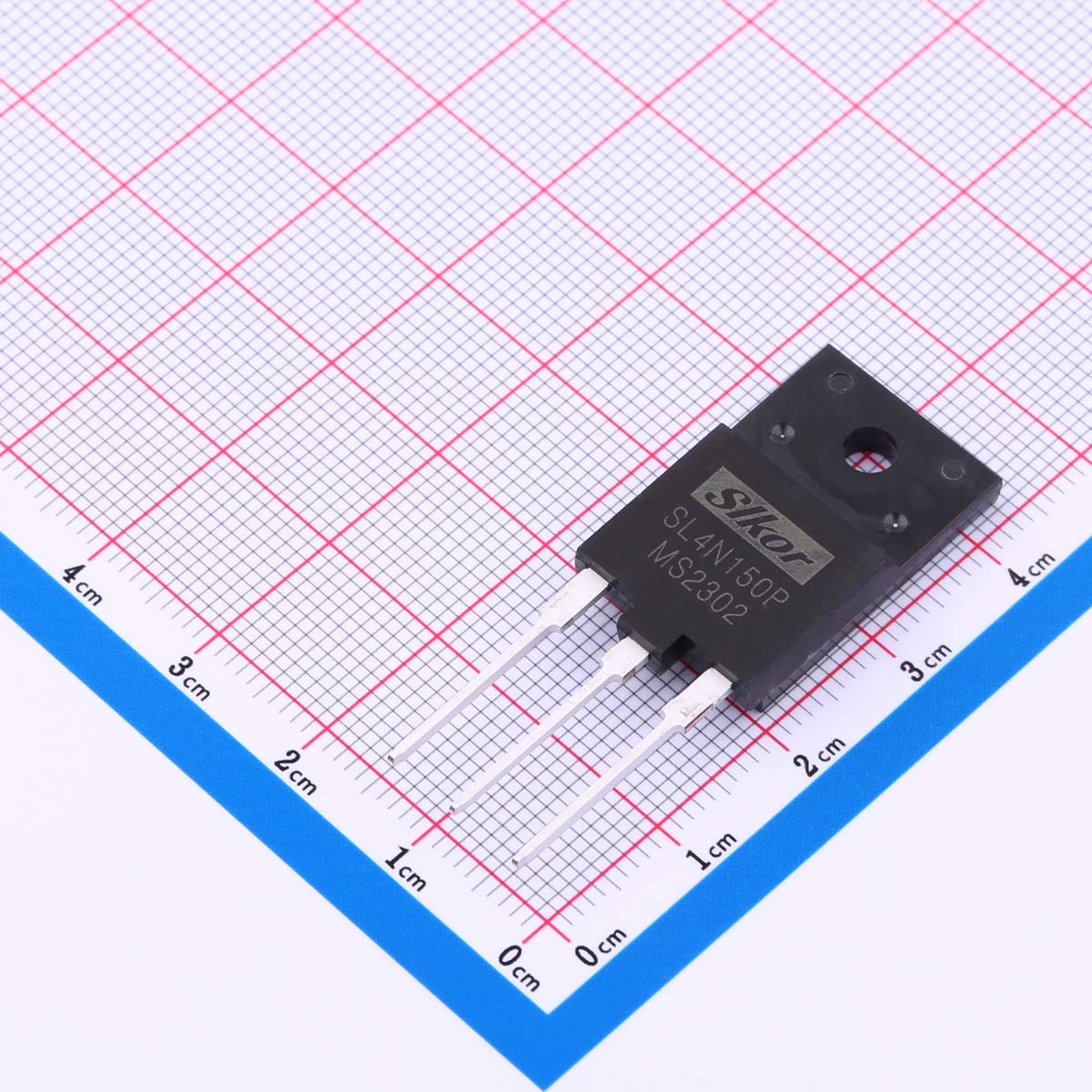

3D model SL4N150P-正面 SL4N150P N-channel Power MOSFET TO-3PF

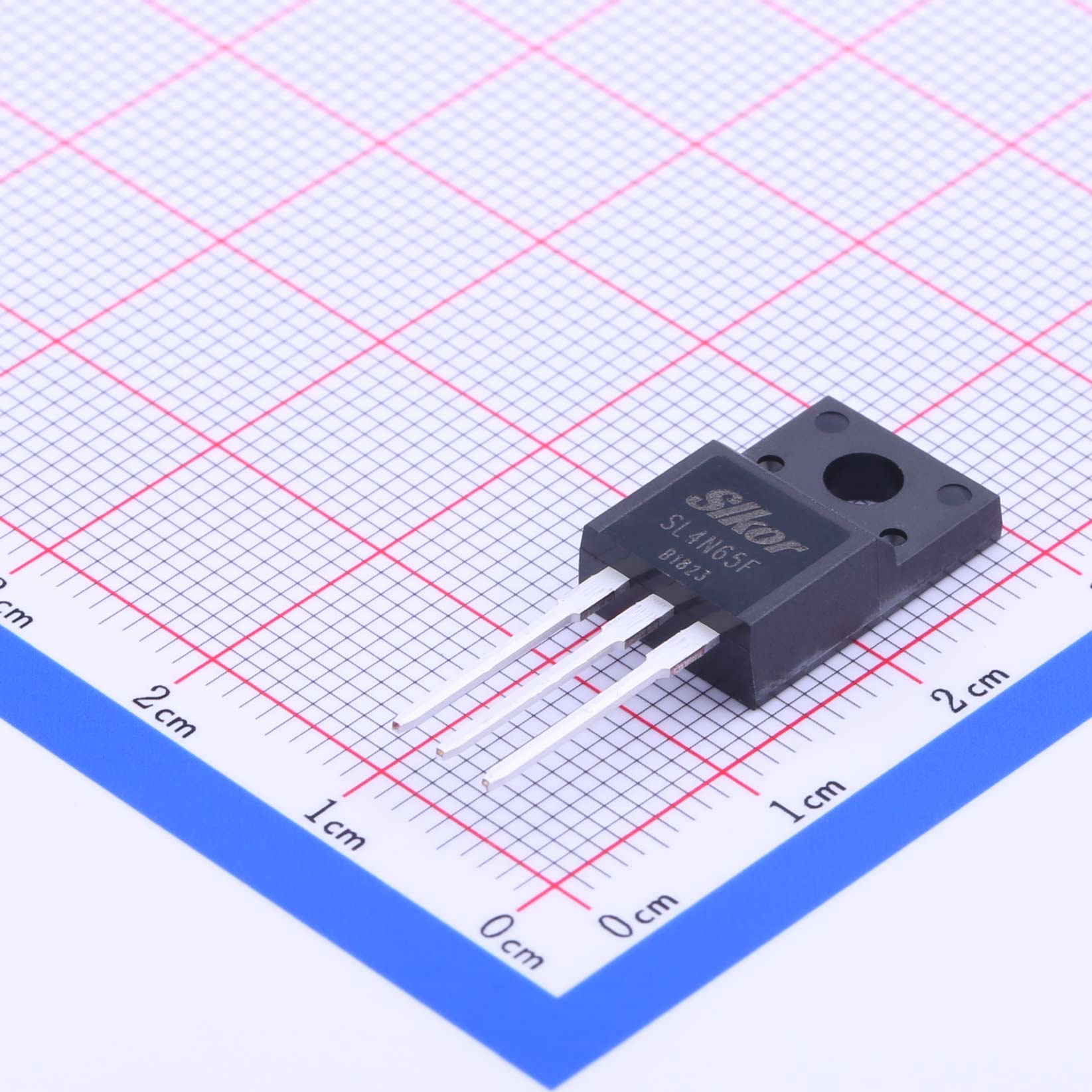

3D model SL4N65F-正面 SL4N65F N-Channel Power MOSFET TO-220F

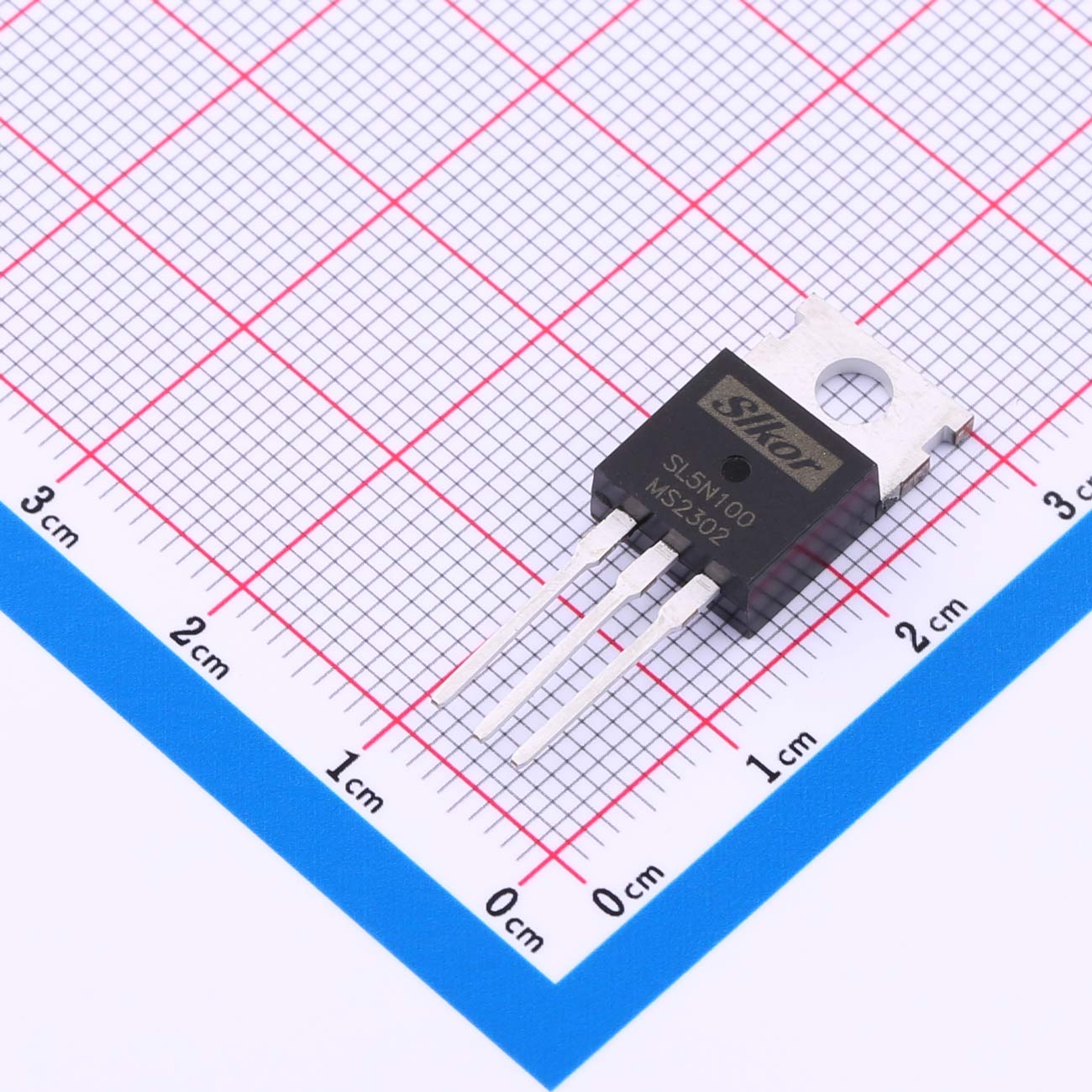

3D model SL5N100-正面 SL5N100 N-channel Power MOSFET TO-220

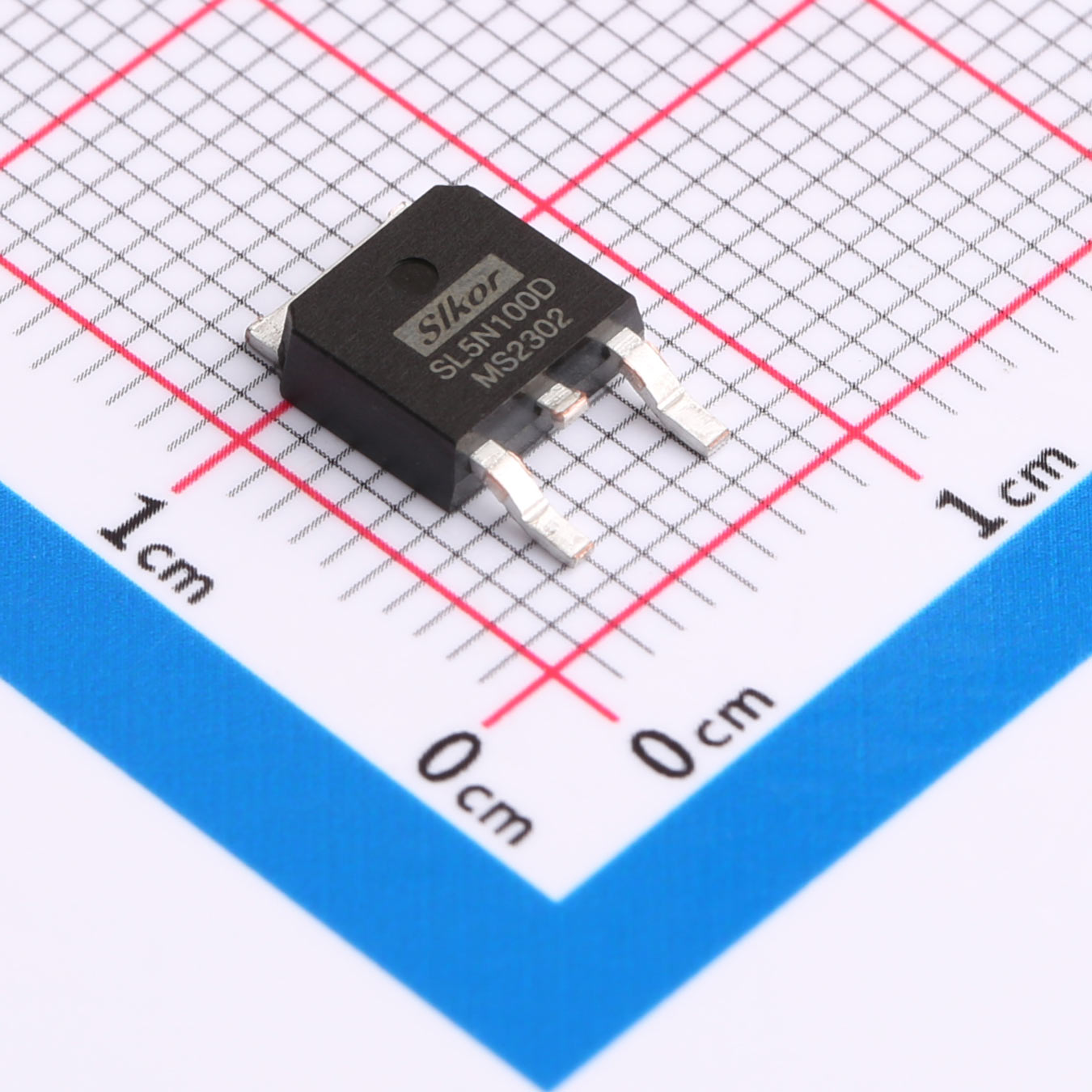

3D model SL5N100D-正面 SL5N100D N-channel Power MOSFET TO-252

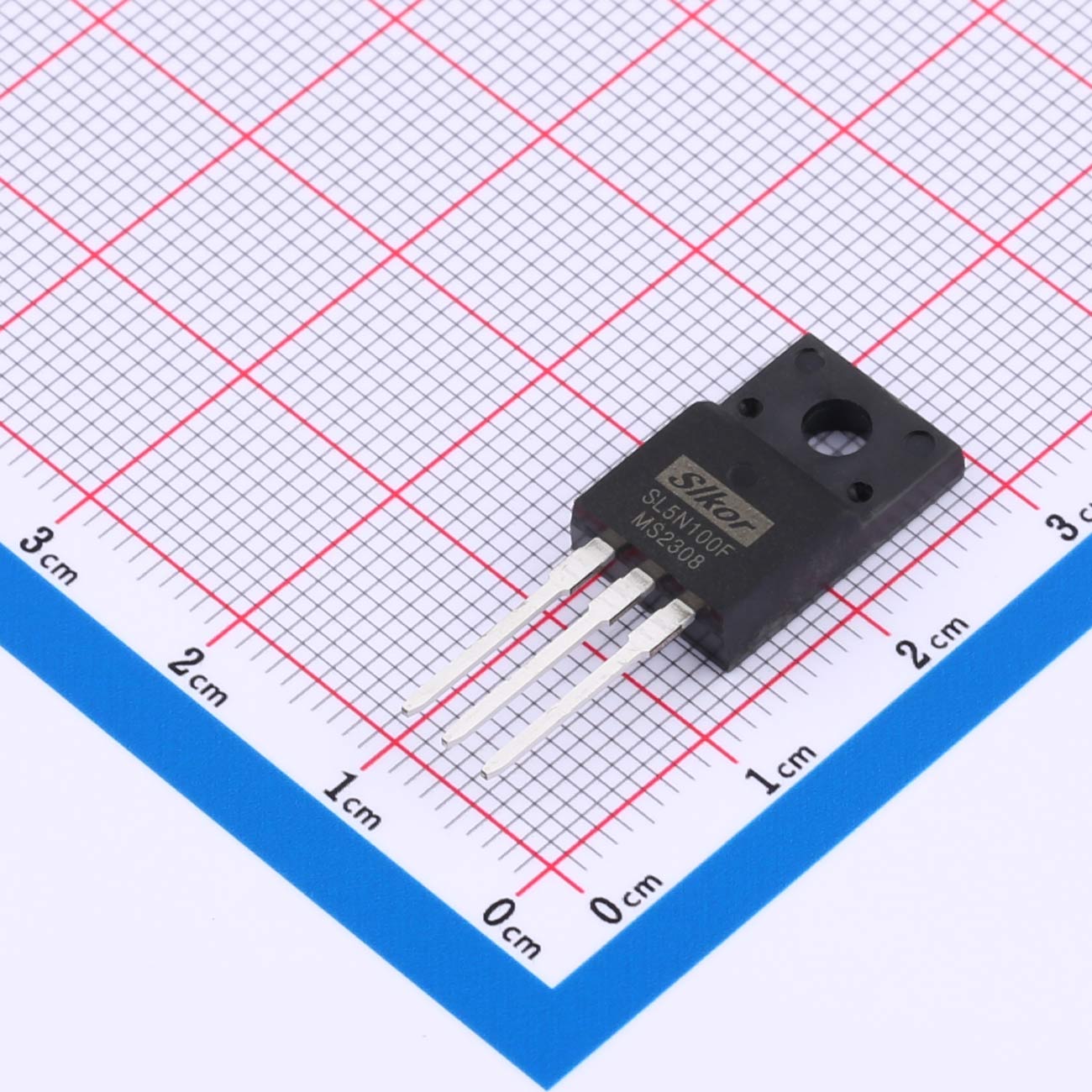

3D model SL5N100F-正面 SL5N100F N-channel Power MOSFET TO-220F
TO-220F 650V 10A 940mΩ@10V,5A 4.5V@250A N-Channel
TO-252 650V 11A 318mΩ@10V,4.0A 4.5V@0.8mA N-Channel
TO-220F 650V 11A 318mΩ@10V,4.0A 4.5V@250μA N-Channel
TO-220 1000V 12A 1.0Ω@10V,6A 5.0V@250μA N-Channel
TO-247 1000V 12A 1.0Ω@10V,6A 5.0V@250μA N-Channel
SOP-8 -30V -12A 24mΩ@-4.5V,-5A -1.6V@-250μA P-Channel
TO-220F 450V 13A 470mΩ@10V,5.5A 4V@250uA N-Channel
TO-220F 500V 13A 520mΩ@10V,6.5A 4V@250μA N-Channel
TO-220F 650V 15A 238mΩ@10V,7.5A 4.5V@250μA N-Channel
TO-252 650V 15A 238mΩ@10V,7.5A 4.5V@250μA N-Channel
TO-220-3L 200V 18A 120mΩ@10V,9A 3.0V@250μA N-Channel
TO-220F 500V 18A 0.32Ω@10V,9A 4V@250μA N-Channel
TO-220F 650V 20A 0.38Ω@10V,10A 3.5V@250μA N-Channel
TO-220F 650V 22A 150mΩ@10V,10A 4.5V@250μA N-Channel
TO-247-3 1.2KV 42A 80mΩ@20V,10A 3.6V@3.8mA N-Channel
TO-3PF 1500V 4A 5.8Ω@10V,1.3A 4.5V@250μA N-Channel
TO-220F 650V 4A 2.6Ω@10V,2A 4.5V@250A N-Channel
TO-220 1000V 5A 4.2Ω 3.5V@100μA N-Channel
TO-252 1000V 5A 4.2Ω 3.5V@100μA N-Channel
TO-220F 1000V 5A 4.2Ω 3.5V@100μA N-Channel
