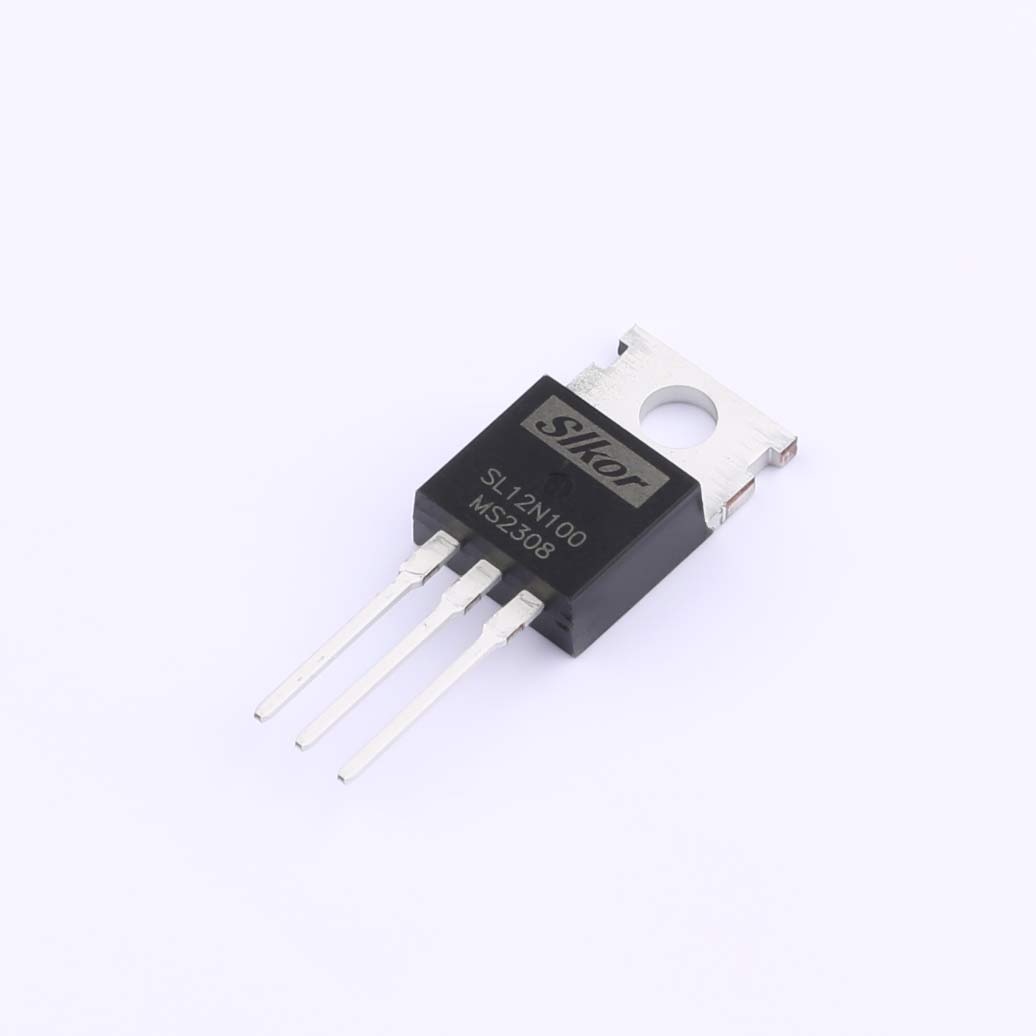

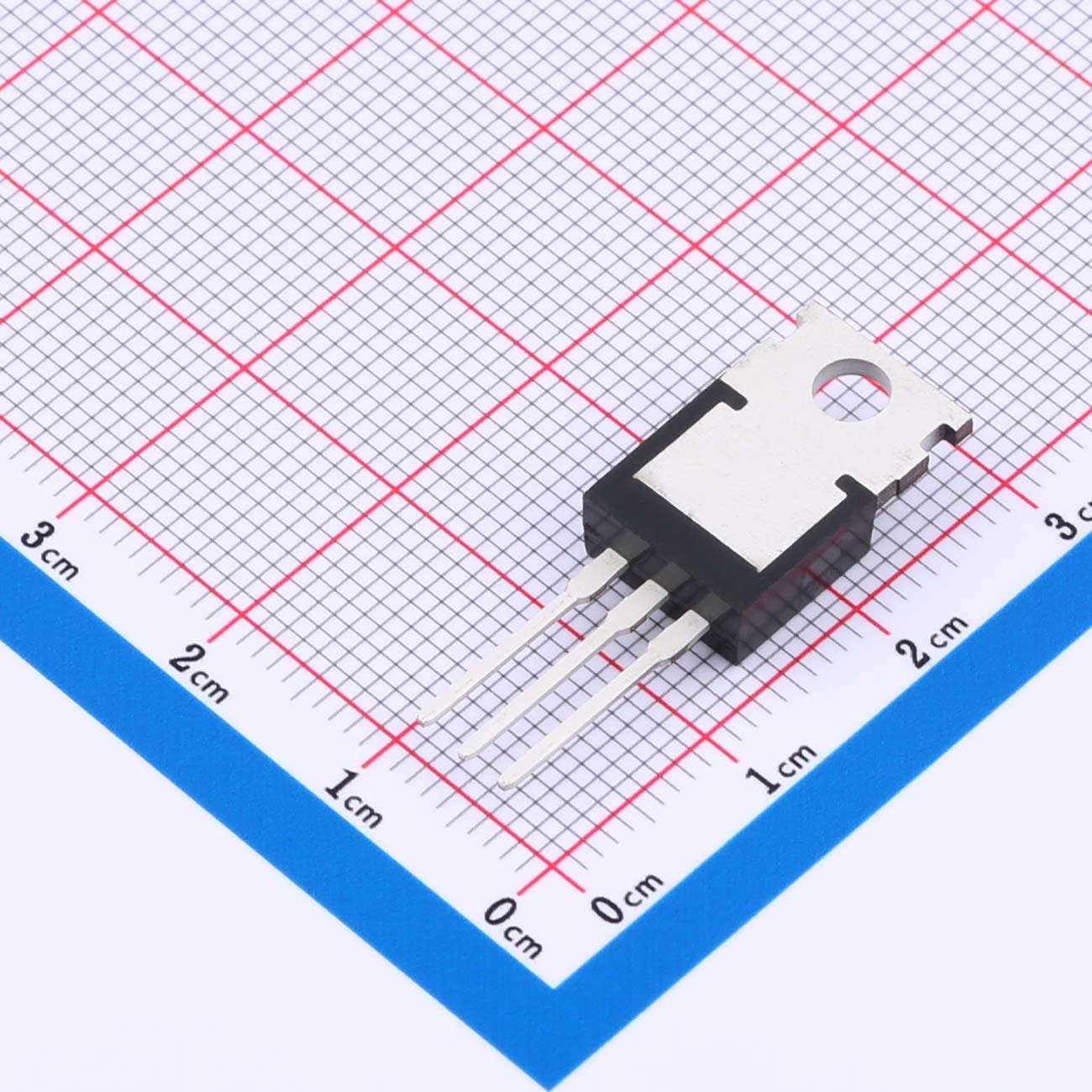

Type: N-channel
Vdss:1000V
Id: 12A
RDS(on)@Vgs,Id: 1.0Ω@10V,6A
Vgs(th)@Id: 5.0V@250μA
Pd: 272W
Features
lLow gate charge
lLow Crss(typ 13pF)
lFast switching
l100% avalanche tested
lImproved dv/dt capability
lRoHS product
Application
lHigh frequency switching mode power supply
lElectronic ballast based on half bridge
lLED power supplies
| File Name | Title | Description |
|---|---|---|
| 已压缩-SL12N100.pdf | （已压缩）SL12N100 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
