High Current Handling
High Voltage Capability
Low On-Resistance & High Power Dissipation
Description：

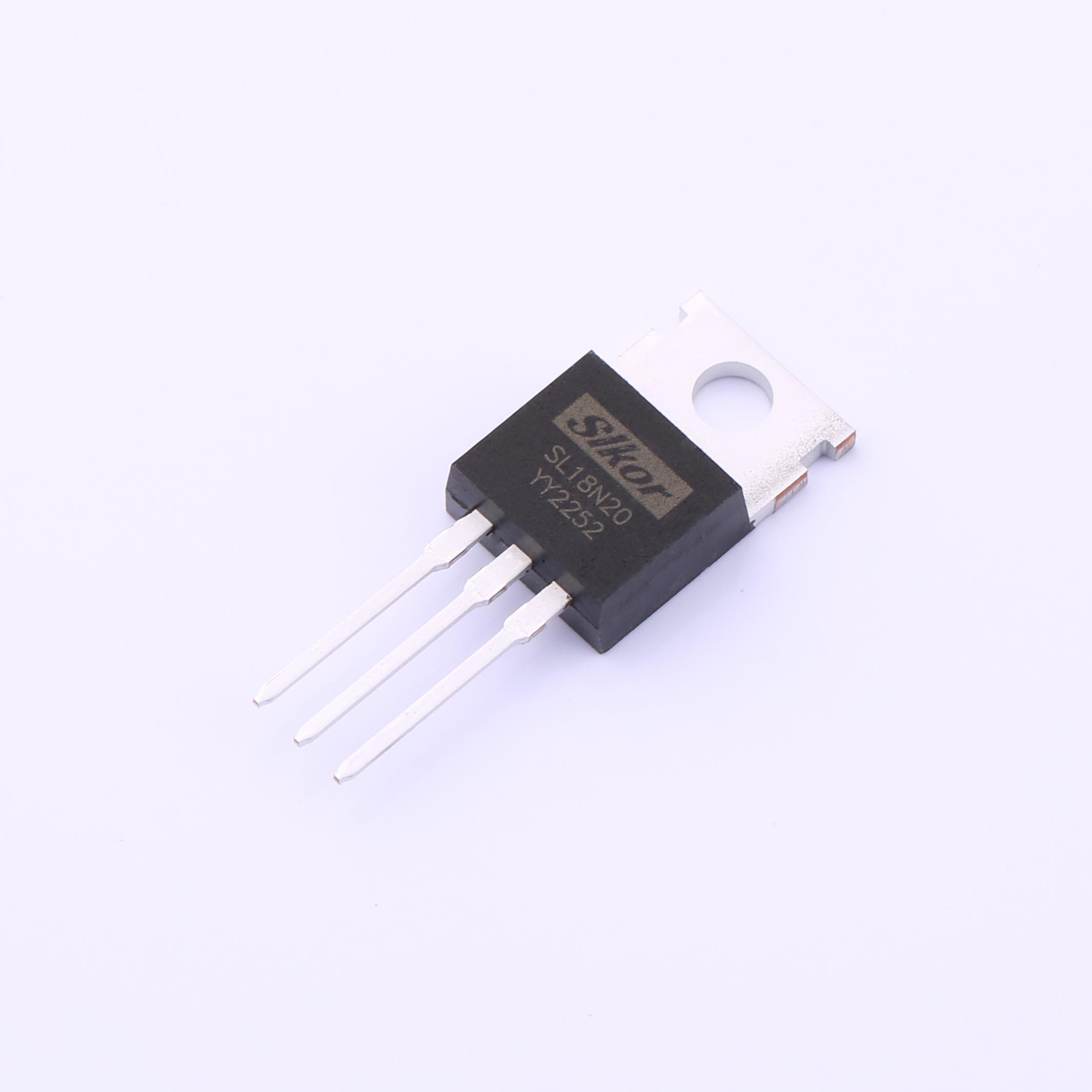

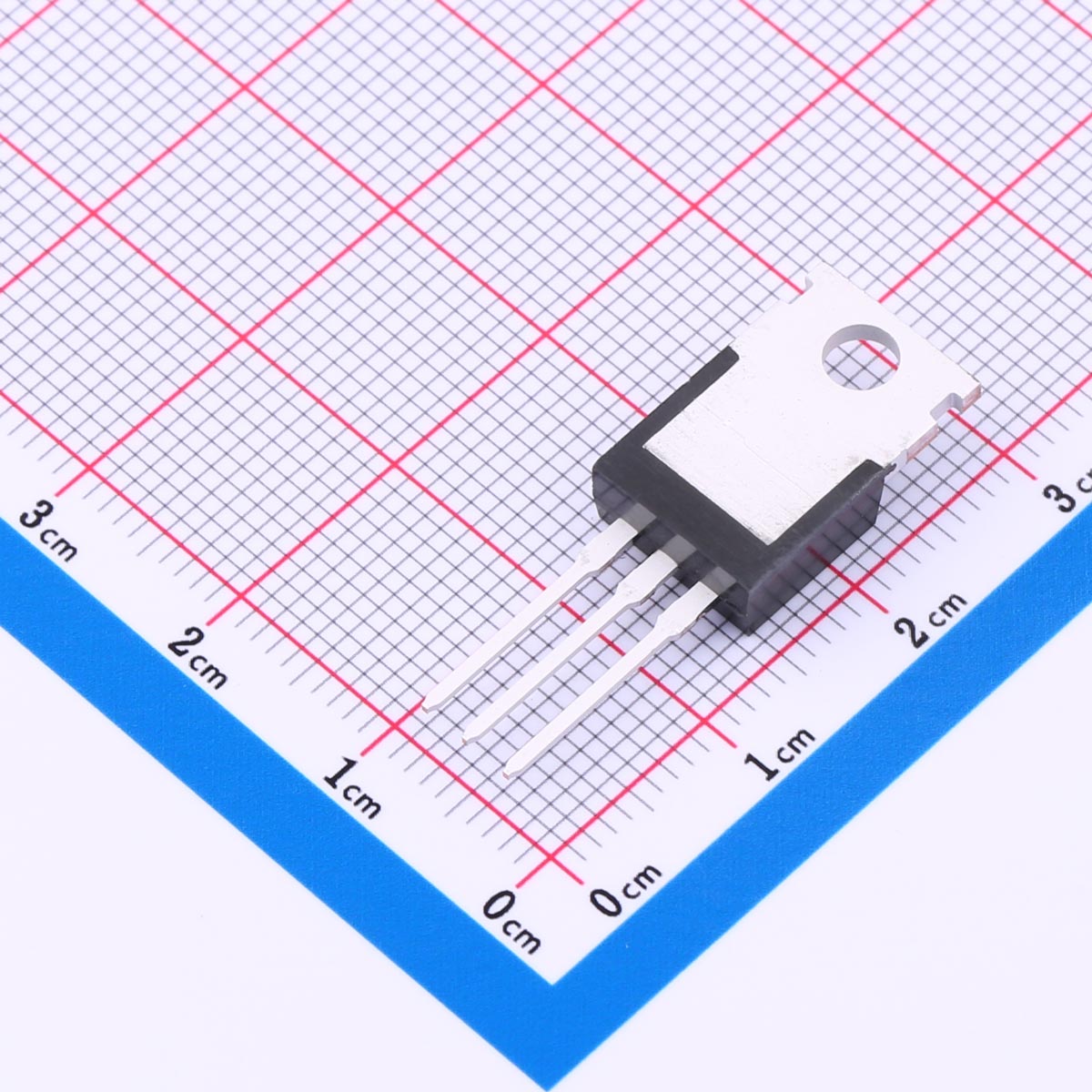

●The SL18N20 is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.
Features
●VDS= 200V ID=18A
●RDS(ON)< 150mΩ@ VGS=10V （Type：120mΩ）
Application
●Uninterruptible Power Supply(UPS)
●Power Factor Correction (PFC)
| File Name | Title | Description |
|---|---|---|
| SL18N20.PDF | SL18N20 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
