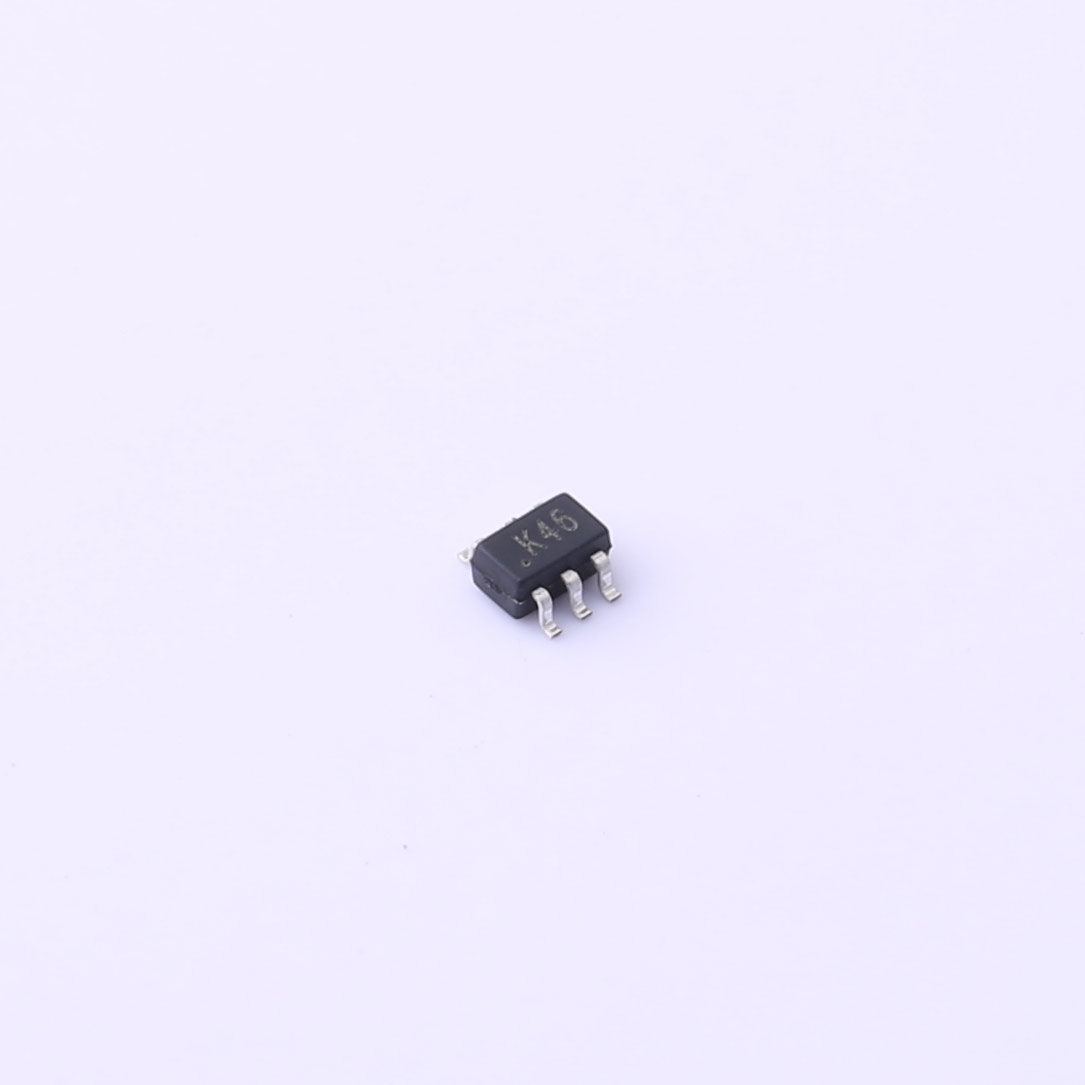

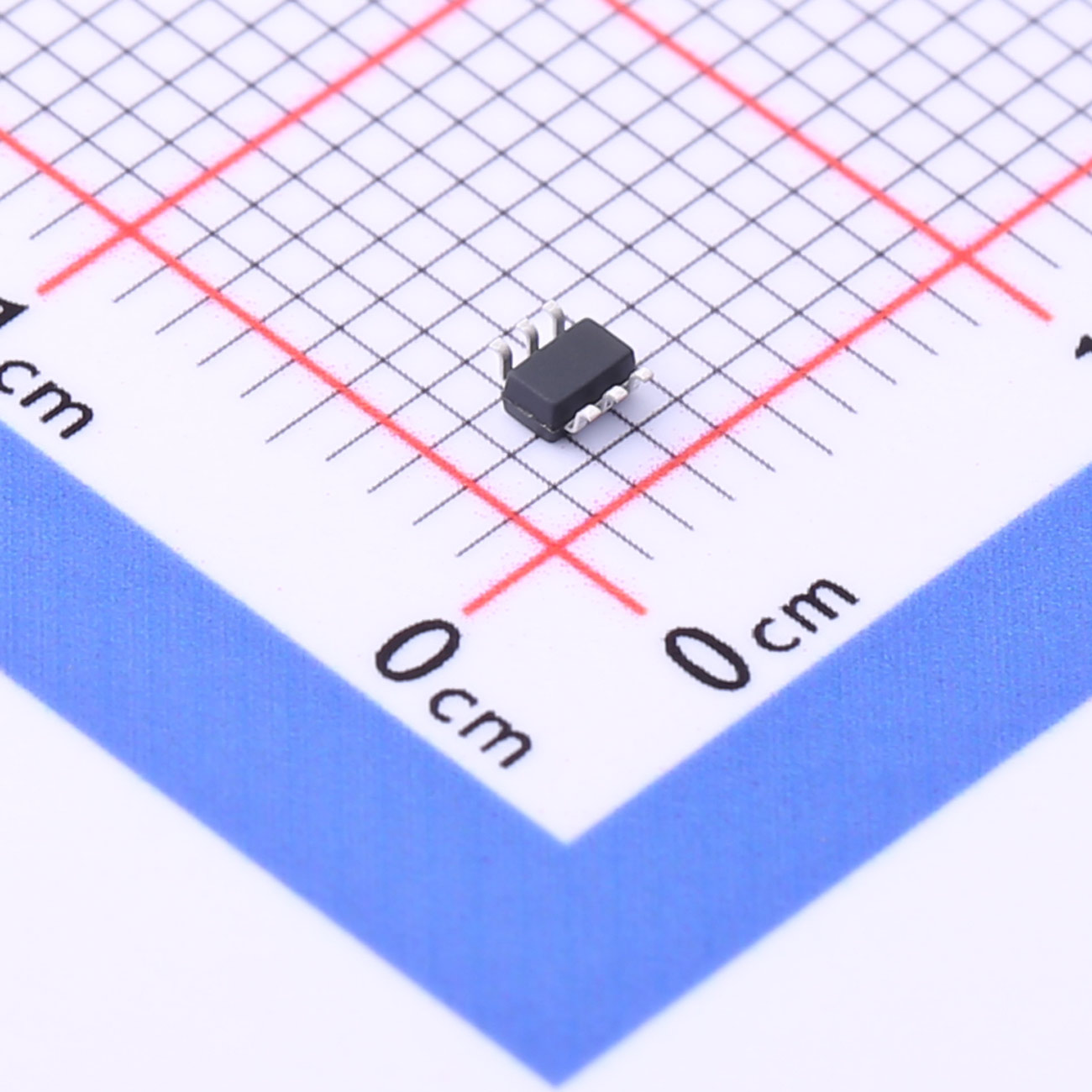

MMDT3946 BJT Transistor SOT-363
Download datasheet InquirySmall Surface Mount Transistor
FEATURES
Complementary pair.
One 3904-Type NPN.
One 3906-Type PNP.
ldeal for low power amplification and switching
Ultra-Small surface mount package.
Expitaxial planar die construction.
APPLICATIONS
General switching and amplification.
| File Name | Title | Description |
|---|---|---|

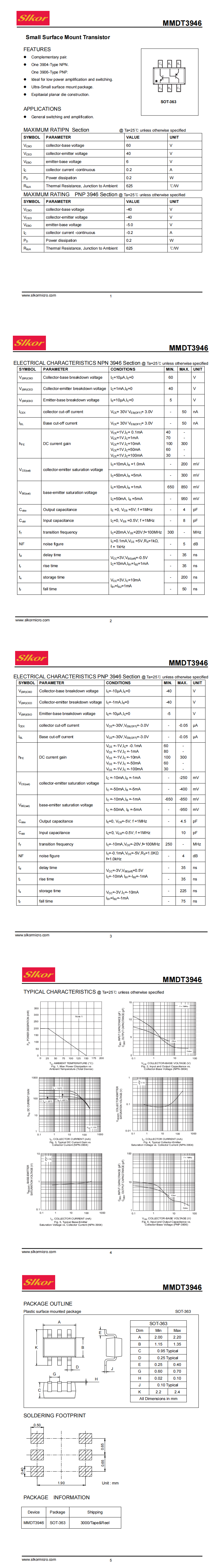

| MMDT3946.pdf | MMDT3946 | - |
