SS26 60V Schottky Rectifier SMA

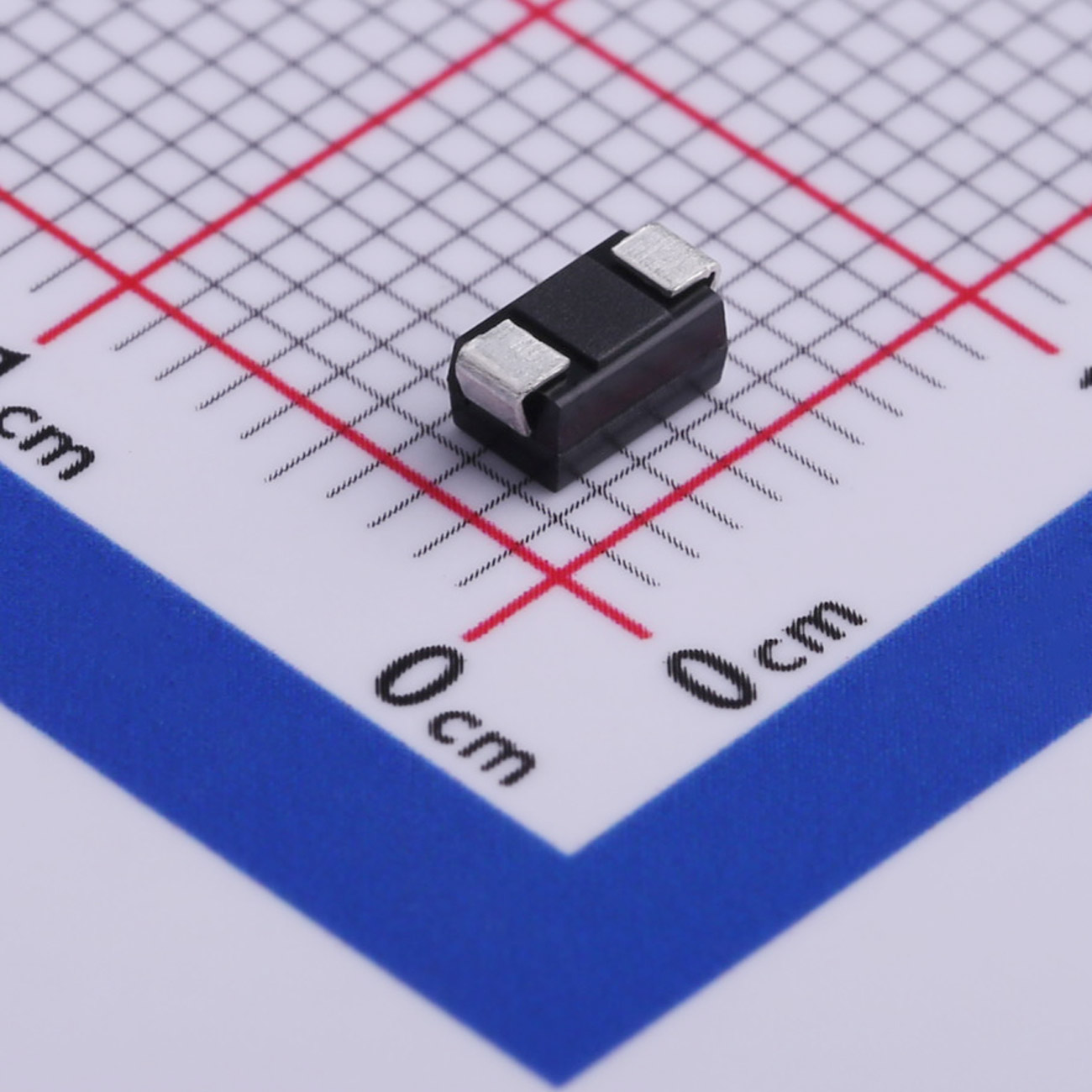

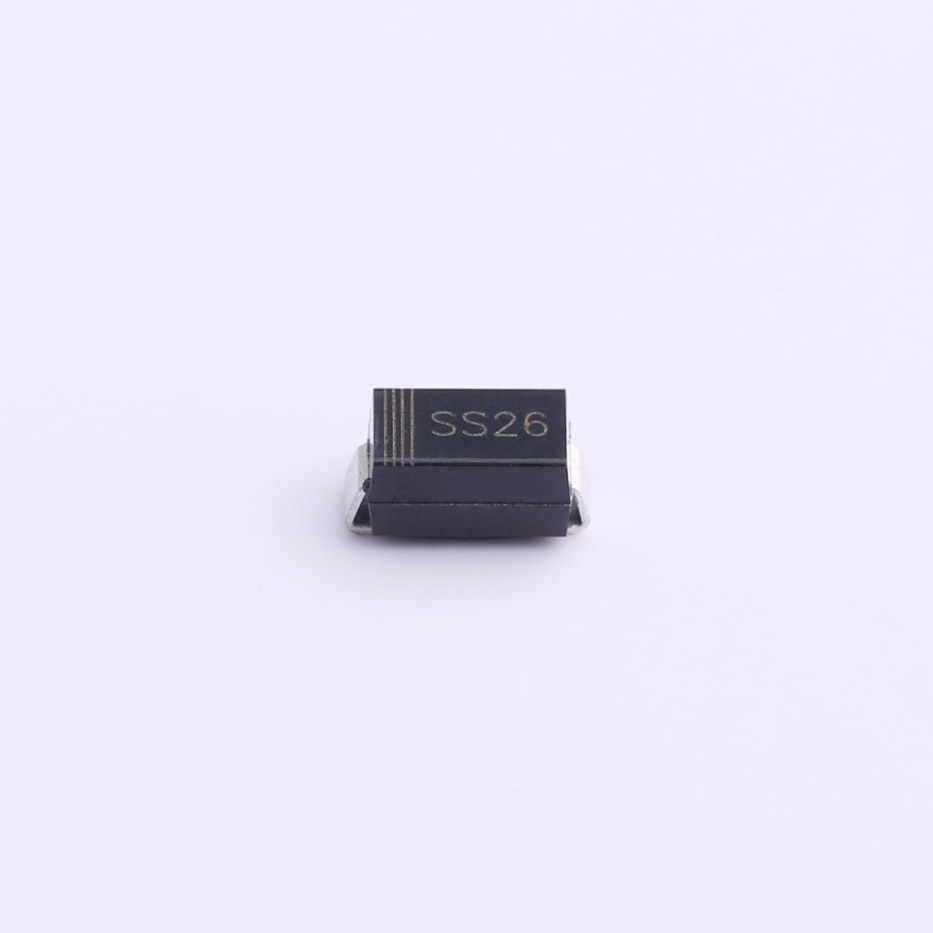

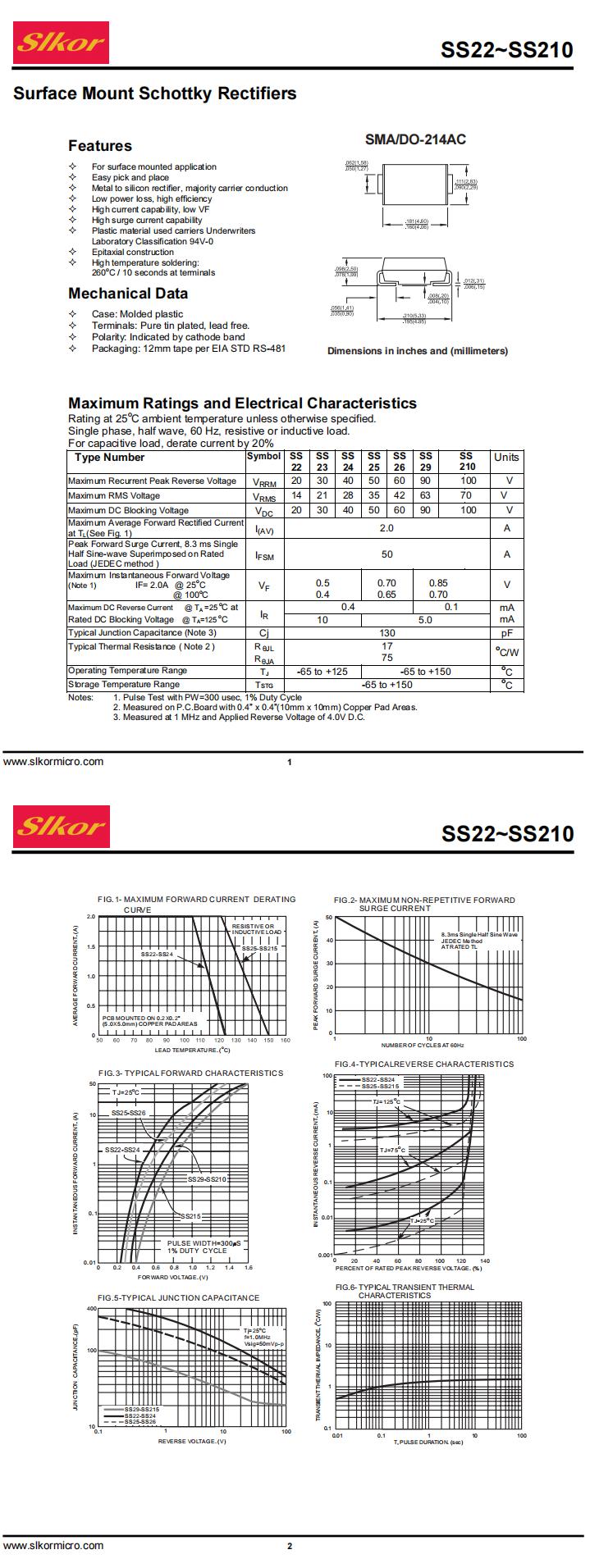

Download datasheet Inquiry
Surface Mount Schottky Rectifiers
Features
For surface mounted application.
Easy pick and plaoe.
Metal to silicon rectifier,majority carrier conduction.
Low power loss, high efficiency.
High current capability.low VF.
High surge current capabilty.
Plastic material used camriers Underwriters.
Laboratory Classification 94V-0.
Epitaxial construction.
High temperature soldering: 260C/10 seconds at temminals.
Mechanical Data
Case: Molded plastic.
Terminals: Pure tin plated,lead free.
Polarity: Indicated by cathode band.
Packaging: 12mm tape per EIA STD RS-48.
