SS24F Surface Mount Schottky Power Rectifier SMAF

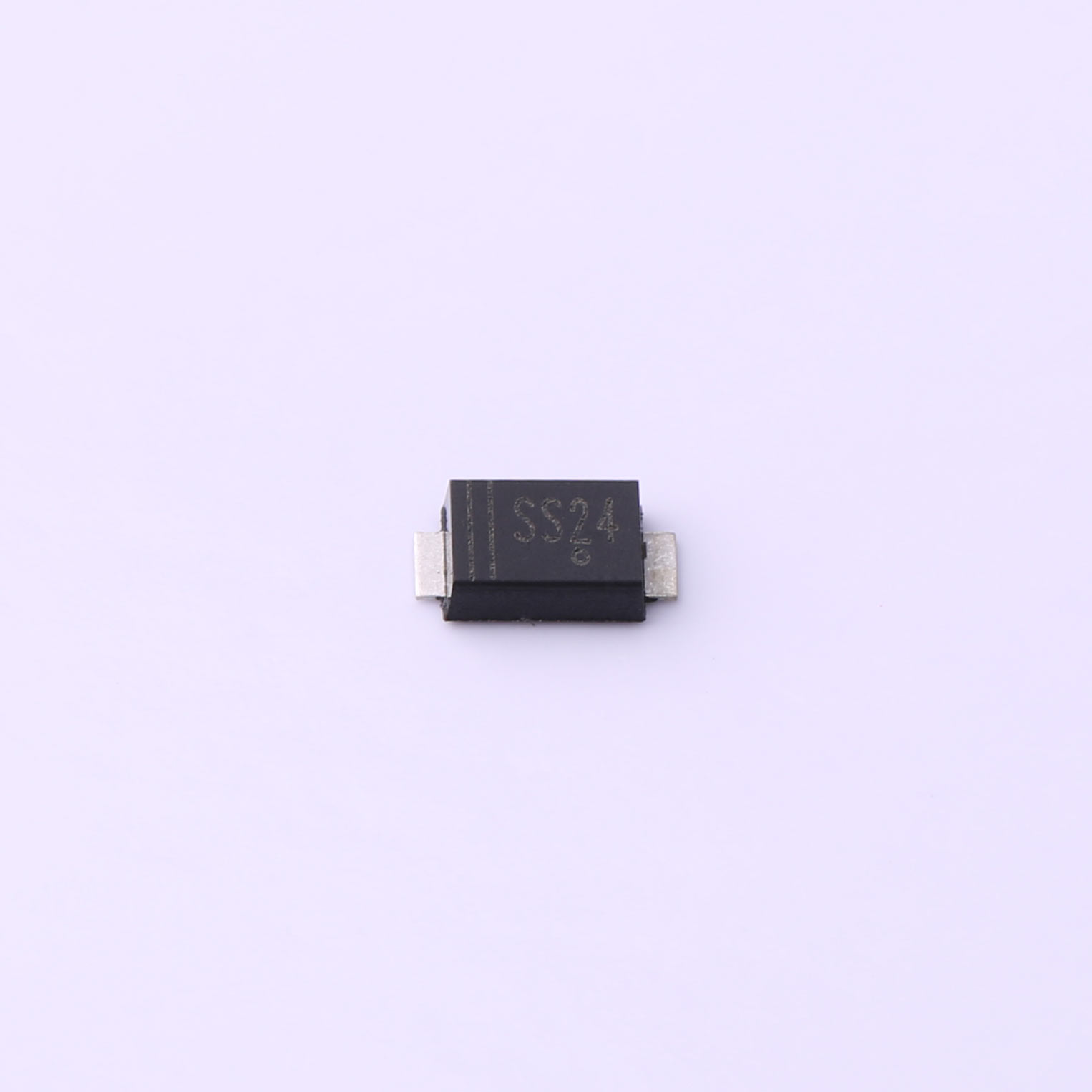

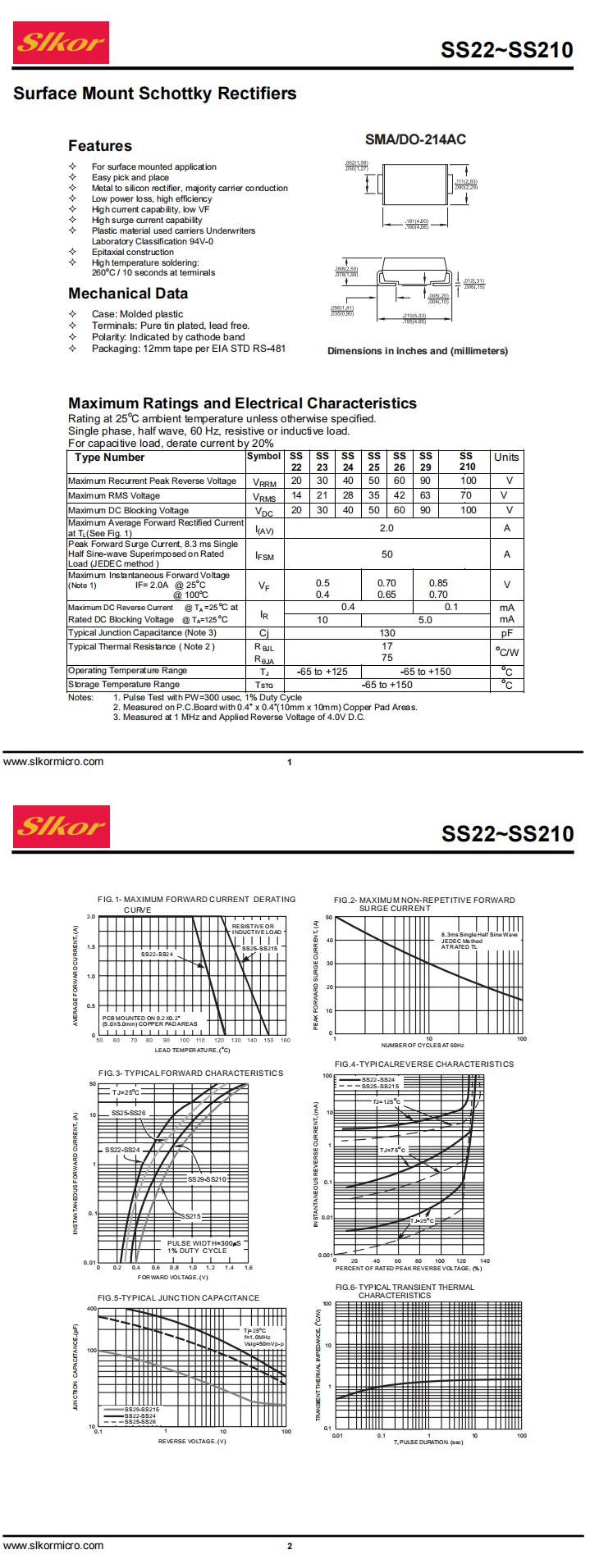

Download datasheet Inquiry
Surface Mount Schottky Barrier Rectifier
Reverse Voltage - 20 to 200 V
Forward Current - 2.0A
Features
l Metal silicon junction, majority carrier conduction
l For surface mounted applications
l Low power loss, high efficiency
l High forward surge current capability
l For use in low voltage, high frequency inverters,
l free wheeling, and polarity protection applications

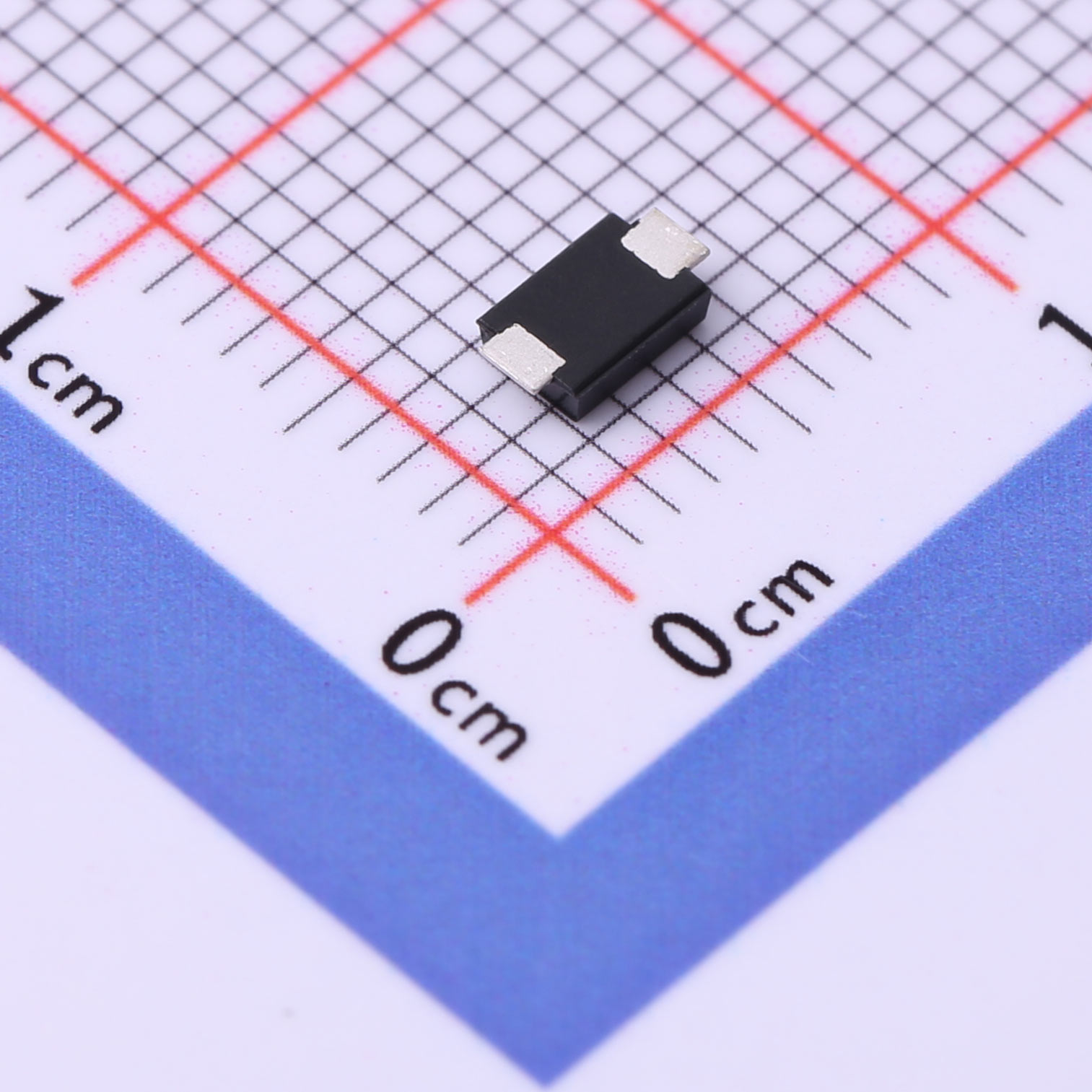

Mechanical Data
l Case: SMAF
l Terminals: Solderable per MIL-STD-750, Method 2026
l Approx. Weight: 27mg / 0.00095oz
