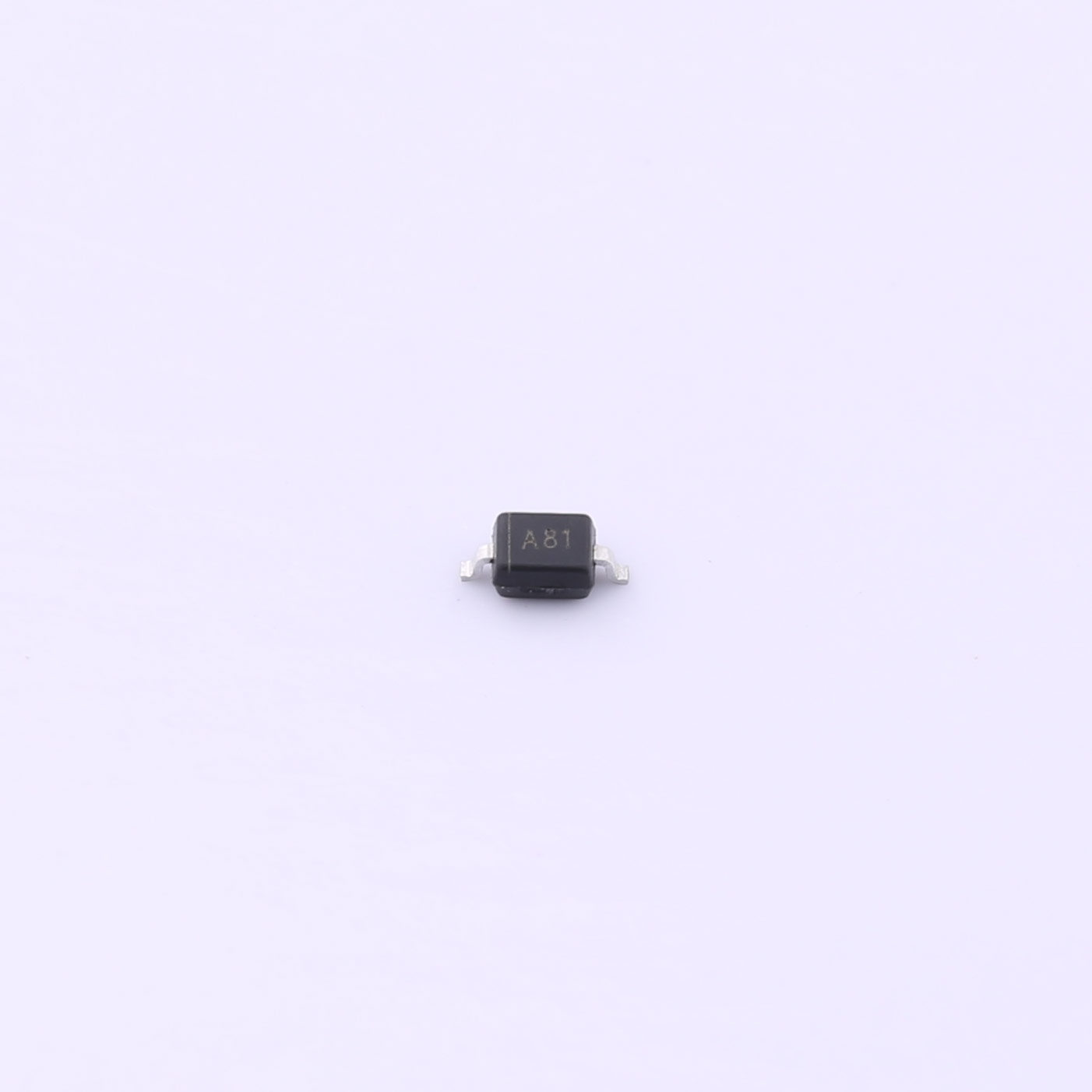

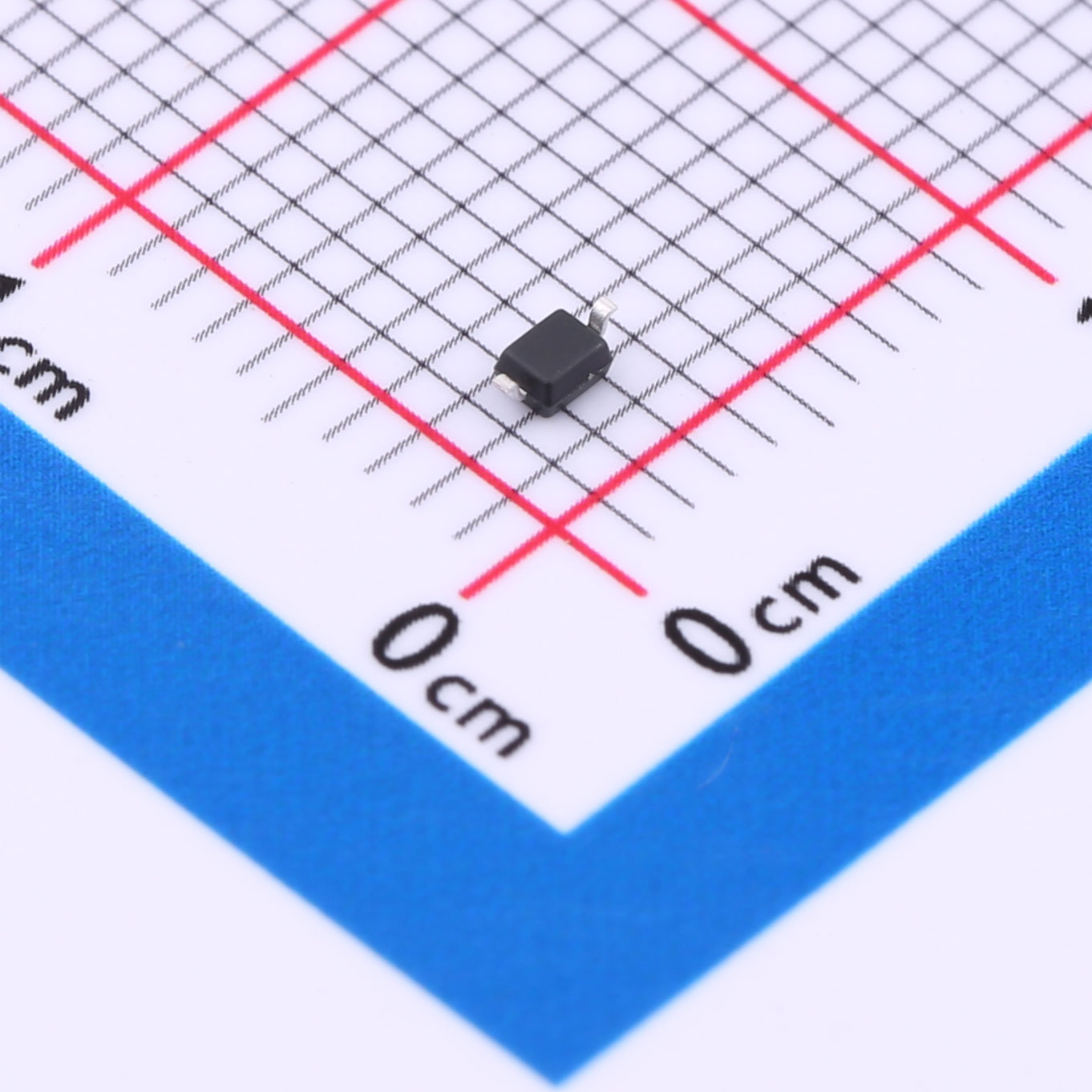

The BAP50-03 is a versatile surface mount rectifier diode designed for general-purpose applications where space and performance are key. Housed in the compact SOD-323 package, this diode offers efficient rectification with a maximum reverse voltage of 50V and a forward current rating of 50mA. Its low forward voltage drop and minimal reverse leakage current make it an ideal choice for a variety of electronic circuits.
Download datasheet InquiryOur adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BAP50-03 is a versatile surface mount rectifier diode designed for general-purpose applications where space and performance are key. Housed in the compact SOD-323 package, this diode offers efficient rectification with a maximum reverse voltage of 50V and a forward current rating of 50mA. Its low forward voltage drop and minimal reverse leakage current make it an ideal choice for a variety of electronic circuits.
Features
Low diode capacitance
● Low diode forward resistance
Applications
● Low-Voltage Power Supply Circuits: Ideal for use in small power supplies and battery-operated devices.
● Consumer Electronics: Perfect for applications in compact electronic devices, including mobile gadgets and portable equipment.
● Signal Rectification: Suitable for rectifying small signal levels in various signal processing circuits.
● LED Lighting: Enhances performance in low-power LED drivers and lighting solutions.
| File Name | Title | Description |
|---|---|---|

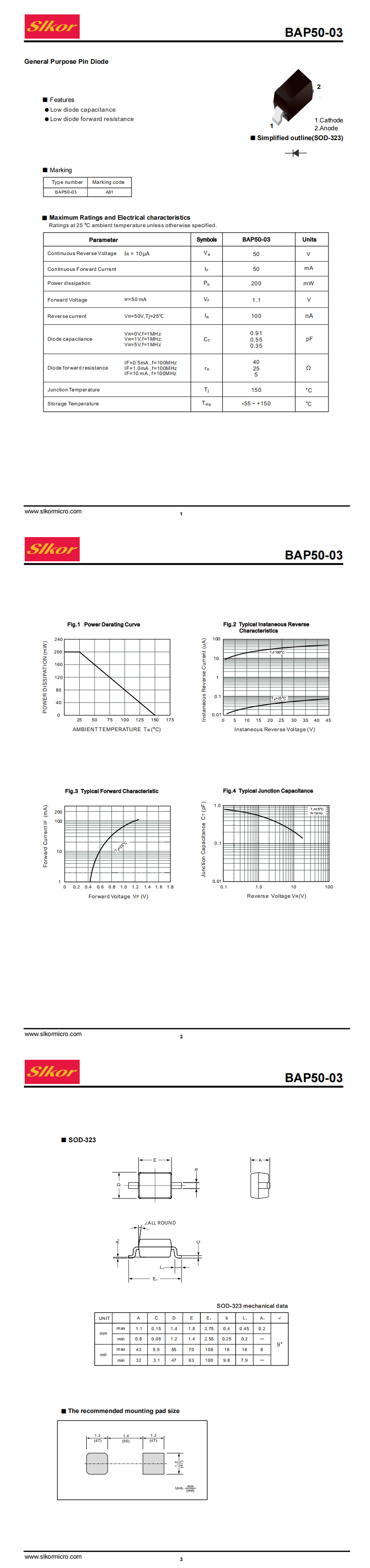

| BAP50-03 SOD-323.pdf | BAP50-03 SOD-323 | - |
