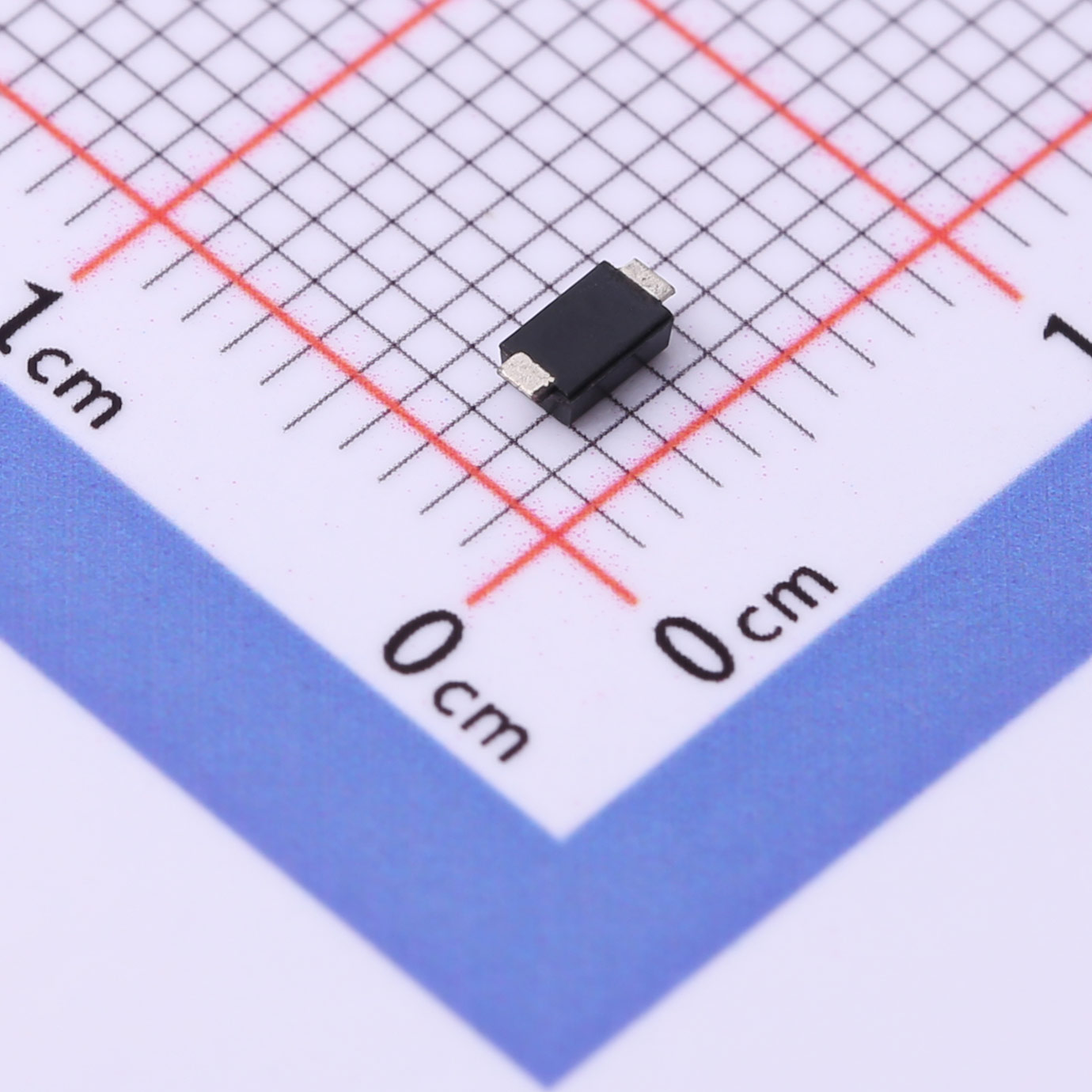

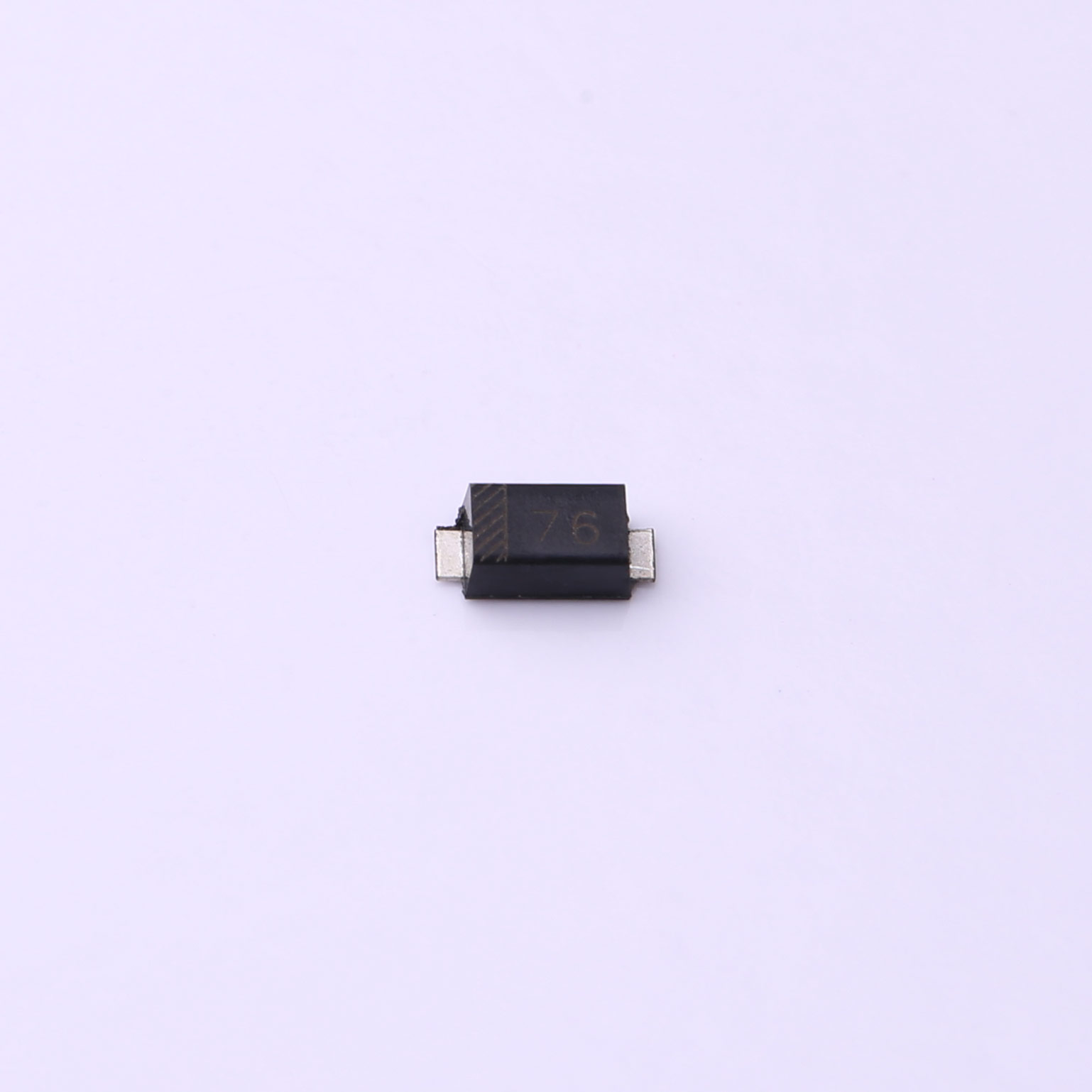

The MBRS160 is a high-performance surface mount rectifier diode designed for versatile rectification applications. Encased in the compact SOD-123FL package, this diode provides efficient and reliable rectification with a maximum reverse voltage rating of 60V and a continuous forward current capability of 1A. Its low forward voltage drop and moderate reverse leakage current make it suitable for a range of electronic circuits requiring robust performance.
Download datasheet InquiryOur adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The MBRS160 is a high-performance surface mount rectifier diode designed for versatile rectification applications. Encased in the compact SOD-123FL package, this diode provides efficient and reliable rectification with a maximum reverse voltage rating of 60V and a continuous forward current capability of 1A. Its low forward voltage drop and moderate reverse leakage current make it suitable for a range of electronic circuits requiring robust performance.
Features
● The plastic package carries Underwriters Laboratory
● Flammability Classification 94V-0
● Metal silicon junction,majority carrier conduction
● Low power loss,high efficiency
● High forward surge current capability
● High temperature soldering guaranteed:250C/10
● secondsCase:JEDEC SOD-123FL molded plastic body
● Terminals:Solderable per MIL-STD-750,Method 2026
● Polarity:Color band denotes cathode end
● Mounting Position:Any
Applications
● Power Supply Circuits: Ideal for use in power adapters, DC-DC converters, and other power management systems where efficient rectification is crucial.
● Consumer Electronics: Suitable for applications in home appliances, audio equipment, and other electronic devices that require reliable rectification.
● LED Lighting: Enhances performance in LED drivers and lighting systems by providing efficient and stable rectification.
● Automotive Electronics: Perfect for automotive applications including ignition systems and power distribution modules where robust performance is needed.
| File Name | Title | Description |
|---|---|---|

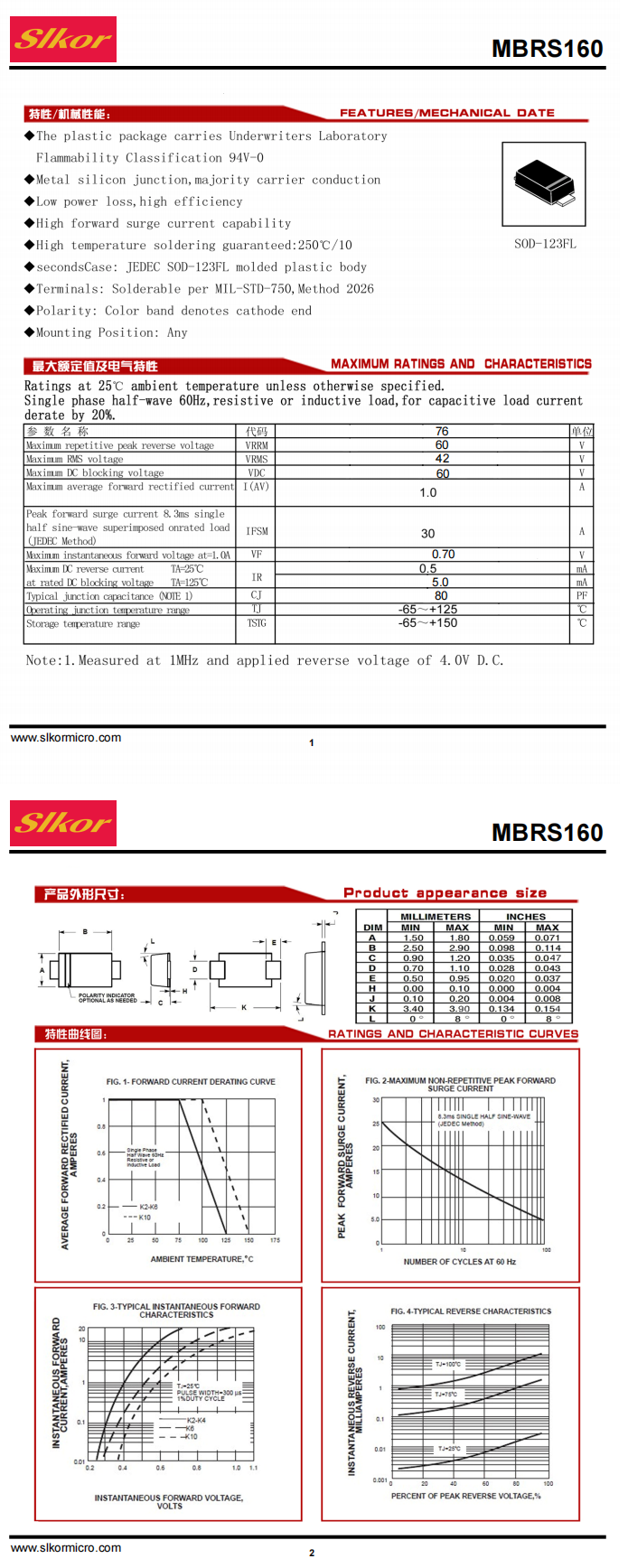

| MBRS160 SOD-123FL.pdf | MBRS160 SOD-123FL | - |
