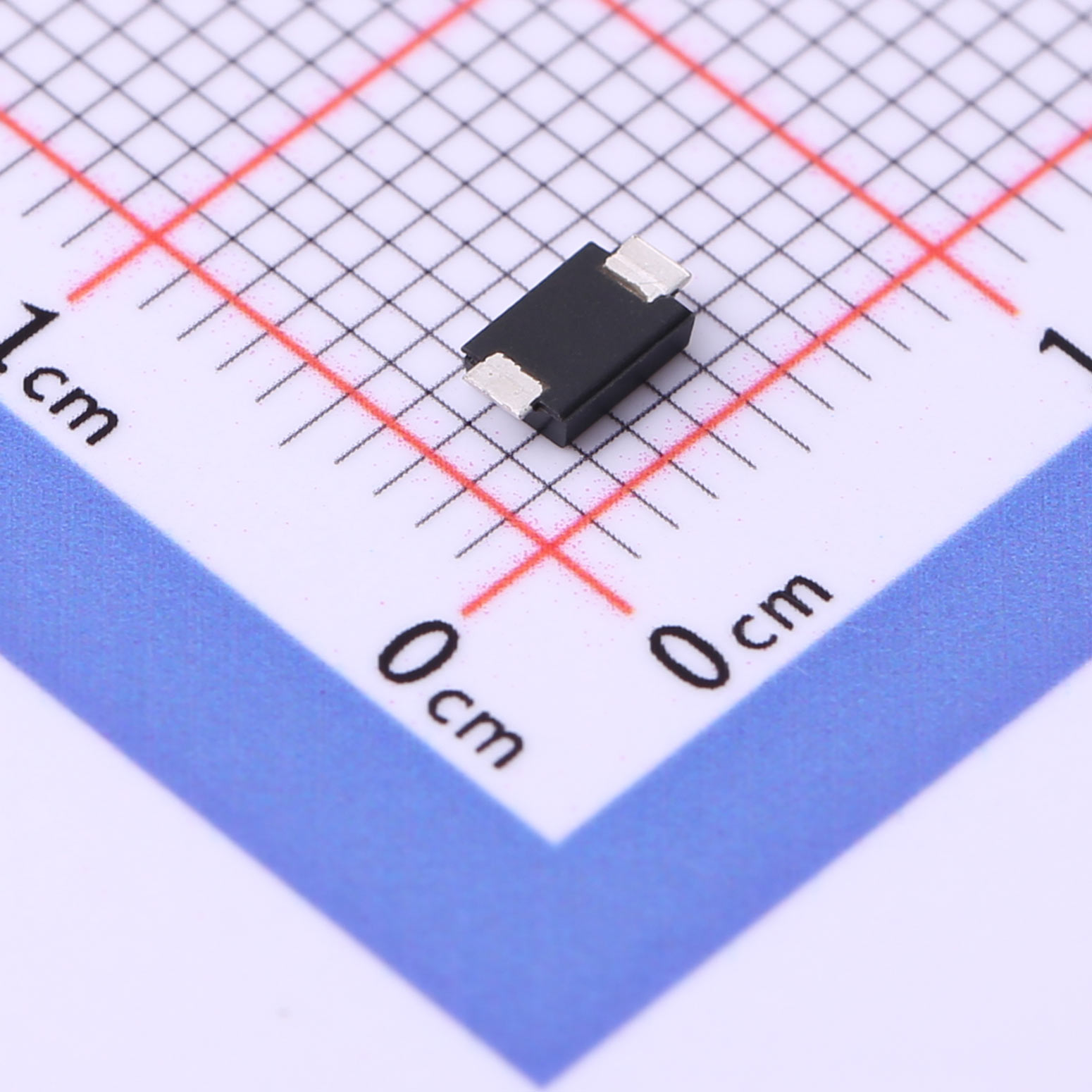

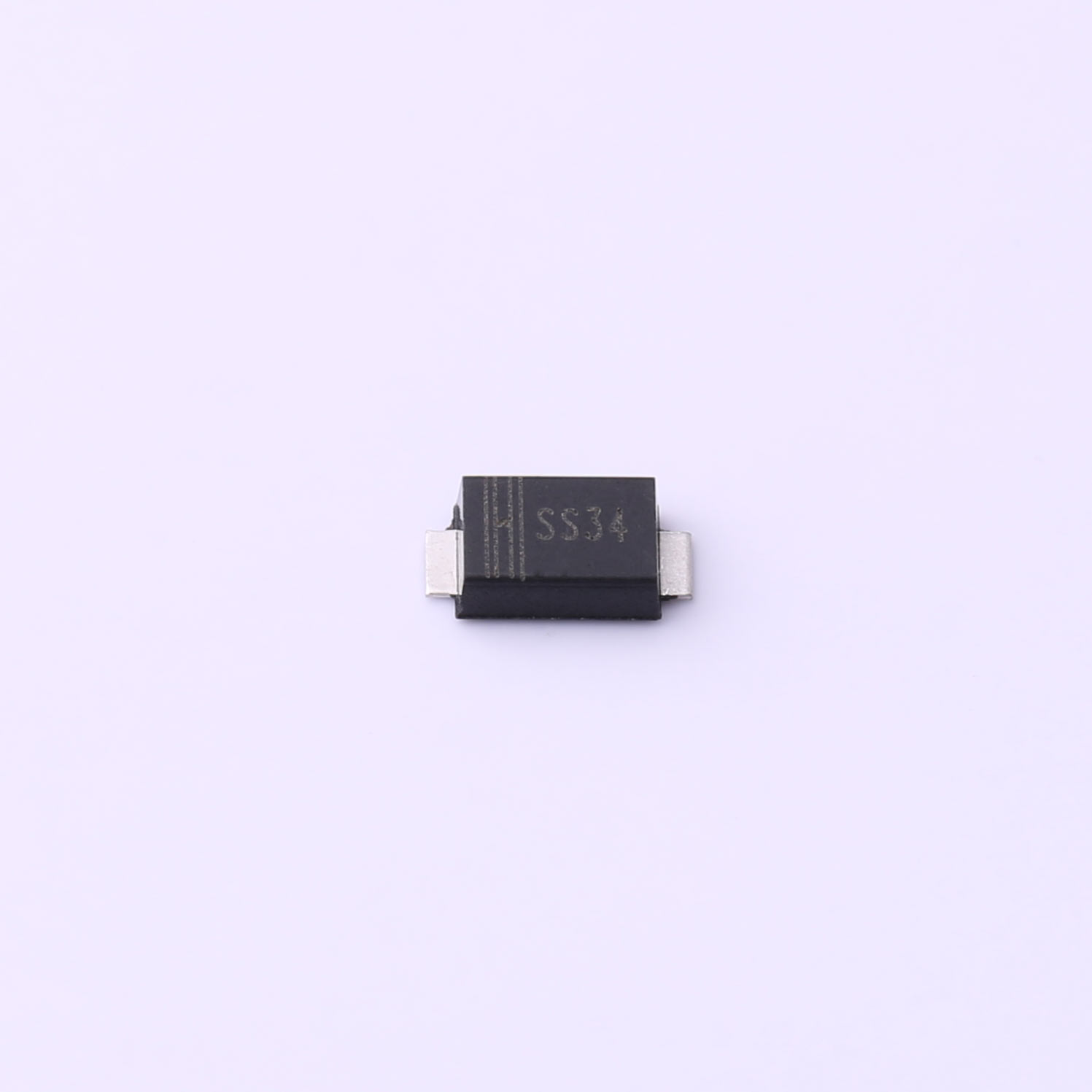

The Polar High-Current Diode is designed to deliver exceptional performance in high-current and moderate-voltage applications. With a continuous forward current capacity of 3.0A and a reverse voltage rating of 40V, this diode ensures reliable operation even under demanding conditions. It features a low forward voltage drop of 0.55V, which optimizes energy efficiency, and a reverse leakage current of only 0.5mA, ensuring minimal power loss. Encased in a compact SMAF package, this diode is ideal for applications where space and performance are crucial.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar High-Current Diode is designed to deliver exceptional performance in high-current and moderate-voltage applications. With a continuous forward current capacity of 3.0A and a reverse voltage rating of 40V, this diode ensures reliable operation even under demanding conditions. It features a low forward voltage drop of 0.55V, which optimizes energy efficiency, and a reverse leakage current of only 0.5mA, ensuring minimal power loss. Encased in a compact SMAF package, this diode is ideal for applications where space and performance are crucial.
FEATURES
● Metal silicon junction, majority carrier conduction
● For surface mounted applications
● Low power loss, high efficiency
● High forward surge current capability
● For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
● Case: SMAF
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 27mg / 0.00095oz
Applications
● Power Supply Circuits
● Switching Regulators
● DC-DC Converters
● Consumer Electronics
● Industrial Controls
| File Name | Title | Description |
|---|---|---|
| SS34F SMAF.pdf | SS34F SMAF | - |
