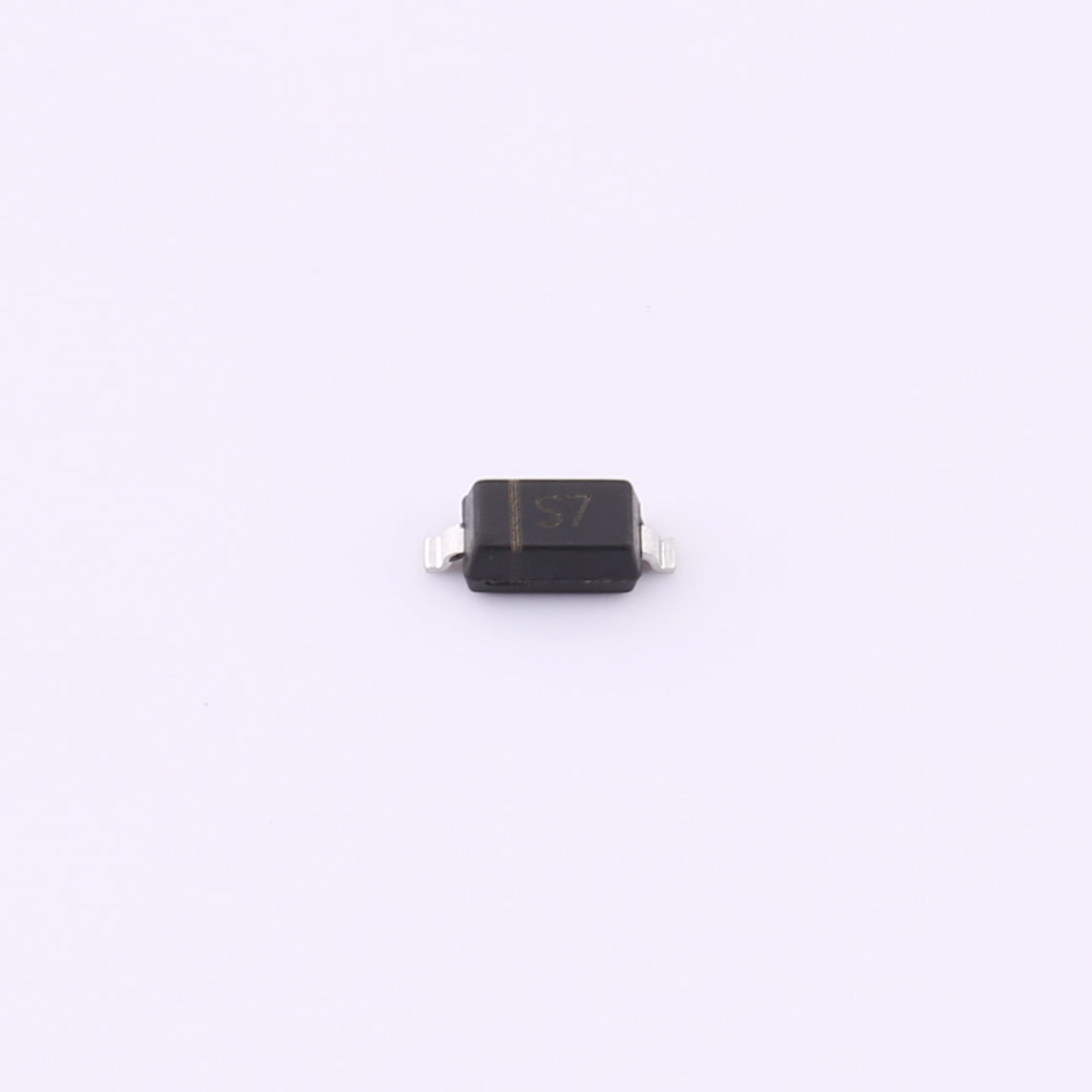

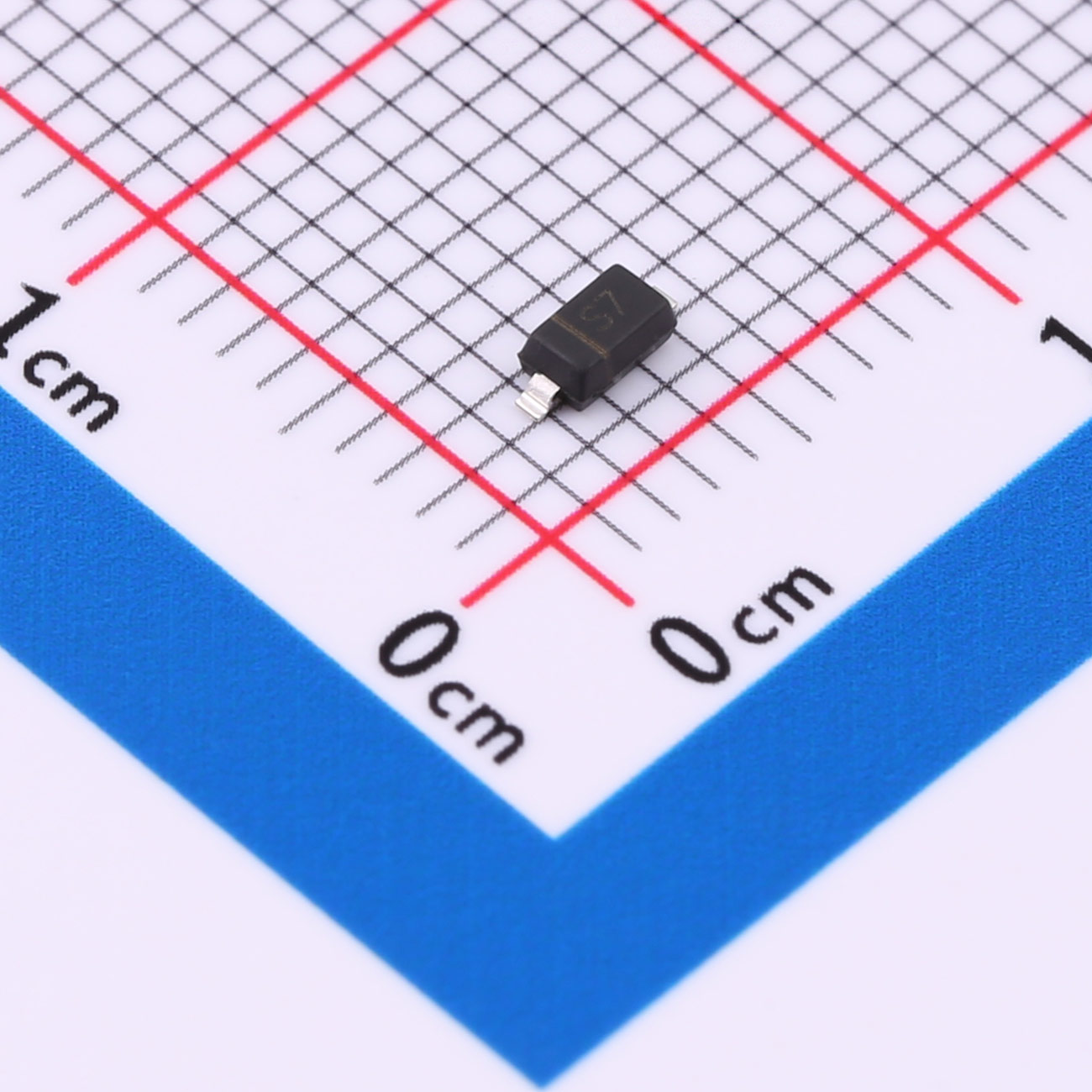

Our High-Precision Diode, designed with a maximum Reverse Voltage (VR) of 30V and a Forward Voltage (VF) of just 0.26V, is engineered to provide reliable and efficient performance in various electronic applications. With a minimal reverse leakage current of 500nA, this diode ensures stability and precision, making it an ideal choice for high-performance circuits. The diode is packaged in a compact SOD-123 format, optimizing space utilization on your PCB.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Our High-Precision Diode, designed with a maximum Reverse Voltage (VR) of 30V and a Forward Voltage (VF) of just 0.26V, is engineered to provide reliable and efficient performance in various electronic applications. With a minimal reverse leakage current of 500nA, this diode ensures stability and precision, making it an ideal choice for high-performance circuits. The diode is packaged in a compact SOD-123 format, optimizing space utilization on your PCB.
FEATURES
● Low Forward Voltage drop
● Fast Switching Time
● Surface Mount Package Ideally Suited for Automatic insertion
Applications
This High-Efficiency Voltage Regulator is designed to meet the demands of modern electronic systems, offering both performance and reliability for diverse applications.
| File Name | Title | Description |
|---|---|---|

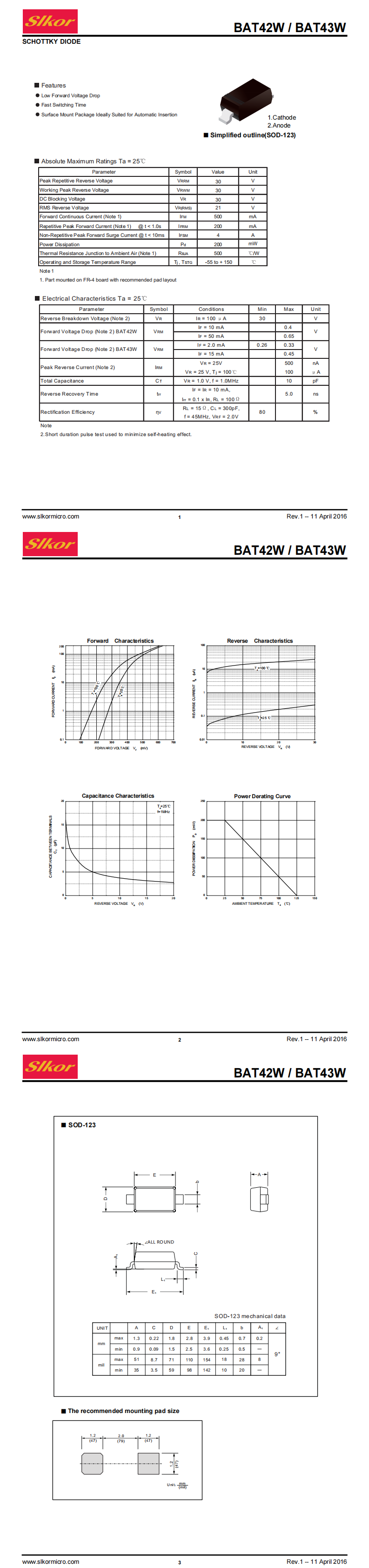

| BAT42W SOD-123.pdf | BAT42W SOD-123 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
