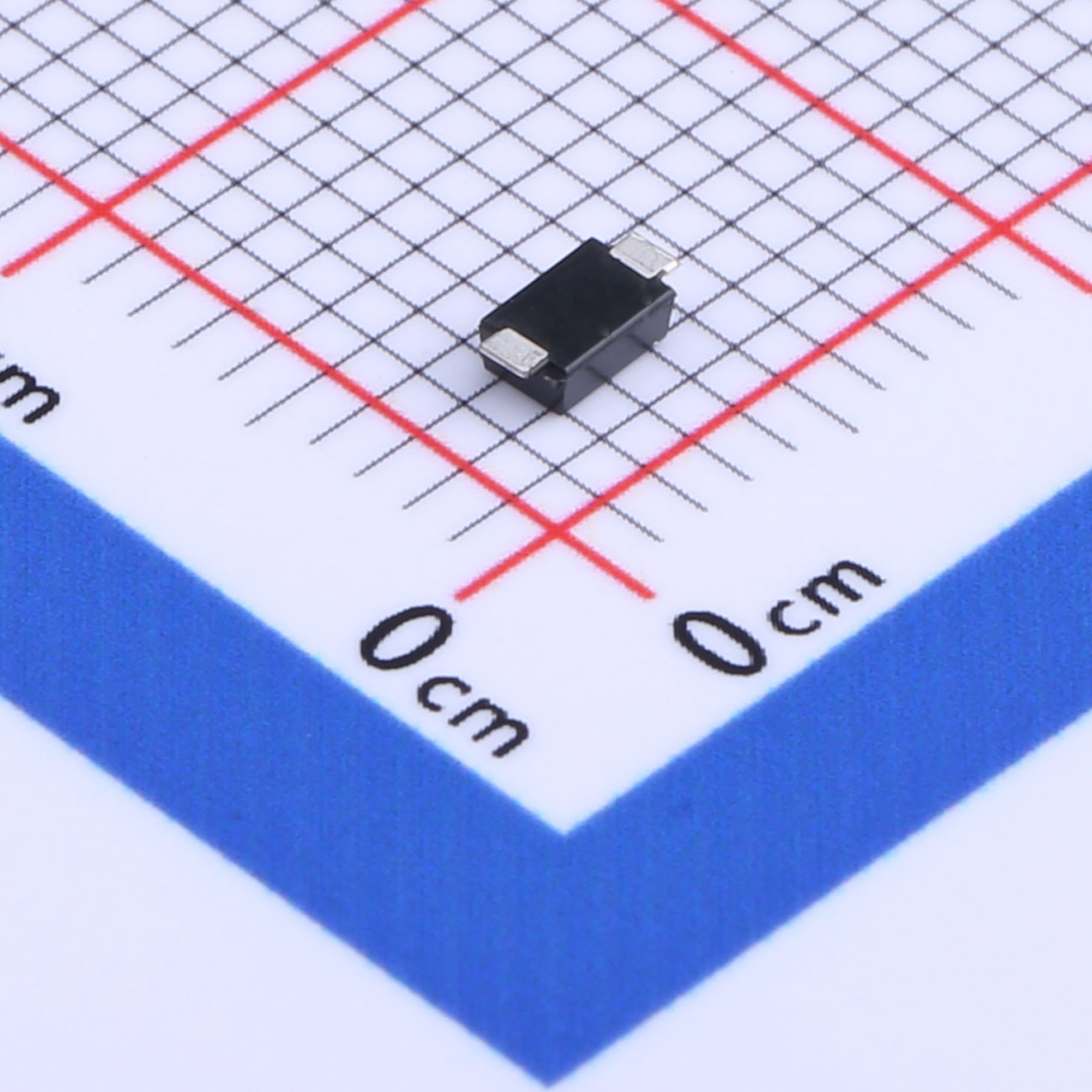

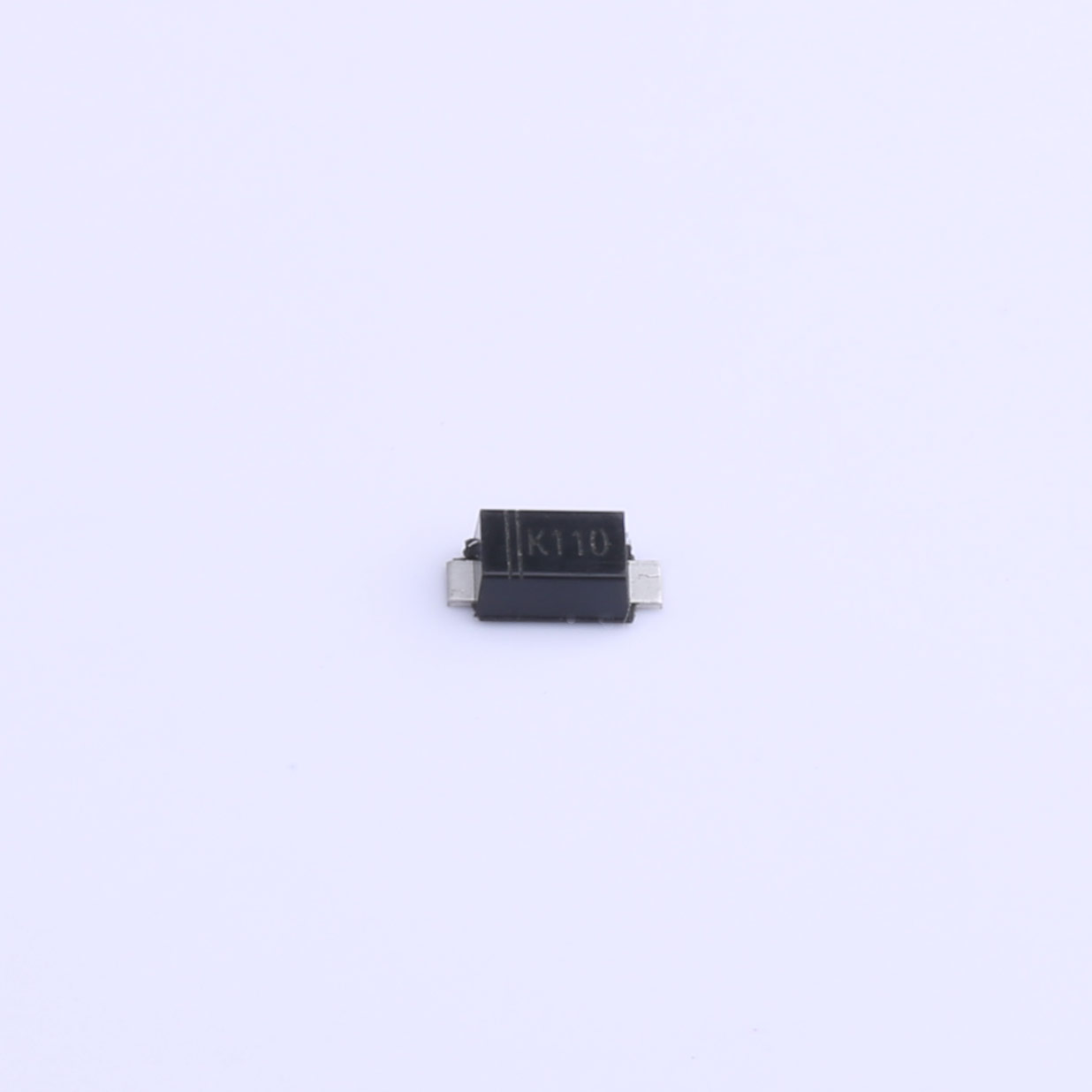

DSK110 Schottky Barrier Rectifiers SOD-123FL
Download datasheet InquirySURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20-200V
CURRENT: 1.0 A
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High forward surge current capability
High temperature soldering guaranteed: 250C/10 seconds, 0.375(9.5mm) lead length, 5 Ibs.(2.3kg) tension
Mechanical Data
Case: S0D-123Fl plastic body over passivated junction
Terminals: Plated axial leads solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.0007 ounce, 0.02 grams

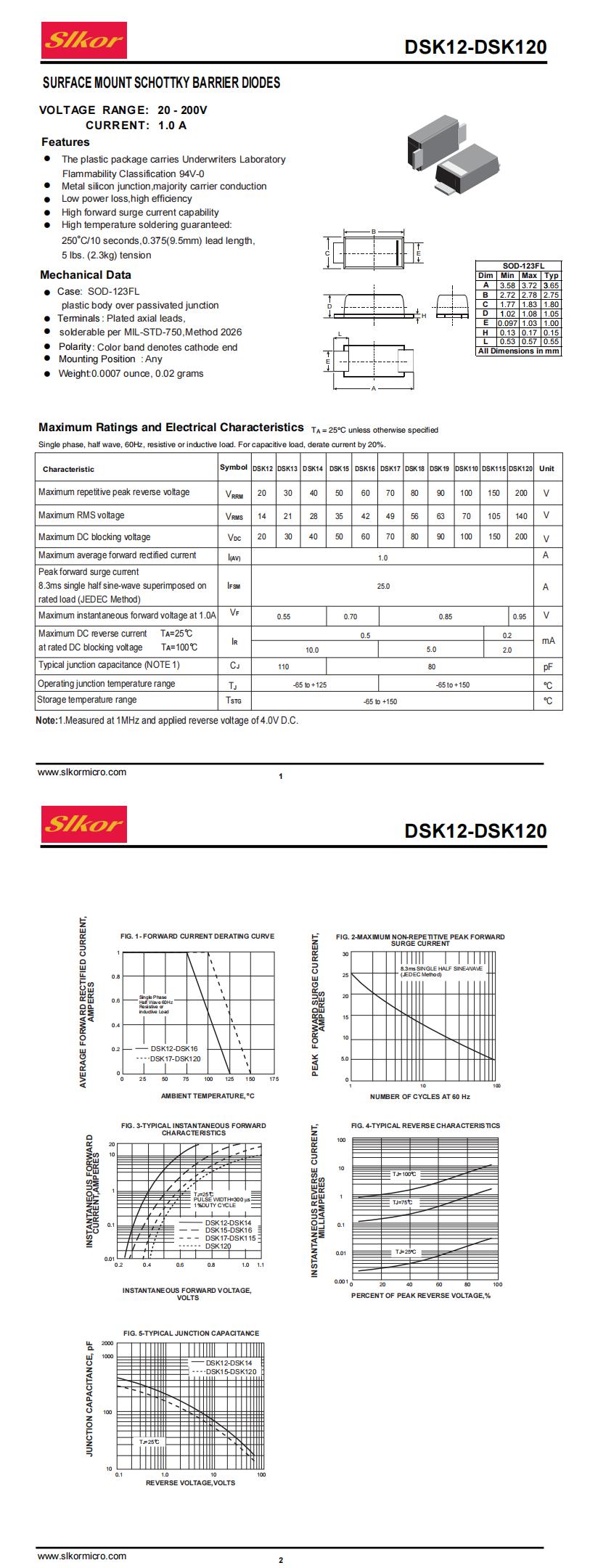

| File Name | Title | Description |
|---|---|---|
| DSK110.pdf | DSK110 | - |
