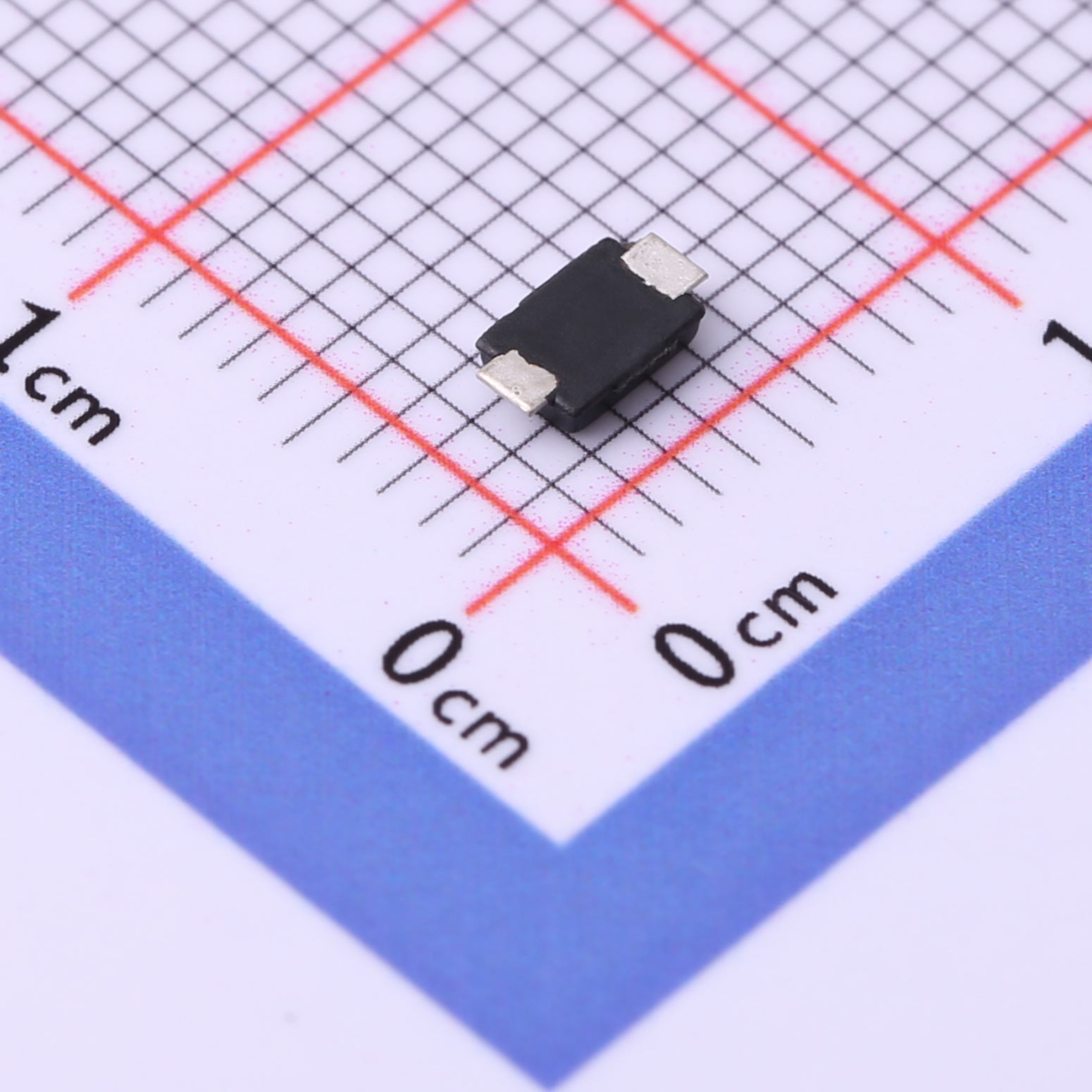

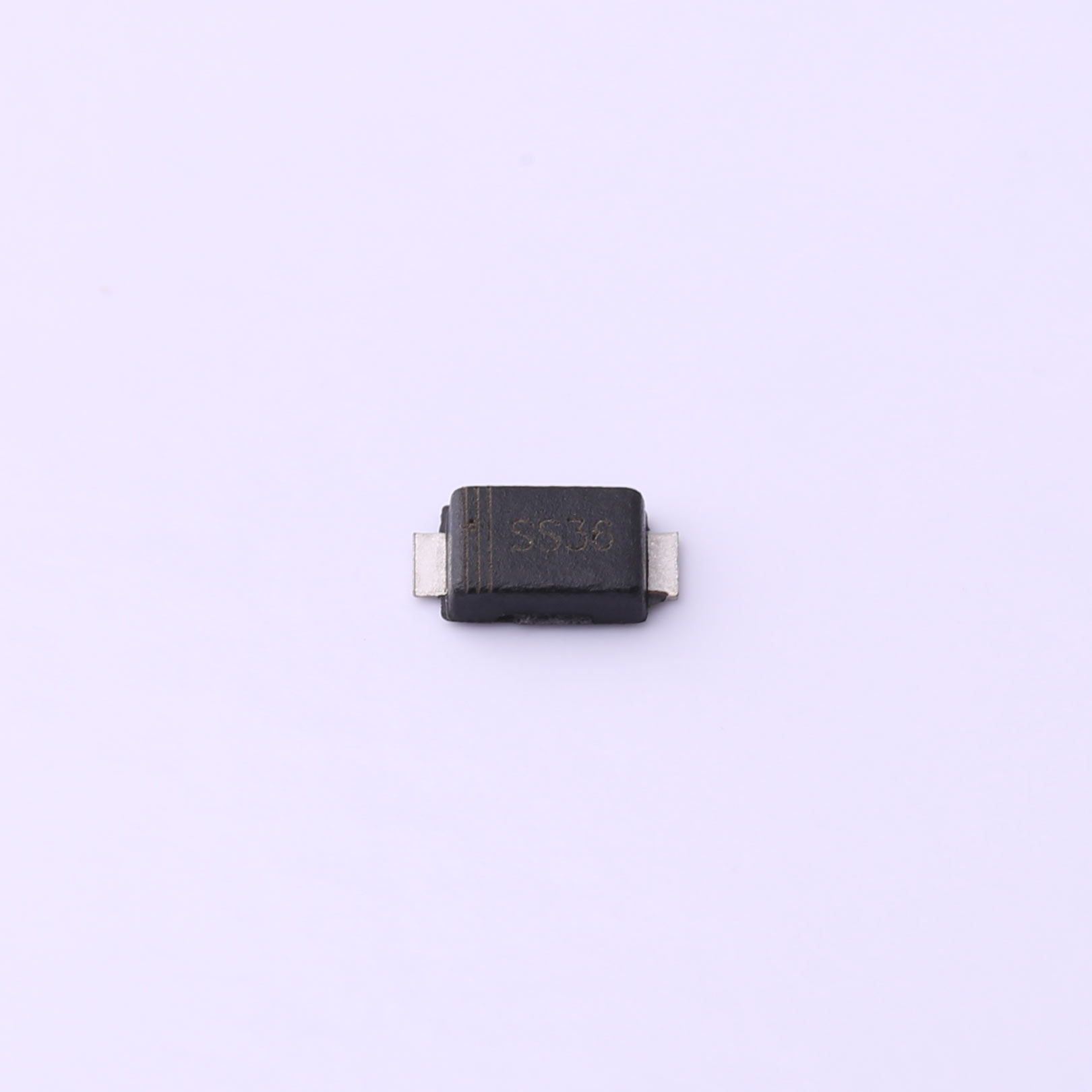

The Polar High-Performance Rectifier Diode is engineered to deliver reliable performance in high-current and moderate-voltage applications. It supports a continuous forward current of 3.0A and a reverse voltage of up to 60V. This diode features a forward voltage drop of 0.7V and a low reverse leakage current of 0.5mA, ensuring efficient operation and minimal power loss. Housed in a compact SMAF package, it is designed for space-constrained environments while maintaining durability and performance.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar High-Performance Rectifier Diode is engineered to deliver reliable performance in high-current and moderate-voltage applications. It supports a continuous forward current of 3.0A and a reverse voltage of up to 60V. This diode features a forward voltage drop of 0.7V and a low reverse leakage current of 0.5mA, ensuring efficient operation and minimal power loss. Housed in a compact SMAF package, it is designed for space-constrained environments while maintaining durability and performance.
FEATURES
● Metal silicon junction, majority carrier conduction
● For surface mounted applications
● Low power loss, high efficiency
● High forward surge current capability
● For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
● Case: SMAF
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 27mg / 0.00095oz
Applications
● Power Supply Units
● Switching Circuits
● DC-DC Converters
● Consumer Electronics
● Industrial Equipment
