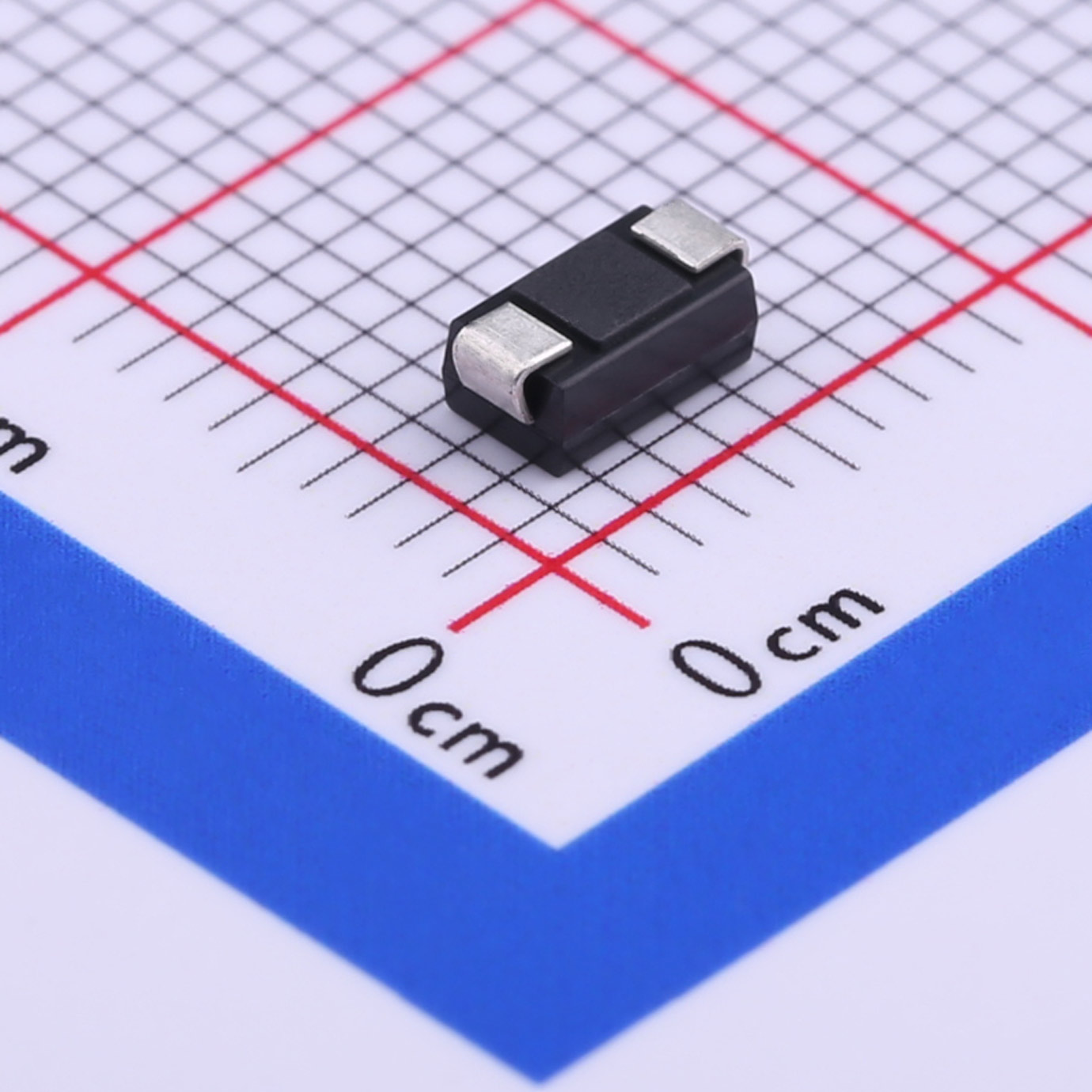

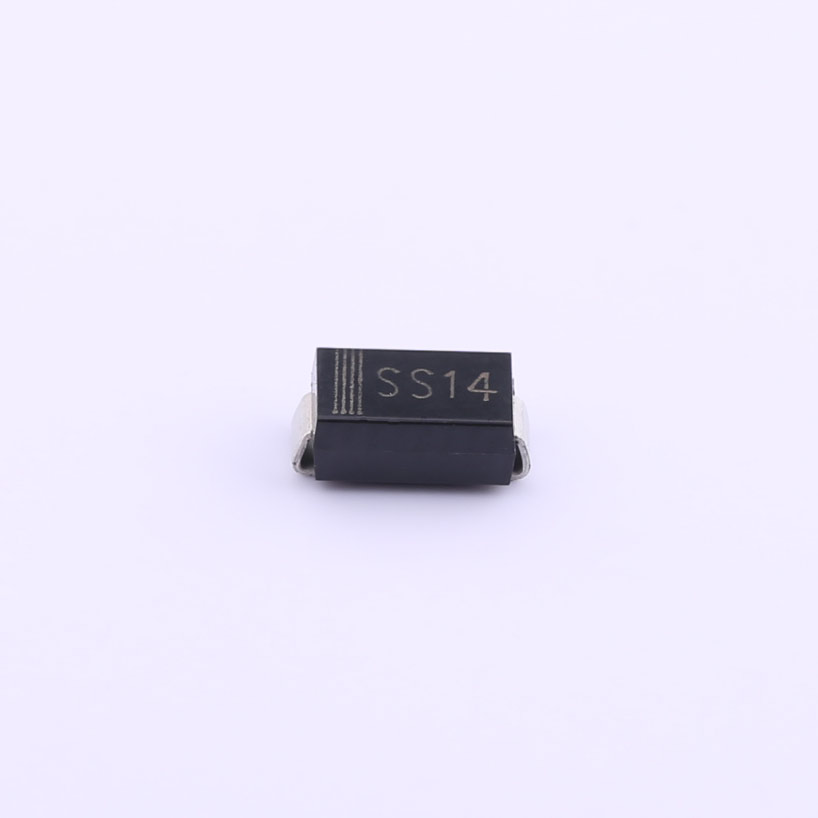

SS14 Schottky Barrier Rectifiers SMA
Download datasheet Inquiry
Surface Mount Schottky Rectifiers
Features
●Low profile package
●Ideal for automated placement
●Ultrafast reverse recovery time
●Low power losses, high efficiency
●Low forward voltage drop
●High surge capability
●High temperature soldering：260℃/10 seconds at terminals
Mechanical Data
●Case: JEDEC DO-214AC molded plasticbody over glass passivated chip
●Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D
| File Name | Title | Description |
|---|---|---|

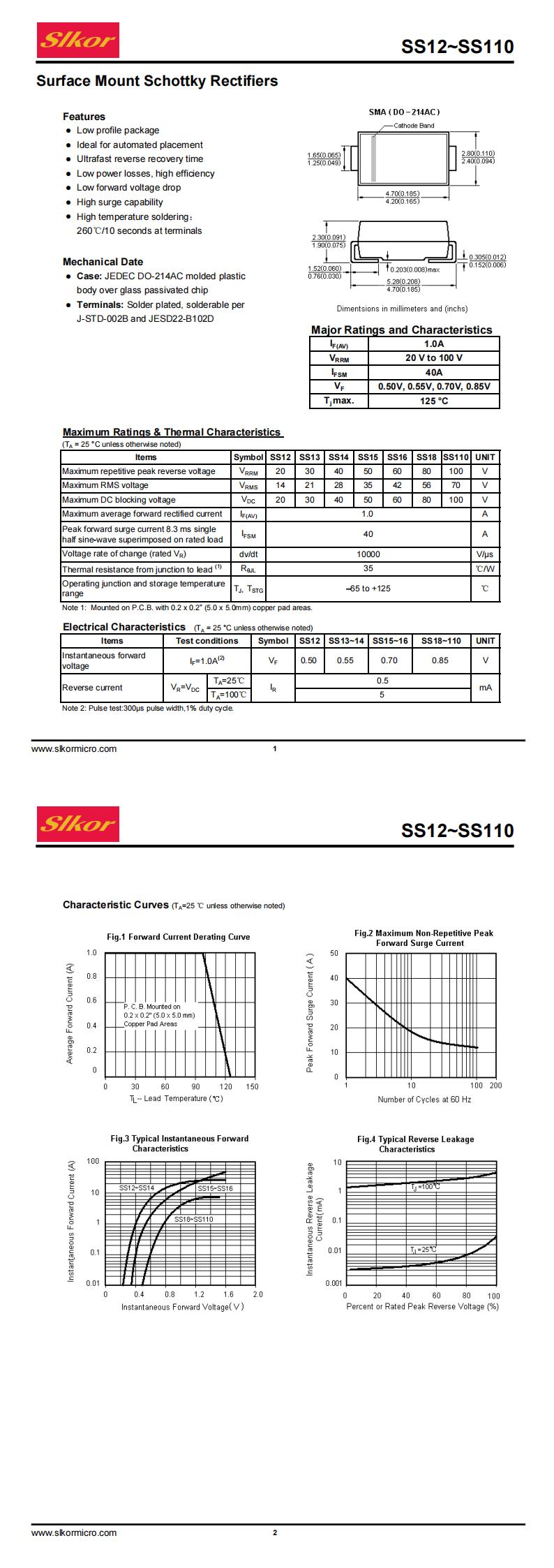

| SS14.pdf | SS14 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The Polar High-Performance Rectifier Diode is engineered to deliver reliable performance in high-current and moderate-voltage applications. It supports a continuous forward current of 3.0A and a reverse voltage of up to 60V. This diode features a forward voltage drop of 0.7V and a low reverse leakage current of 0.5mA, ensuring efficient operation and minimal power loss. Housed in a compact SMAF package, it is designed for space-constrained environments while maintaining durability and performance.
The Polar High-Current Diode is designed to deliver exceptional performance in high-current and moderate-voltage applications. With a continuous forward current capacity of 3.0A and a reverse voltage rating of 40V, this diode ensures reliable operation even under demanding conditions. It features a low forward voltage drop of 0.55V, which optimizes energy efficiency, and a reverse leakage current of only 0.5mA, ensuring minimal power loss. Encased in a compact SMAF package, this diode is ideal for applications where space and performance are crucial.
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
The SS series is a high efficiency, low power loss general propose Schottky rectifier. The clip bonded leg structure provides high thermal performance and low electrical resistance. this rectifier is exclusively suits for free wheeling, secondary rectification and reverse polarity protection applications.
SS14F Schottky Barrier Diodes SMAF
Our High-Precision Diode, designed with a maximum Reverse Voltage (VR) of 30V and a Forward Voltage (VF) of just 0.26V, is engineered to provide reliable and efficient performance in various electronic applications. With a minimal reverse leakage current of 500nA, this diode ensures stability and precision, making it an ideal choice for high-performance circuits. The diode is packaged in a compact SOD-123 format, optimizing space utilization on your PCB.
This diode is designed for efficient power management with its optimal reverse voltage (VR) and forward voltage (VF) characteristics. It ensures reliable operation in various electronic circuits and systems.
The SS320B Schottky Barrier Rectifiers SMB is engineered to deliver reliable and stable voltage regulation for a variety of electronic applications. With a maximum current rating of 3A and a high voltage tolerance of up to 150V, this regulator is designed to provide consistent performance while minimizing power loss. It features a forward voltage (VF) of just 0.92V and a low reverse leakage current (IR) of 0.22mA, ensuring efficient operation and reduced energy waste.
