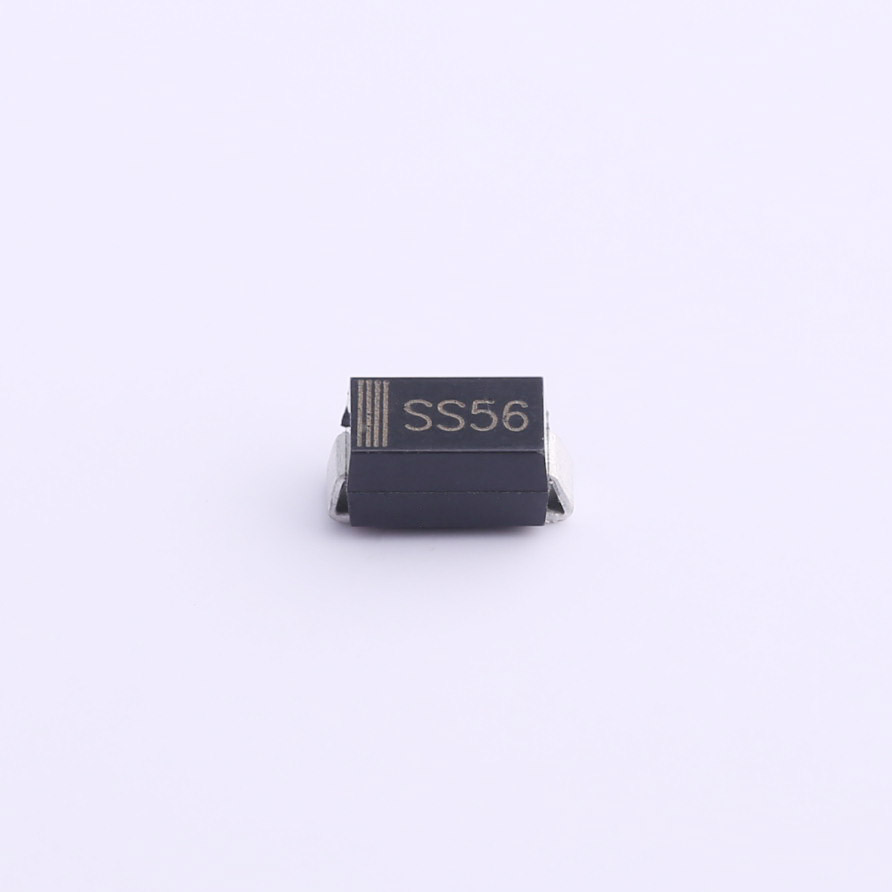

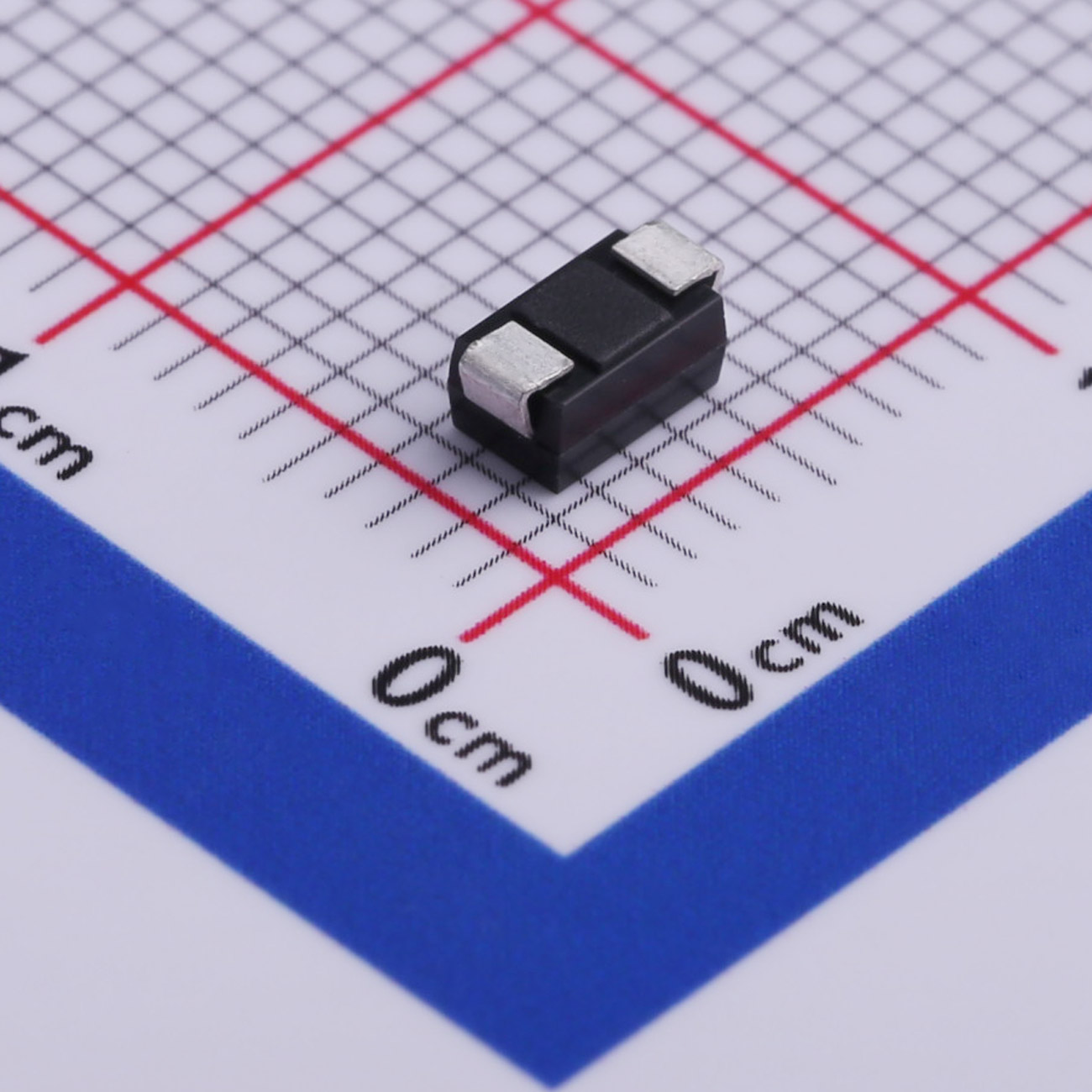

SS56 Schottky Rectifiers SMA
Download datasheet InquirySurface Mount Schottky Rectifiers
Features
Schottky Brrier Chip
Low Power Loss, High Efficiency
Ideally Suited for Automatic Assembly
Surge Overload Rating to 100APeak
Plastic Case Material has UL Flammability
Classification Rating 94V-0
Mechanical Data
Case: Molded plastic SMA
Terminals: Plated leads solderable per
MIL-STD-750, Method 2026 guaranteed
Polarity: Color band denotes cathode end
Mounting Position: Any
Making: Type Number
Maximum Ratings and Electrical Characteristics
Rating at 25'C ambient temperature unless otherwise specified
Single phase.half wave,60Hz.resistive or inductive load
For capacitive load derate current by 20%
