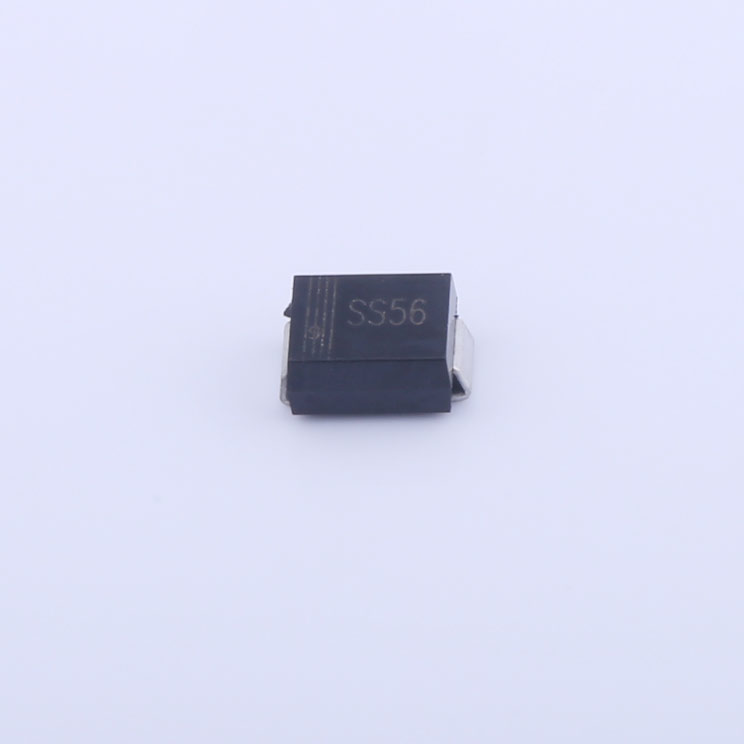

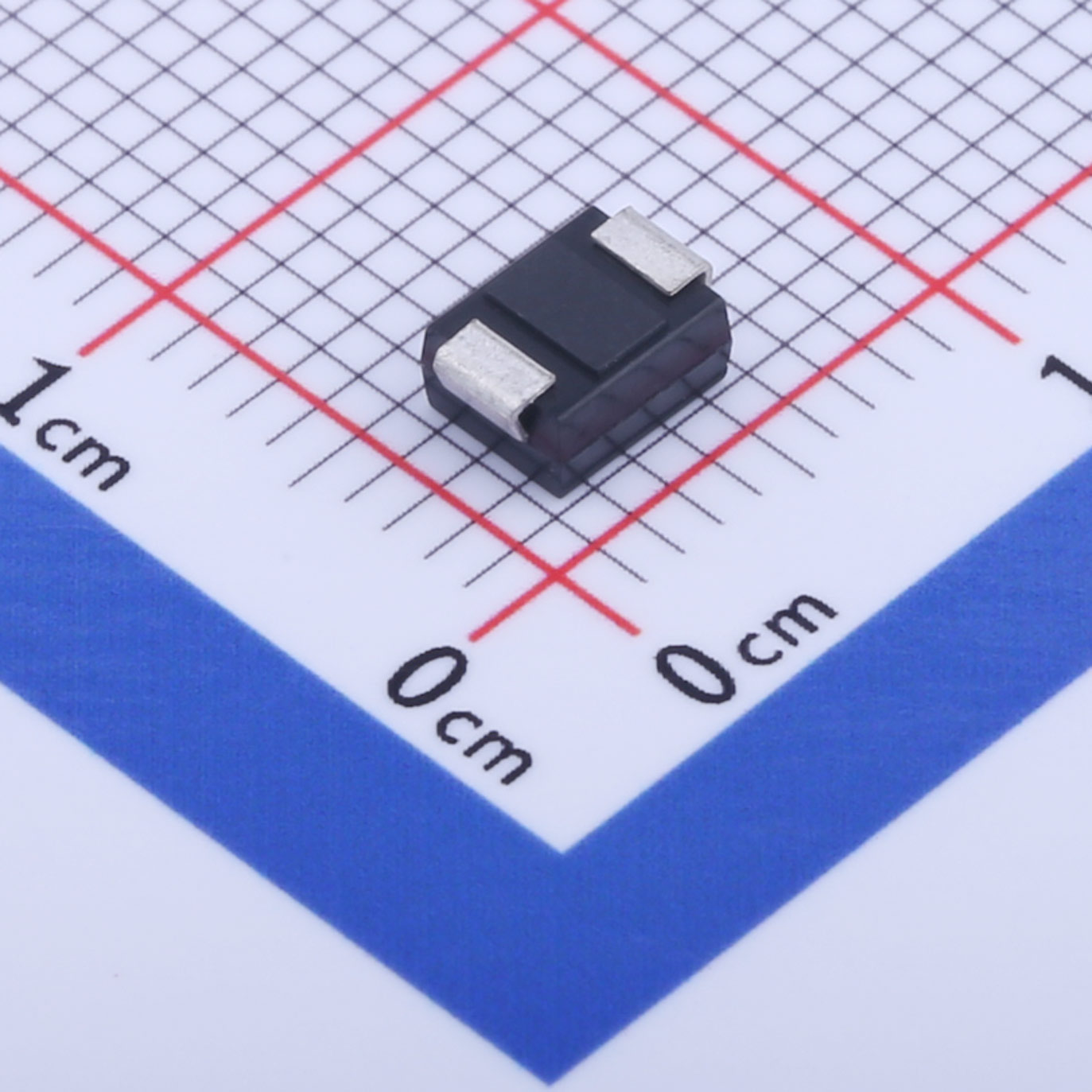

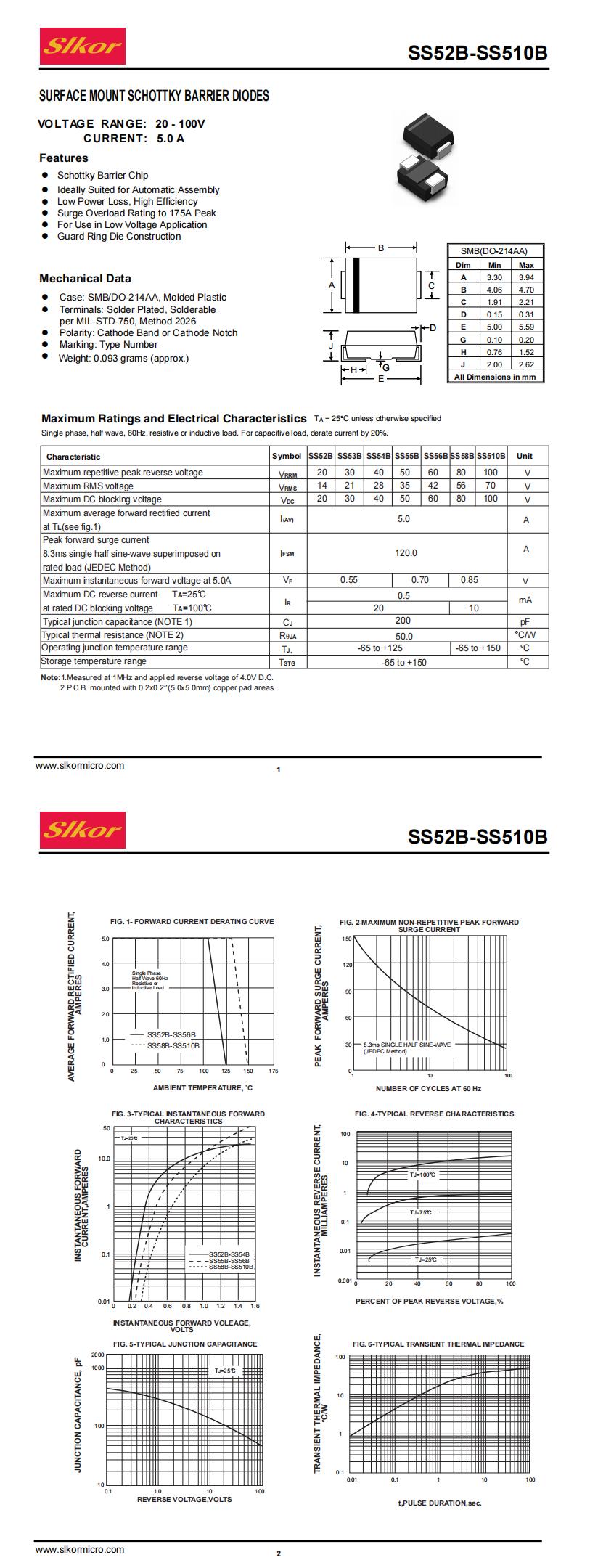

SS56B Schottky Barrier Rectifiers SMB
Download datasheet Inquiry
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE:20-100V
CURRENT:5.0A
Features
Schottky Barrier Chip
Ideally Suited for Automatic Assembly
Low Power Loss,High Efficiency
Surge Overload Rating to 175A Peak
For Use in Low Voltage Application
Guard Ring Die Construction
Mechanical Data
Case: SMB/DO-214AA, Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)
