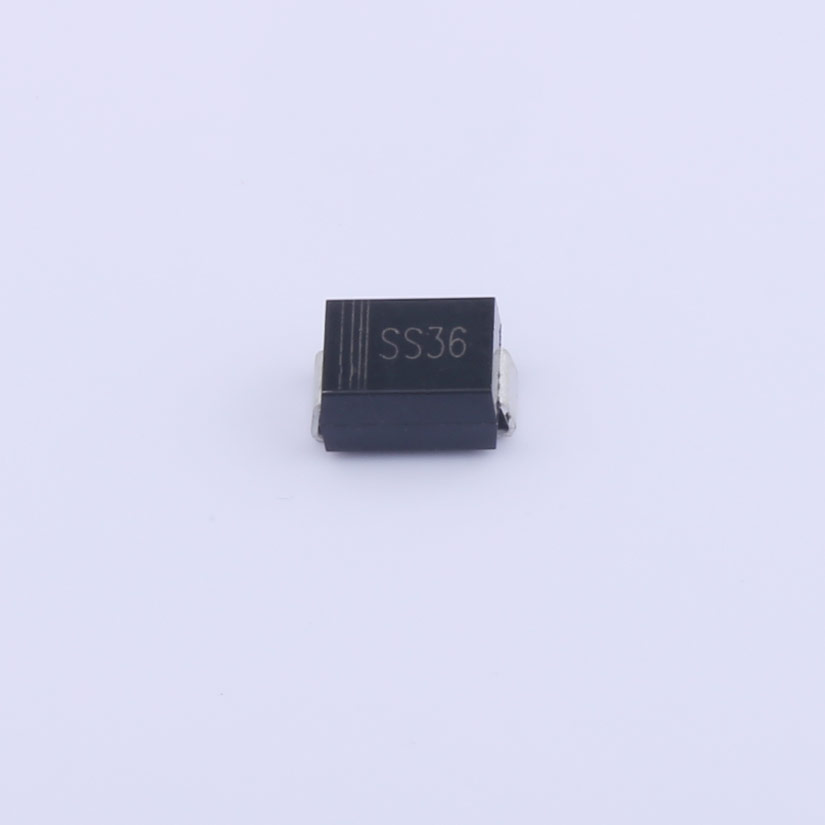

SS36B Schottky Barrier Rectifiers SMB
Download datasheet InquirySURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20-100V
CURRENT: 3.0 A
Features
For Surface Mounted Applications
High Temperature Metallurgically Bonded Contacts
High Reliability
High Current Capability and Low VF
Submersible Temperature of 265C for 10 Seconds in Solder Bath
Mechanical Data

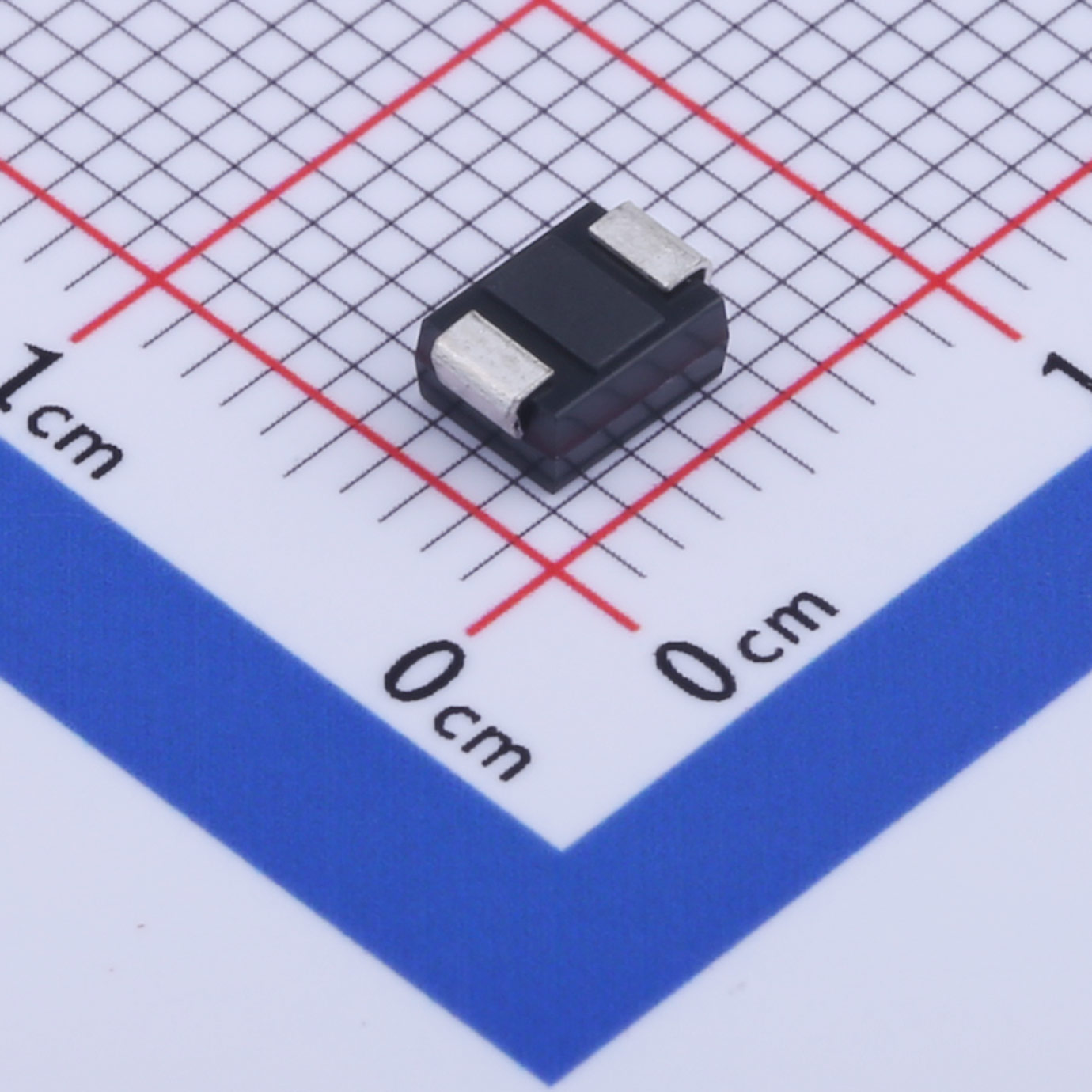

Case: SMB/DO-214AA.Molded Plastic
Terminals: Solder Plated,Solderable per MIL-STD-750.Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)

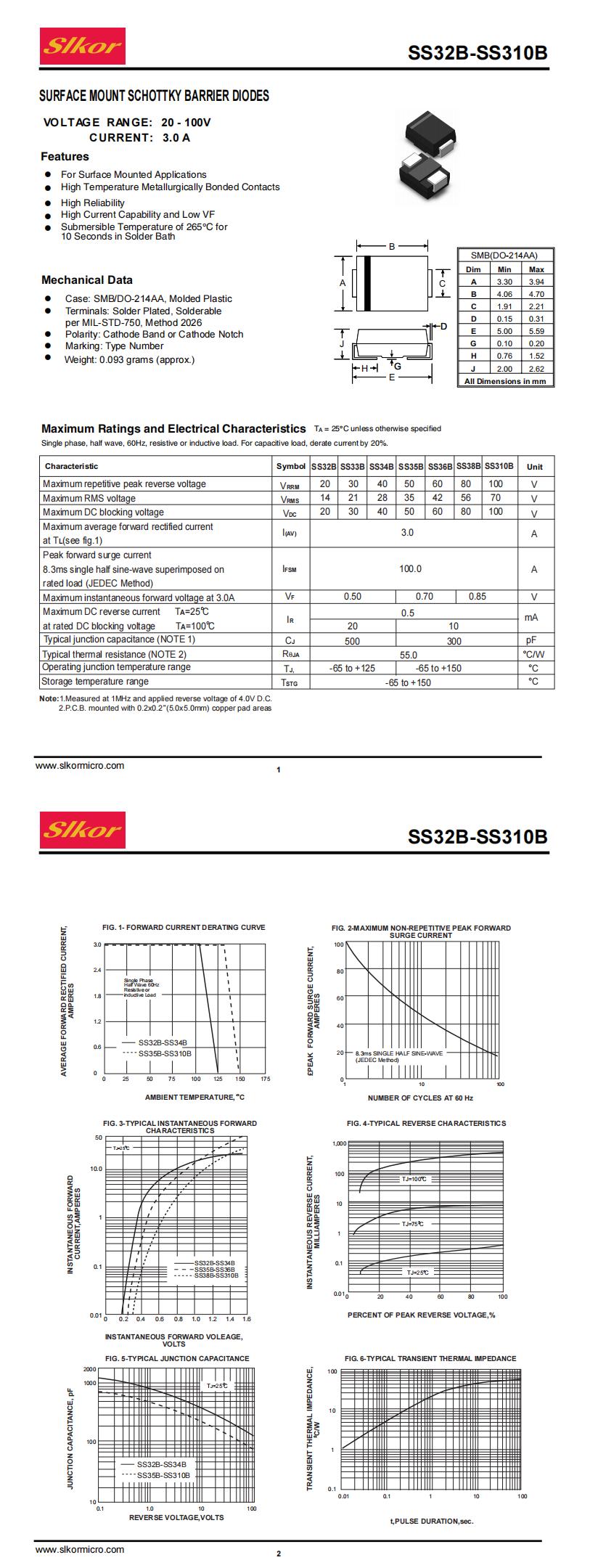

| File Name | Title | Description |
|---|---|---|
| SS36B.pdf | SS36B | - |
