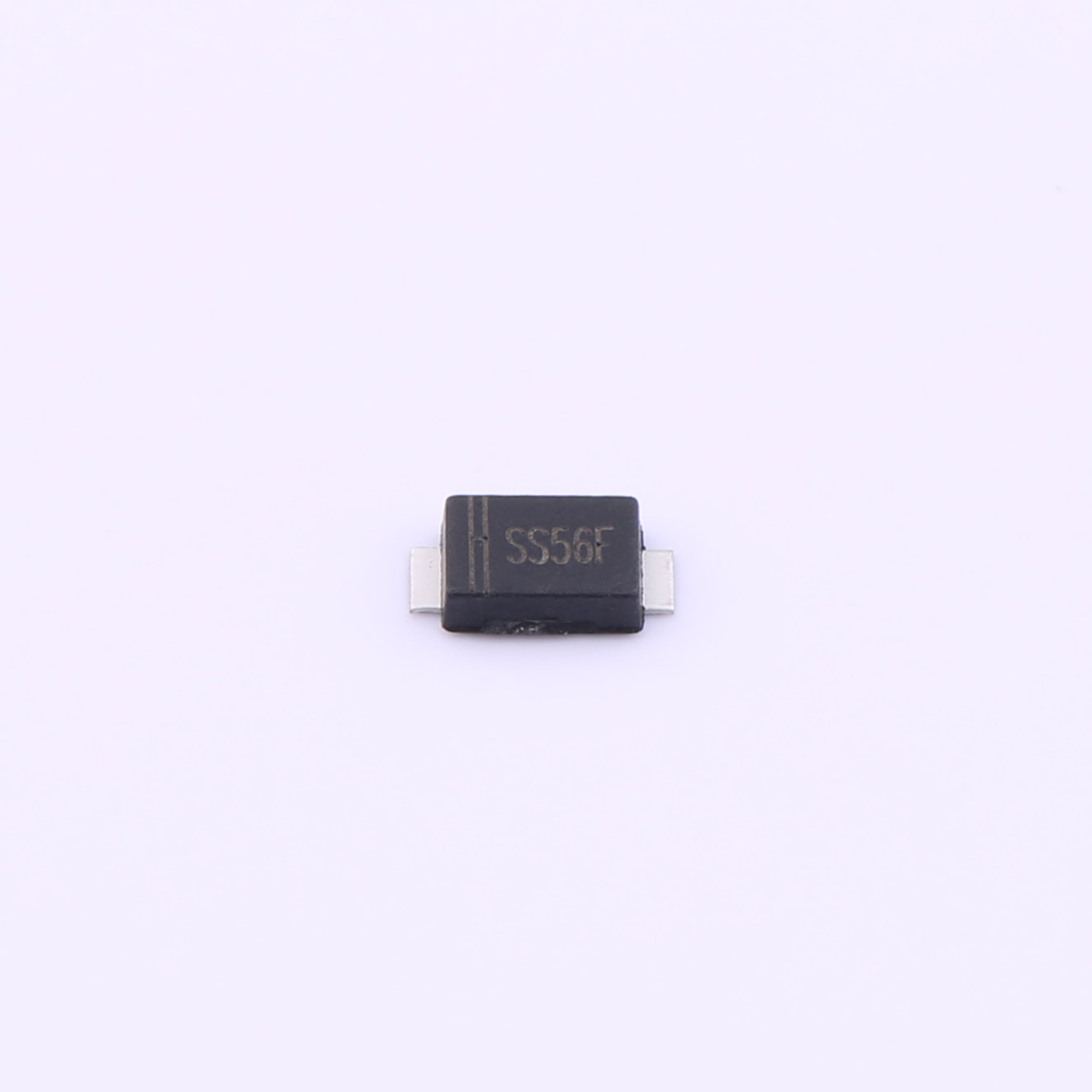

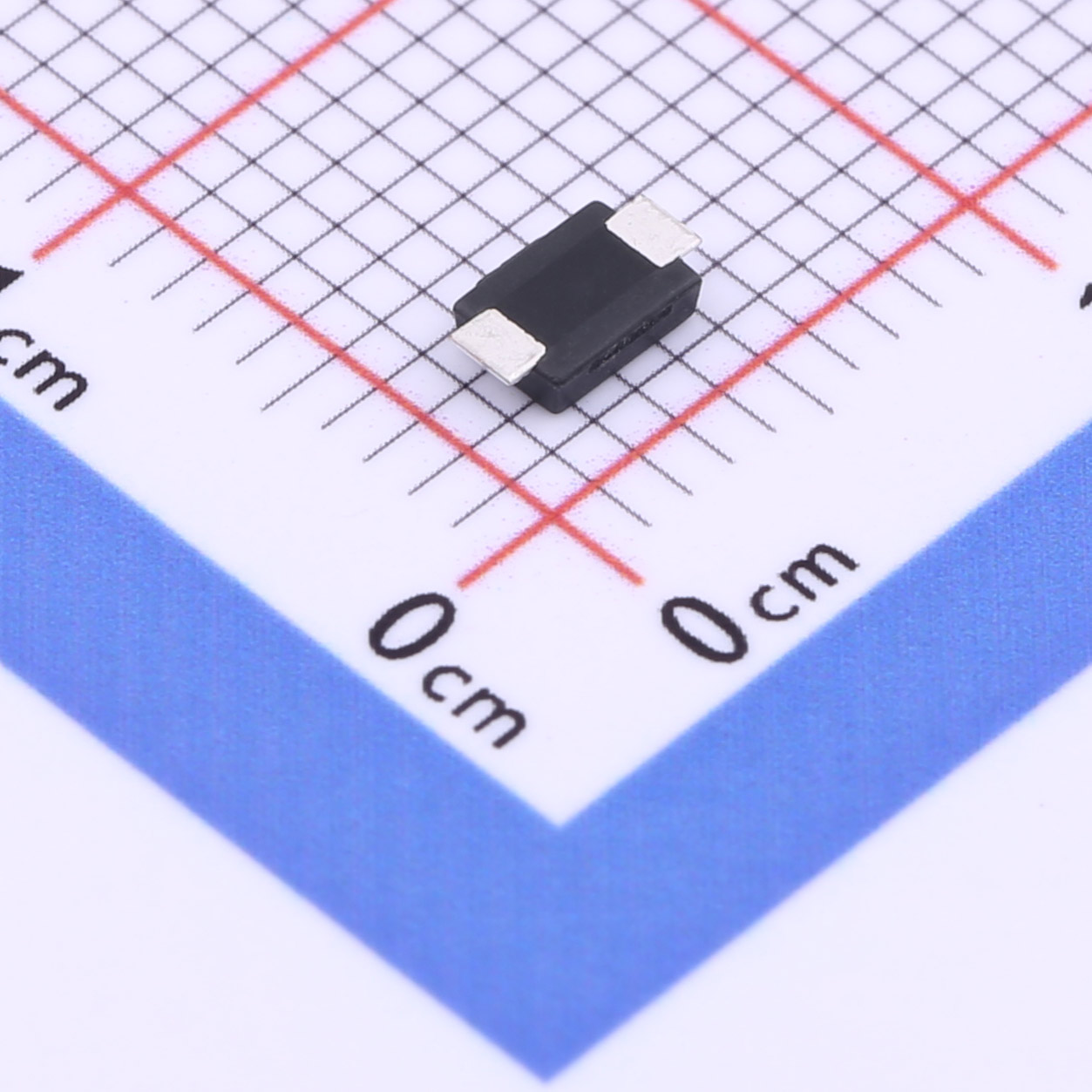

SS56F Schottky Diodes SMAF
Download datasheet Inquiry
FEATURES
? Metal silicon junction, majority carrier conduction
? For surface mounted applications
? Low power loss, high efficiency
? High forward surge current capability
? For use in low voltage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
? Case: SMAF
? Terminals: Solderable per MIL-STD-750, Method 2026
? Approx. Weight: 27mg / 0.00095oz
