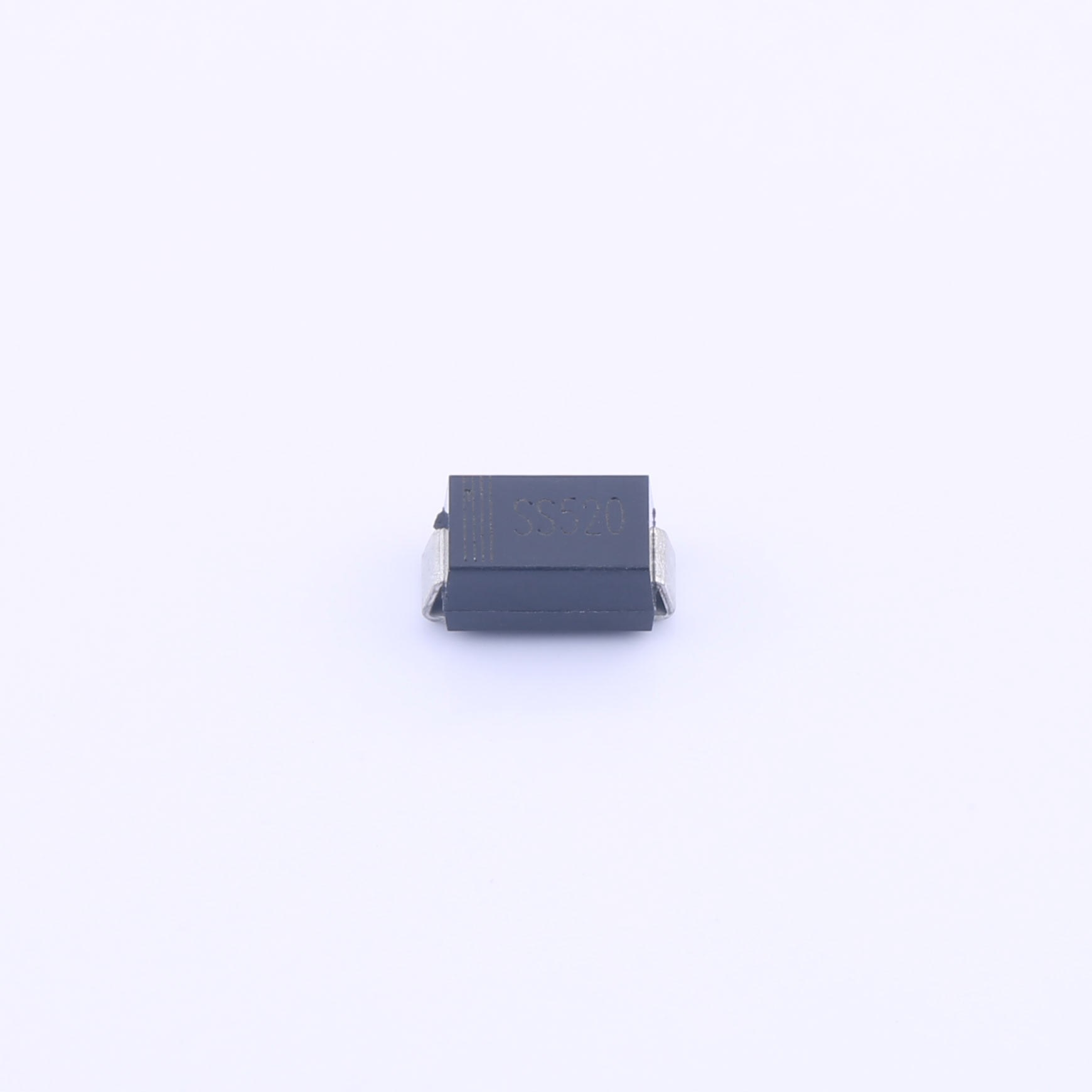

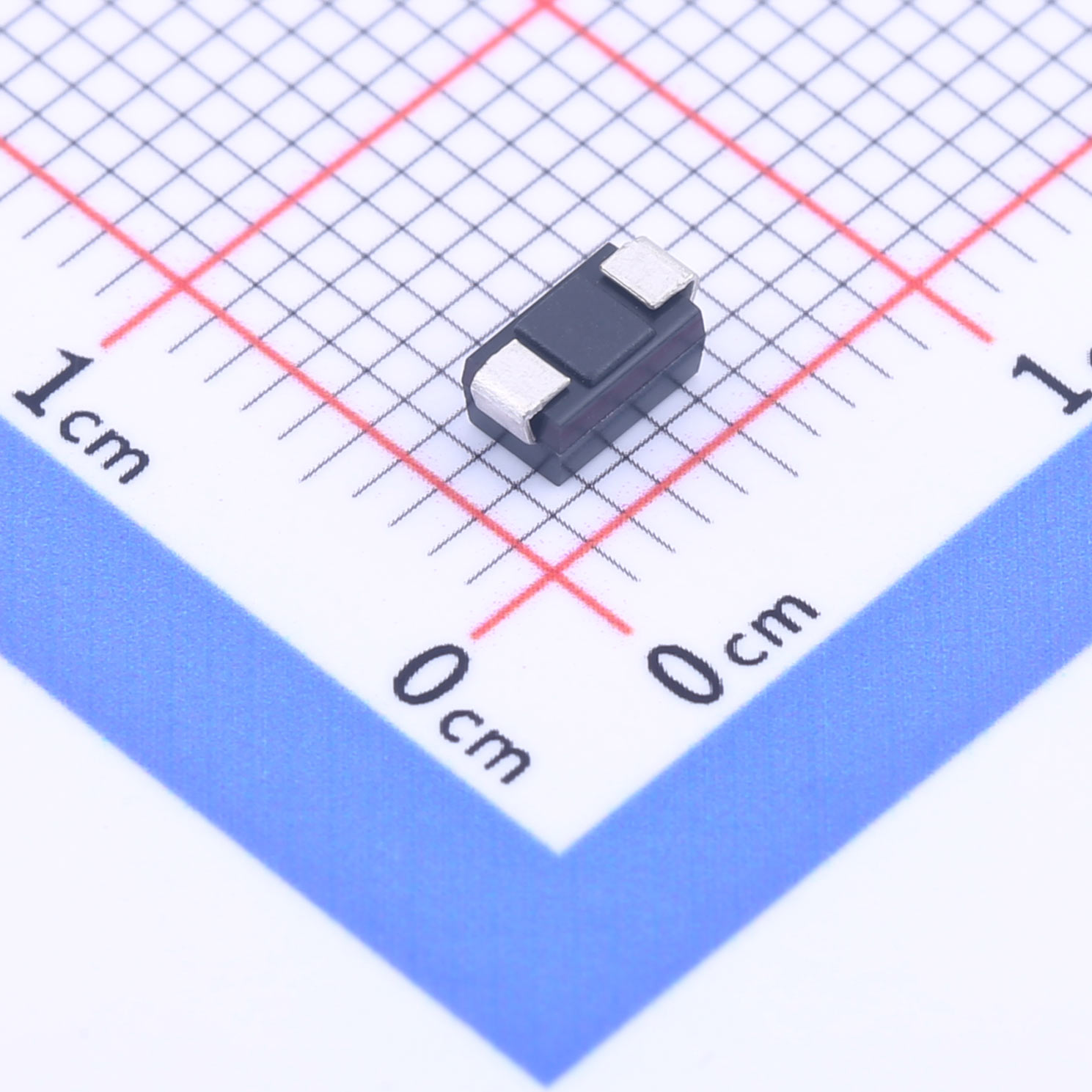

SS520 Schottky Diode Rectifier SMA
Download datasheet Inquiry
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
REVERSE VOLTAGE 20 to 200 Volts
FORWARD CURRENT-5.0 Amperes
FEATURES
? Metal-Semiconductor junction with gardring
? Epitaxial construction
? Low forward voltage drop
? High current capability
? The plastic material carries UL recognition 94V-0
? For use in low vlotage, high frequency inverters,free wheeling, and polarity protection applications
MECHANICAL DATA
? Case: MoldedPlastic
? Polarity:Colorbanddenotescathode
? Weight:0.058grams

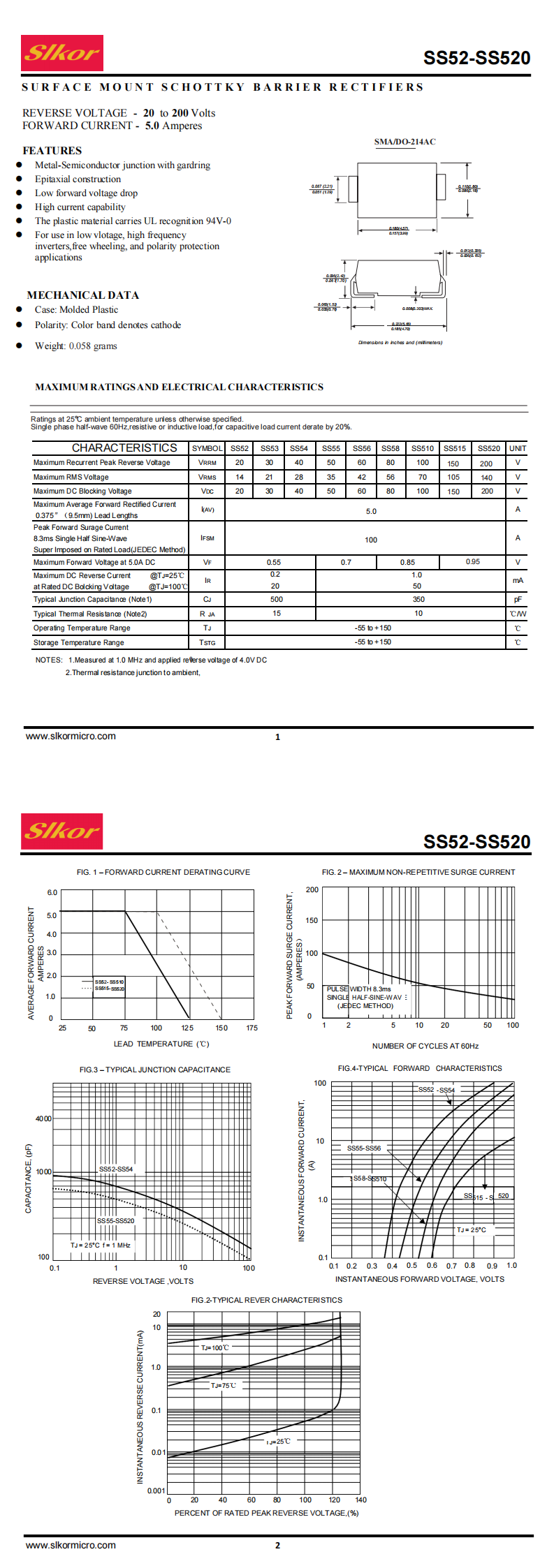

| File Name | Title | Description |
|---|---|---|
| SS52 SMA.pdf | SS52 SMA | - |
