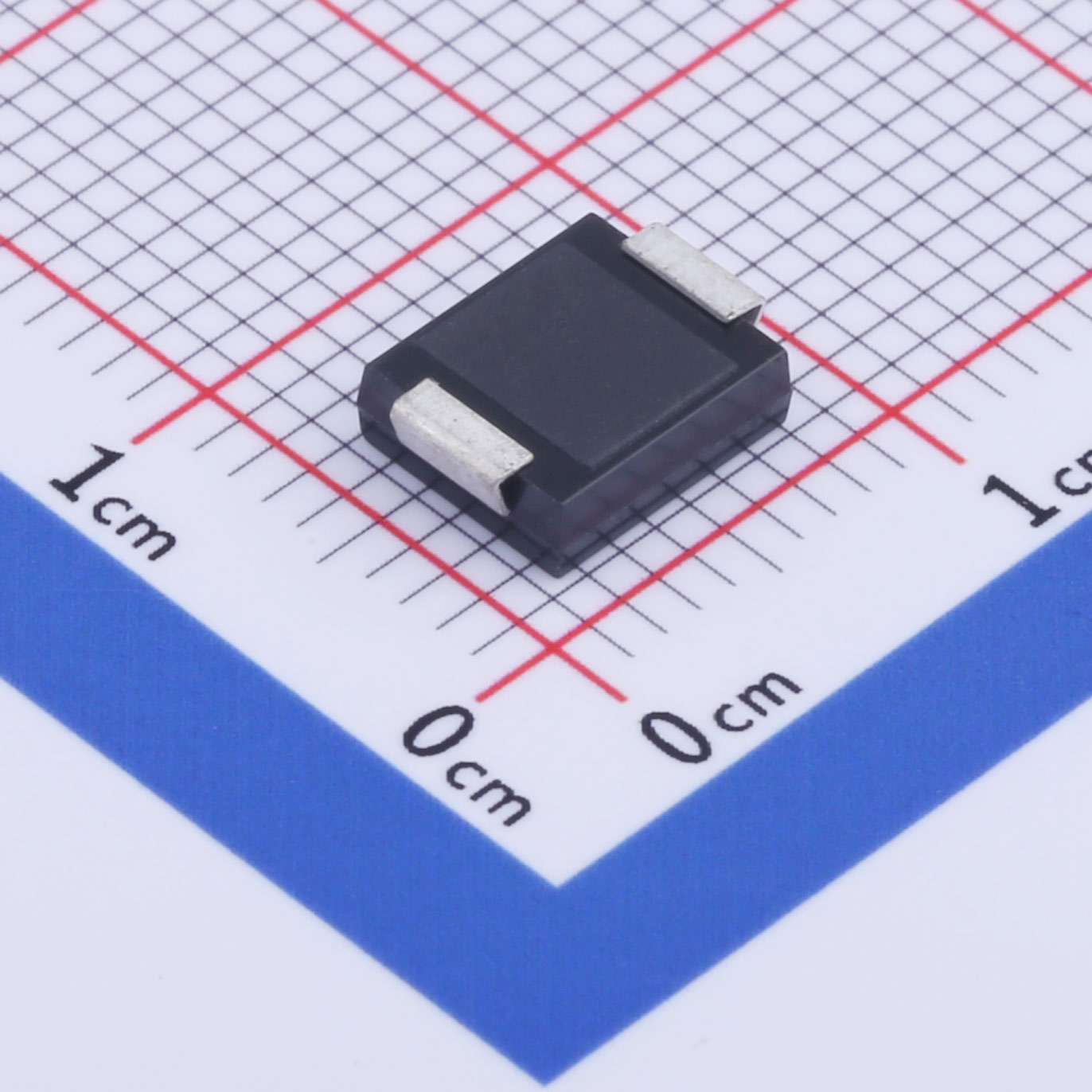

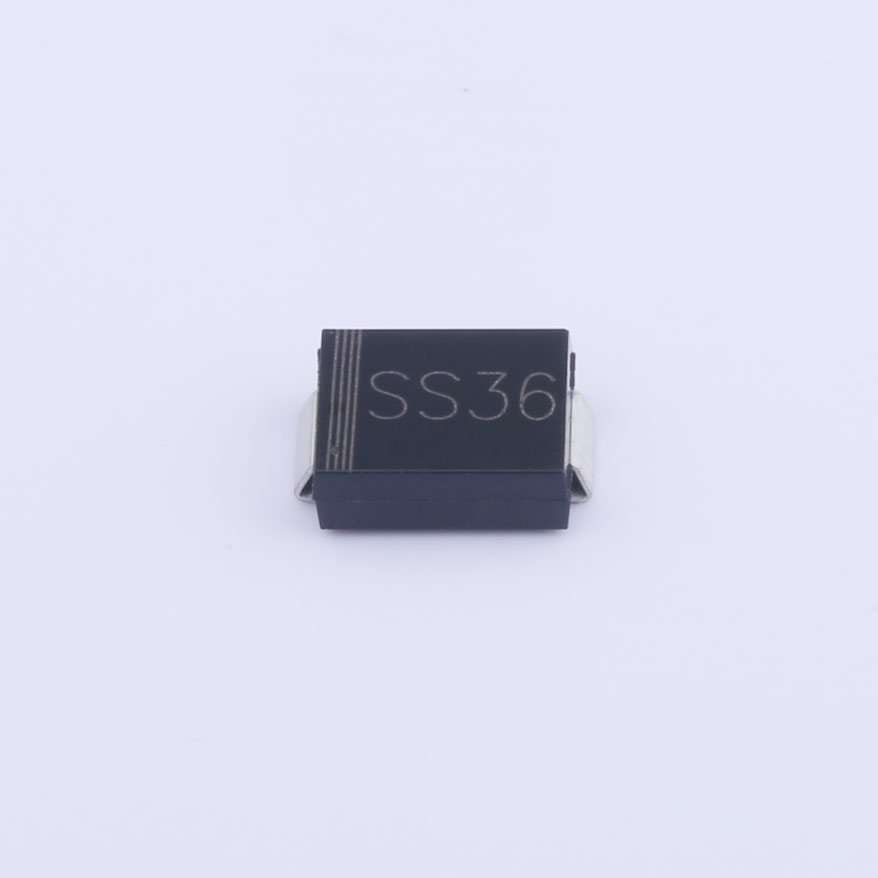

SS36 SMC Schottky Diode Rectifier
Download datasheet InquirySURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20-100V
CURRENT: 3.0 A
Features
For Surface Mounted Applications
High Temperature Metallurgically Bonded Contacts
High Reliability
High Current Capability and Low VF
Submersible Temperature of 265C for
10 Seconds in Solder Bath
Mechanical Data
Case: SMC/DO-214AB, Molded Plastic
Terminals: Solder Plated,Solderable per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.21 grams (approx.)
| File Name | Title | Description |
|---|---|---|
| SS310.pdf | SS310 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vr: 25V Io: 100mA Vf: 0.3V@1mA Ir: 2μA@15V
This diode features a peak reverse voltage rating (VRRM) of 400V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.25V. Its fast reverse recovery time (trr) of just 35ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 200V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.25V. Its fast reverse recovery time (trr) of just 500ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.

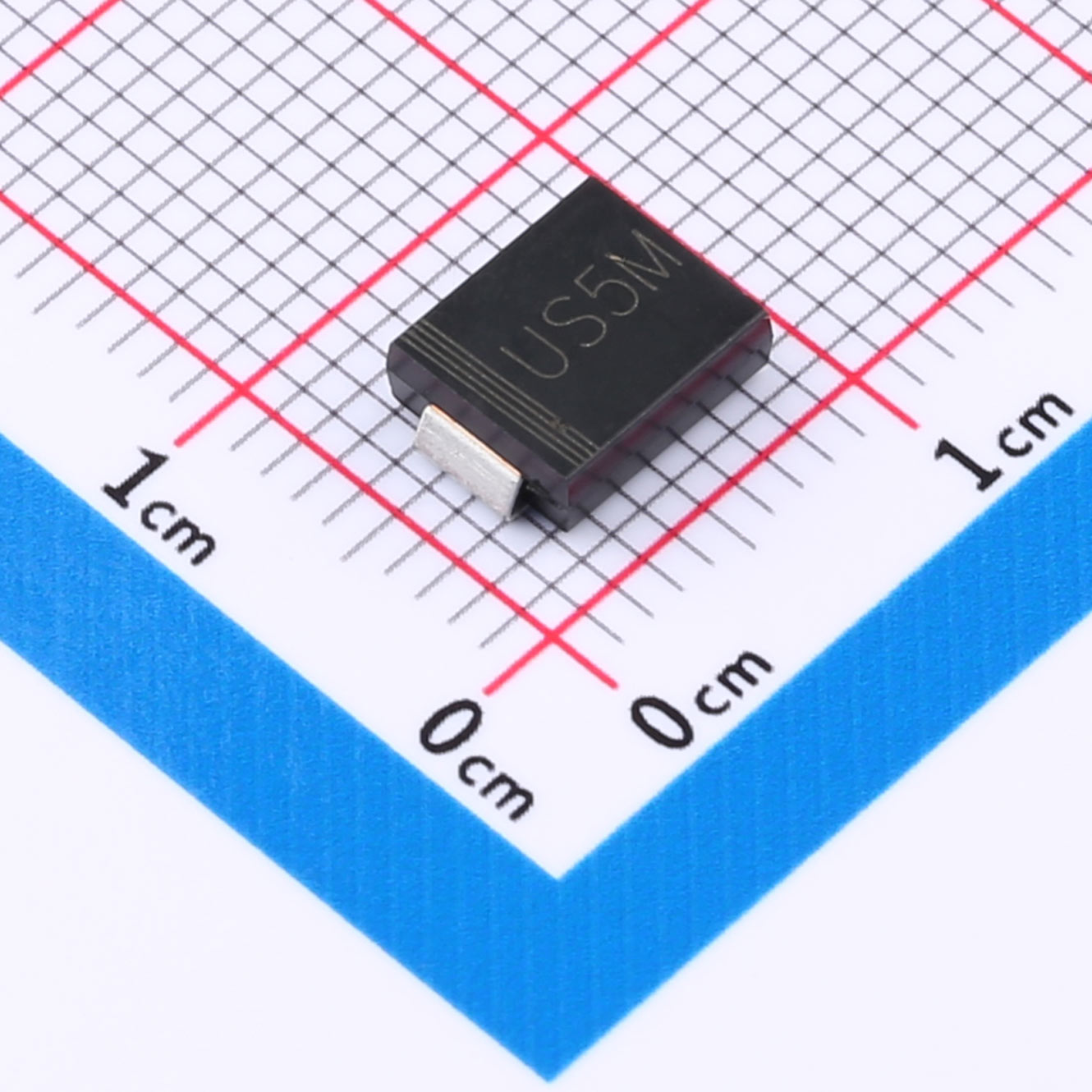

The US5MC Fast Recovery Rectifier Diode SMC is engineered for exceptional efficiency and reliability in various electronic applications. With a peak reverse voltage rating of 50V and a maximum forward current of 5A, this diode is designed to handle demanding conditions with precision. Its low forward voltage drop of 1V ensures minimal power loss, while its rapid reverse recovery time of 50ns enhances performance in high-speed switching environments.
Our SMC Diode combines robust electrical characteristics with efficient performance to deliver exceptional reliability and stability. With a Forward Voltage (VF) of 1.3V and a low Reverse Leakage Current (IR) of 10μA, this diode is engineered to minimize power losses and enhance overall circuit efficiency. The diode's fast Reverse Recovery Time (trr) of 150ns ensures rapid switching capabilities, making it ideal for high-speed applications.
This diode features a maximum current rating of 5A and operates effectively within a voltage range of up to 150V. With a forward voltage (VF) of just 0.92V and a reverse leakage current (IR) of 0.02mA, it ensures minimal power loss and high performance.
This diode is designed to meet the demanding needs of modern electronic applications. This diode offers exceptional reliability and efficiency, making it an ideal choice for various high-current and high-voltage applications.
The Polar High-Performance Rectifier Diode is engineered to deliver reliable performance in high-current and moderate-voltage applications. It supports a continuous forward current of 3.0A and a reverse voltage of up to 60V. This diode features a forward voltage drop of 0.7V and a low reverse leakage current of 0.5mA, ensuring efficient operation and minimal power loss. Housed in a compact SMAF package, it is designed for space-constrained environments while maintaining durability and performance.
