SS26B Schottky Diode Rectifier SMB
Download datasheet Inquiry
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20-100V
CURRENT: 2.0 A
Features
Schottky Barrier Chip
ldeally Suited for Automatic Assembly
Low Power Loss,High Efficiency
For Use in Low Voltage Application
Guard Ring Die Construction
Mechanical Data

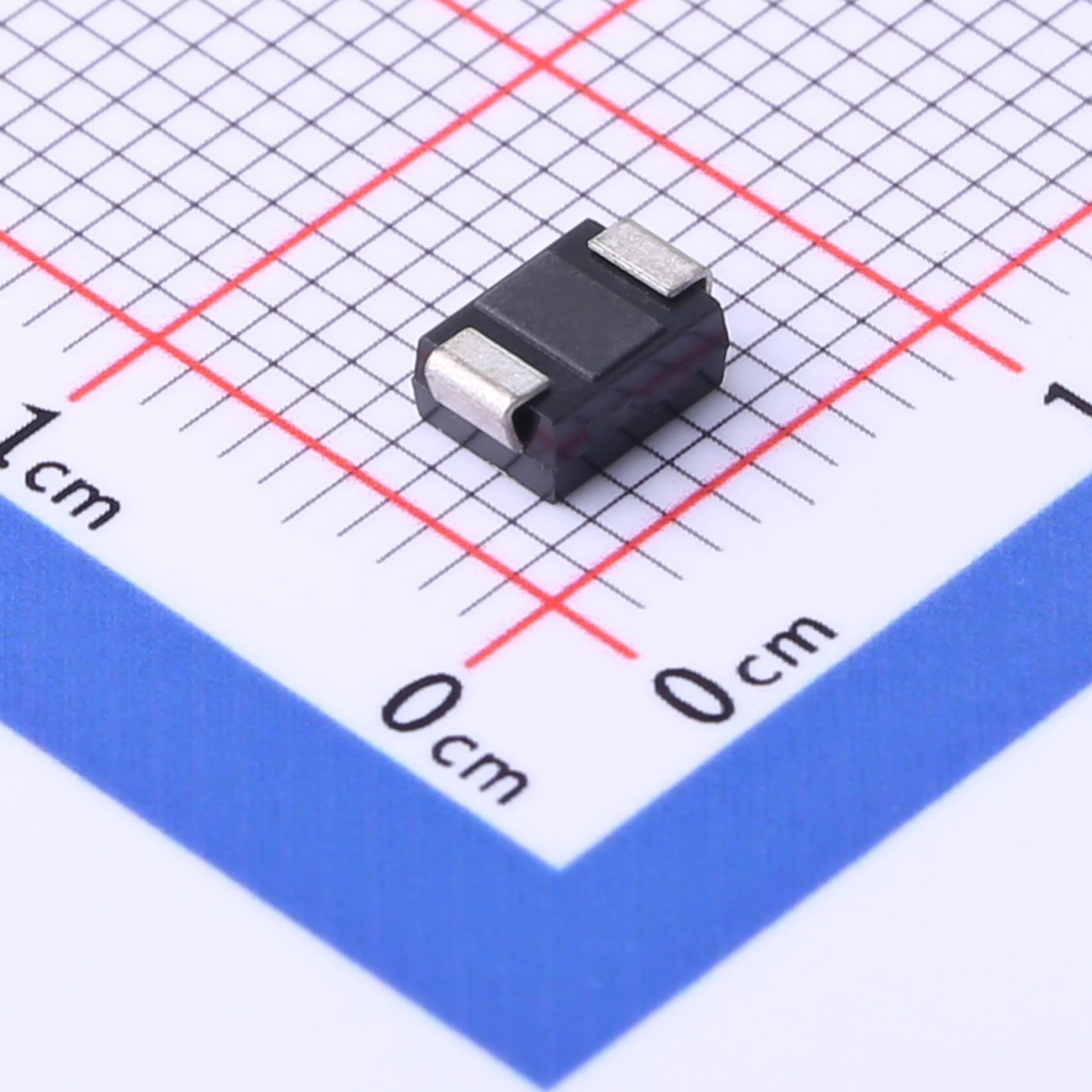

Case: SMB/DO-214AA, Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750.Method 2026

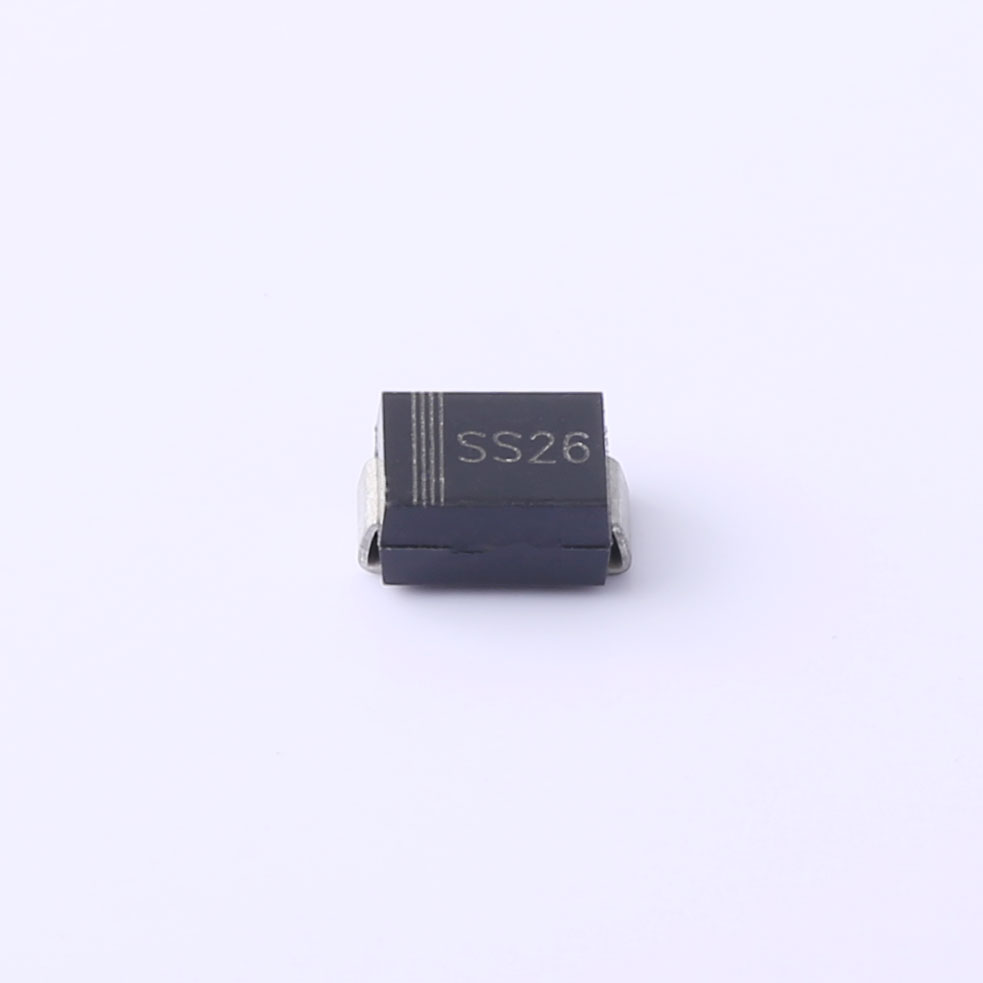

Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)

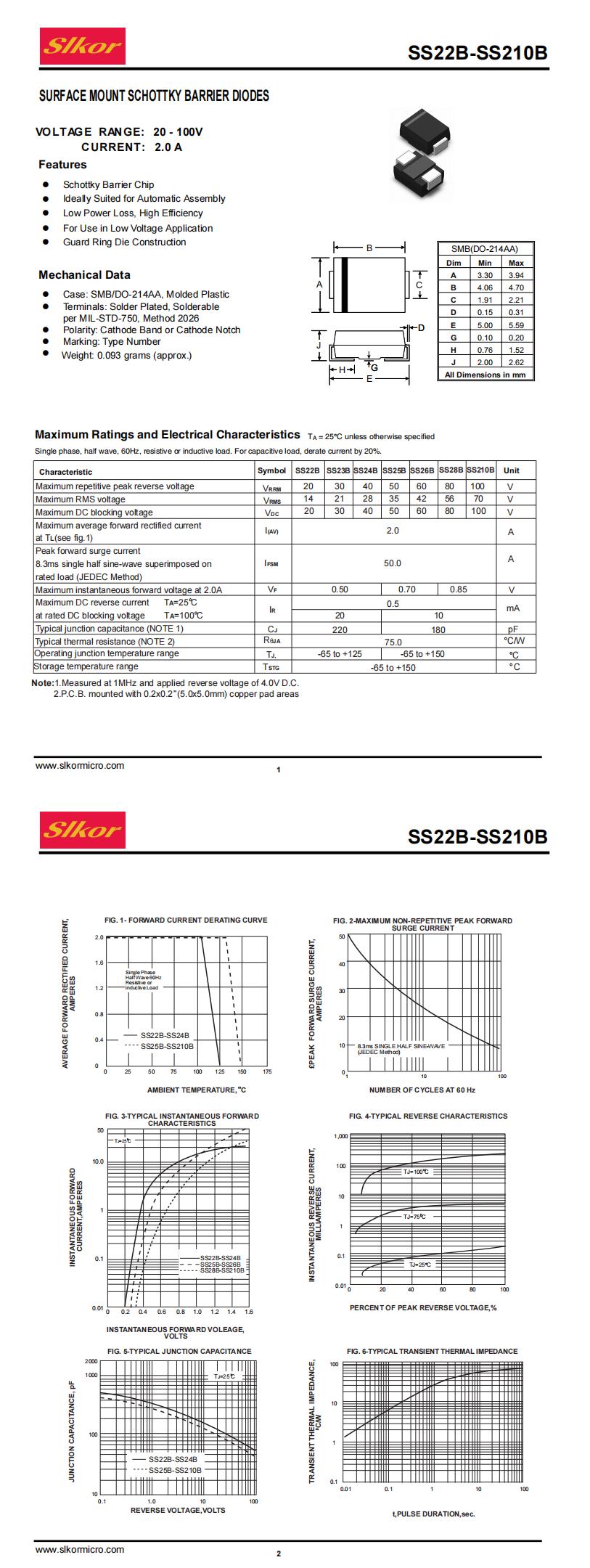

| File Name | Title | Description |
|---|---|---|
