The ES3JBF Fast Recovery Rectifier Diode SMBF is a high-performance component designed for demanding applications. With a maximum reverse repetitive voltage (VRRM) of 600V, it ensures robust operation under high-voltage conditions. This diode supports a continuous forward current (IO) of 3A, making it suitable for high-current circuits. The forward voltage (VF) of 1.7V minimizes power loss and enhances efficiency. It boasts an ultra-low reverse leakage current (IR) of just 5μA, ensuring stable performance even in low-voltage scenarios. Its fast reverse recovery time (trr) of 35ns enhances switching performance, ideal for high-speed applications. Packaged in the compact SMBF form factor, this diode is perfect for use in power supplies, voltage regulation, and protection circuits.
Download datasheet Inquiry
Surface Mount Superfast Recovery Rectifier
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The ES3JBF Fast Recovery Rectifier Diode SMBF is a high-performance component designed for demanding applications. With a maximum reverse repetitive voltage (VRRM) of 600V, it ensures robust operation under high-voltage conditions. This diode supports a continuous forward current (IO) of 3A, making it suitable for high-current circuits. The forward voltage (VF) of 1.7V minimizes power loss and enhances efficiency. It boasts an ultra-low reverse leakage current (IR) of just 5μA, ensuring stable performance even in low-voltage scenarios. Its fast reverse recovery time (trr) of 35ns enhances switching performance, ideal for high-speed applications. Packaged in the compact SMBF form factor, this diode is perfect for use in power supplies, voltage regulation, and protection circuits.
Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● Superfast reverse recovery time
● Lead free in comply with EU RoHS 2011/65/EU diretives
Applications
Ideal for use in power supply circuits, over-voltage protection, and switching regulators, the SMBF Diode excels in environments requiring high voltage and current handling with minimal energy loss and rapid recovery times.
| File Name | Title | Description |
|---|---|---|

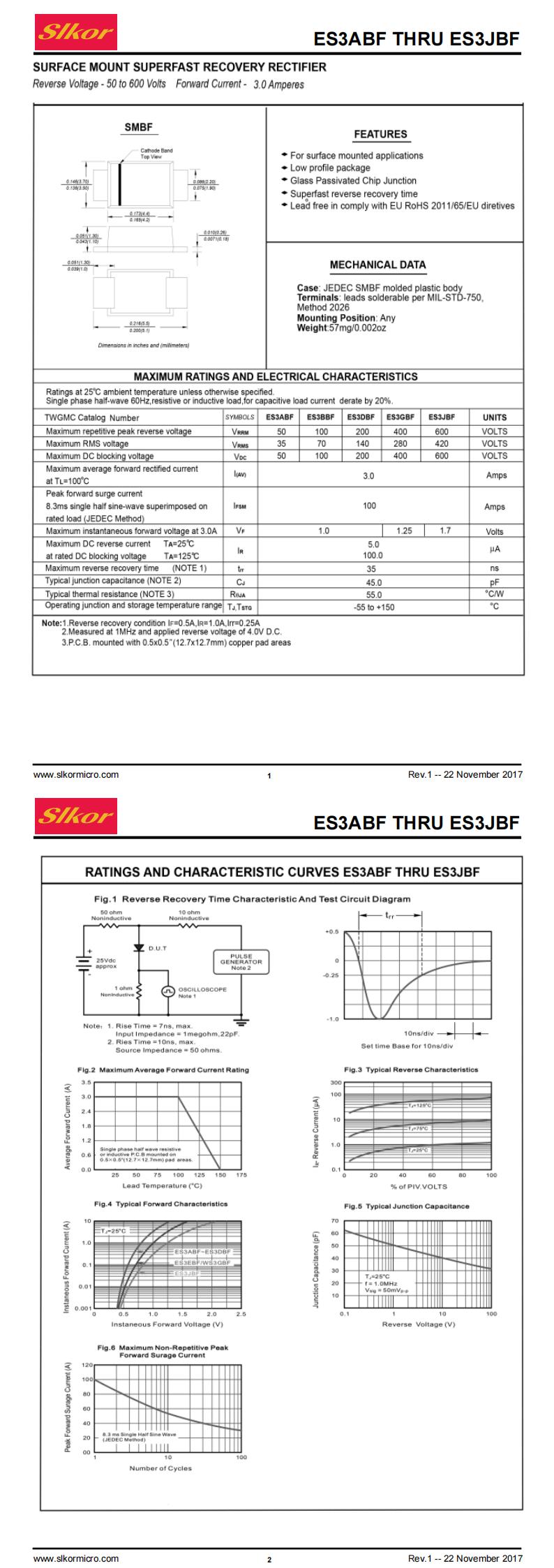

| ES3JBF SMBF.pdf | ES3JBF SMBF | - |
