This diode features a peak reverse voltage rating (VRRM) of 1000V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.3V. Its fast reverse recovery time (trr) of just 500ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
Download datasheet Inquiry
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
This diode features a peak reverse voltage rating (VRRM) of 1000V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.3V. Its fast reverse recovery time (trr) of just 500ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 10μA, enhancing its reliability and efficiency in various circuits.
FEATURES
● For surface mounted application
● Glass passivated junction chip
● Built-in strain relief, ideal for automated placement
● Plastic material used carries Underwriters
● Laboratory Classification 94V-O
● Fast switching for high efficiency
● High temperature soldering: 260OC /10 seconds at terminals
APPLICATIONS
● Power Supply Systems: Ideal for use in high-voltage power supplies and rectifier circuits.
● Switching Circuits: Suitable for high-speed switching applications where fast recovery is crucial.
● Signal Protection: Effective in protecting sensitive electronic components from reverse voltage spikes.
● Communication Equipment: Perfect for use in RF and communication systems that require quick response and reliable performance.
| File Name | Title | Description |
|---|---|---|

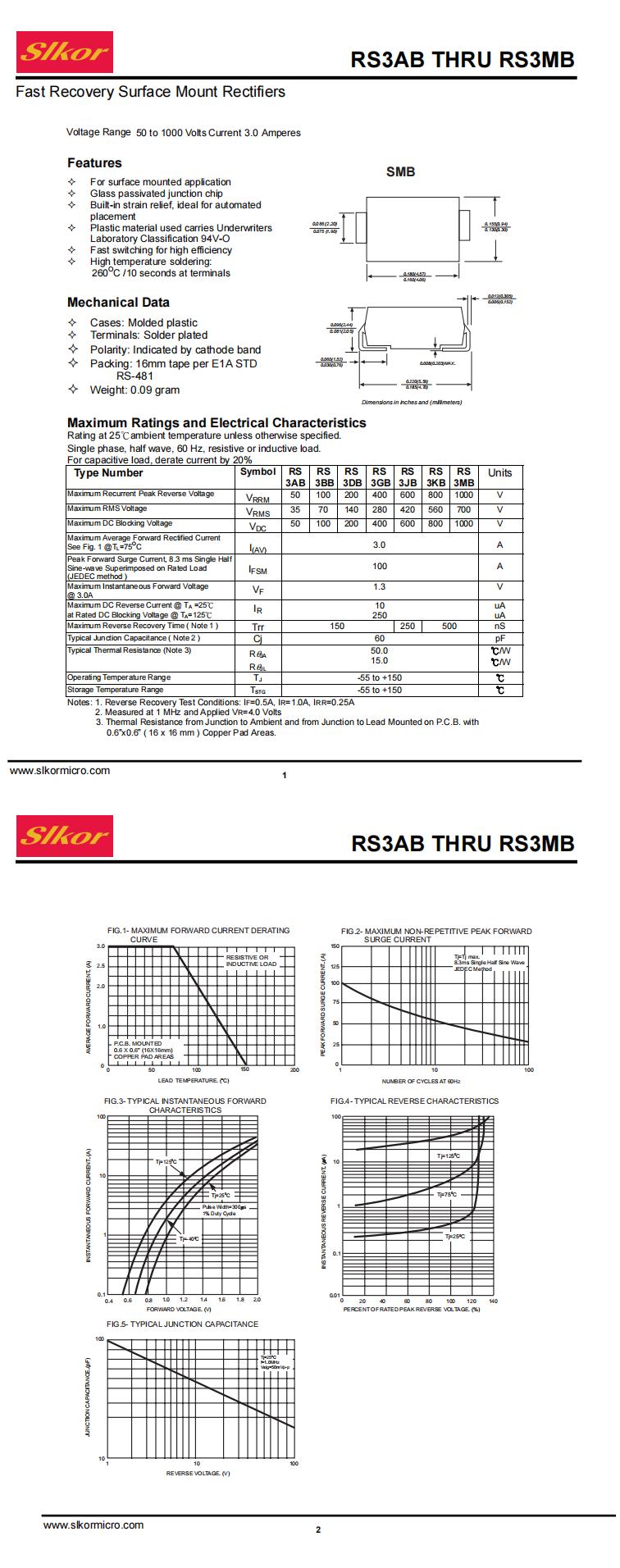

| RS3MB SMB.pdf | RS3MB SMB | - |
