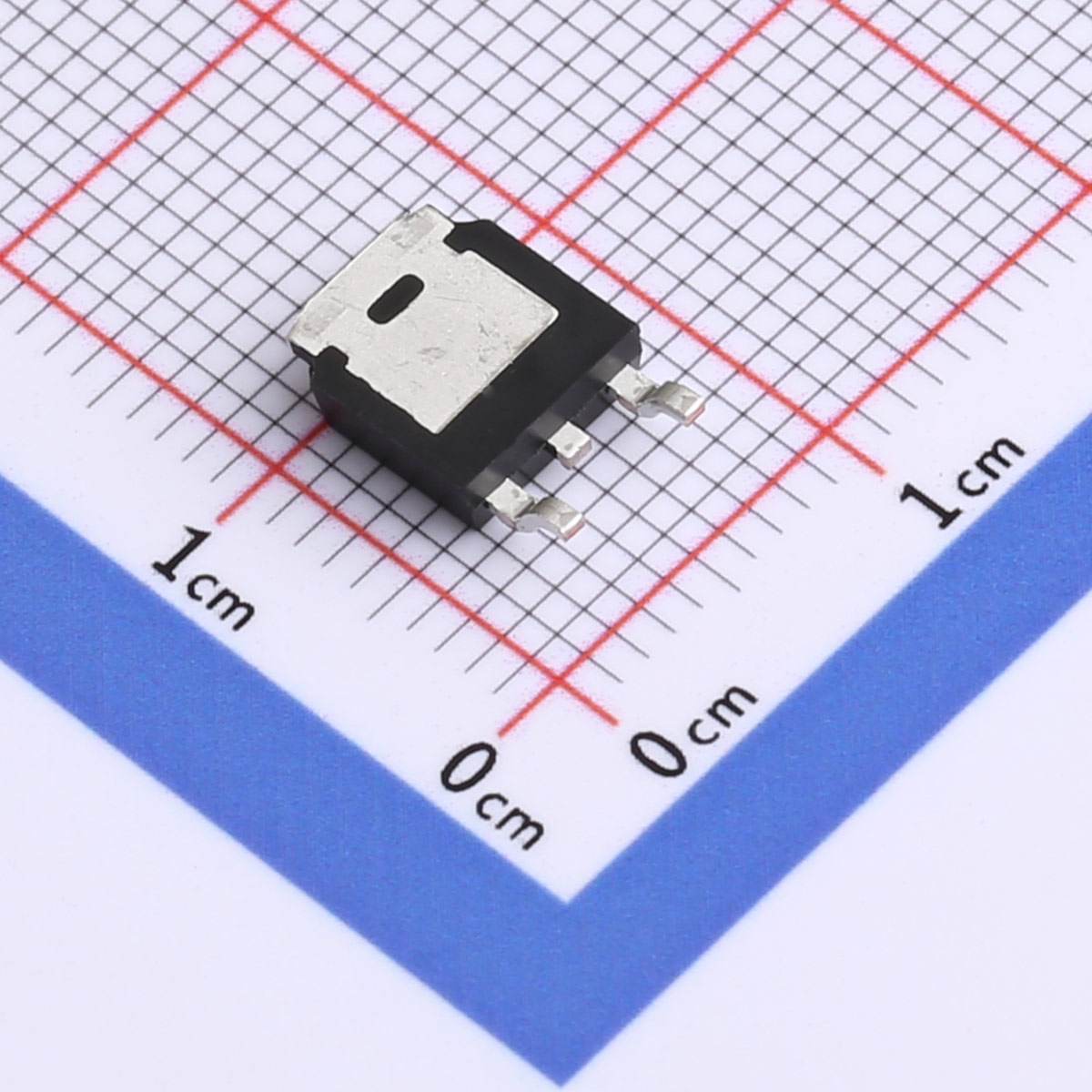

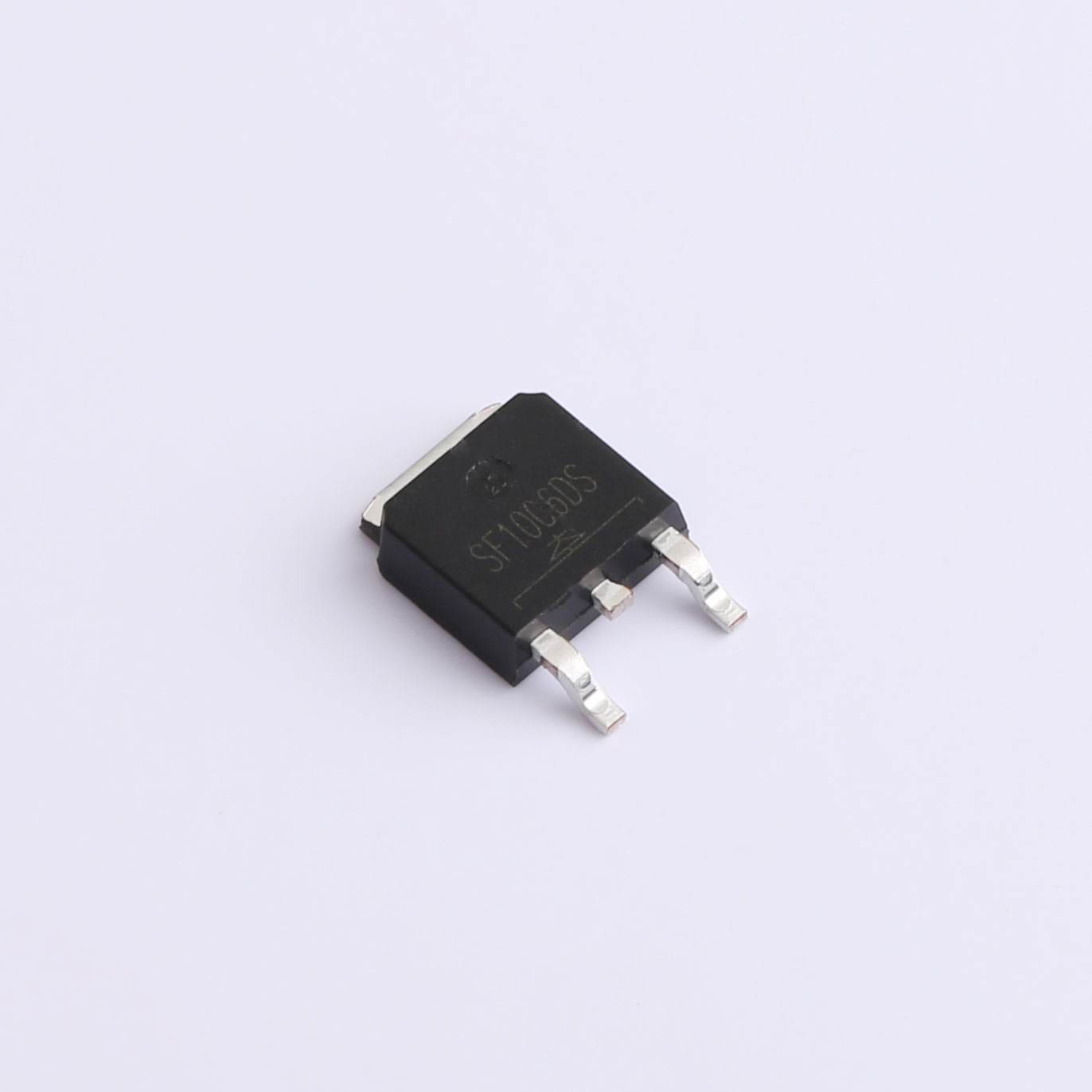

The SF1006DS Fast Recovery Rectifier Diode TO-252 is engineered for reliability and efficiency in a variety of electronic applications. This diode features a Reverse Repetitive Voltage (VRRM) of 400V and a forward current (IO) rating of 10A, making it ideal for use in demanding environments where both high voltage and current handling are crucial. Its low forward voltage drop (VF) of 0.95V ensures minimal power loss, while its ultra-low reverse leakage current (IR) of 1μA guarantees optimal performance.
Download datasheet Inquiry
Surface Mount Superfast Recovery Rectifier
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SF1006DS Fast Recovery Rectifier Diode TO-252 is engineered for reliability and efficiency in a variety of electronic applications. This diode features a Reverse Repetitive Voltage (VRRM) of 400V and a forward current (IO) rating of 10A, making it ideal for use in demanding environments where both high voltage and current handling are crucial. Its low forward voltage drop (VF) of 0.95V ensures minimal power loss, while its ultra-low reverse leakage current (IR) of 1μA guarantees optimal performance.
Features
● High current capability
● Low forward voltage drop
● Low power loss, high efficiency
● High surge capability
● High temperature soldering guaranteed
● Mounting position: any
Applications
This high-performance diode is ideal for a range of applications including power supply circuits, voltage regulation, rectification in AC-DC converters, and protection circuits. Its fast switching speed and low power loss make it suitable for high-frequency switching applications and high-current power supplies. The TO-252 package ensures robust performance in space-constrained environments and efficient heat dissipation, making it a versatile choice for both consumer electronics and industrial equipment.
| File Name | Title | Description |
|---|---|---|

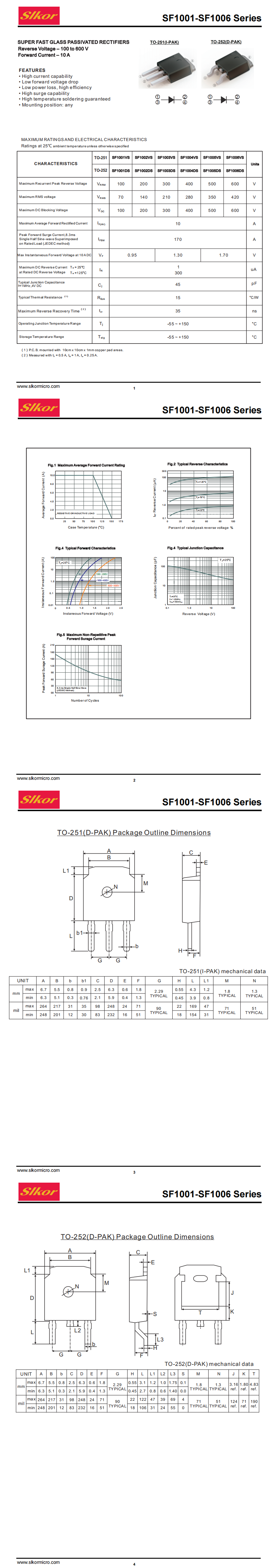

| SF1002DS TO-252.pdf | SF1002DS TO-252 | - |
