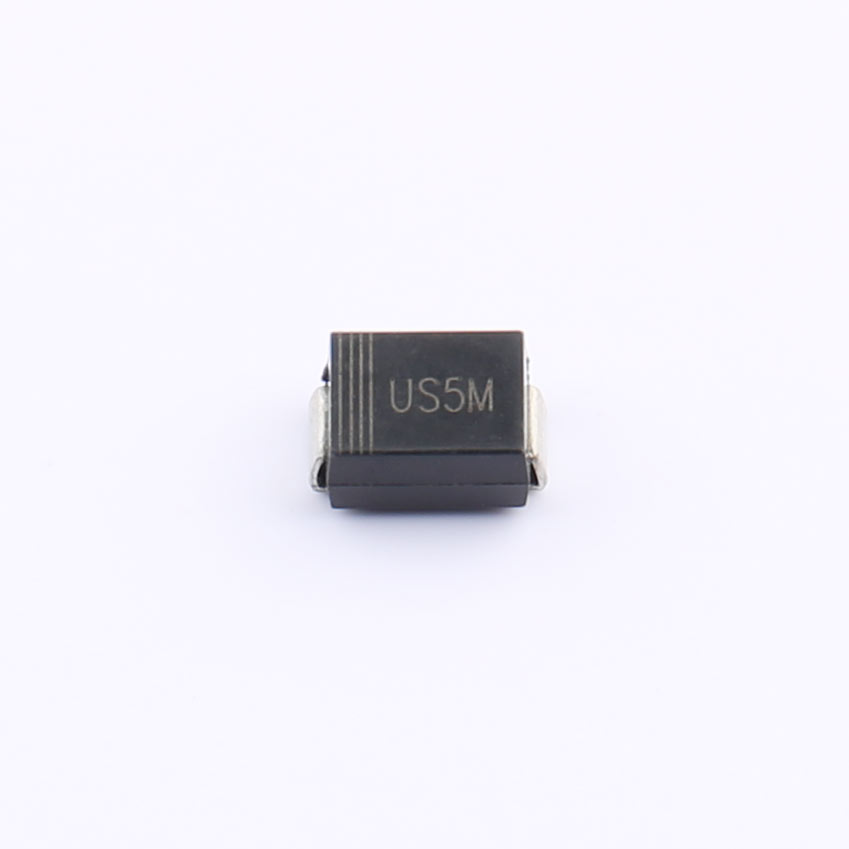

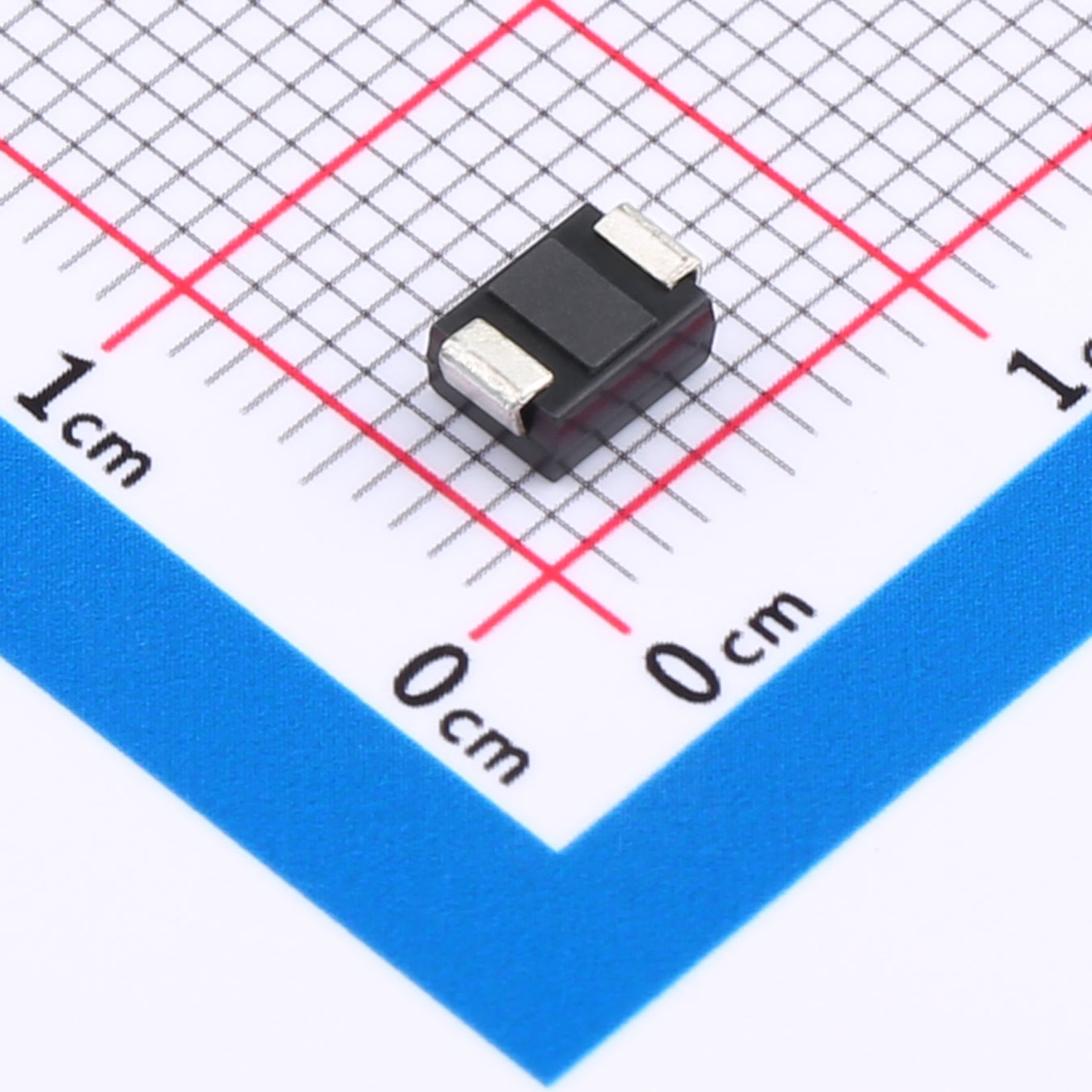

Introducing our high-performance SMB diode, engineered for reliability and efficiency in a variety of electronic applications. With a maximum reverse voltage rating (VRRM) of 50V and a forward current rating (IO) of 5A, this diode is designed to deliver exceptional performance even in demanding conditions. Its low forward voltage (VF) of 1V and minimal reverse leakage current (IR) of 5μA ensure optimal efficiency and reduced power loss.
Download datasheet Inquiry
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
Introducing our high-performance SMB diode, engineered for reliability and efficiency in a variety of electronic applications. With a maximum reverse voltage rating (VRRM) of 50V and a forward current rating (IO) of 5A, this diode is designed to deliver exceptional performance even in demanding conditions. Its low forward voltage (VF) of 1V and minimal reverse leakage current (IR) of 5μA ensure optimal efficiency and reduced power loss.
FEATURES
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● Easy to pick and place
● High efficiency
● Lead free in comply with EU RoHS 2011/65/EU directives
APPLICATIONS
Engineered for durability and high performance, our SMB diode is the perfect choice for engineers and designers seeking a reliable component for various electronic applications.
| File Name | Title | Description |
|---|---|---|

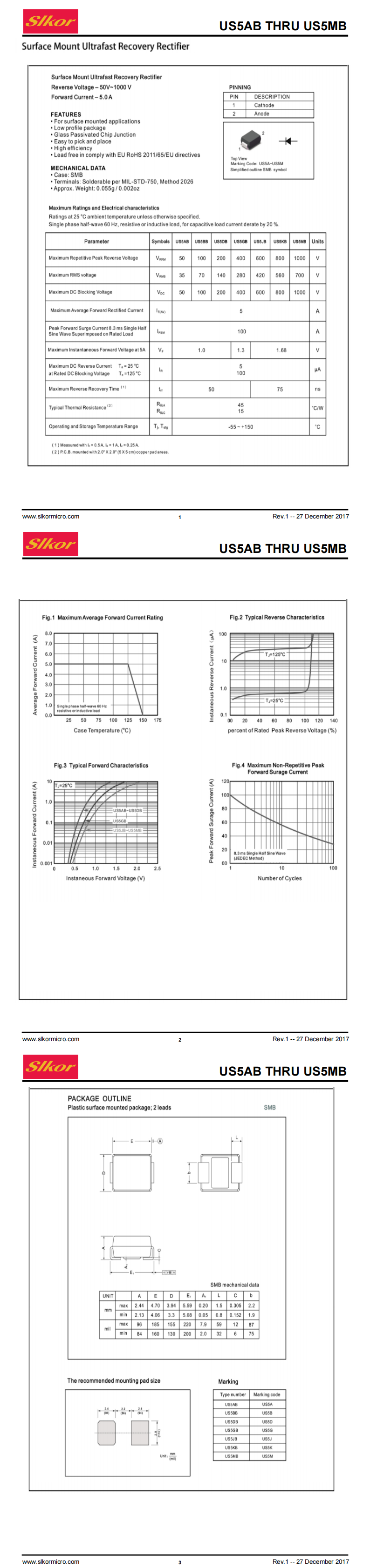

| US5MB SMB.pdf | US5MB SMB | - |
