Improved dv/dt capability
High density cell design for ultra low Rdson
Good stability and uniformity with high EAS

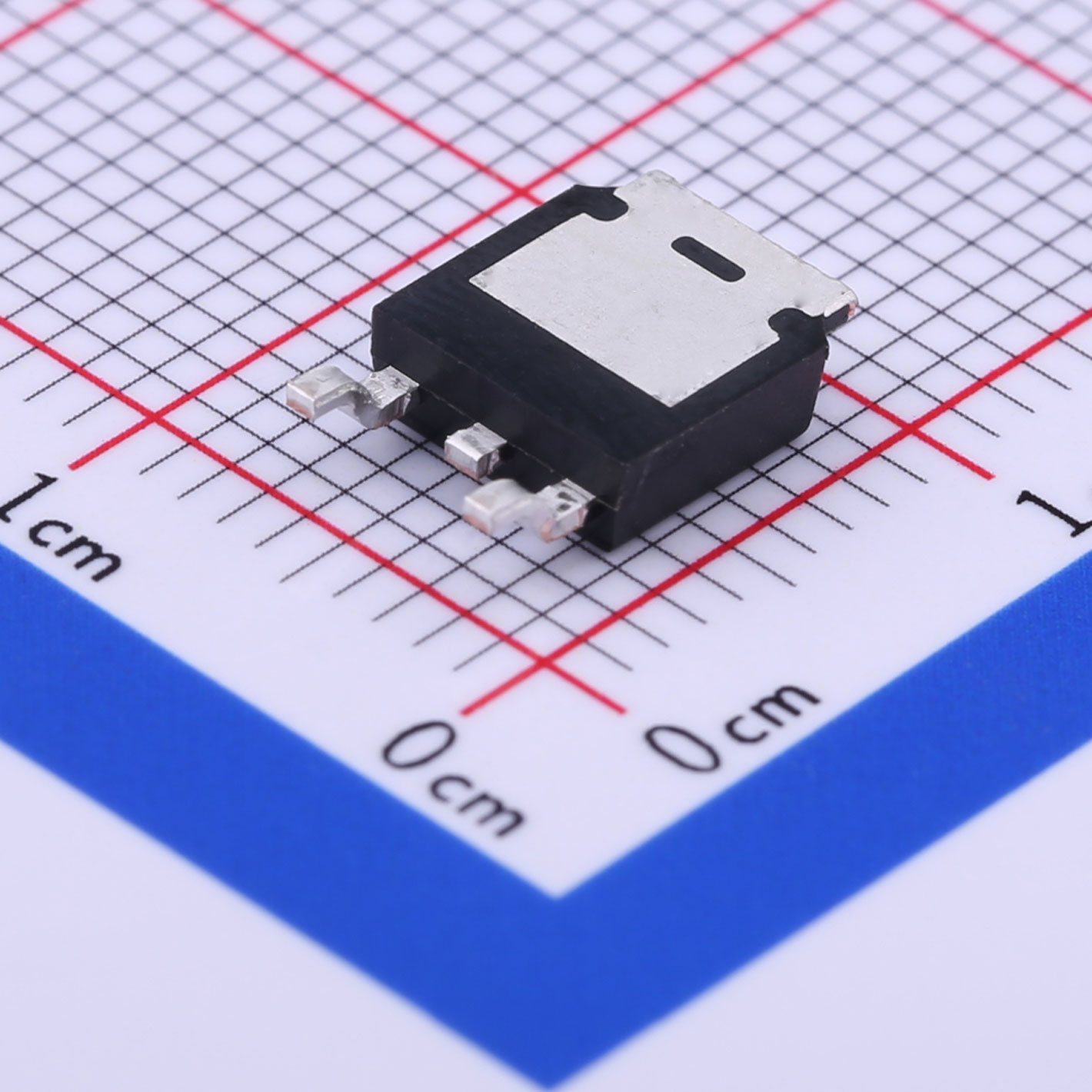

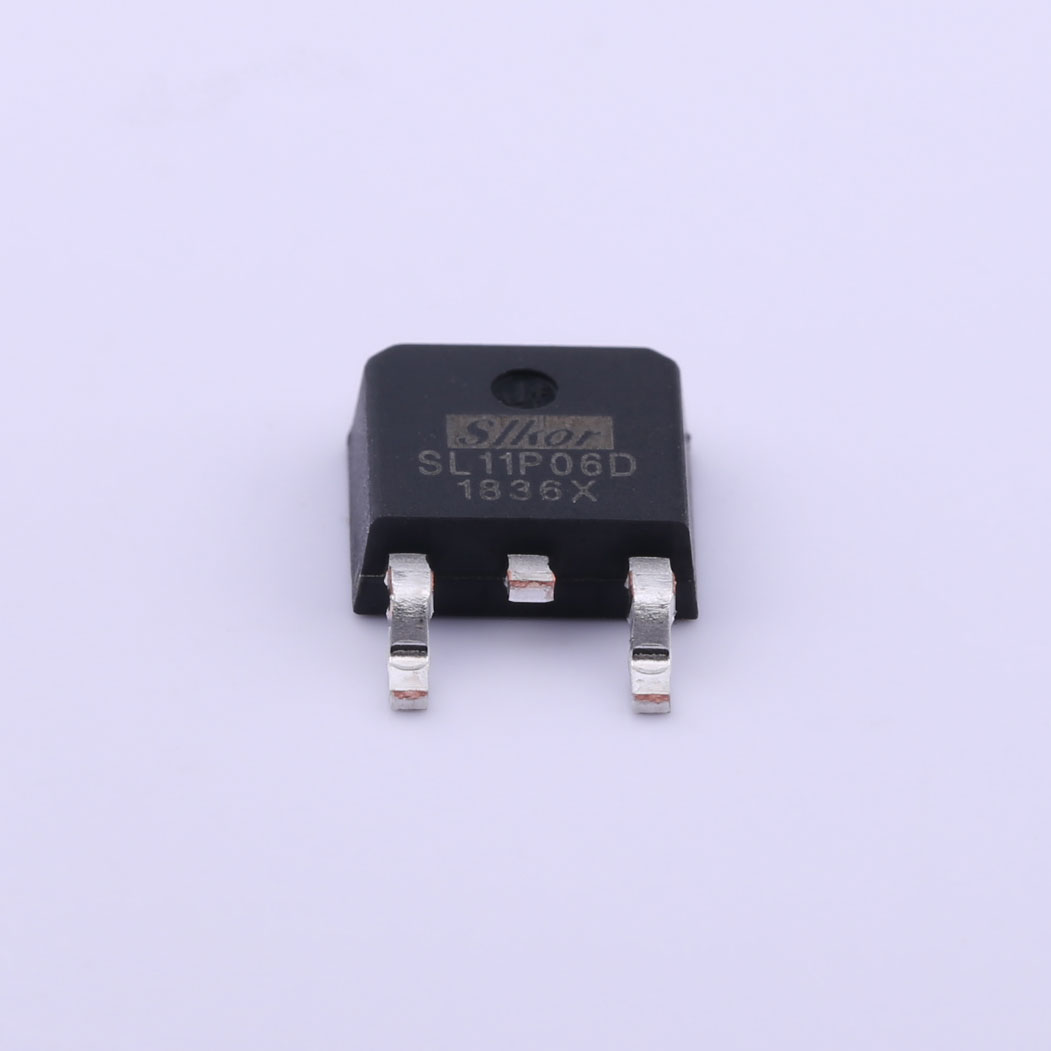

N-Channel Power MOSFET
General Features
● VDS =-60V. ID =11A
RDS(ON)<175 mΩ VGS=-10V
RDS(ON)<210 mΩ@VGS=-4.5V
● Improved dv/dt capability
● High density cell design for ultra low Rdson
● Good stability and uniformity with high EAS
● Excellent package for good heat dissipation
Applications
● Power switching application
● Hard switched and high frequency circuits
● LED Lighting
| File Name | Title | Description |
|---|---|---|
| SL11P06DN1.pdf | SL11P06DN1 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
