● Advance high cell density Trench technology
● Low RDS(ON) to minimize conductive loss
● Low Gate Charge for fast switching
● General Description

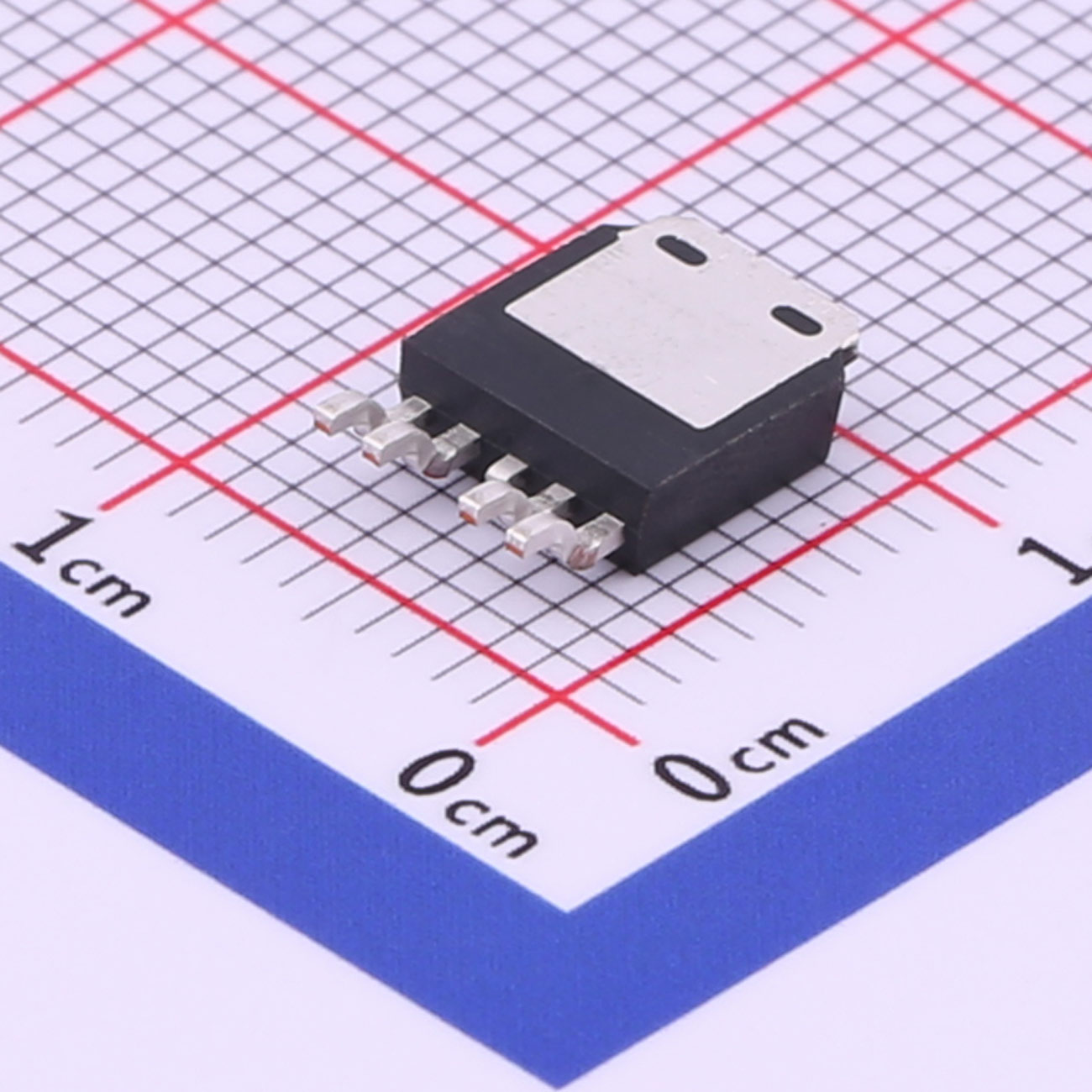

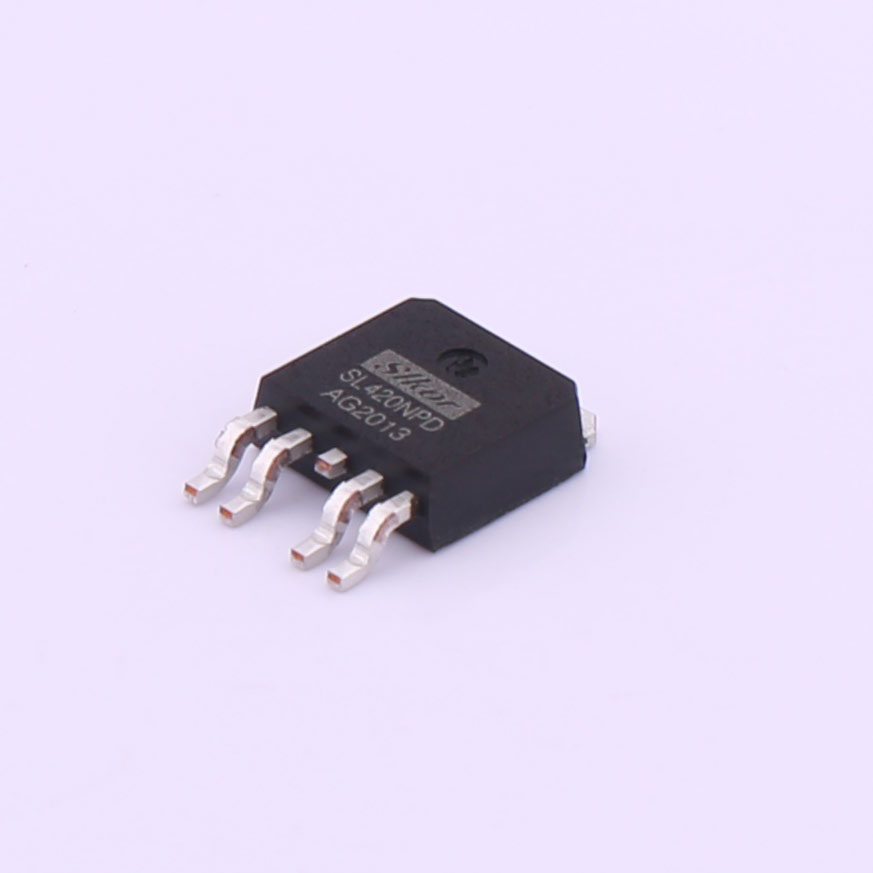

The SL420NPD combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON) . This device is ideal for load switch and battery protection applications.
● Features
■ Advance high cell density Trench technology
■ Low RDS(ON) to minimize conductive loss
■ Low Gate Charge for fast switching
■ Low Thermal resistance
● Application
■ MB/VGA Vcore
■ SMPS 2nd Synchronous Rectifier
■ POL application
■ BLDC Motor driver
| File Name | Title | Description |
|---|---|---|
| SL420NPD-1.pdf | SL420NPD-1 | - |
| SL250N04Q-PDFN56.pdf | SL250N04Q PDFN56 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| REACH.pdf | REACH | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
