SL85XXseries are low-dropout linear voltage regulators with a built-in voltage referencemodule, error correction module and phase compensation module.SL85XX series are based on the CMOS process and allow high voltage input with low quiescent current. Thisseries has the function of internal feedback resistor setting from 3.0V to 5.0V. The output accuracy is ±2%.
Download datasheet Inquiry

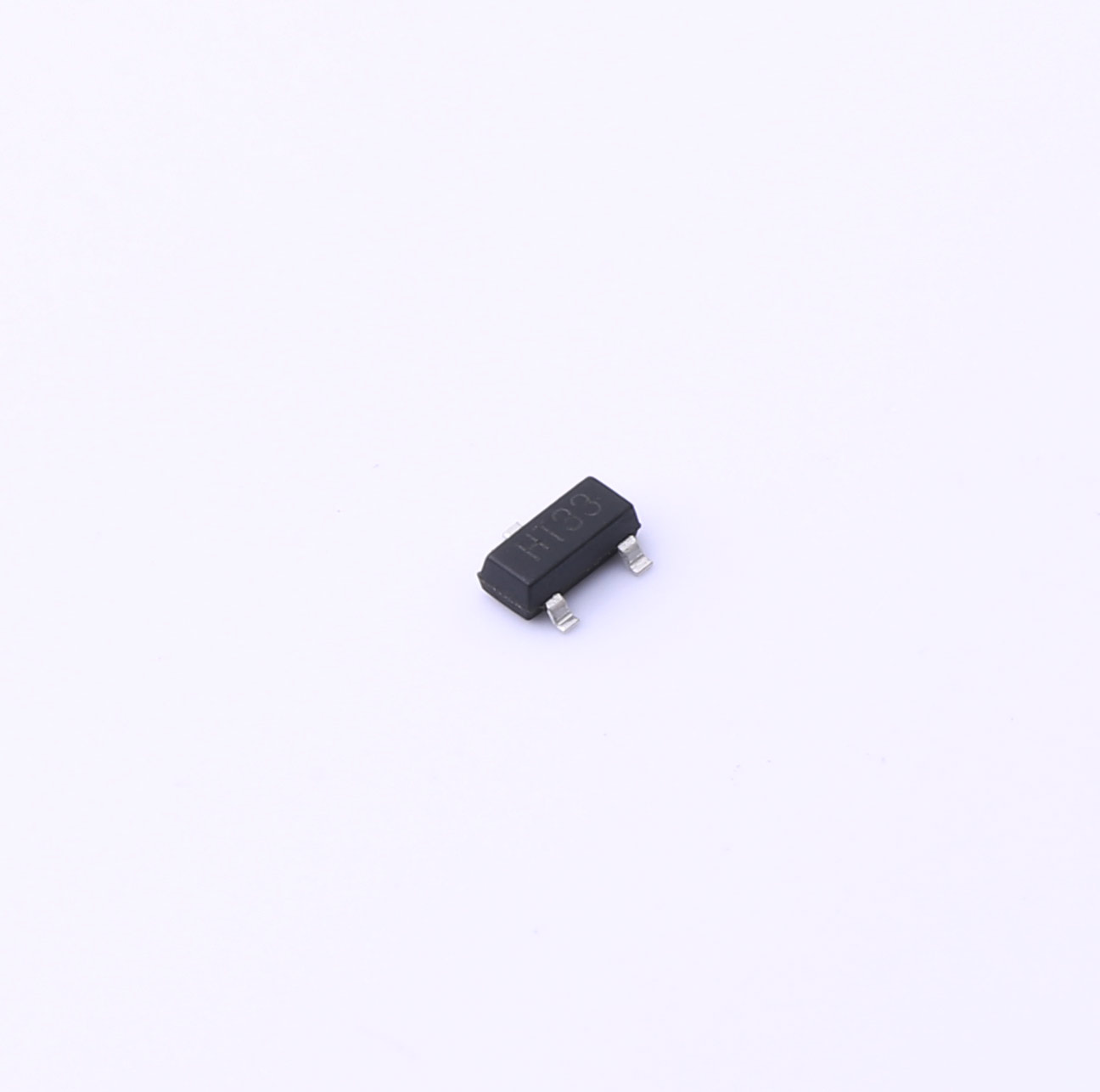

150 mA, high input voltage LDO Linear Regulators
Description
lSL85XXseries are low-dropout linear voltage regulators with a built-in voltage referencemodule, error correction module and phase compensation module.SL85XX series are based on the CMOS process and allow high voltage input with low quiescent current. Thisseries has the function of internal feedback resistor setting from 3.0V to 5.0V. The output accuracy is ±2%.
Features
lHigh output accuracy：±2%
lInput voltage：up to 18 V
lOutput voltage：3.0 V ~ 5.0V
lUltra-low quiescent current (Typ. = 3 μA)
lOutput Current：Iout= 200mA（When Vin = 7V and Vout =5V）
lImportation good stability：Typ. 0.05% / V
lLow temperature coefficient
lCeramic capacitor can be used

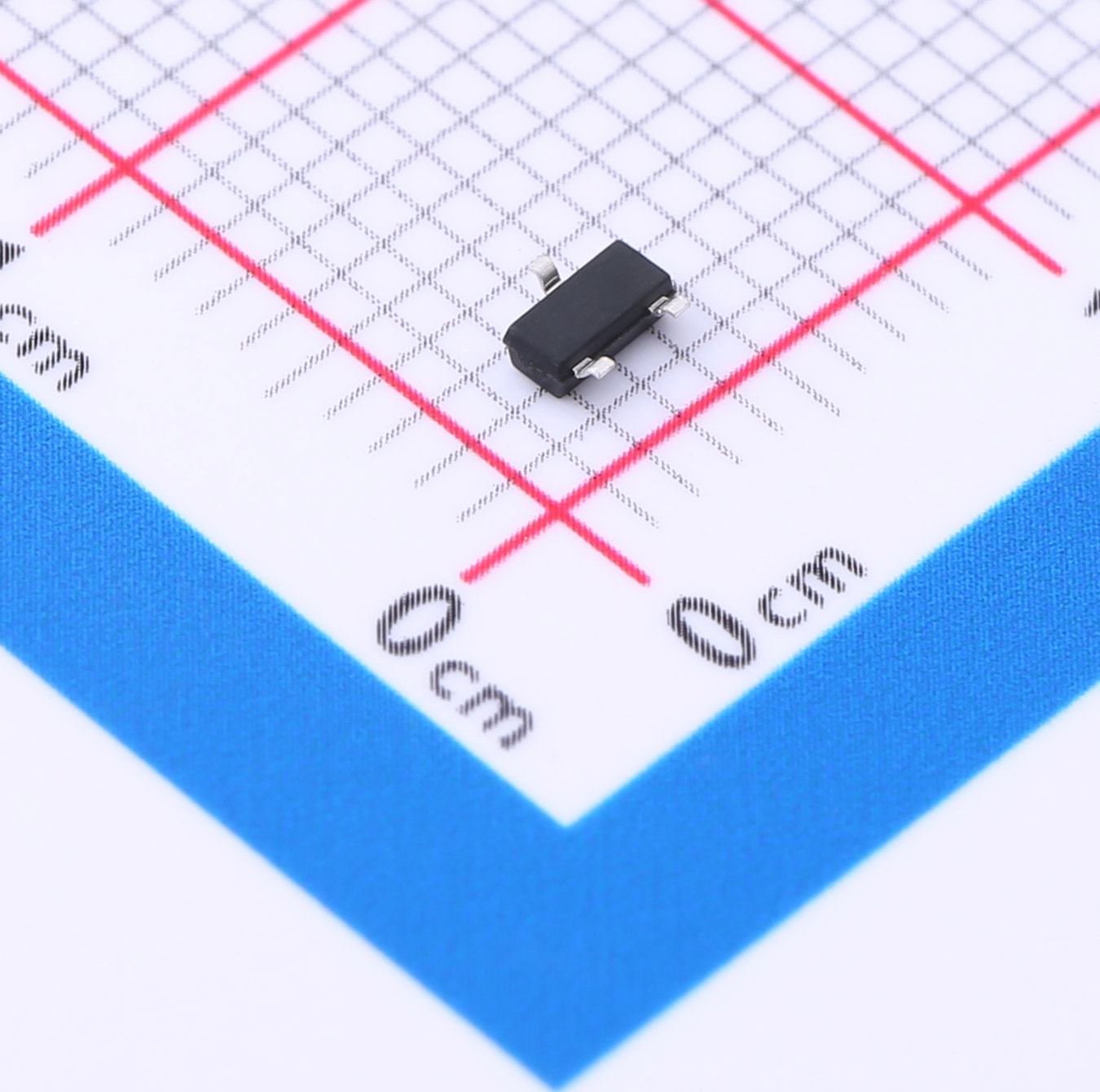

lPackage：SOT89-3、SOT23-3
Application
lElectronic weighbridge
lSCM
lPhones, cordless phones
lSecurity Products
lWater meters, power meters

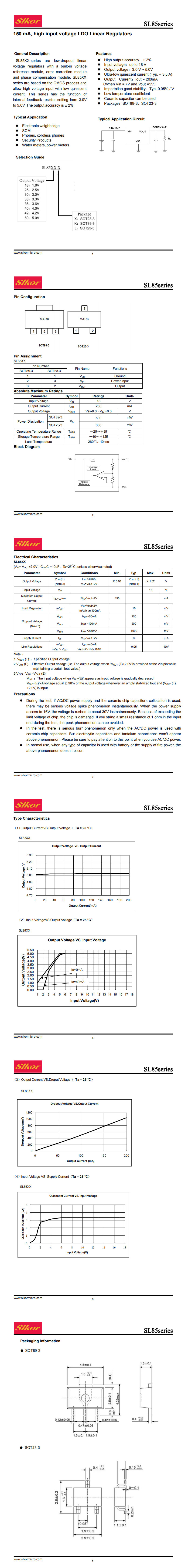

| File Name | Title | Description |
|---|---|---|
| SL8533X.PDF | SL8533X | - |
