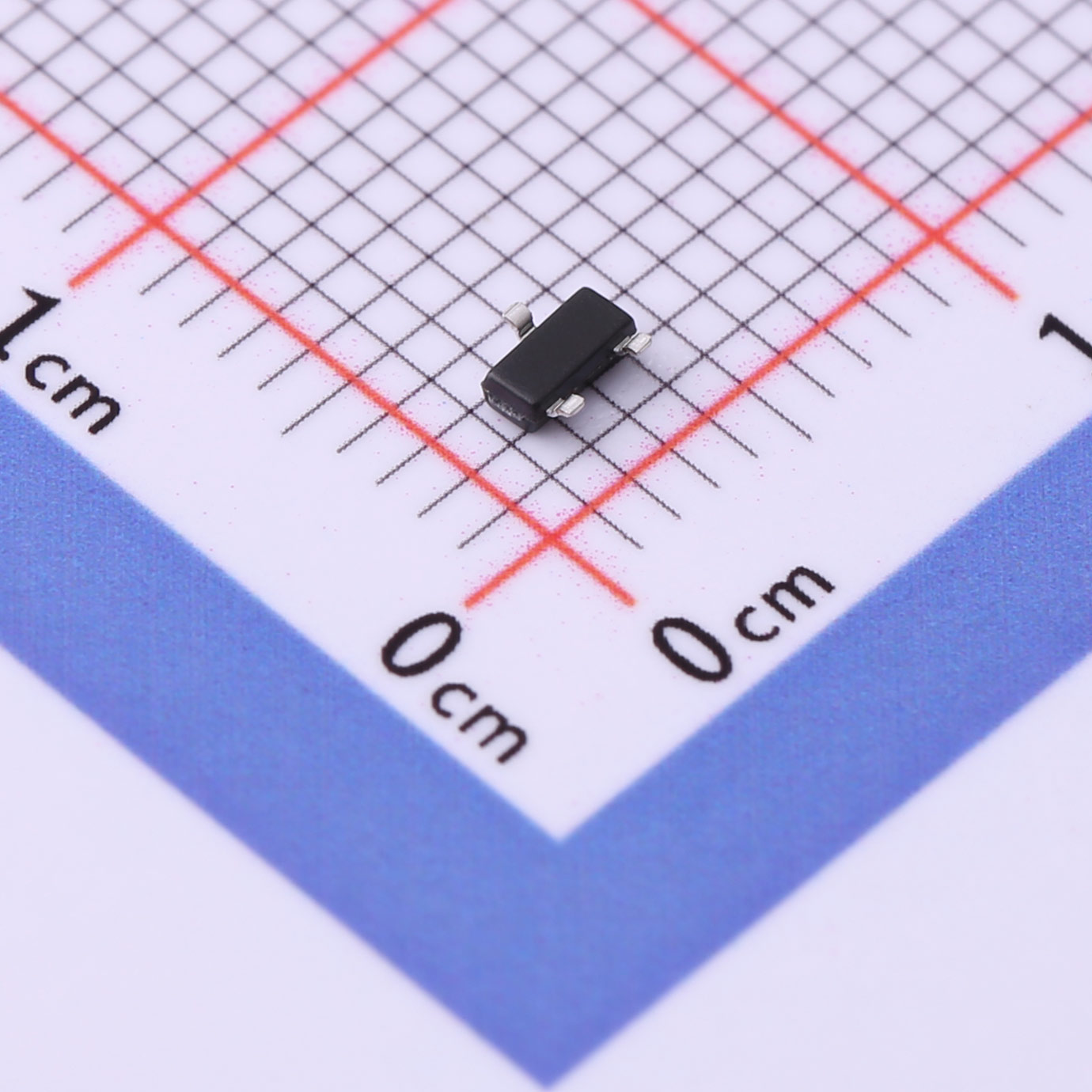

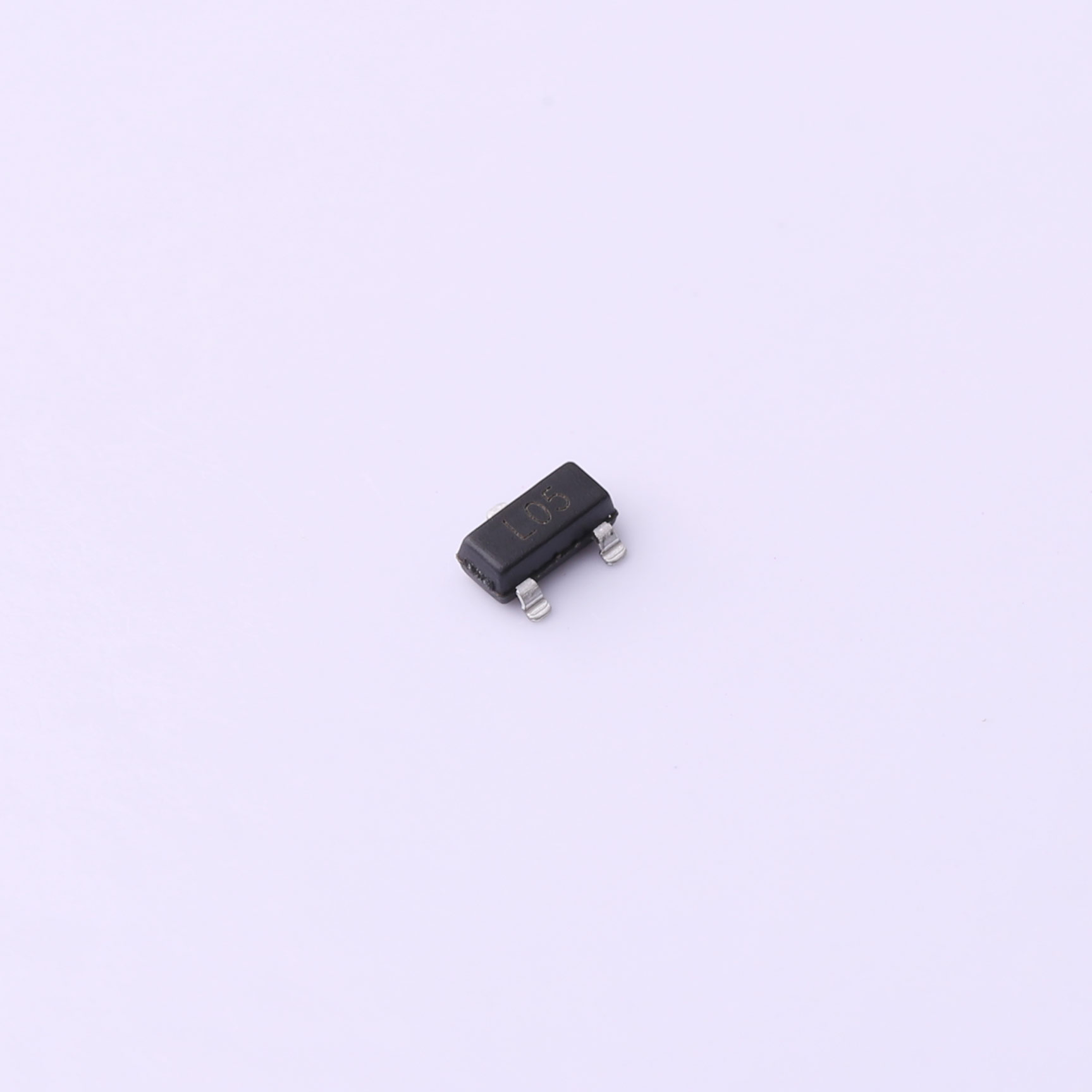

Plastic-Encapsulate Voltage Regulator
Download datasheet Inquiry
Plastic-Encapsulate Voltage Regulator
Features
lMaximum output current IO: 0.1A
lOutput voltage VO: 5 V
lContinuous total dissipation PD 0.25 W (Ta= 25 ℃ )
| File Name | Title | Description |
|---|---|---|

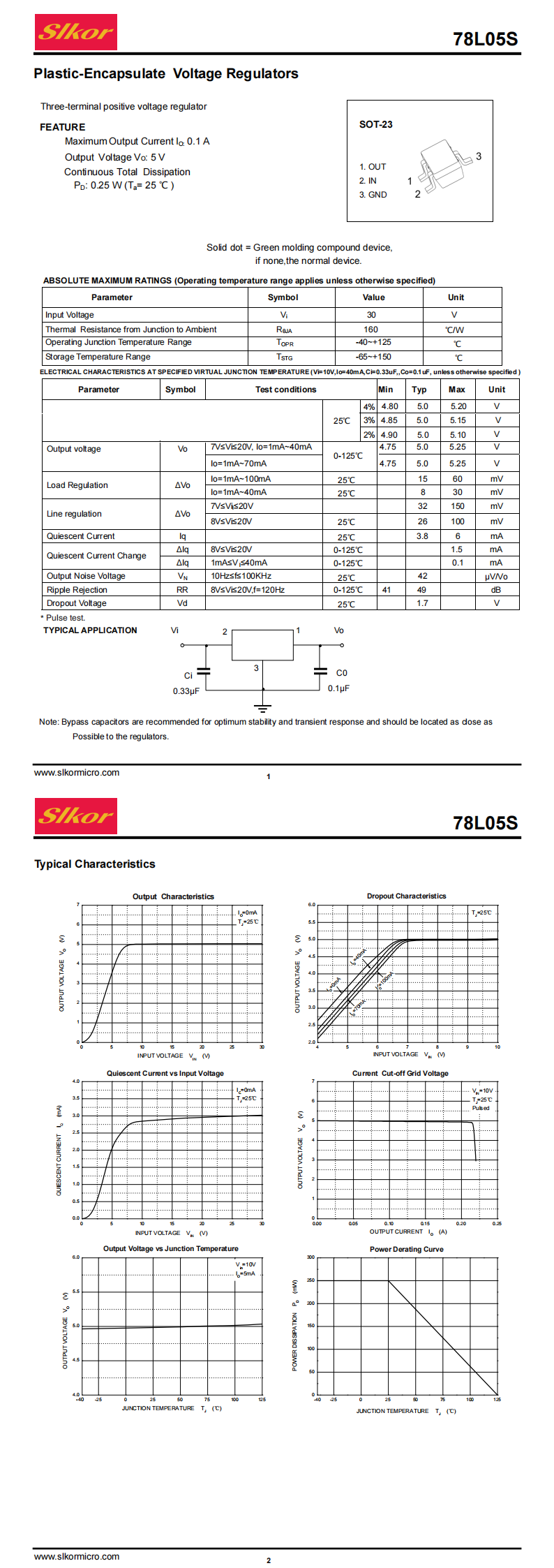

| 78L05S SOT-23.pdf | 78L05S SOT-23 | - |
