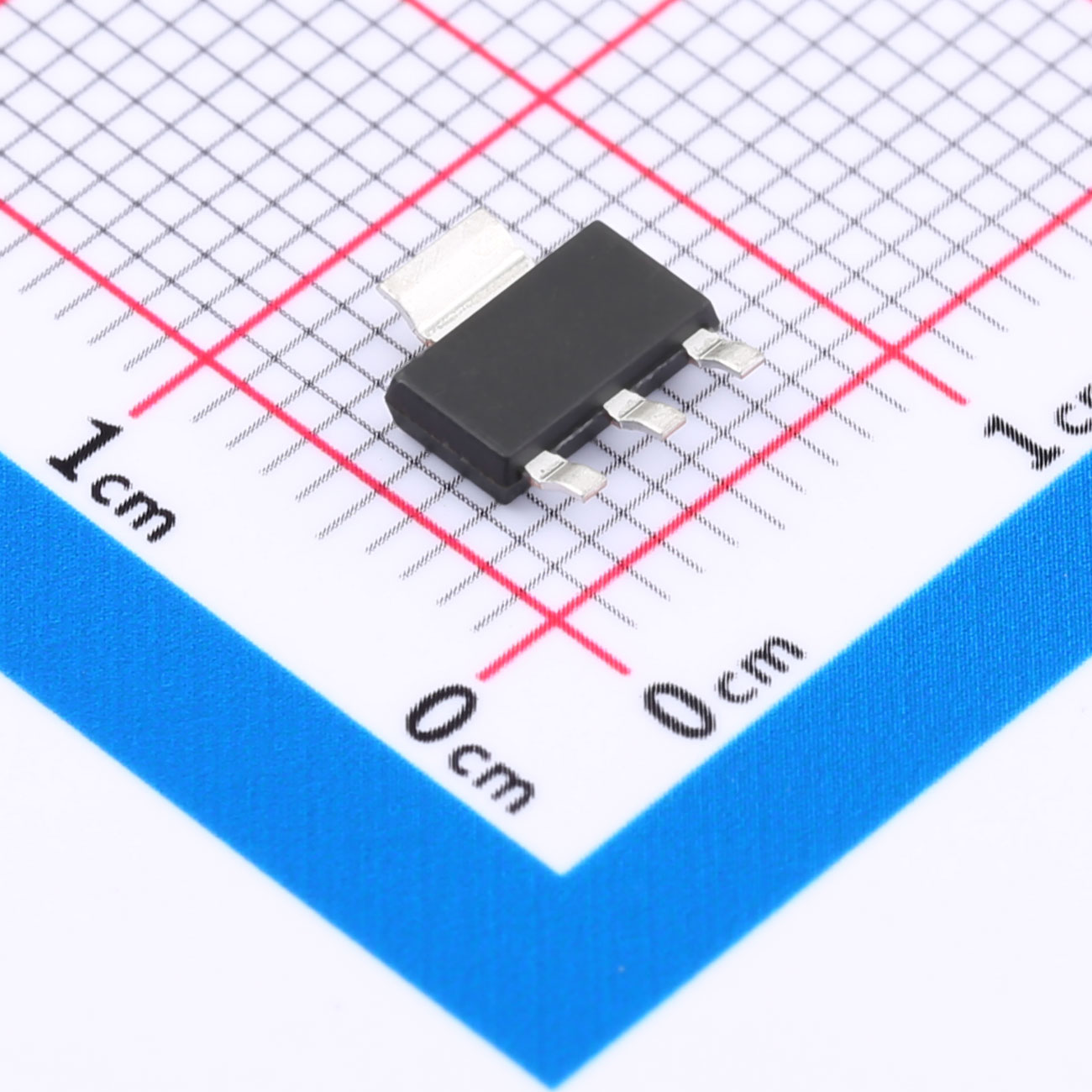

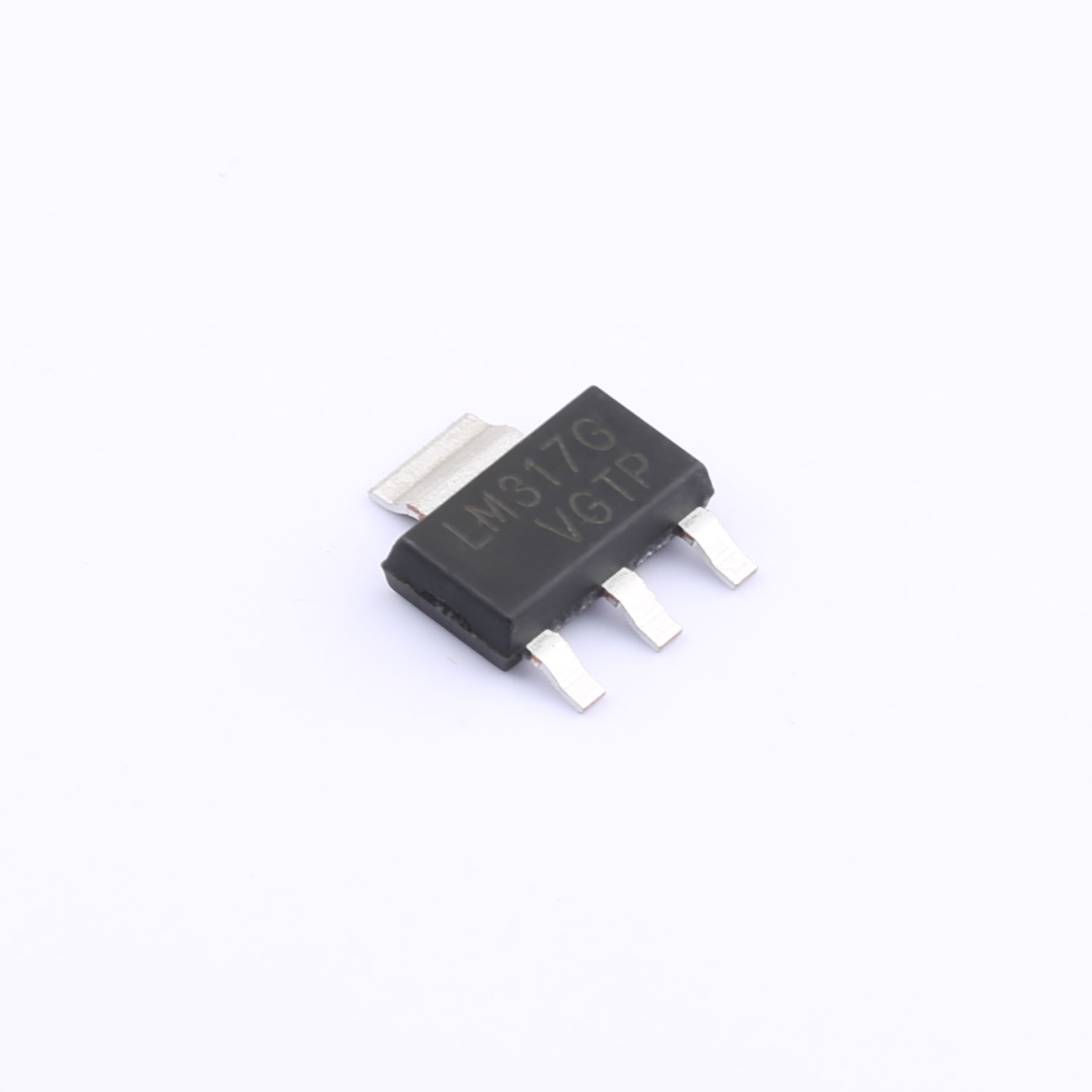

The LM317 is an adjustable 3-terminal positive voltage regulator, designed to supply 1.4A of output current with voltage adjustable from 1.2V ~ 37V.
Download datasheet Inquiry
Description
l The LM317 is an adjustable 3-terminal positive voltage regulator, designed to supply 1.4A of output current with voltage adjustable from 1.2V ~ 37V.
Features
l Output voltage adjustable from 1.2V ~ 37V
l Output current in excess of 1.4A
l Internal thermal overload protection
l Internal short circuit current limiting
l Output transistor safe area compensation
| File Name | Title | Description |
|---|---|---|
| LM317G SOT-223.pdf | LM317G SOT-223 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
