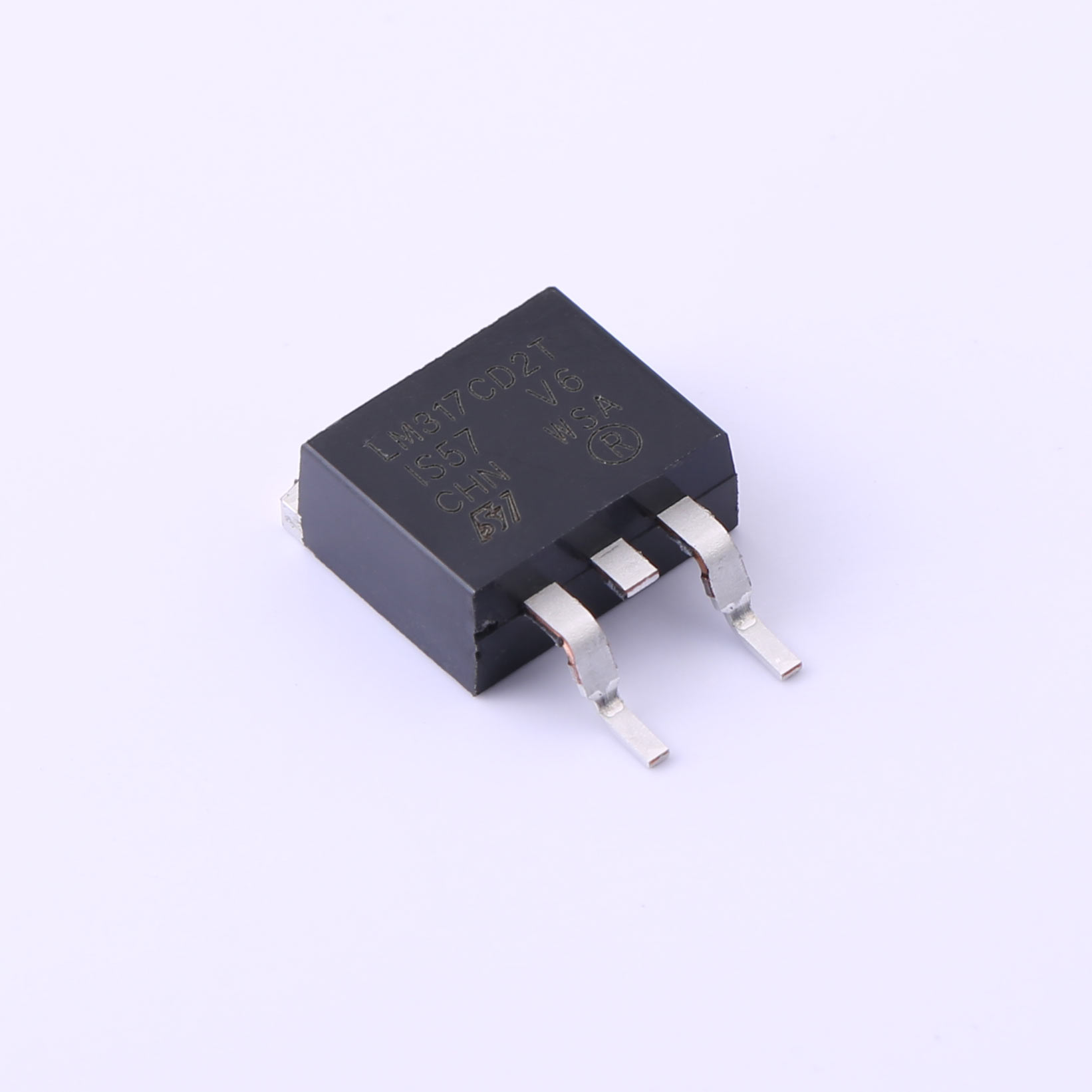

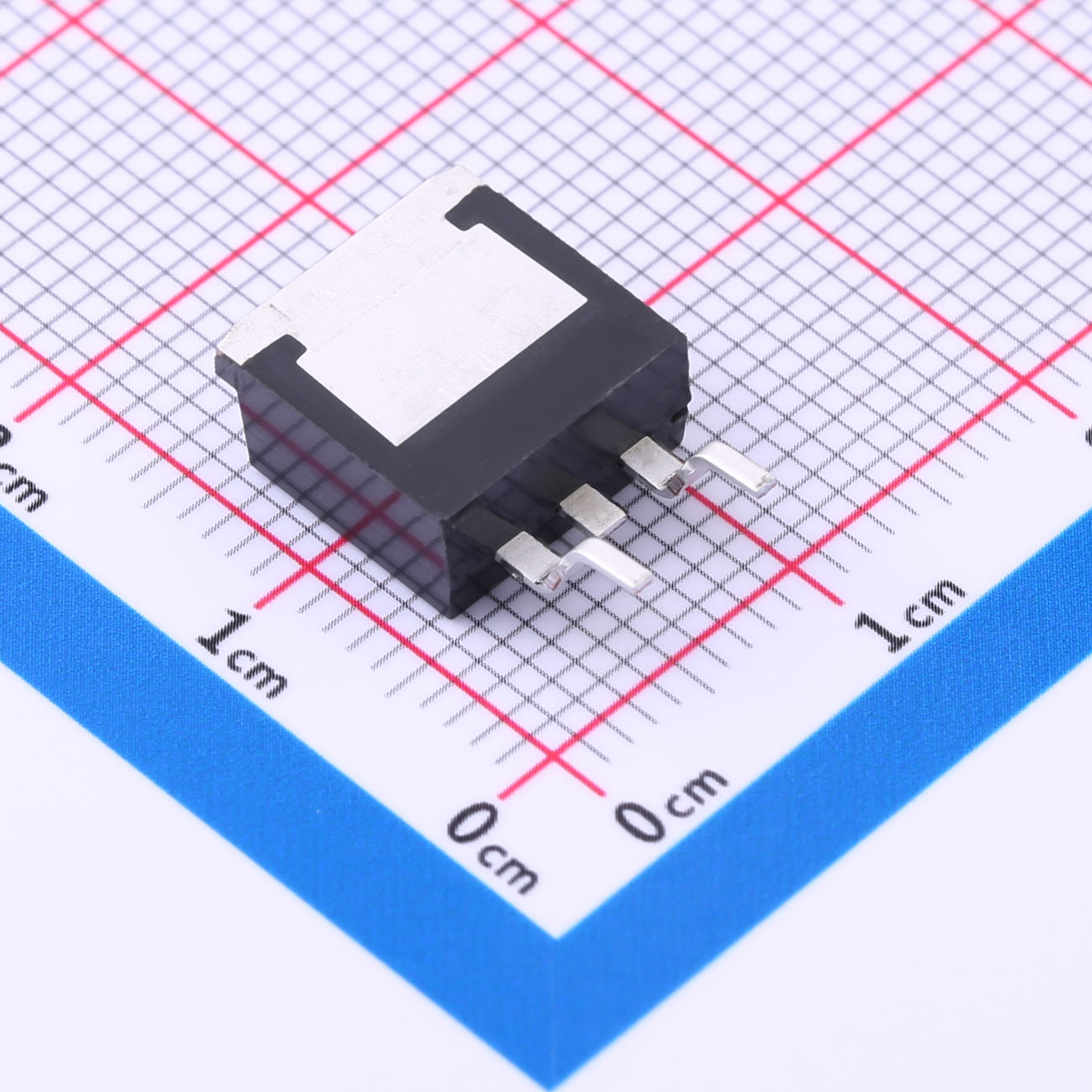

The LM317 is an adjustable 3-terminal positive voltage regulator, designed to supply 1.4A of output current with voltage adjustable from 1.2V ~ 37V.
Download datasheet Inquiry
Description
l The LM317 is an adjustable 3-terminal positive voltage regulator, designed to supply 1.4A of output current with voltage adjustable from 1.2V ~ 37V.
Features
l Output voltage adjustable from 1.2V ~ 37V
l Output current in excess of 1.4A
l Internal thermal overload protection
l Internal short circuit current limiting
l Output transistor safe area compensation
| File Name | Title | Description |
|---|---|---|

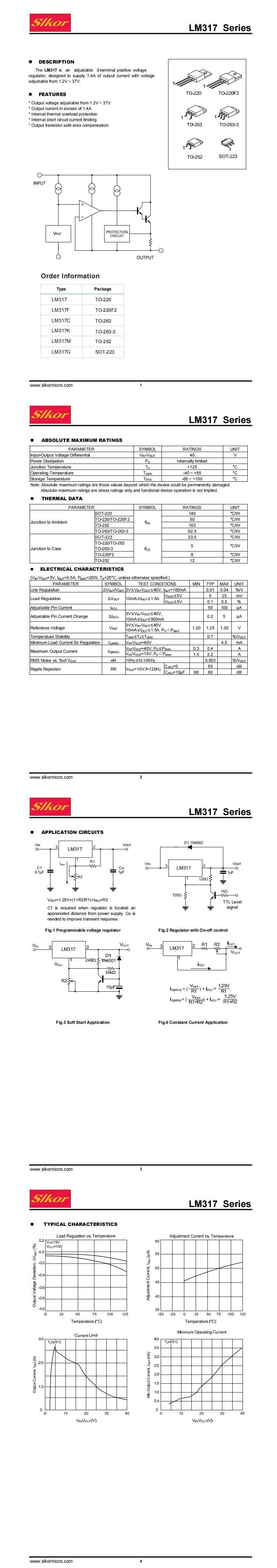

| LM317G SOT-223.pdf | LM317G SOT-223 | - |
