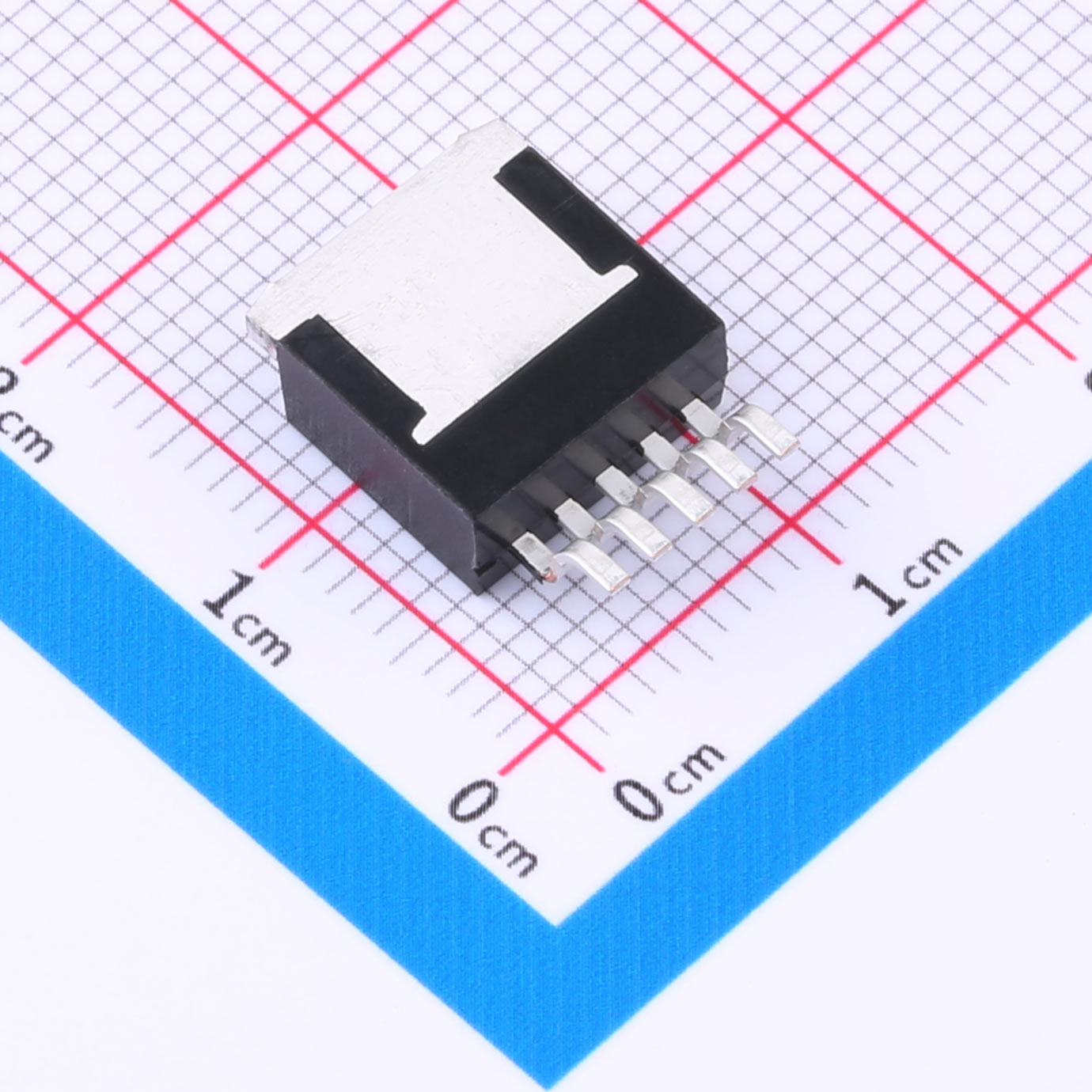

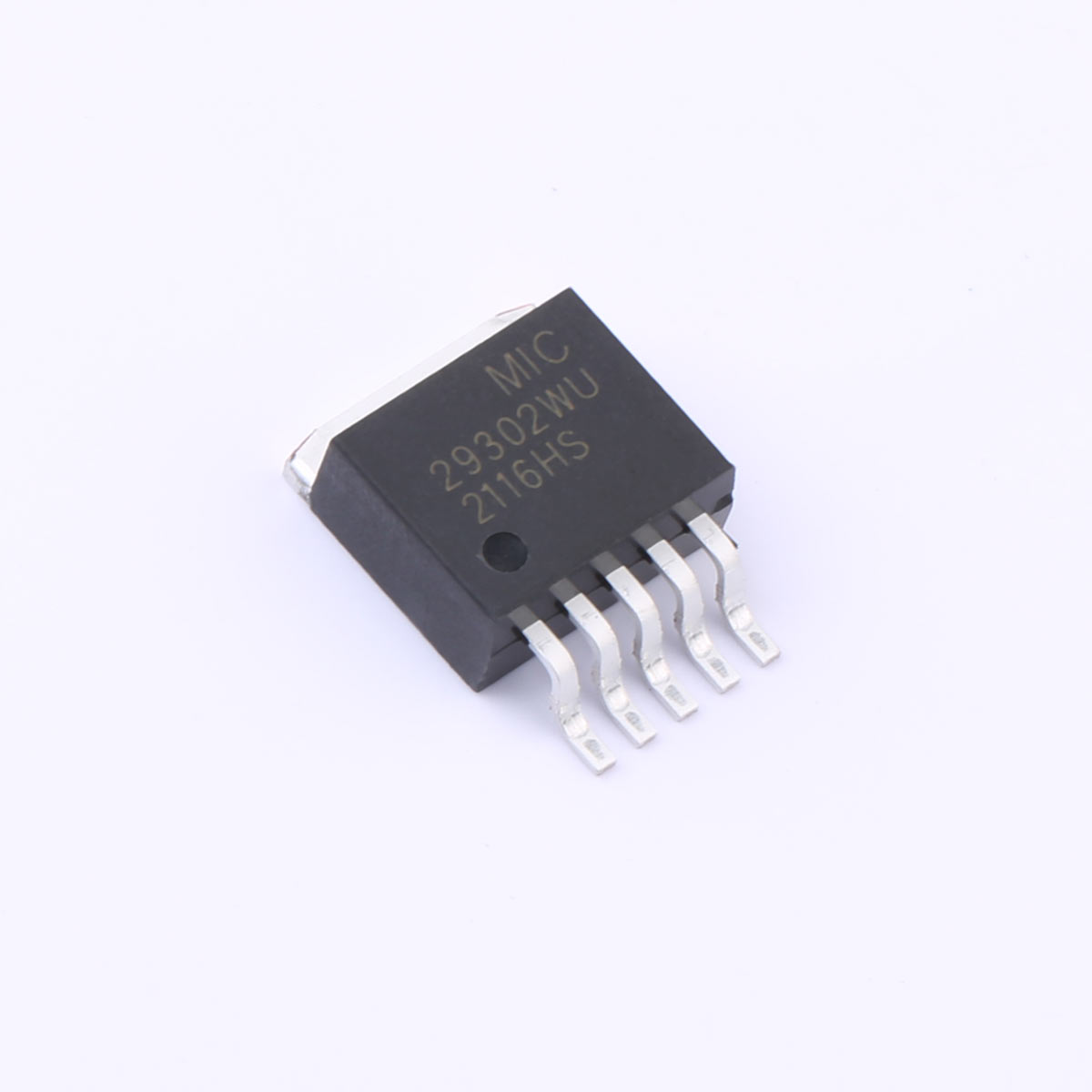

The MIC29302WUis ahigh current, highaccuracyand low-dropout voltage regulator.Thisregulator features300mV to 370mV (full load)dropout voltage and very low ground current. Designed forhigh current load, thedevice also finds applications inlower current, extremely low dropout-critical systems, where its tiny dropout voltage and ground current value areimportant attributes.The MIC29302WUisfully protected againstover-current fault, reversed input polarity, reversed leadinsertion, over-temperature operation, and positive and negativetransient voltage spikes.On the MIC29302WU, the ENABLE pin may betied to VINif it is not required for ON/OFF control.TheMIC29302WUisavailable in TO263-5L package.
Download datasheet Inquiry
High-Current Low-dropout Adjustable Regulator
Description
lThe MIC29302WUis ahigh current, highaccuracyand low-dropout voltage regulator.Thisregulator features300mV to 370mV (full load)dropout voltage and very low ground current. Designed forhigh current load, thedevice also finds applications inlower current, extremely low dropout-critical systems, where its tiny dropout voltage and ground current value areimportant attributes.
lThe MIC29302WUisfully protected againstover-current fault, reversed input polarity, reversed leadinsertion, over-temperature operation, and positive and negativetransient voltage spikes.
lOn the MIC29302WU, the ENABLE pin may betied to VINif it is not required for ON/OFF control.
lTheMIC29302WUisavailable in TO263-5L package.
Features
lHigh Current Capabilityof 3A
lLow-dropout Voltage of 350mV at Full Load
lLow Ground Current
lAccurate 1% Guaranteed Tolerance
lExtremely Fast Transient Response
lReverse-Battery and “Load Dump” Protection
lZero-Current Shutdown Mode
lAlso Characterized For Smaller Loads with Industry-Leading Performance Specifications
lAdjustable Version
Application
lBattery Powered Equipment
lHigh-Efficiency “Green” Computer Systems
lAutomotive Electronics
lHigh-Efficiency Linear Power Supplies
lHigh-Efficiency Post-Regulator for Switching Supply
| File Name | Title | Description |
|---|---|---|
| MIC29302WU TO-263-5L.pdf | MIC29302WU TO-263-5L | - |
