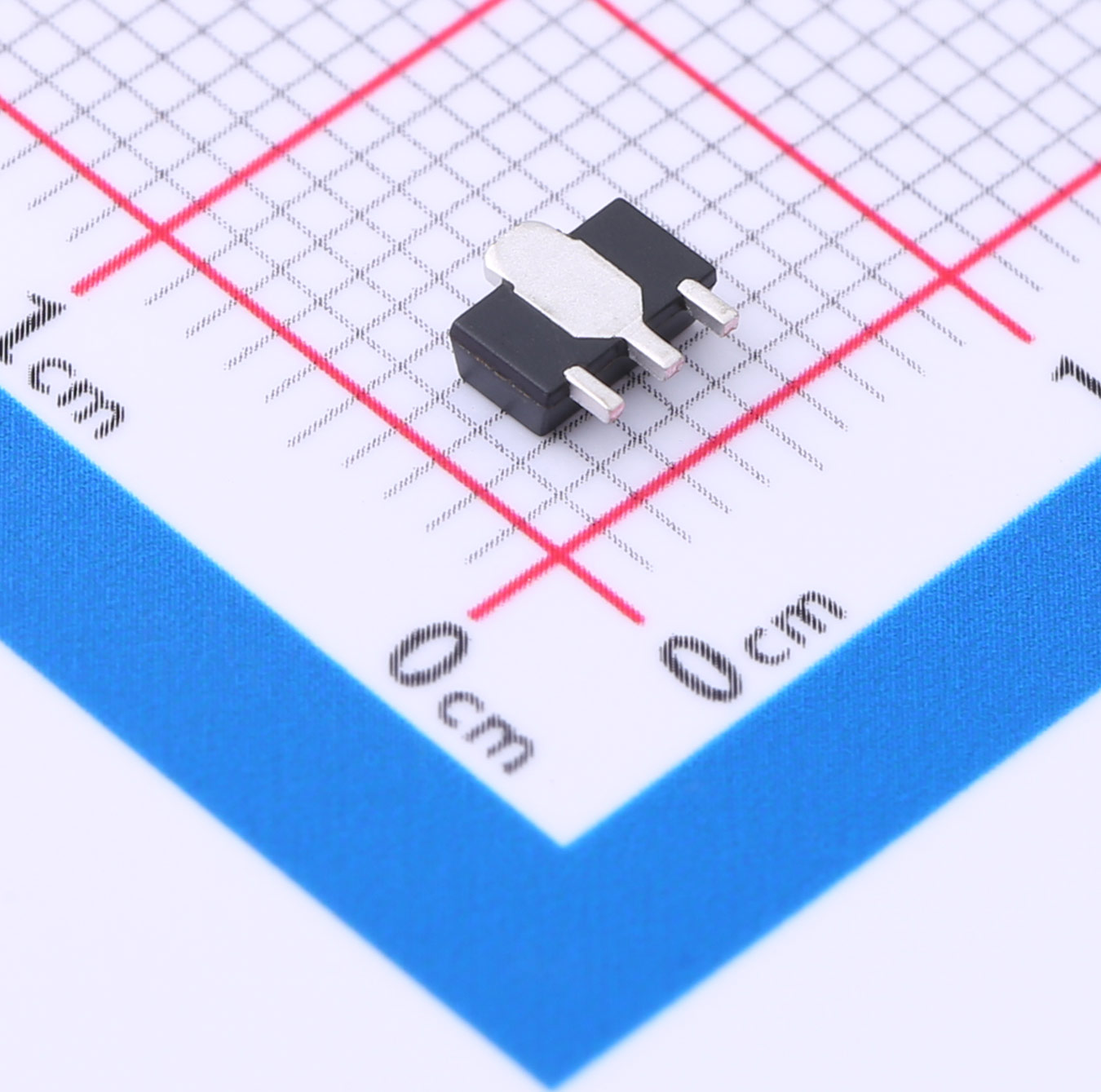

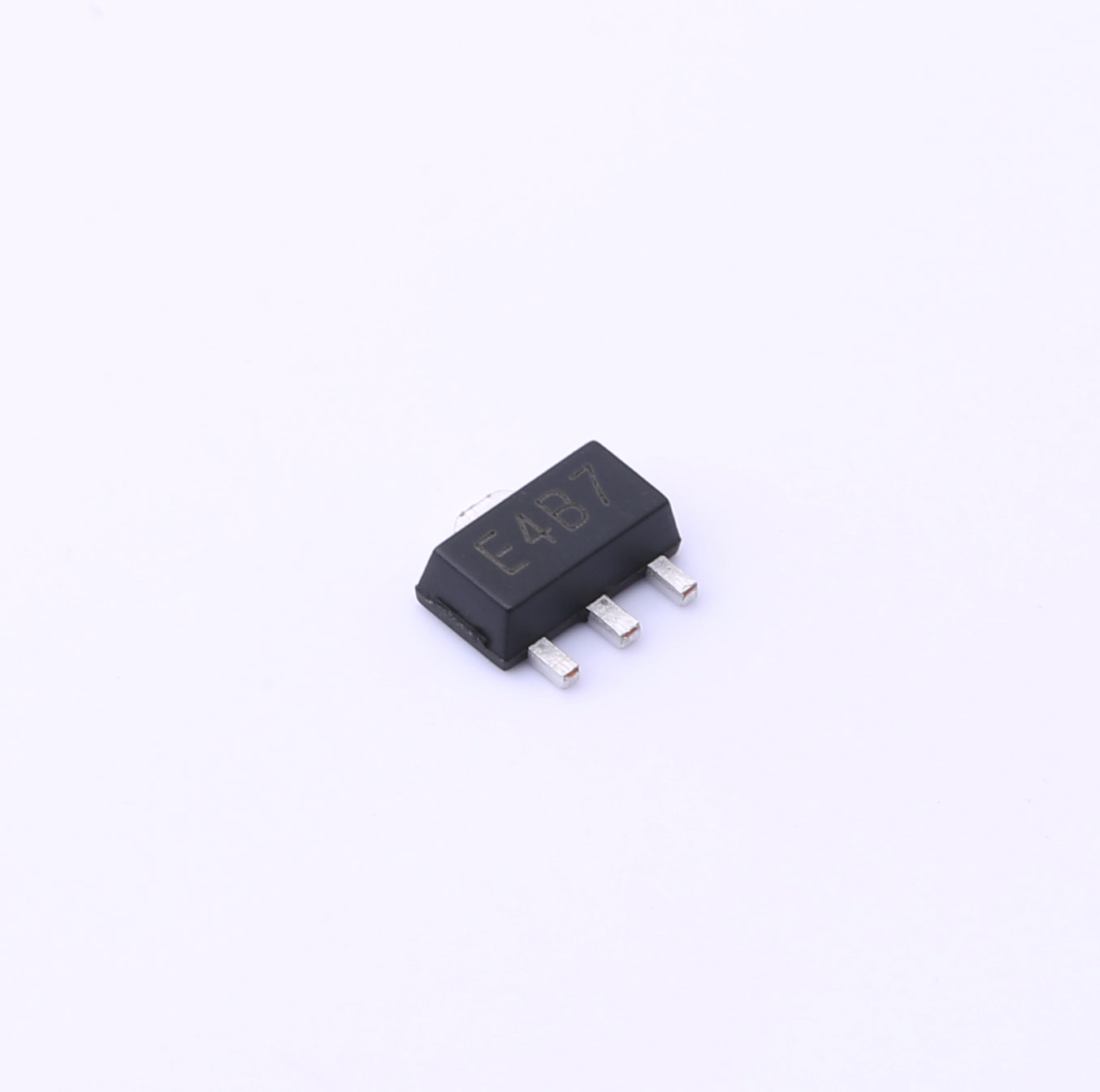

The SL7603 series is a group of positive voltage output,three-pinregulators,that provide a high current even when the input/outputvoltage differential is small.Low power consumption and high accuracyis achievedthrough CMOS and laser trimming technologies.The SL7603 consists of a high-precision voltage reference,an erroramplification circuit,and a current limited output driver.Transientresponse to load variations have improved in comparison to the existing series.SOT89-3,SOT23-3 and SOT23-5 packages areavailable.
Download datasheet Inquiry
Description
lThe SL7603 series is a group of positive voltage output,three-pinregulators,that provide a high current even when the input/outputvoltage differential is small.Low power consumption and high accuracyis achievedthrough CMOS and laser trimming technologies.
lThe SL7603 consists of a high-precision voltage reference,an erroramplification circuit,and a current limited output driver.Transientresponse to load variations have improved in comparison to the existing series.SOT89-3,SOT23-3 and SOT23-5 packages areavailable.
Features
lLow voltage drop: 0.17V@100mA
lHigh input voltage: 15V
lLow temperature coefficient
lLarge Output Current: 0.5A
lLowQuiescent Current: 1.5uA
lOutput voltage accuracy: tolerance±2%
lBuilt-in current limiter
lSOT 89-3，SOT23-3 and SOT23-5 packages
Application
lBattery-powered equipment
lHand-Hold Equipment
lGRS Receivers
lWireless LAN
| File Name | Title | Description |
|---|---|---|
| SL7603P33M5R.PDF | SL7603P33M5R | - |
