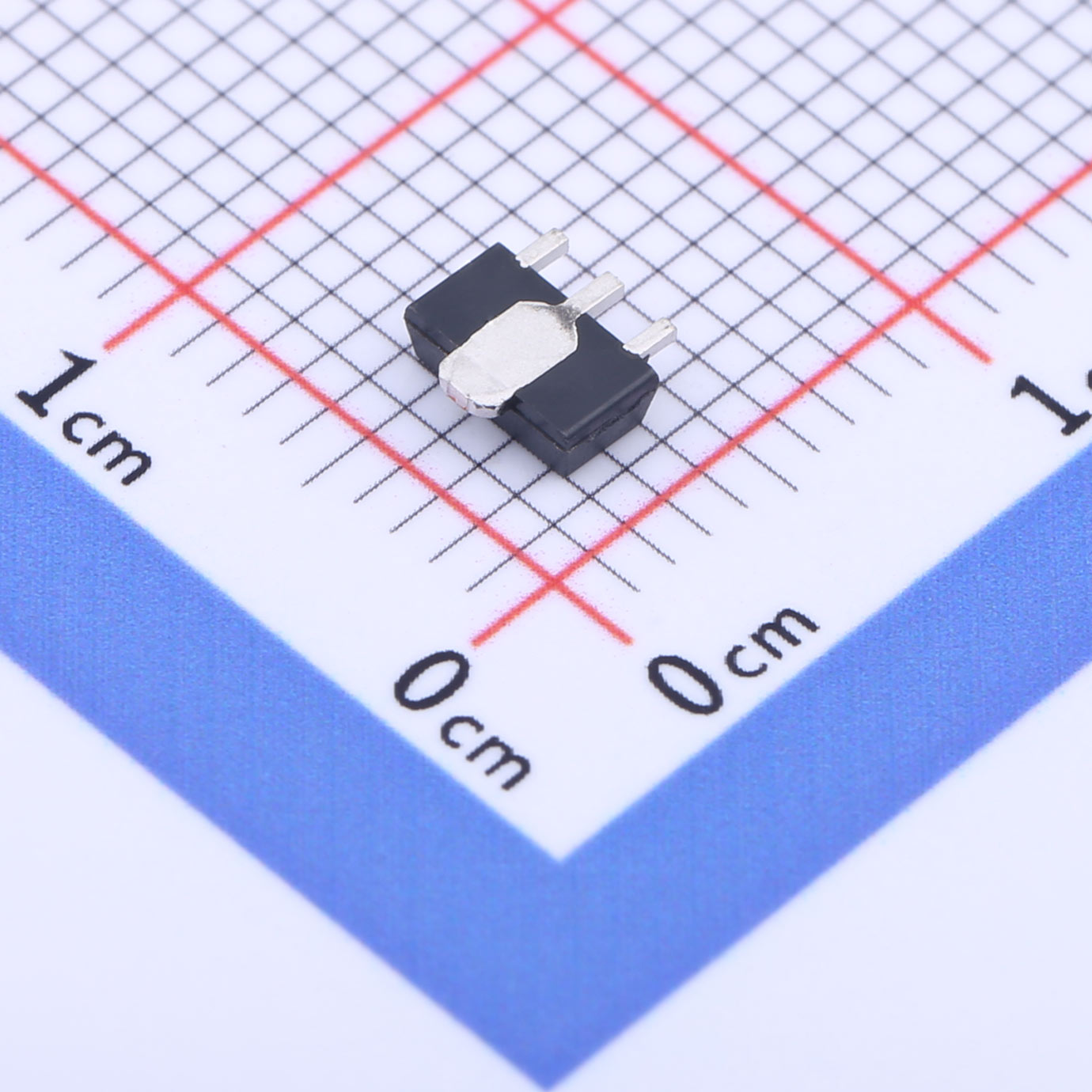

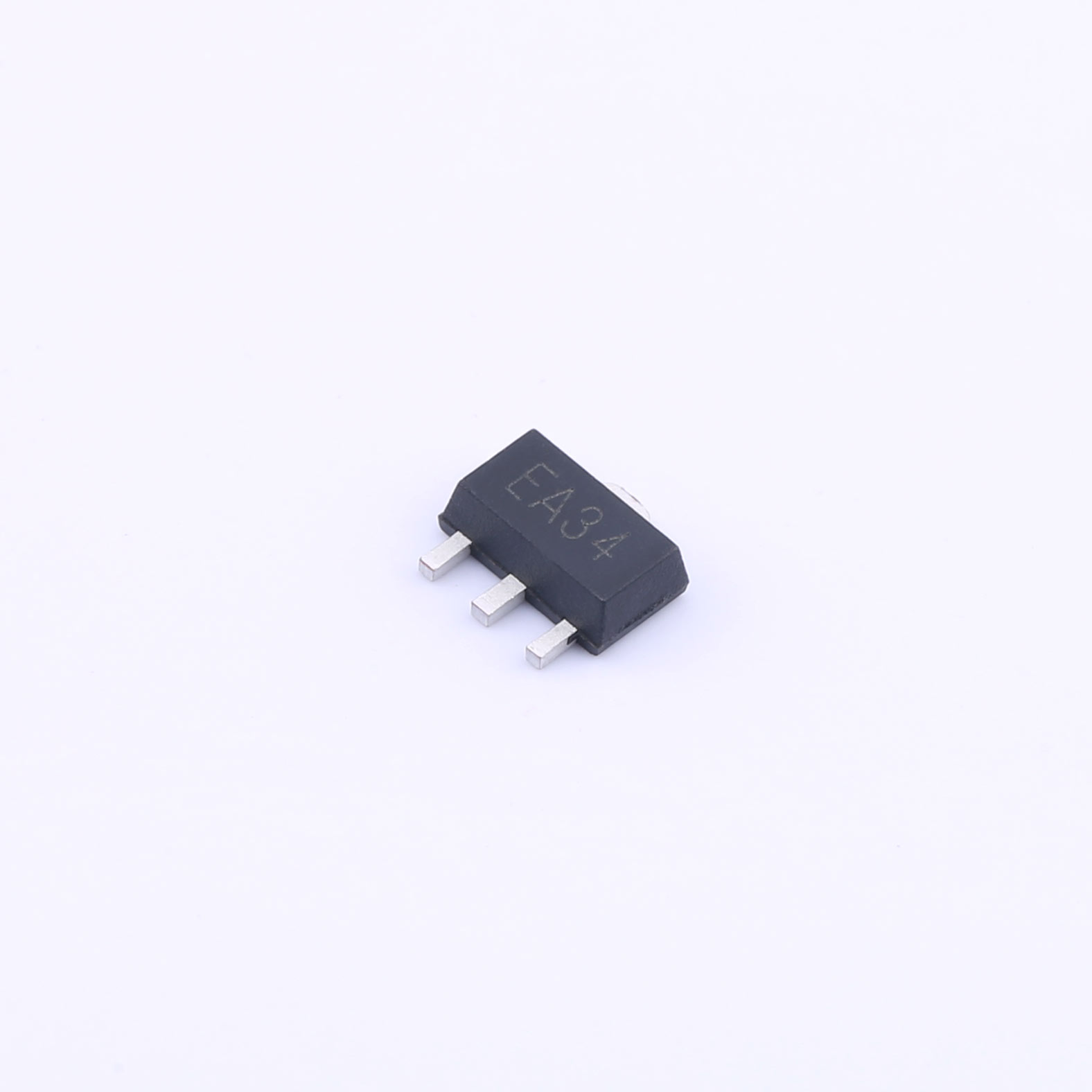

The SL7603 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SL7603 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3,SOT23-3 and SOT23-5 packages are available
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL7603 series is a group of positive voltage output, three-pin regulators, that provide a high current
even when the input/output voltage differential is small. Low power consumption and high accuracy is
achieved through CMOS and laser trimming technologies.
The SL7603 consists of a high-precision voltage reference, an error amplification circuit, and a current
limited output driver. Transient response to load variations have improved in comparison to the existing
series. SOT89-3,SOT23-3 and SOT23-5 packages are available
Features
● Low voltage drop: 0.17V@100mA
● High input voltage: 15V
● Low temperature coefficient
● Large Output Current: 0.5A
● Low Quiescent Current: 1.5uA
● Output voltage accuracy: tolerance ±2%
● Built-in current limiter
● SOT89-3，SOT23-3 and SOT23-5 packages
Applications
● Battery-powered equipment
● Hand-Hold Equipment
● GRS Receivers
● Wireless LAN
| File Name | Title | Description |
|---|---|---|
| SL7603P50PR.PDF | SL7603P50PR | - |
