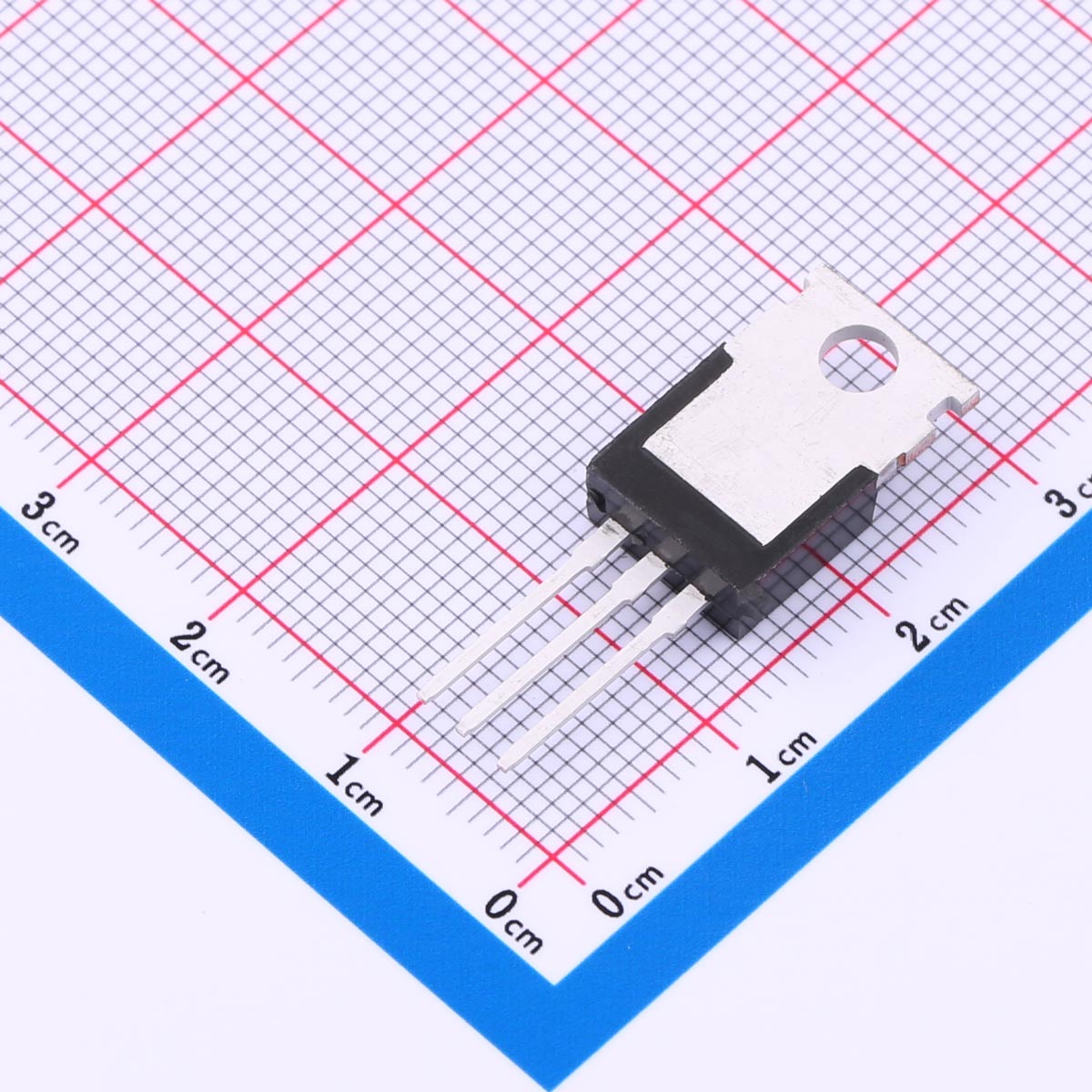

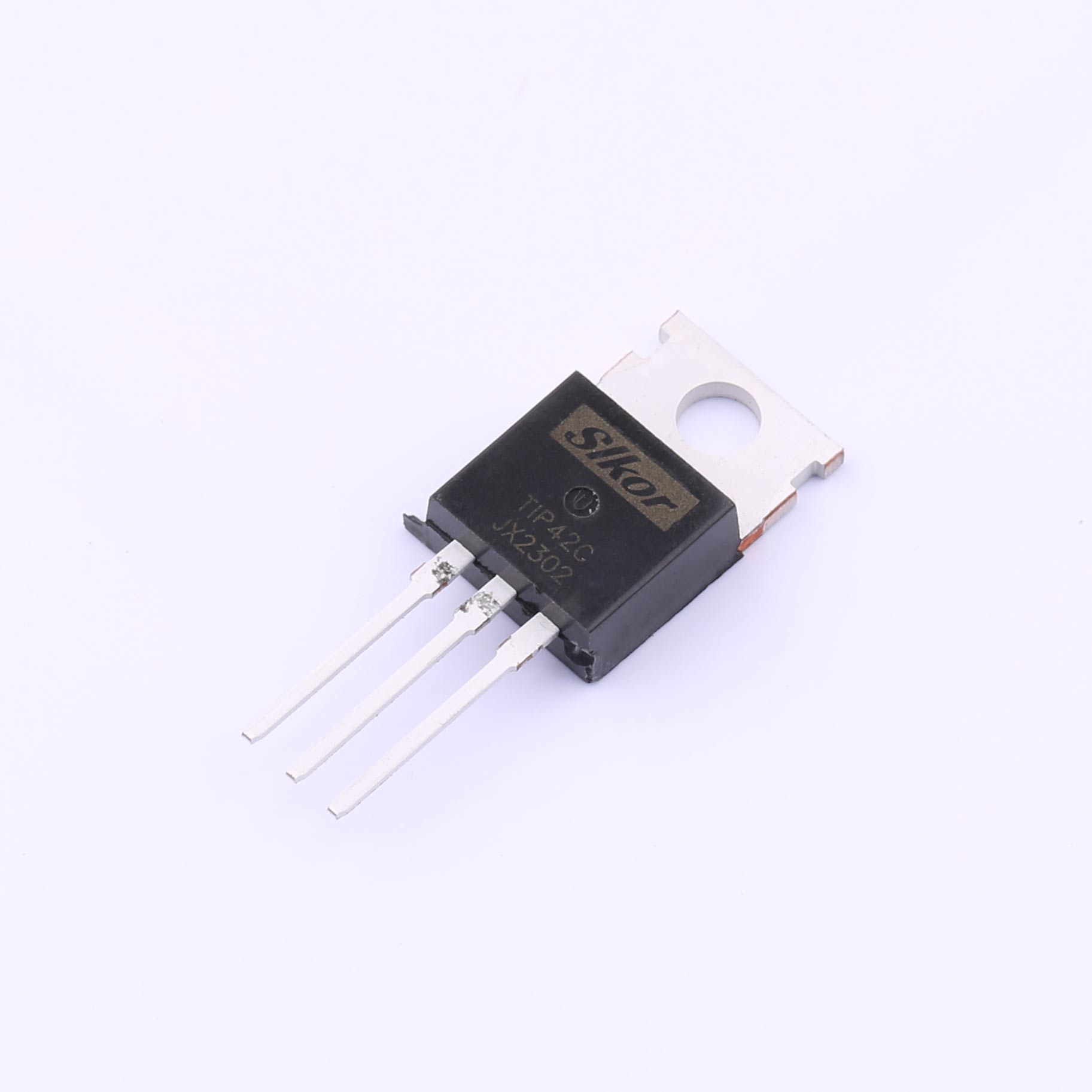

TIP42C PNP Bipolar Transistor
Download datasheet InquiryDescriptions
lSilicon PNP transistor in a TO-220 Plastic Package.
Features
lComplement to TIP41.
Applications
lMedium power linear switching applications.
| File Name | Title | Description |
|---|---|---|

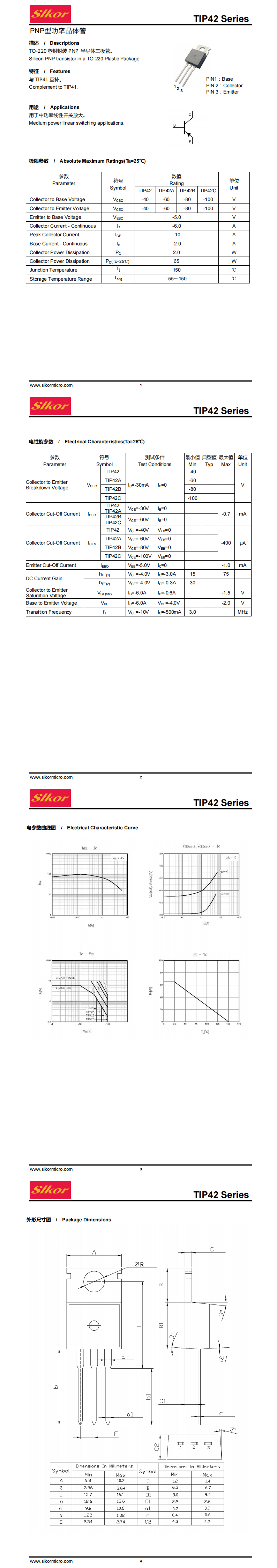

| TIP42C_TO-220.PDF | TIP42C_TO-220 | - |
