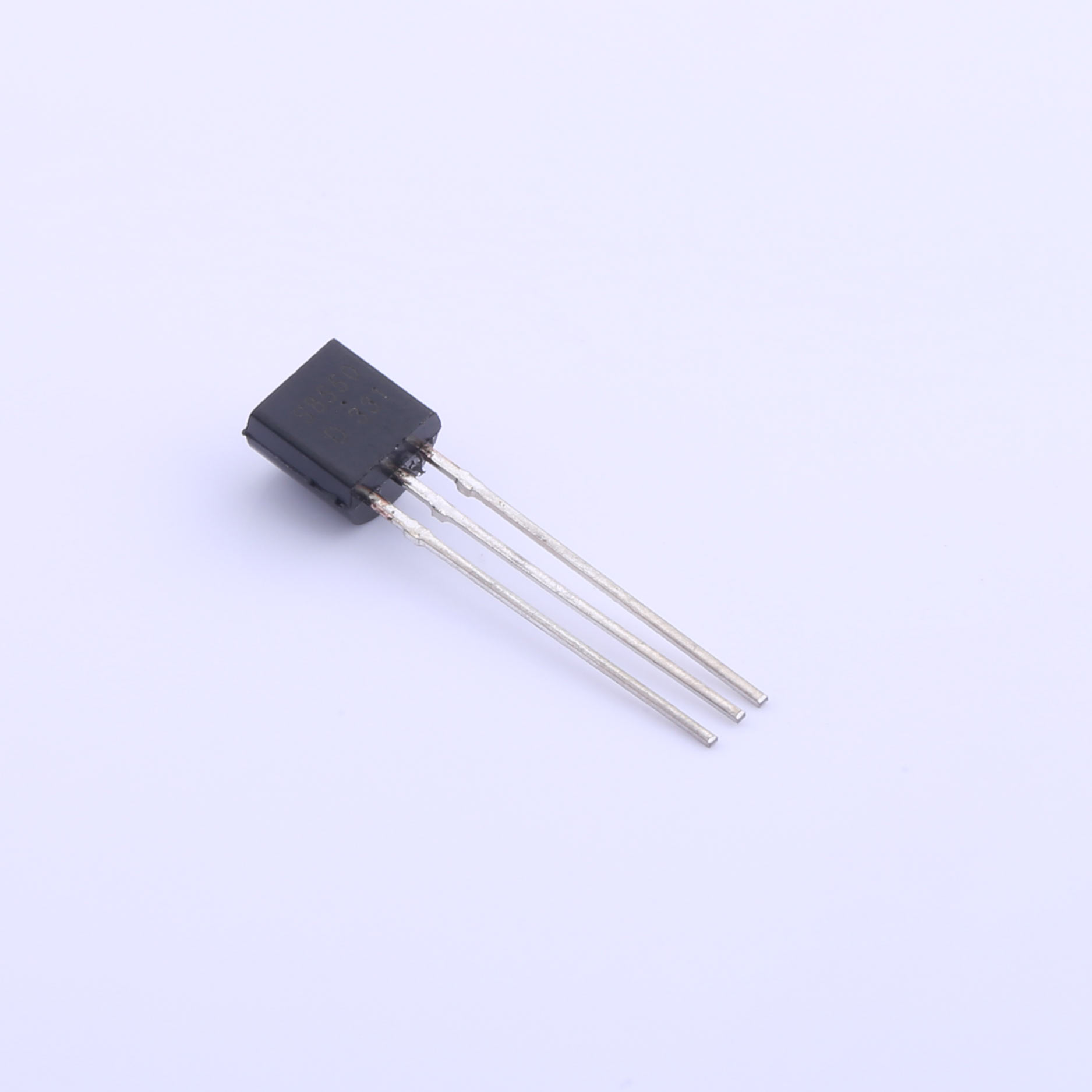

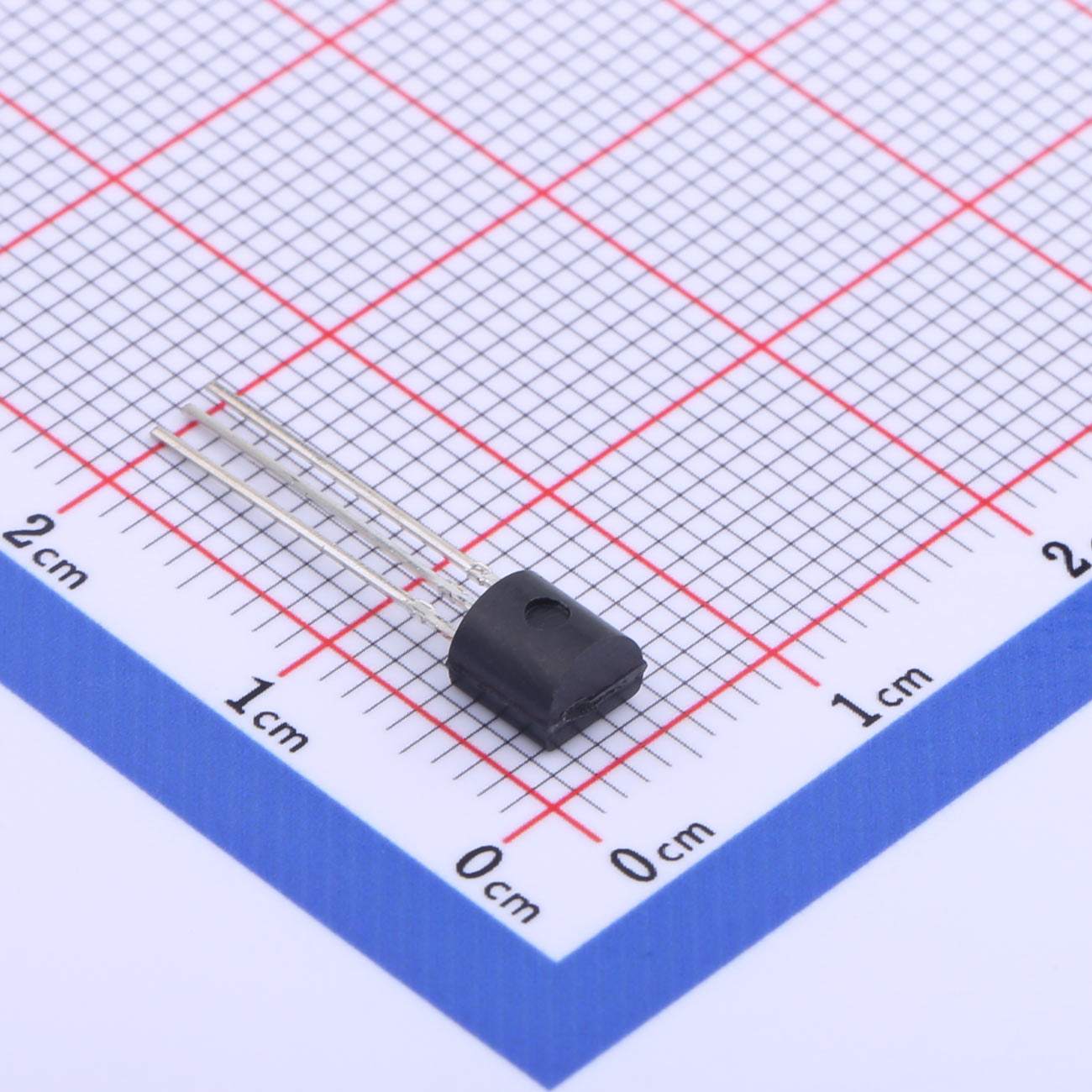

S8550 PNP Bipolar Transistor TO-92

Our advantages:

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description:
The S8550 is a high-performance PNP Bipolar Junction Transistor (BJT) designed for general-purpose switching and amplification applications. Encapsulated in the compact TO-92 package, this transistor offers efficient operation and versatility in a wide range of electronic circuits.

Features:

● Voltage Rating: Supports a maximum collector-emitter voltage (Vceo) of -25V, suitable for circuits requiring negative voltage operation.
● Current Handling: Capable of handling up to 500mA of collector current (Ic), making it ideal for medium-current switching tasks.
● Power Dissipation: Power dissipation (Pd) rating of 0.625W ensures reliable performance under typical load conditions.
● Low Saturation Voltage: VCE(sat) of -0.6V at 100mA collector current and 10mA base current, minimizing power loss during switching operations.
● High Frequency Response: Transition frequency (fT) of 150MHz allows for reliable high-frequency operation in various signal processing applications.
● Compact Package: Housed in the SOT-23 package, providing a small footprint and ease of integration onto printed circuit boards (PCBs).
● Wide Operating Temperature Range: Capable of operating in environments ranging from -55°C to +150°C, suitable for industrial, automotive, and consumer electronic applications.

Applications:
The S8550 transistor is suitable for a wide range of electronic applications, including:

● Switching Circuits: Used in power management circuits, relay drivers, and other applications requiring efficient switching of medium currents.
● Signal Amplification: Ideal for use in audio amplifiers, signal conditioning circuits, and other applications requiring reliable small-signal amplification.
● Voltage Regulation: Integrated into voltage regulators and DC-DC converters for efficient power management in portable electronic devices.
● Radio Frequency (RF) Applications: Utilized in RF amplifiers, oscillators, and modulators where high-frequency performance is critical.
● Automotive Electronics: Employed in automotive control systems, sensor interfaces, and lighting control circuits due to its robust performance and compact size.
