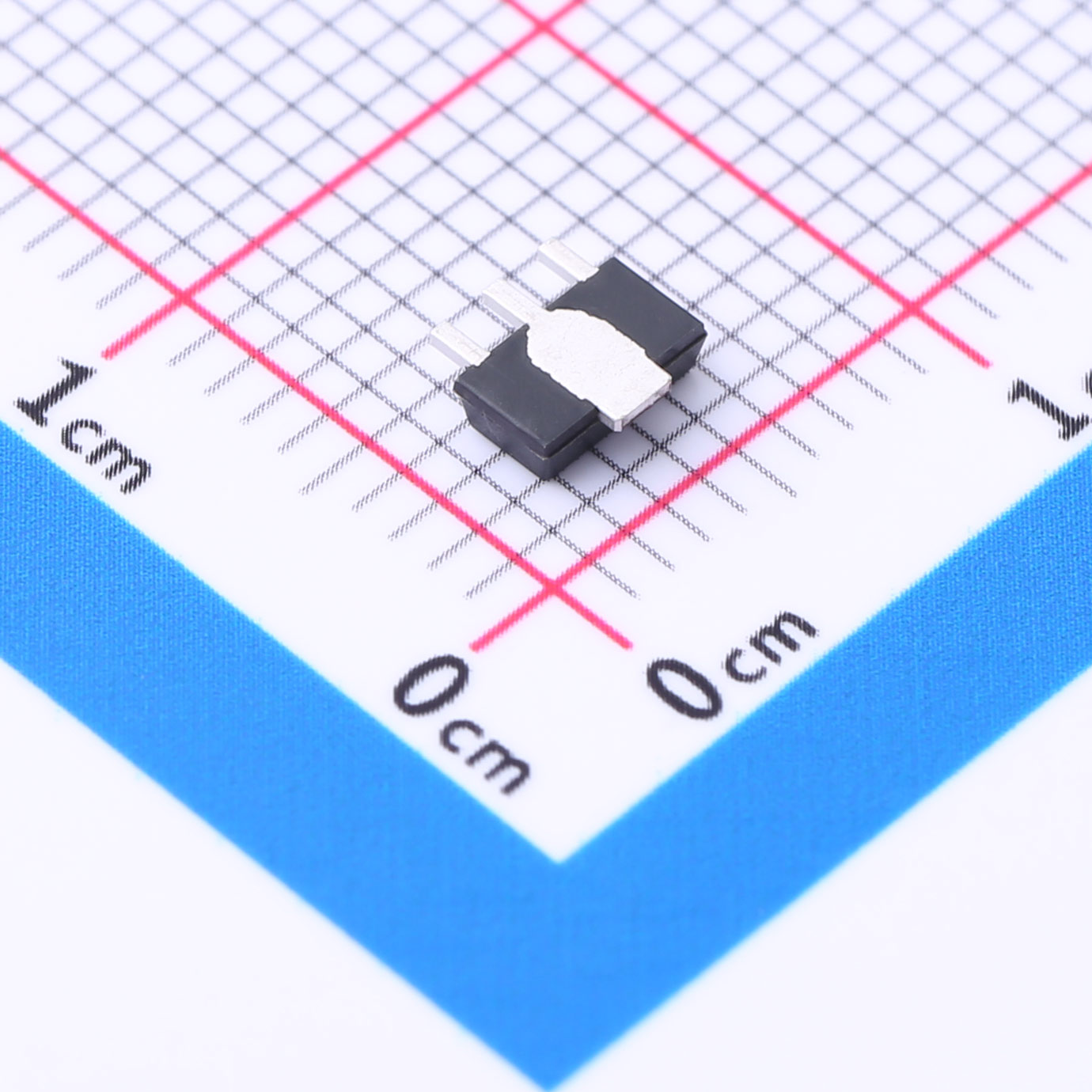

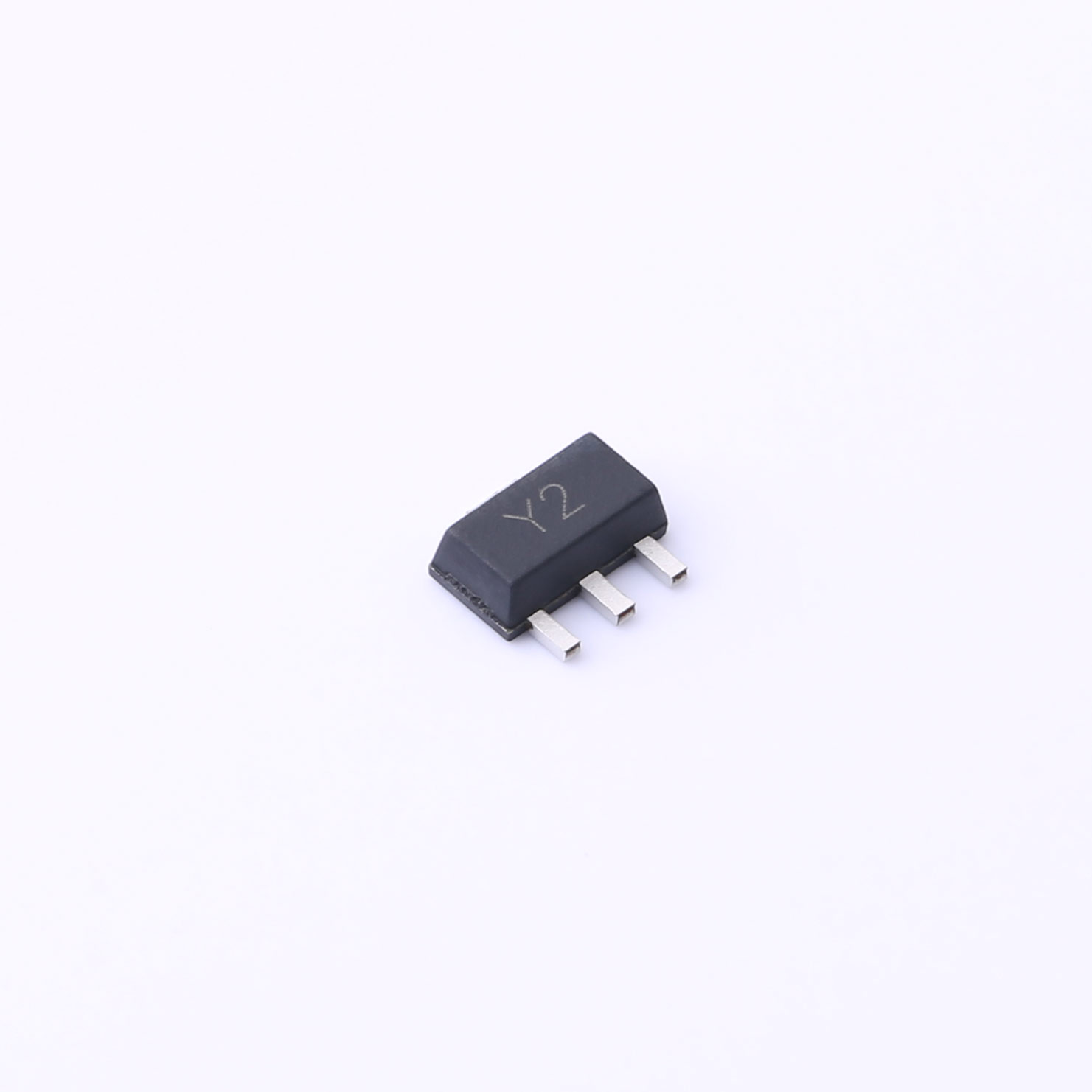

The SS8550 is a versatile PNP bipolar junction transistor designed for various low-power switching and amplification applications. With a maximum collector-emitter voltage (Vceo) of 25V and a collector current (Ic) rating of 1.5A, it offers reliable performance in compact electronic circuits. Its low collector-emitter saturation voltage (VCE(sat)) ensures efficient switching even at moderate currents, making it suitable for diverse electronic designs.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SS8550 is a versatile PNP bipolar junction transistor designed for various low-power switching and amplification applications. With a maximum collector-emitter voltage (Vceo) of 25V and a collector current (Ic) rating of 1.5A, it offers reliable performance in compact electronic circuits. Its low collector-emitter saturation voltage (VCE(sat)) ensures efficient switching even at moderate currents, making it suitable for diverse electronic designs.
FEATURES
● High Collector Current.
● Complementary to SS8050.
Applications:
The SS8550 transistor is ideal for a wide range of applications, including:
| File Name | Title | Description |
|---|---|---|

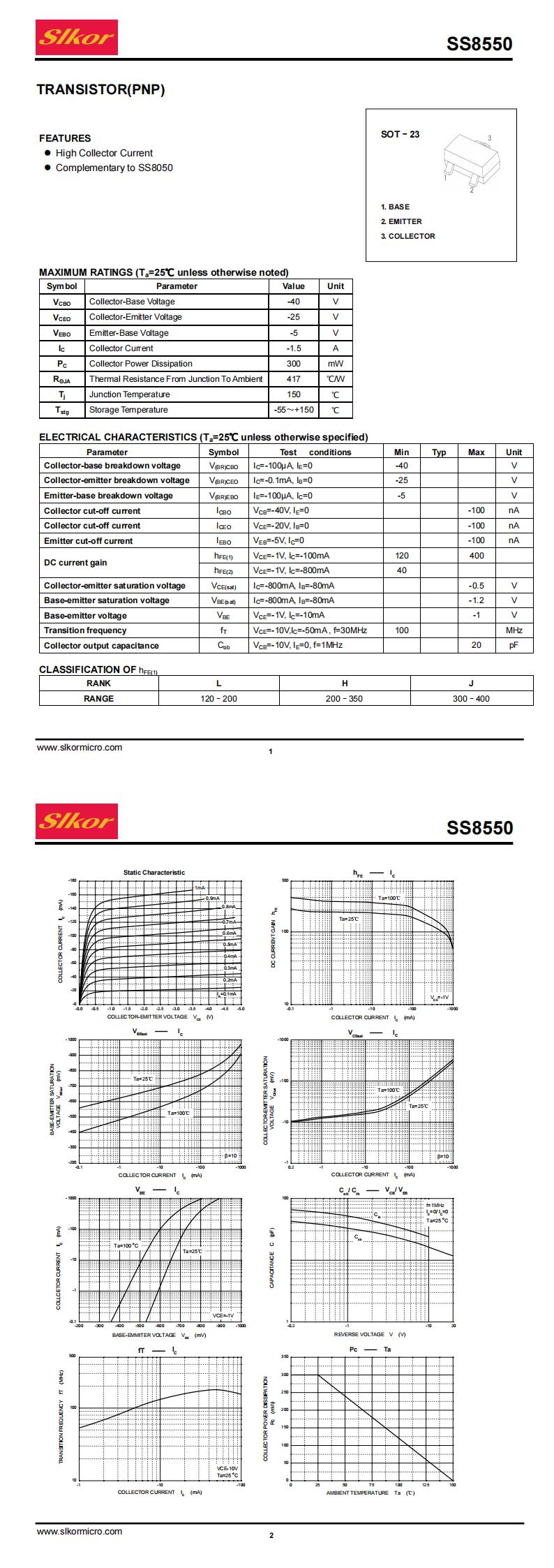

| SS8550.pdf | SS8550 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Type：PNP Vceo: -25V Ic: -1.5A Pd: 1W VCE(sat)@Ic,Ib: -0.5V@-800mA,-80mA fT: 100MHz
