Display 3D model
Service hotline
+86 0755-83044319
Type：PNP
Vceo: -25V
Ic: -1.5A
Pd: 1W
VCE(sat)@Ic,Ib: -0.5V@-800mA,-80mA
fT: 100MHz
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:

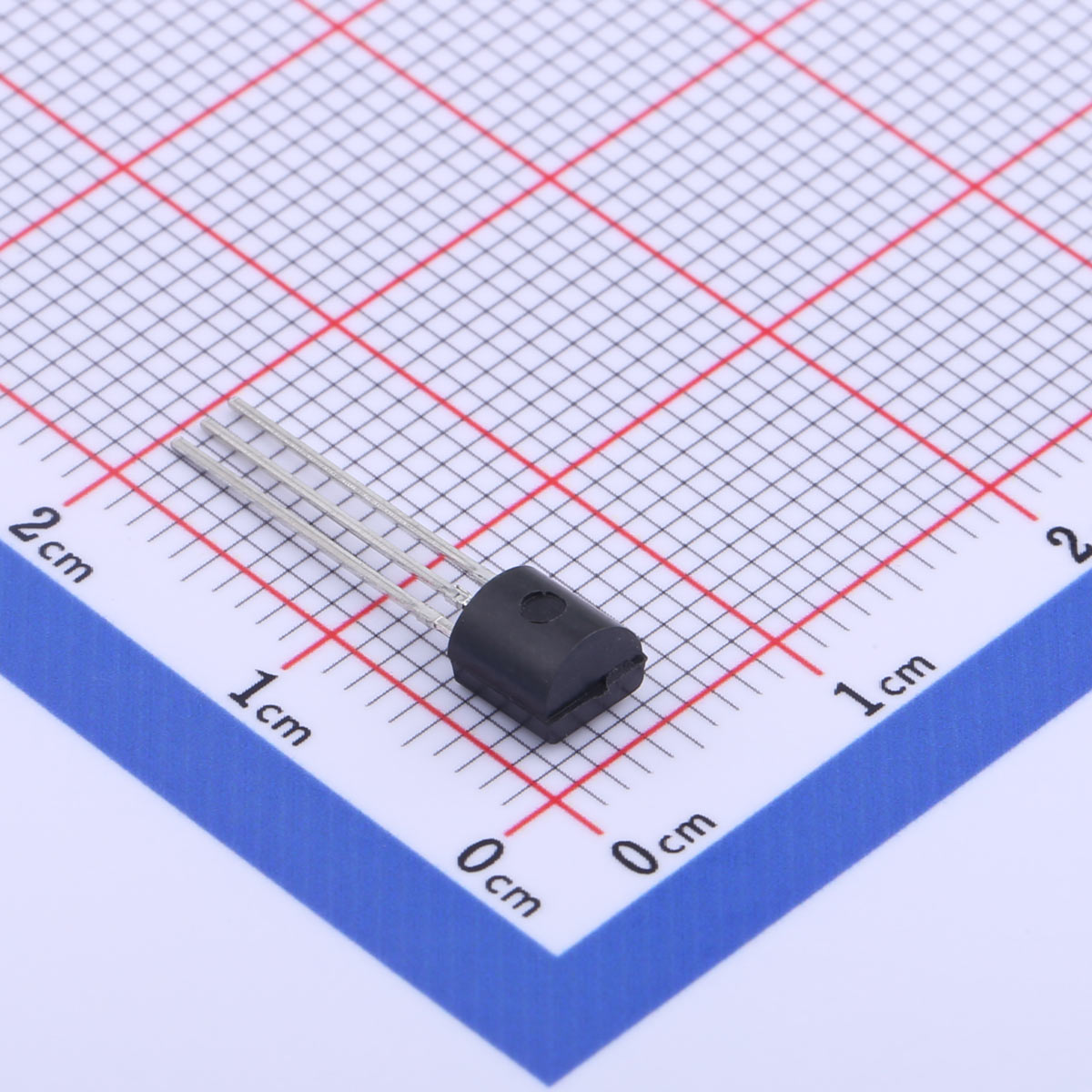

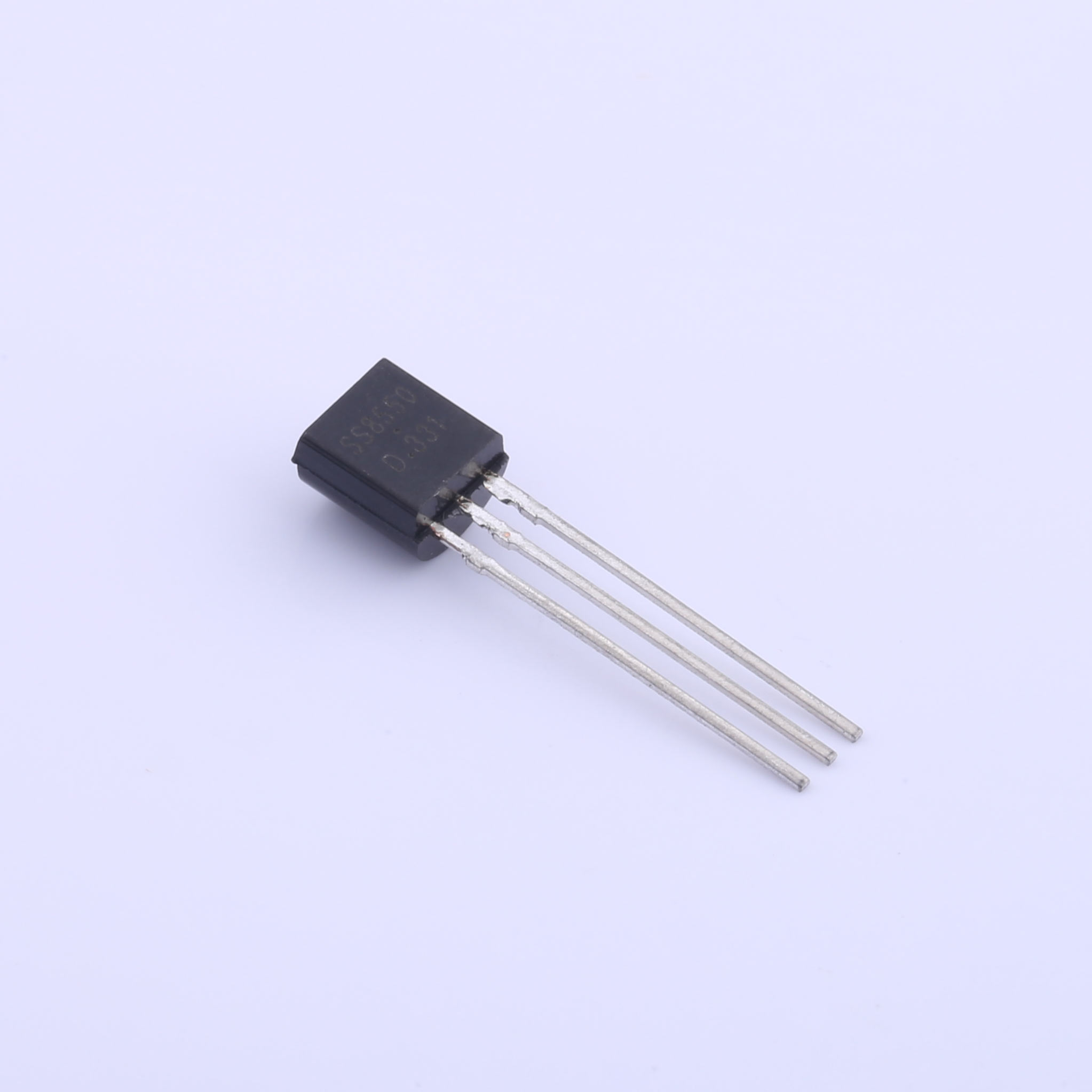

The SS8550 is a versatile PNP bipolar junction transistor designed for various low-power switching and amplification applications. With a maximum collector-emitter voltage (Vceo) of 25V and a collector current (Ic) rating of 1.5A, it offers reliable performance in compact electronic circuits. Its low collector-emitter saturation voltage (VCE(sat)) ensures efficient switching even at moderate currents, making it suitable for diverse electronic designs.
FEATURES
● High Collector Current.
● Complementary to SS8050.
Applications:
The SS8550 transistor is ideal for a wide range of applications, including:
● Switching Circuits: Suitable for low-power switching applications due to its low VCE(sat) and high current handling capability.
● Amplification: Used in audio amplifiers, signal amplification circuits, and other low to medium power amplification applications.
● Control Circuits: Effective in controlling electrical signals in various industrial and consumer electronics.
● General Purpose: Versatile enough to be used in DC gain stages, voltage regulators, and other general-purpose circuits where PNP transistors are required.
| File Name | Title | Description |
|---|---|---|
| SS8550 TO-92.pdf | SS8550 TO-92 | - |
