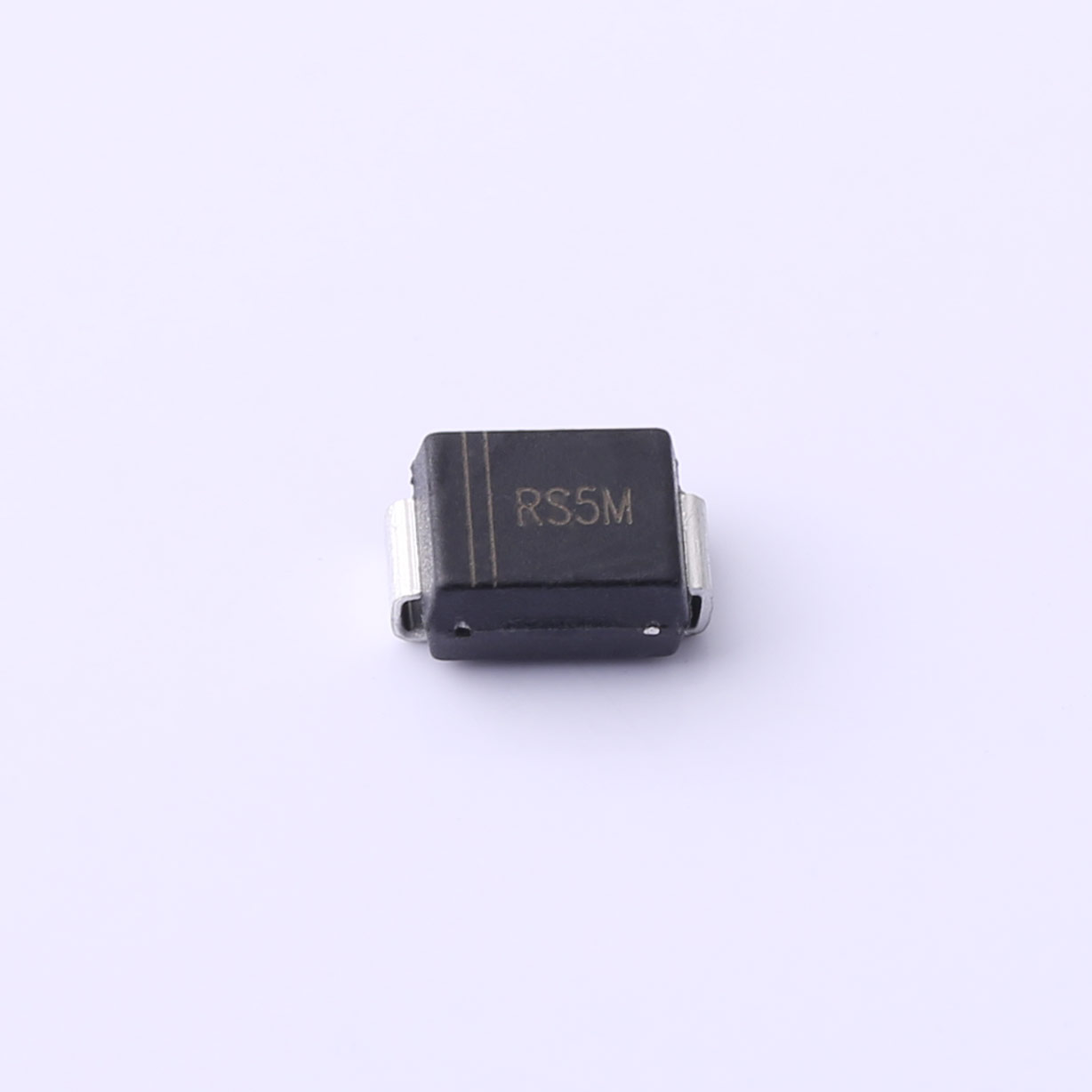

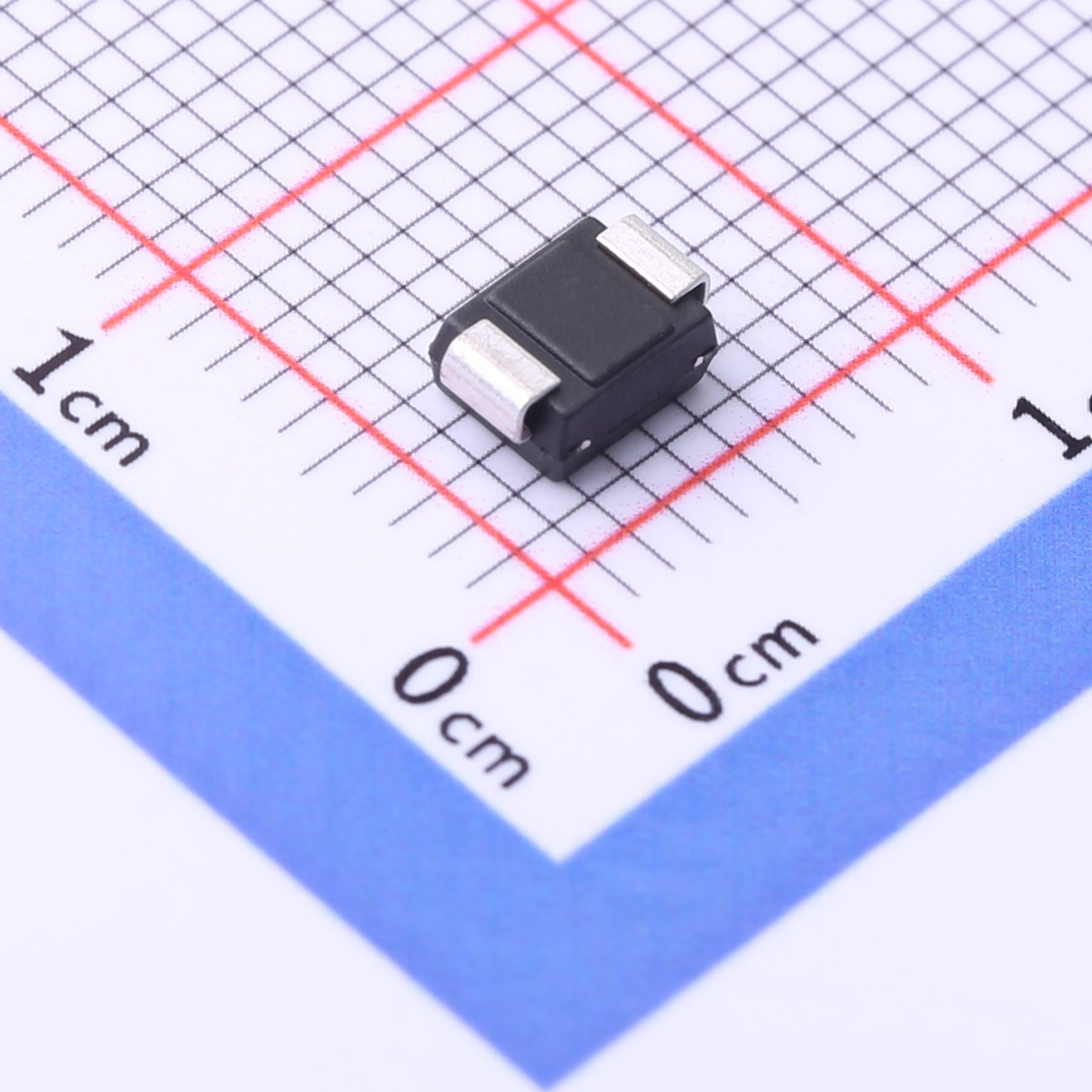

The RS5MB diode is a high-performance semiconductor device designed for efficient rectification and switching applications in electronic circuits. Encased in a reliable SMB package, the RS5MB offers robust performance and durability to meet the stringent requirements of modern electronic designs.
Download datasheet InquirySurface Mount Superfast Recovery Rectifier
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The RS5MB diode is a high-performance semiconductor device designed for efficient rectification and switching applications in electronic circuits. Encased in a reliable SMB package, the RS5MB offers robust performance and durability to meet the stringent requirements of modern electronic designs.
Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● Easy to pick and place
● Fast reverse recovery time
● Lead free in comply with EU RoHS 2011/65/EU directives
Application
● Power Supplies: Ideal for AC to DC conversion in power supply units, ensuring efficient operation and voltage regulation.
● Solar Power Systems: Used for rectification and power management in photovoltaic systems, supporting renewable energy applications.
● Industrial Equipment: Suitable for motor control circuits and industrial automation systems requiring robust and reliable performance.
● Consumer Electronics: Applied in various electronic devices for power rectification and voltage regulation, ensuring stable operation and longevity.
● Battery Chargers: Facilitates efficient charging and power conversion in battery management systems.
| File Name | Title | Description |
|---|---|---|

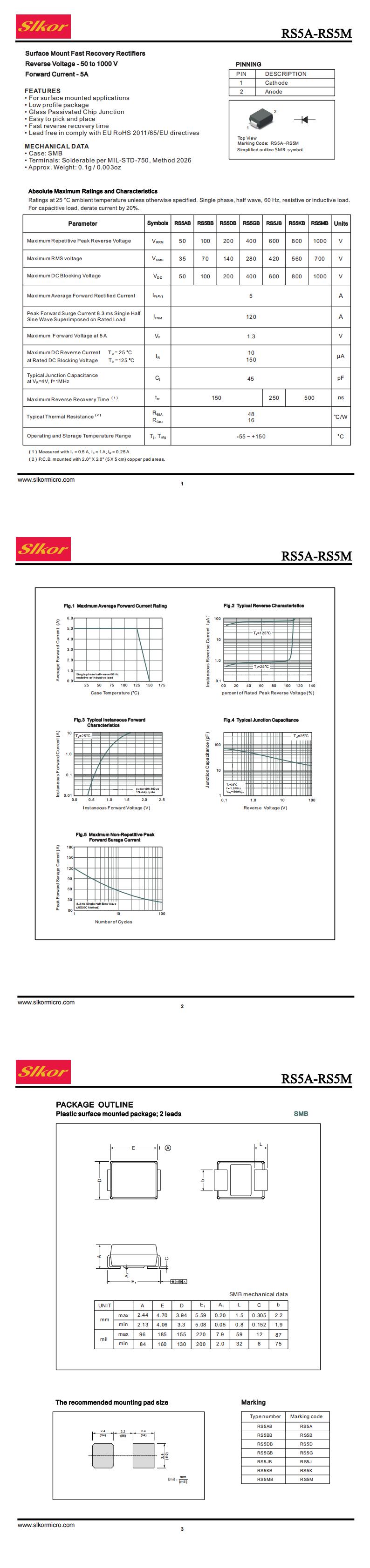

| RS5MB.PDF | RS5MB | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
