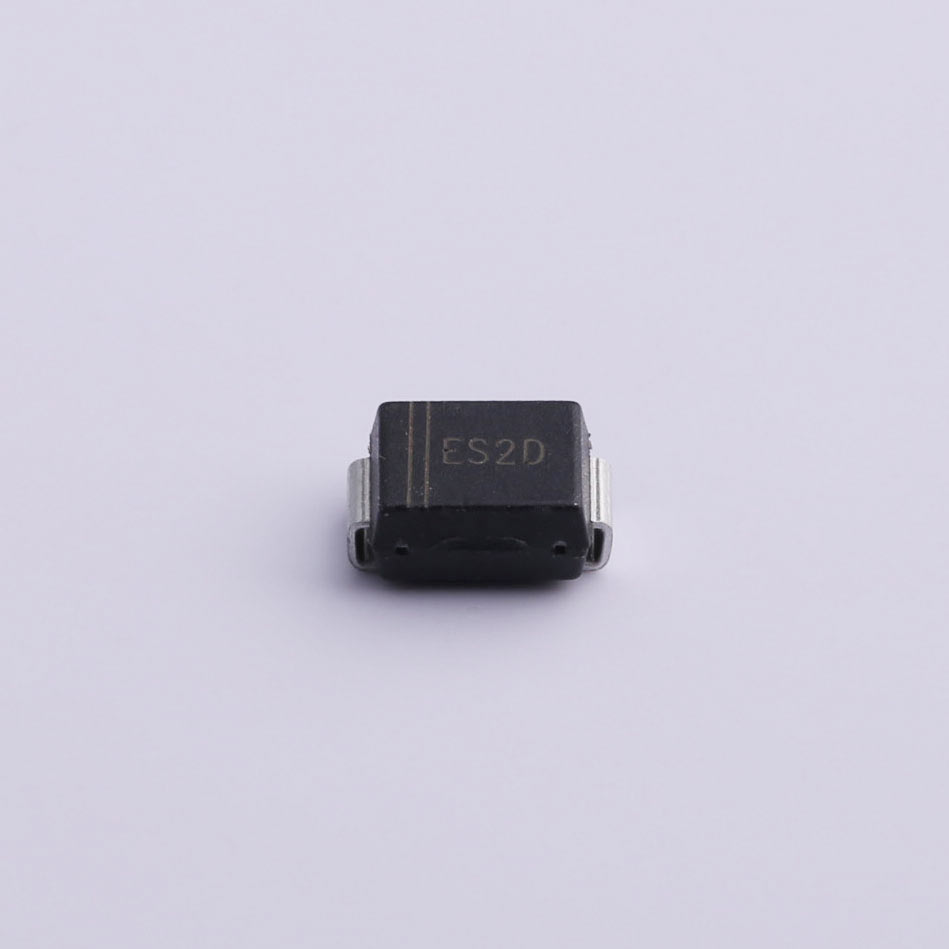

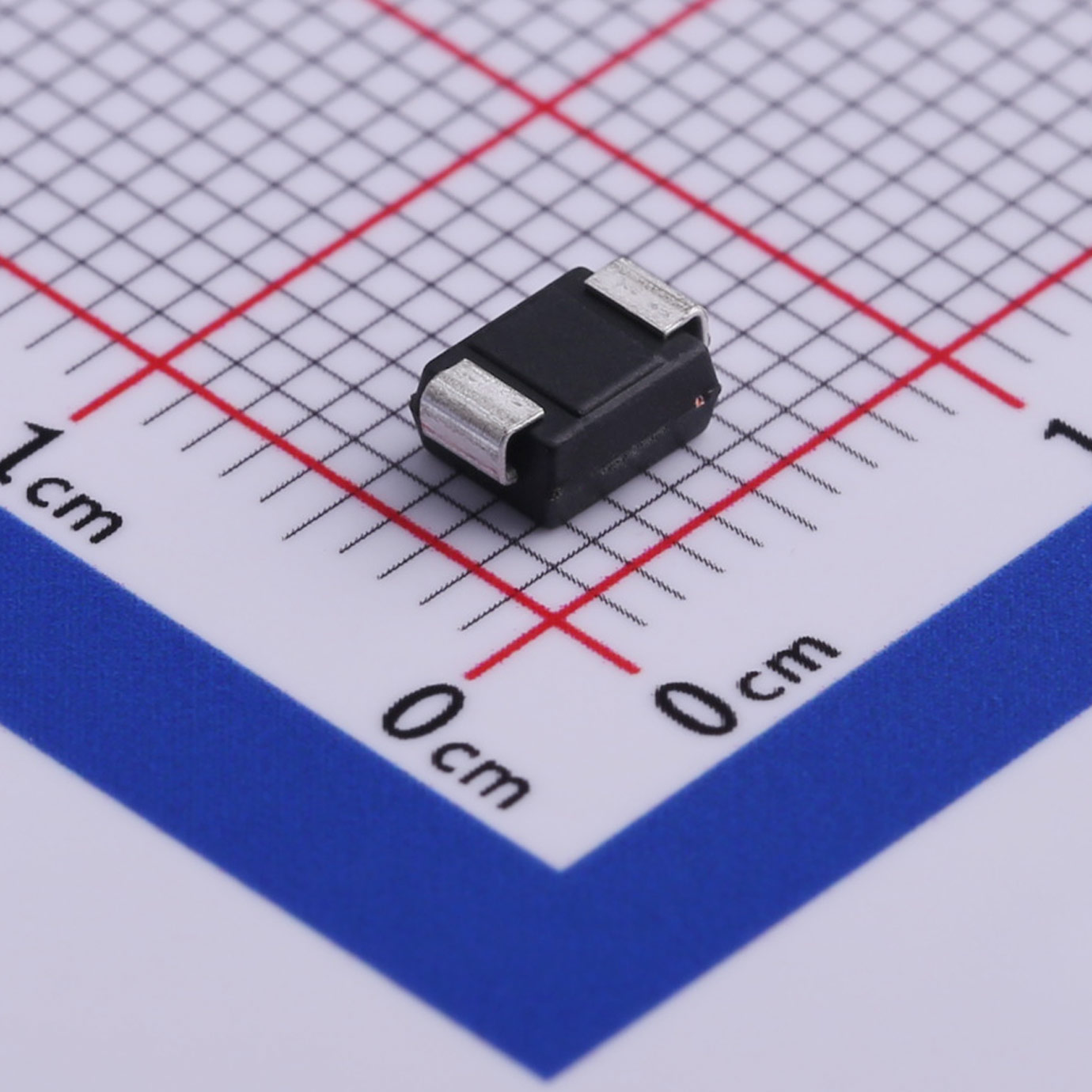

Introducing the ES2D ultra fast recovery rectifier, engineered for high-speed switching and efficient energy conversion in a compact SMB package. This diode sets a new standard in performance and reliability for applications demanding rapid response times and minimal power loss.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the ES2D ultra fast recovery rectifier, engineered for high-speed switching and efficient energy conversion in a compact SMB package. This diode sets a new standard in performance and reliability for applications demanding rapid response times and minimal power loss.
Features
● For Surface Mount Applications
● Glass?Passivated Junction
● Low?Profile Package
● Easy Pick and Place
● Built?in Strain Relief
● Superfast Recovery Times for High Efficiency
● These are Pb?Free Devices
Applications
● Switching Power Supplies: Perfect for fast-switching power supply designs requiring high efficiency and rapid response times.
● Voltage Regulation: Well-suited for rectification and voltage regulation in DC-DC converters and voltage multiplier circuits.
● Telecommunications: Ensures reliable performance in telecom equipment such as routers, switches, and base stations.
● Automotive Electronics: Used in automotive applications for efficient rectification and energy conversion, meeting stringent reliability standards.

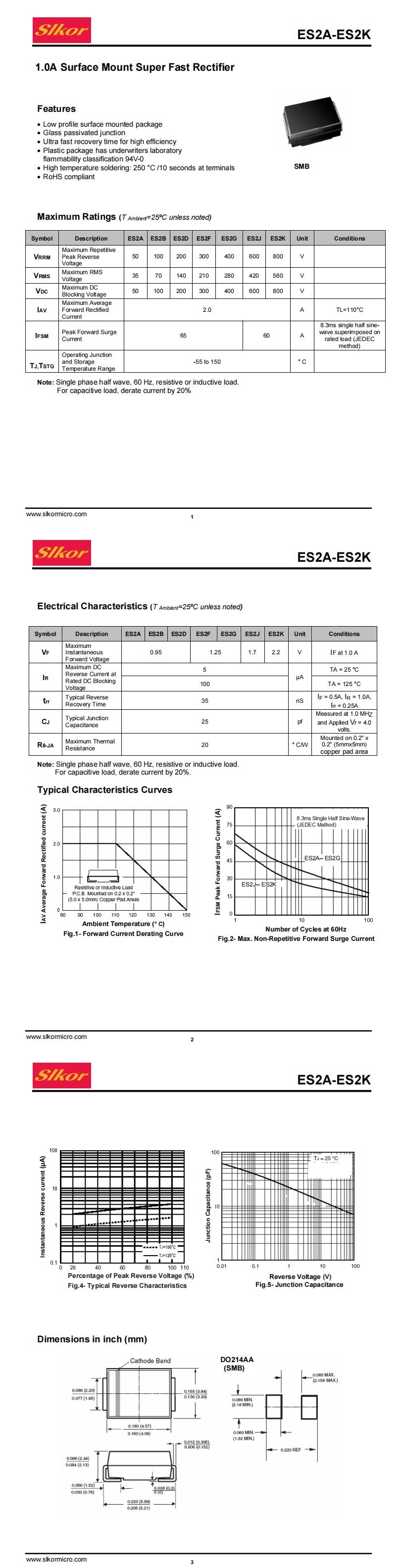

| File Name | Title | Description |
|---|---|---|
| ES2D.pdf | ES2D | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
