PD: 500mW
VZ(Nom) @ IZT: 6.2V @ 5mA
VZ(Min) @ IZT: 6.06V @ 5mA
VZ(Max.) @ IZT: 6.33V @ 5mA
ZZT @ IZT: 60Ω @ 5mA
IR @VR: 1µA @ 3V
Package: SOD-123
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

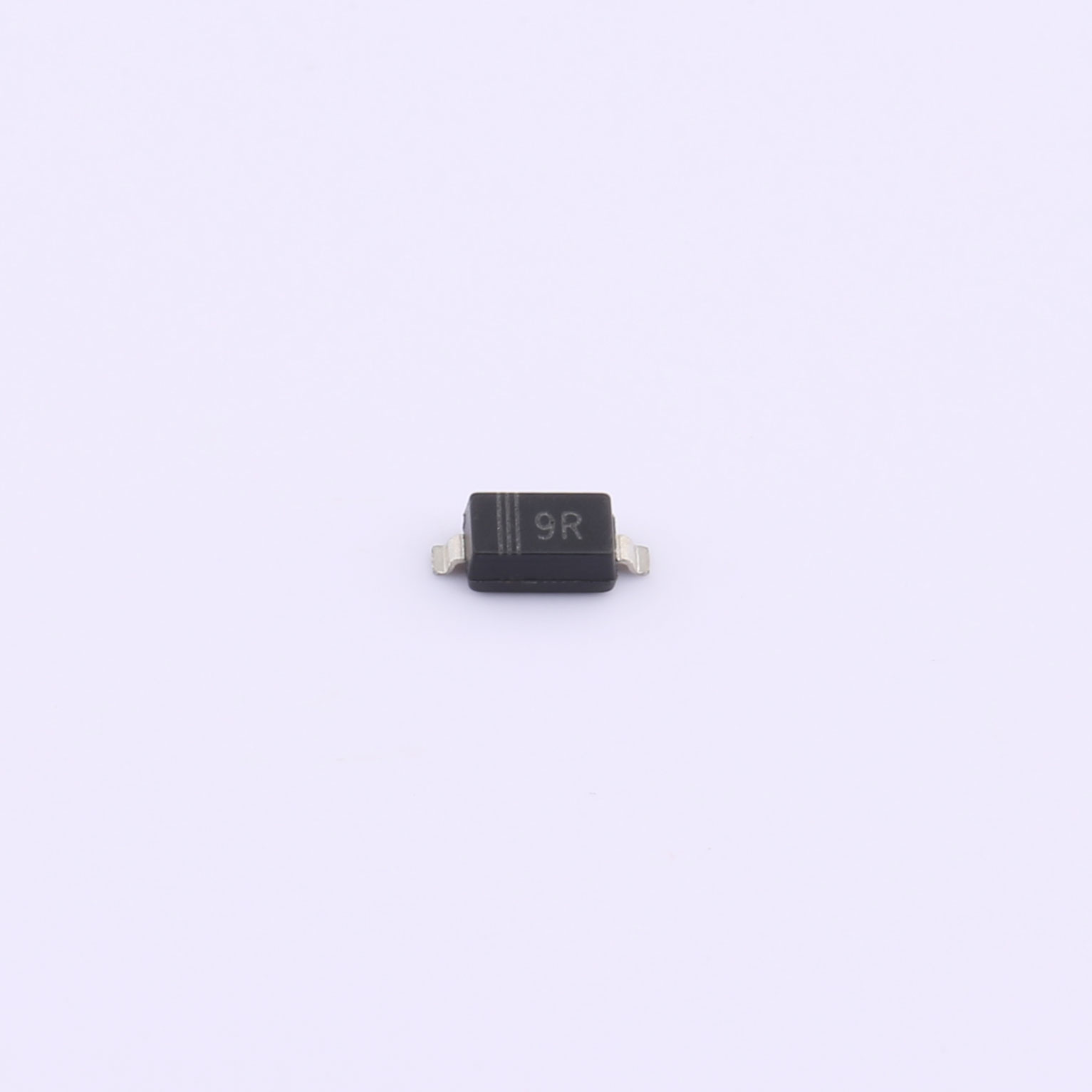

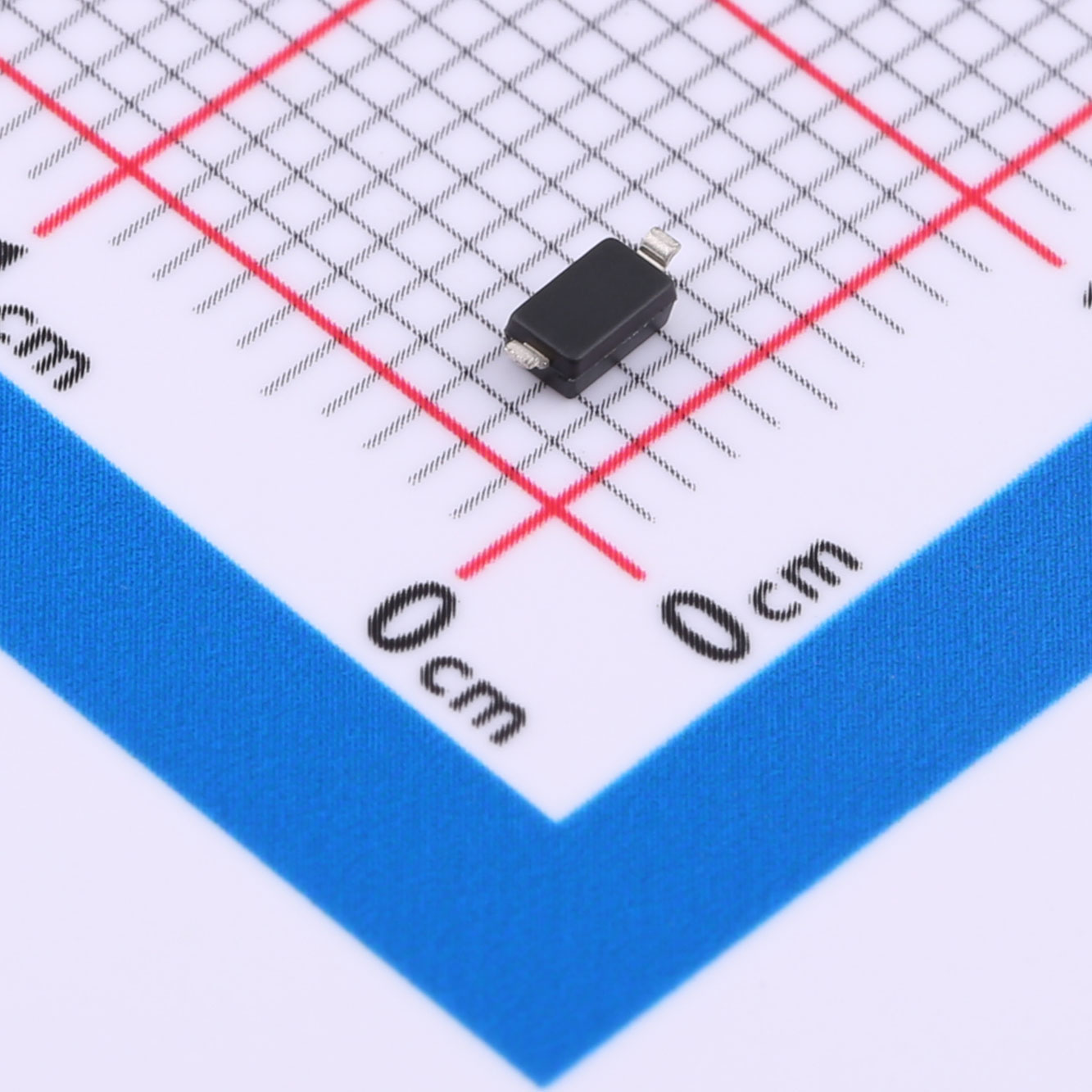

This Zener Diode, encapsulated in a SOD-123 package, is designed to provide reliable and precise voltage regulation with a nominal Zener voltage of 6.2V at a test current of 5mA. Capable of dissipating up to 500mW of power, it is well-suited for a range of applications requiring stable voltage performance in a compact form factor.
Features
● Total power dissipation: max. 500 mW
● Small plastic package suitable for surface mounted design
● High reliability
Applications
● Voltage Regulation
● Overvoltage Protection
● Consumer Electronics
● Power Supply Circuits
