PD: 500mW
VZ(Nom) @ IZT: 24V @ 5mA
VZ(Min) @ IZT: 23.72V @ 5mA
VZ(Max.) @ IZT: 24.78V @ 5mA
ZZT @ IZT: 120Ω @ 5mA
IR @VR: 0.1µA @ 19V

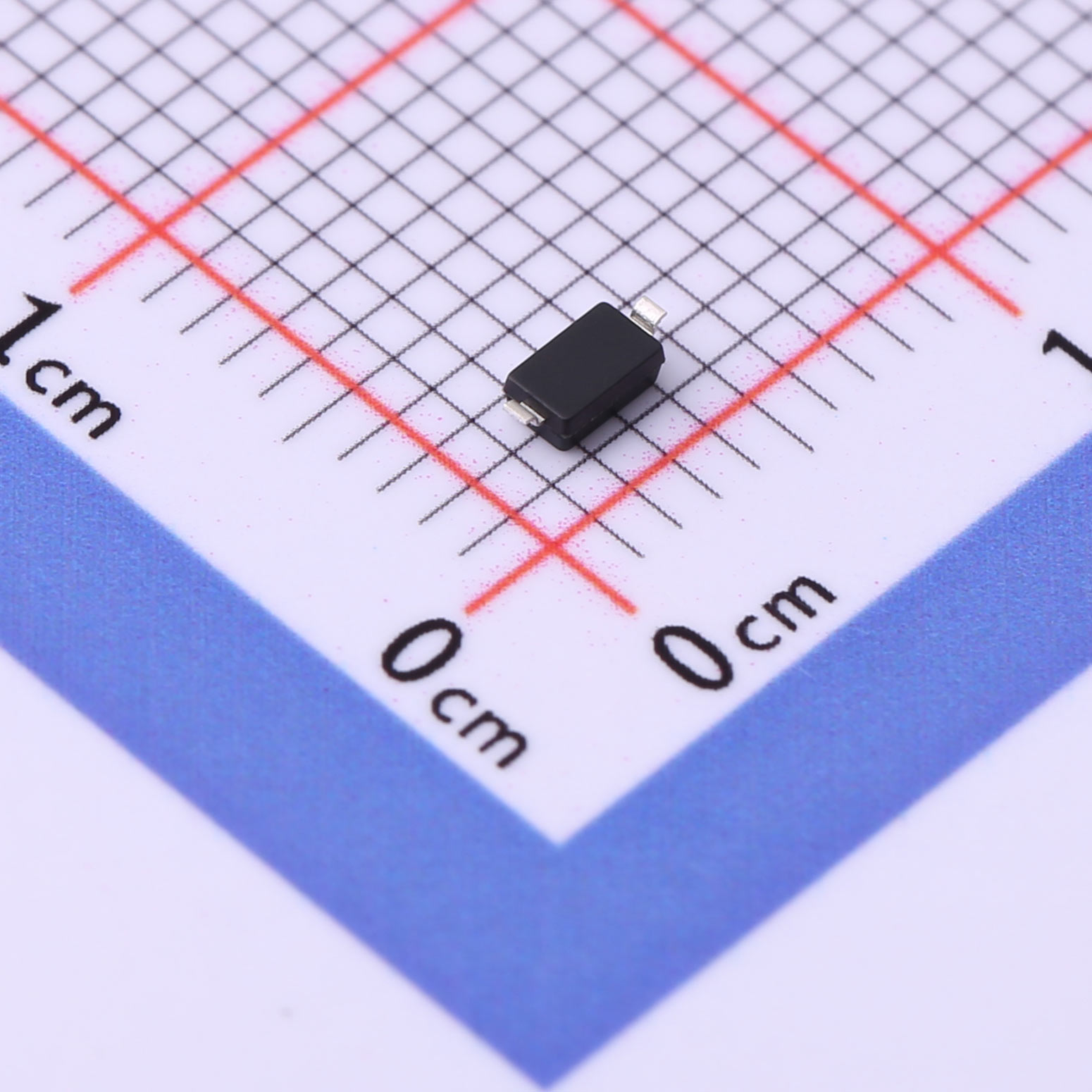

Package: SOD-123
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

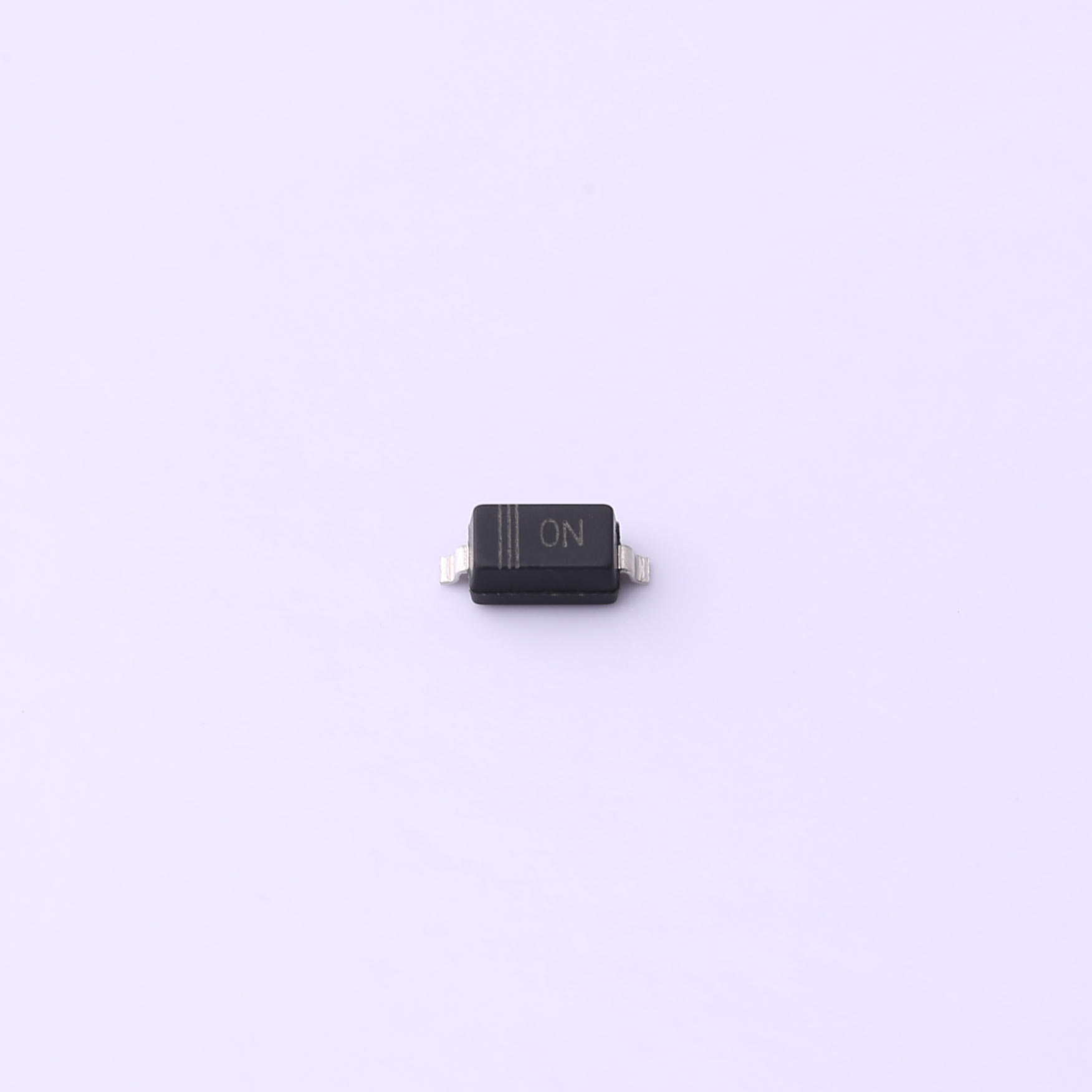

This Zener Diode, packaged in a compact SOD-123 form, is designed for precise voltage regulation with a nominal Zener voltage of 24V at a test current of 5mA. With a power dissipation capability of up to 500mW, it is suitable for applications requiring stable voltage control and reliability in a small footprint.
Features
● Total power dissipation: max. 500 mW
● Small plastic package suitable for surface mounted design
● High reliability
Applications
● Voltage Regulation
● Overvoltage Protection
● Consumer Electronics
● Power Management
