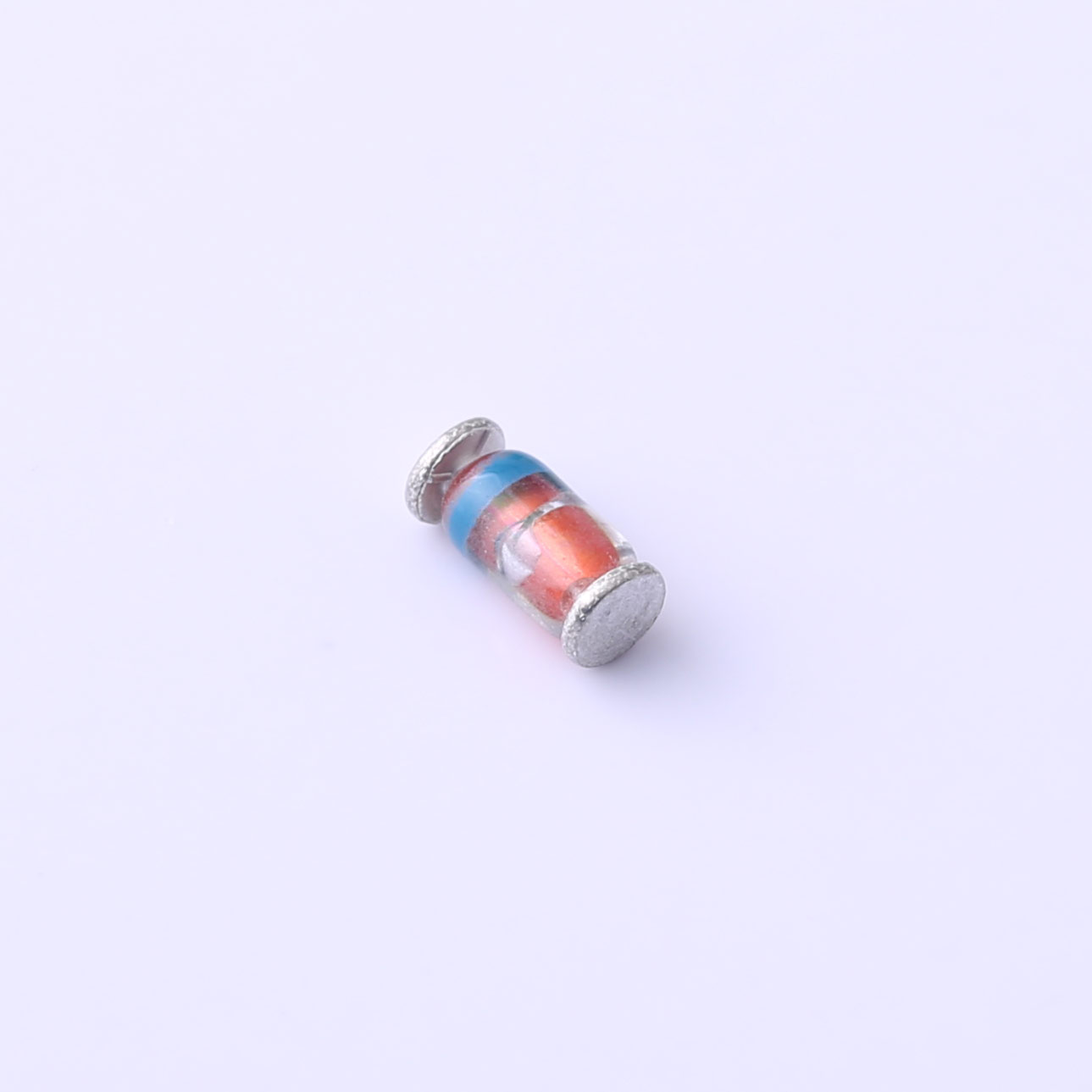

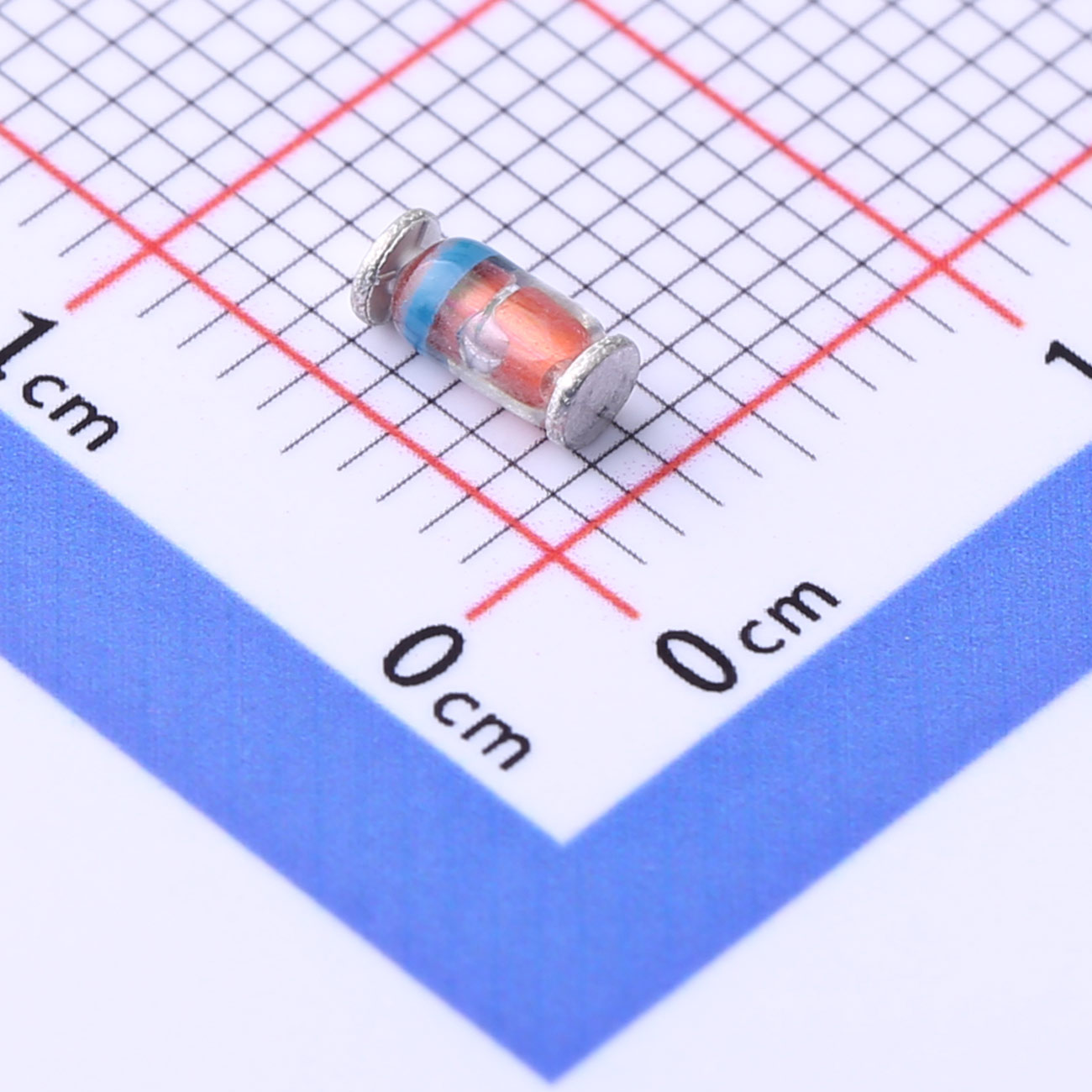

ZM4738A Surface Mount Zener Diode LL-41

SILICON PLANAR ZENER DIODES

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

For use in stabilizing and dipping circuits with high power rating.Standard Zener voltage tolerance is ±10%.Add suffix "A" for ±5% tolerance and suffix "B" for ±2% tolerance. Other tolerances available are upon request.These diodes are also available in DO-41 case with the type designation 1N4727...1N4761.

Features

● Zener Voltage (VZTyp): 8.2V - Ensures accurate voltage regulation at 8.2 volts, suitable for various electronic applications.

● Precision: ±5% - Maintains precise voltage control with a tolerance of ±5%, ensuring consistent performance across circuits.

● Power Dissipation (PD): 1W - Capable of handling up to 1 watt of power dissipation, allowing for effective thermal management.

● Reverse Leakage Current (Ir): 10μA @ 6V - Exhibits a low reverse leakage current of 10 microamperes at 6 volts, contributing to circuit reliability.

● Zener Impedance (Zzt): 4.5Ω - Provides stable voltage regulation with a Zener impedance of 4.5 ohms, reducing signal distortion.

Applications

● Voltage Regulation: Offering precise voltage control in surface-mount circuits.

● Over-voltage Protection: Protecting sensitive components from voltage surges, enhancing circuit reliability.

● Signal Clamping: Managing voltage variations to maintain signal integrity in high-performance electronic systems.
