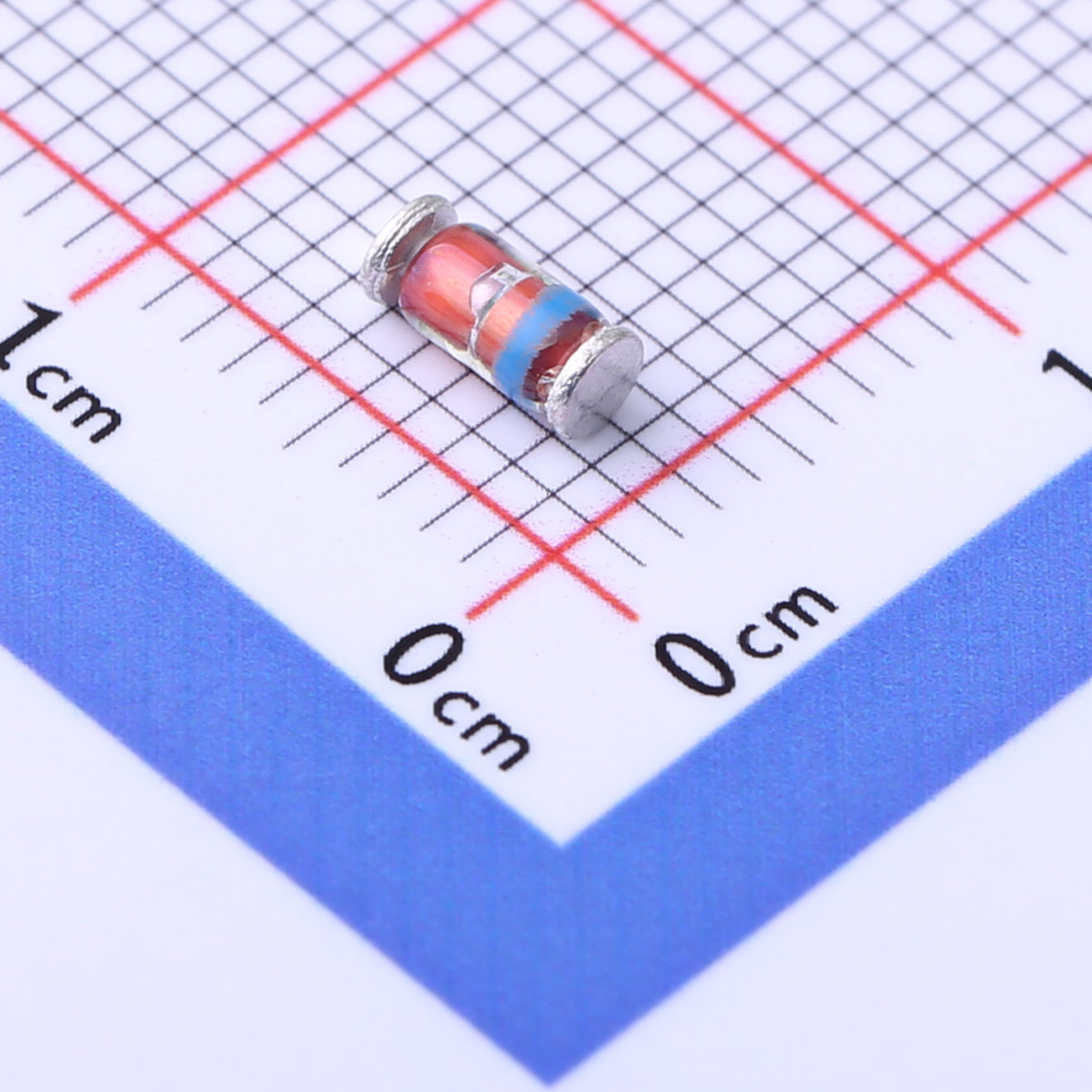

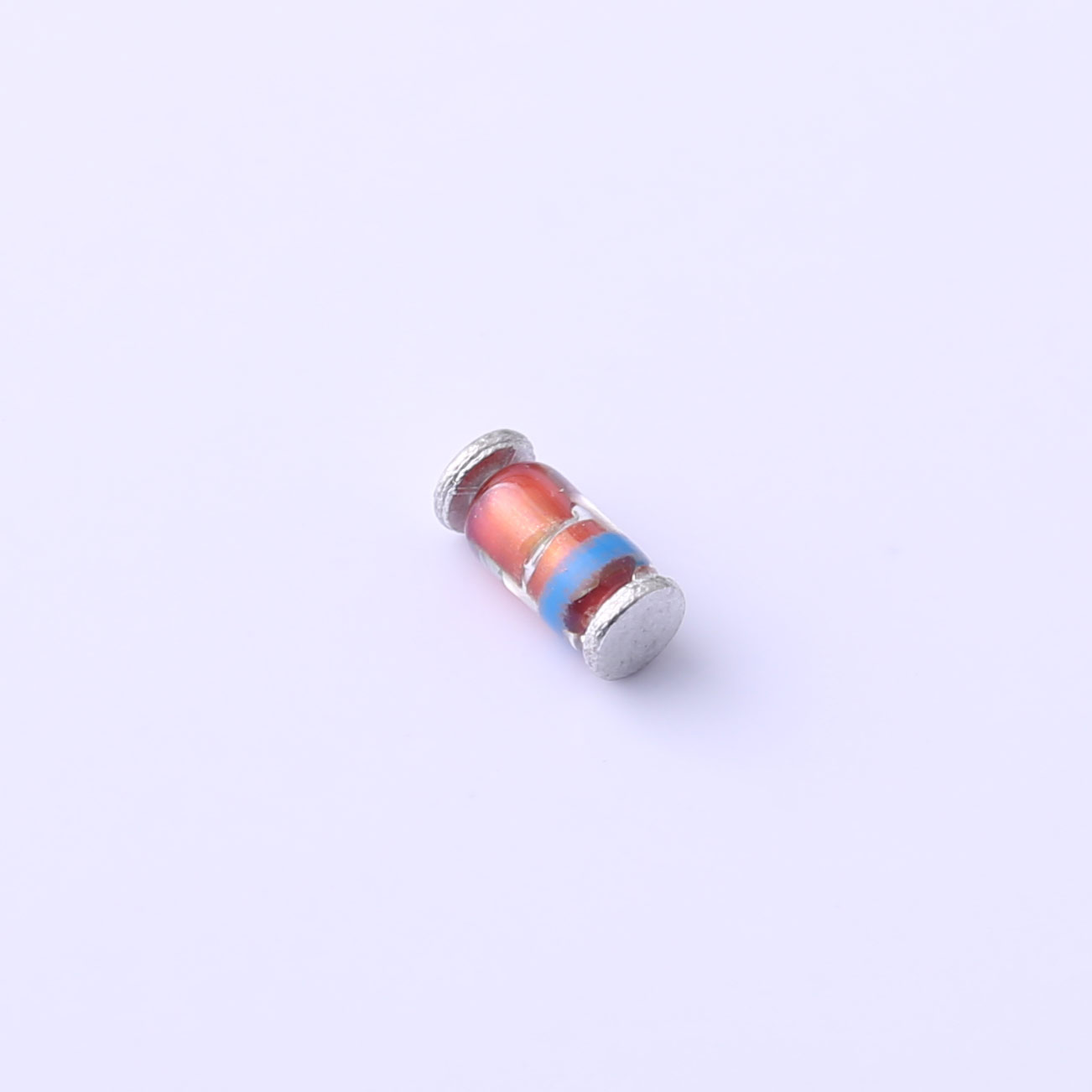

ZM4744A Surface Mount Zener Diode LL-41

SILICON PLANAR ZENER DIODES

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

For use in stabilizing and dipping circuits with high power rating.Standard Zener voltage tolerance is ±10%.Add suffix "A" for ±5% tolerance and suffix "B" for ±2% tolerance. Other tolerances available are upon request.These diodes are also available in DO-41 case with the type designation 1N4727...1N4761.

Features

● Zener Voltage (VZTyp): 15V - Provides reliable voltage regulation at 15 volts, making it suitable for a wide range of electronic circuits.

● Precision: ±5% - Delivers accurate voltage control with a tolerance of ±5%, ensuring consistent performance in various applications.

● Power Dissipation (PD): 1W - Supports up to 1 watt of power dissipation, facilitating effective thermal management in compact designs.

● Reverse Leakage Current (Ir): 5μA @ 11.4V - Features a low reverse leakage current of 5 microamperes at 11.4 volts, enhancing circuit stability and efficiency.

● Zener Impedance (Zzt): 14Ω - Offers stable voltage regulation with a Zener impedance of 14 ohms, minimizing signal distortion and ensuring reliable operation.

Application

● Voltage Regulation: Ensuring stable voltage control in surface-mount circuits for various electronic devices.

● Over-voltage Protection: Safeguarding sensitive components from voltage spikes and surges, contributing to overall circuit reliability.

● Signal Clamping: Regulating voltage fluctuations to maintain signal integrity, which is essential for high-performance electronic systems.
