PD: 500mW
VZ(Nom) @ IZT: 3.3V @ 5mA
VZ(Min) @ IZT: 3.25V @ 5mA
VZ(Max.) @ IZT: 3.55V @ 5mA
ZZT @ IZT: 120Ω @ 5mA
IR @VR: 20µA @ 1V
Package: SOD-123
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

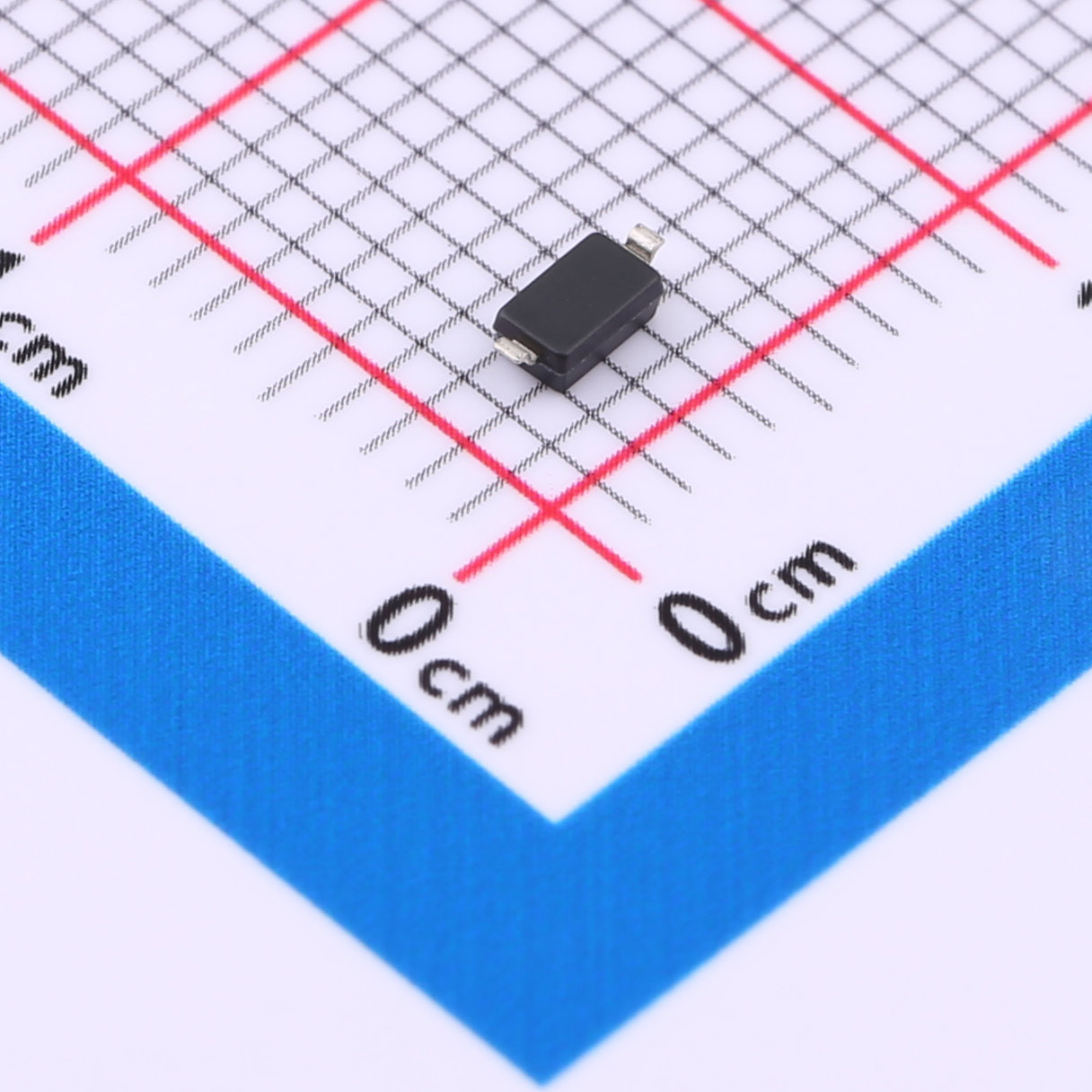

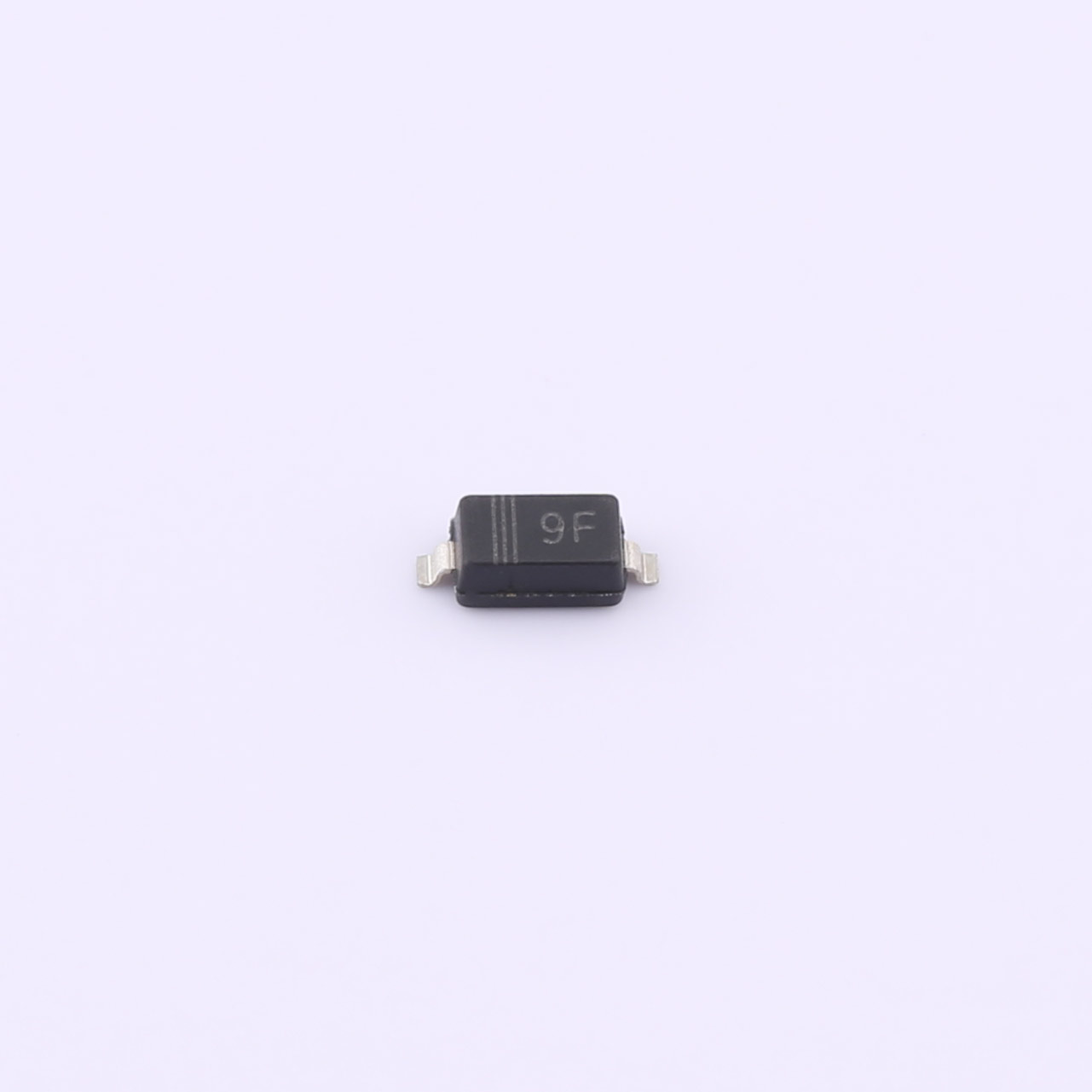

This Zener Diode provides precise voltage regulation with a nominal Zener voltage of 3.3V at a test current of 5mA. It is designed to handle up to 500mW of power dissipation and is housed in a compact SOD-123 package, making it ideal for applications where space and reliability are crucial.
Features
● Total power dissipation: max. 500 mW
● Small plastic package suitable for surface mounted design
● High reliability
Applications
● Voltage Regulation
● Overvoltage Protection
● Consumer Electronics
● Portable Devices
| File Name | Title | Description |
|---|---|---|
| C3041306_稳压二极管_MM1Z6V8B_规格书_SLKOR(萨科微)稳压二极管规格书.PDF | C3041306_稳压二极管_MM1Z6V8B_规格书_SLKOR(萨科微)稳压二极管规格书 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
PD: 500mW VZ(Nom) @ IZT: 24V @ 5mA VZ(Min) @ IZT: 23.72V @ 5mA VZ(Max.) @ IZT: 24.78V @ 5mA ZZT @ IZT: 120Ω @ 5mA IR @VR: 0.1µA @ 19V Package: SOD-123
PD: 500mW VZ(Nom) @ IZT: 6.2V @ 5mA VZ(Min) @ IZT: 6.06V @ 5mA VZ(Max.) @ IZT: 6.33V @ 5mA ZZT @ IZT: 60Ω @ 5mA IR @VR: 1µA @ 3V Package: SOD-123

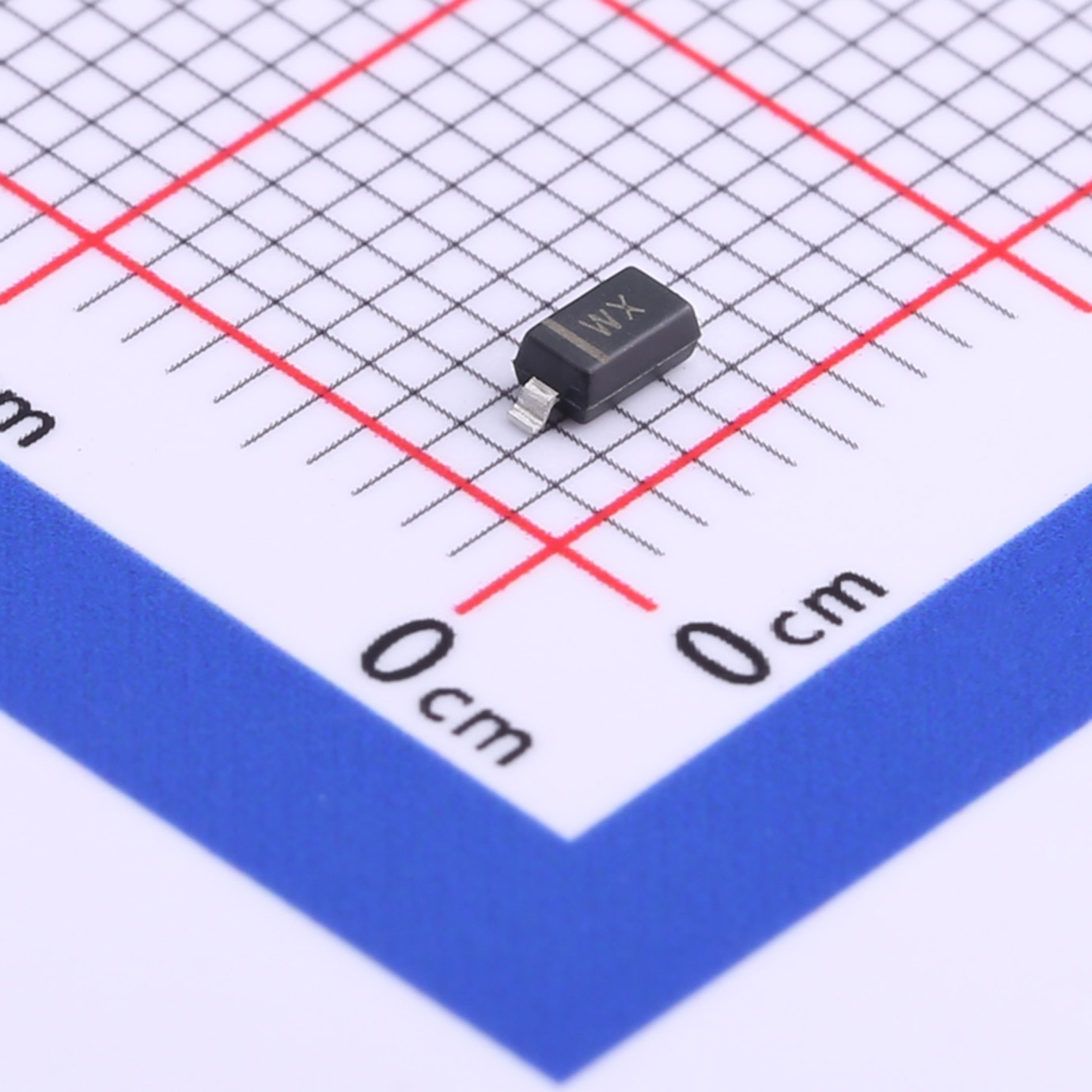

BZT52C2V4 Surface Mount Zener Diode SOD-123
