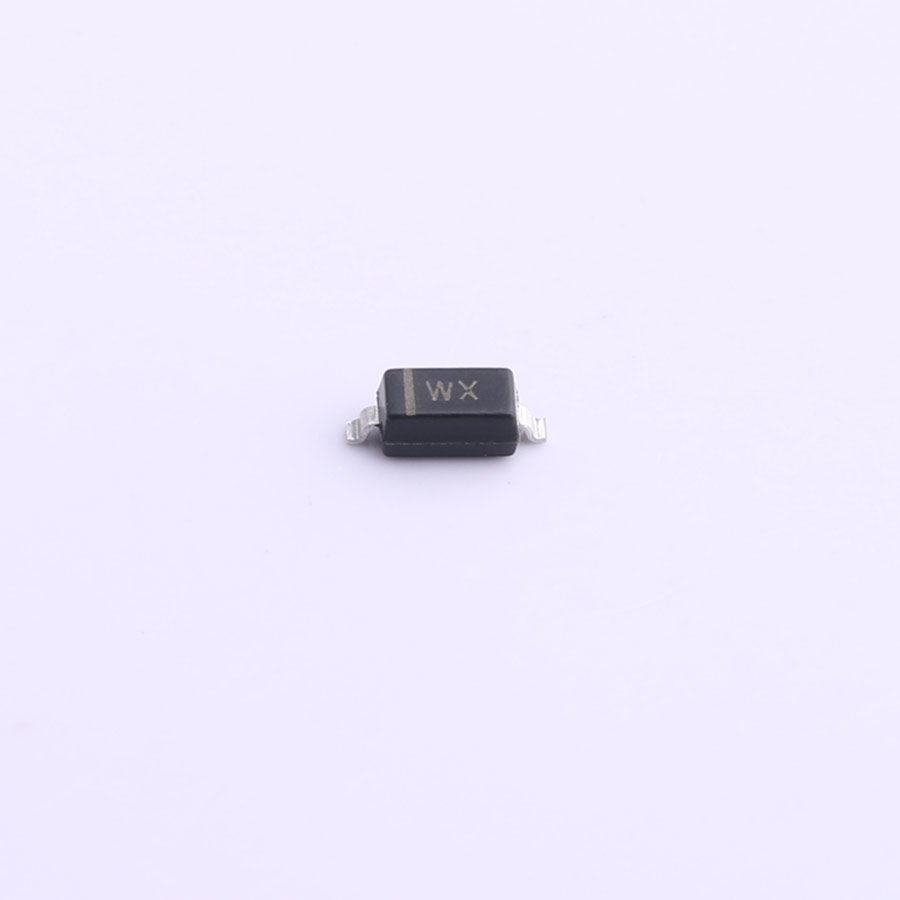

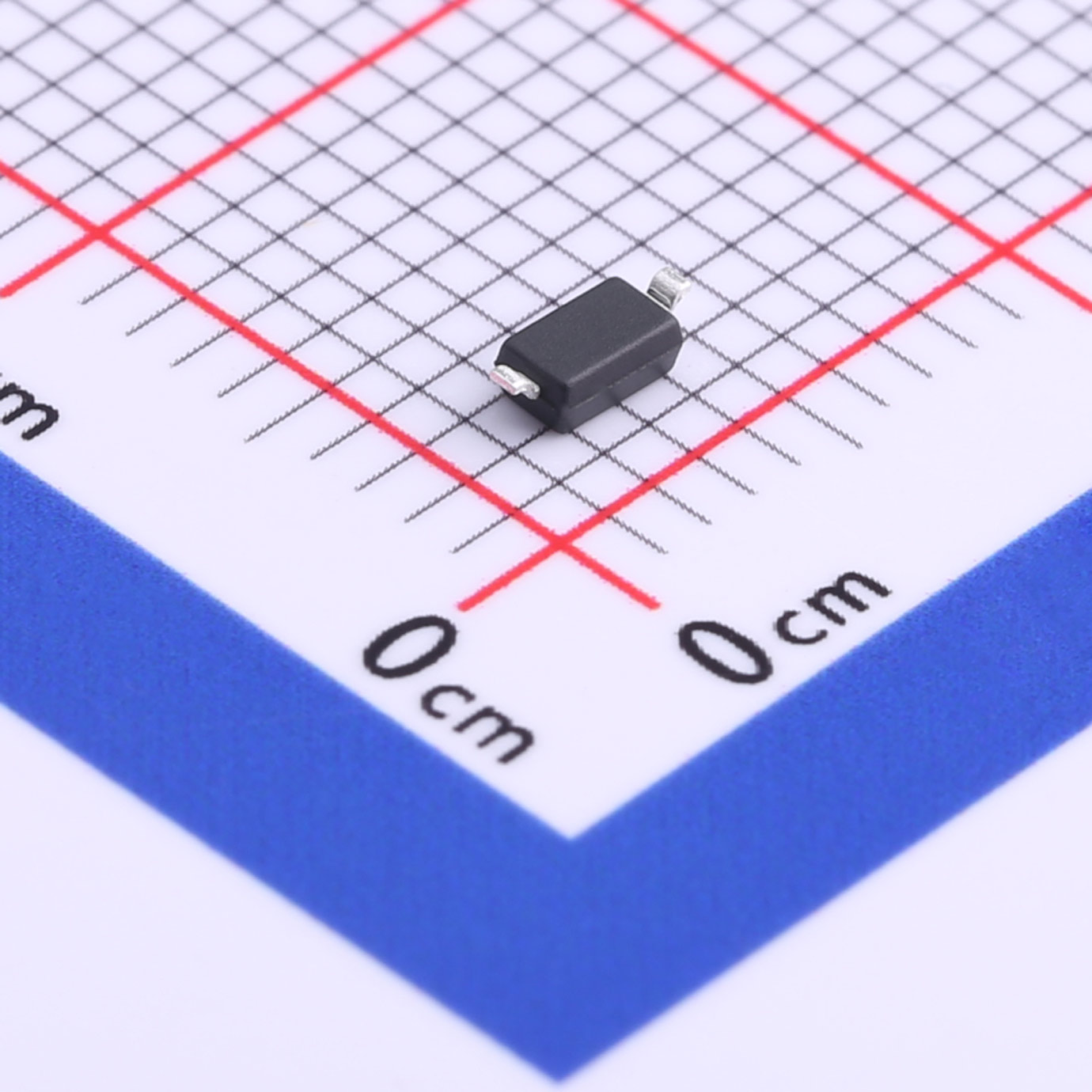

BZT52C2V4 Surface Mount Zener Diode SOD-123
Download datasheet InquirySurface mount zener diode
Features
Planar Die Construction
500mW Power Dissipation on Ceramic PCB
General Purpose,Medium Current
Ideally Suited for Automated Assembly Processes
Mechanical Data
Case: SOD-123 Plastic
UL Flammability Classification Rating 94V-0
Moisture Sensitivity :Level 1 per J-STD-020A
Terminals: Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
| File Name | Title | Description |
|---|---|---|
| BZT52C6V2.PDF | BZT52C6V2 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
PD: 500mW VZ(Nom) @ IZT: 24V @ 5mA VZ(Min) @ IZT: 23.72V @ 5mA VZ(Max.) @ IZT: 24.78V @ 5mA ZZT @ IZT: 120Ω @ 5mA IR @VR: 0.1µA @ 19V Package: SOD-123
PD: 500mW VZ(Nom) @ IZT: 6.2V @ 5mA VZ(Min) @ IZT: 6.06V @ 5mA VZ(Max.) @ IZT: 6.33V @ 5mA ZZT @ IZT: 60Ω @ 5mA IR @VR: 1µA @ 3V Package: SOD-123
PD: 500mW VZ(Nom) @ IZT: 3.3V @ 5mA VZ(Min) @ IZT: 3.25V @ 5mA VZ(Max.) @ IZT: 3.55V @ 5mA ZZT @ IZT: 120Ω @ 5mA IR @VR: 20µA @ 1V Package: SOD-123
VZTyp：6.8V VZ- Precision：±5% PD：1W Ir：10μA@4V Zzt：3.5Ω
VZTyp：8.2V VZ- Precision：±5% PD：1W Ir：10μA@6V Zzt：4.5Ω
VZTyp:9.1V VZ- Precision:±5% PD:1W Ir:10μA@7V Zzt:5Ω
VZTyp:10V VZ- Precision:±5% PD:1W Ir:10μA@7.6V Zzt:7Ω
VZTyp:12V VZ- Precision:±5% PD:1W Ir:5μA@9.1V Zzt:9Ω
