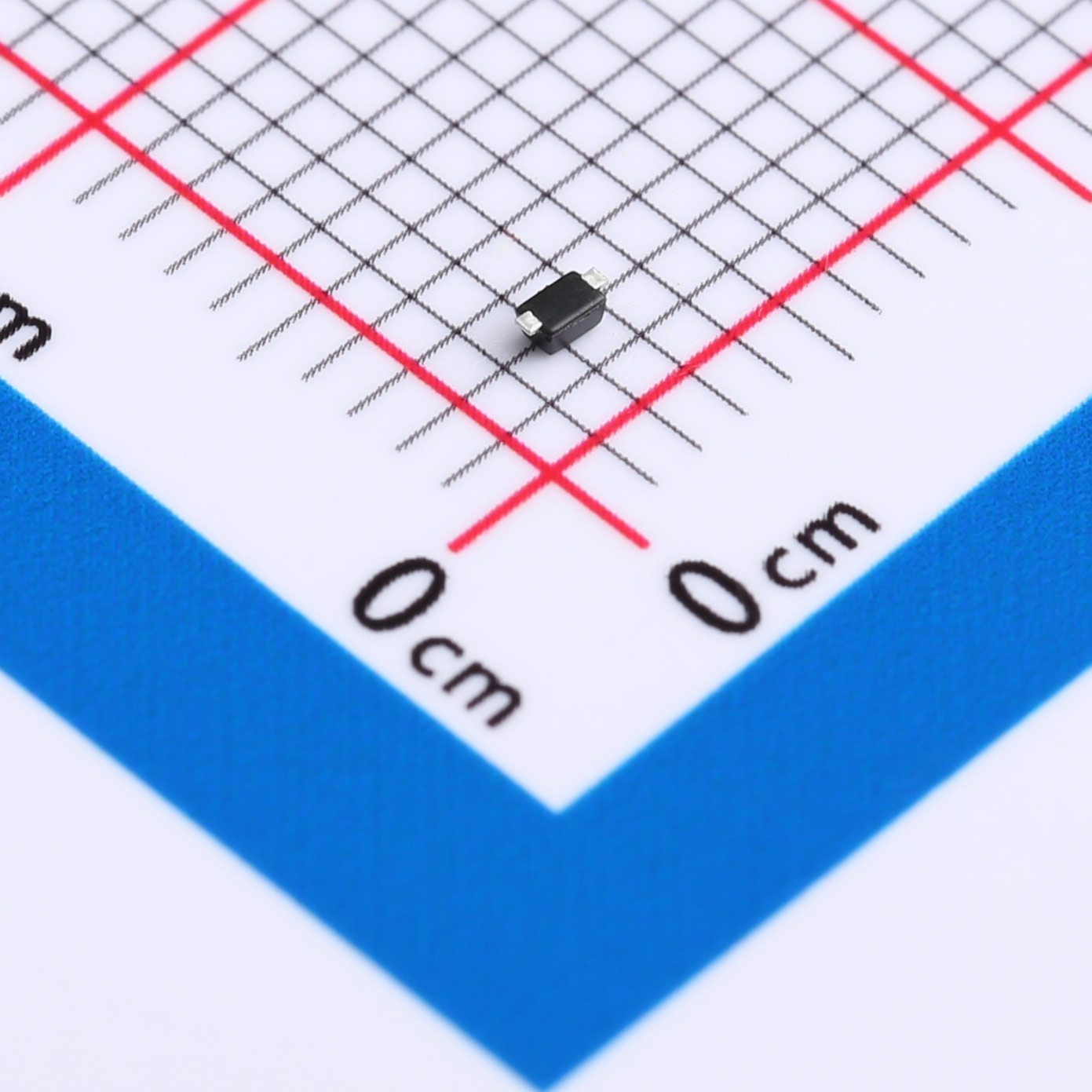

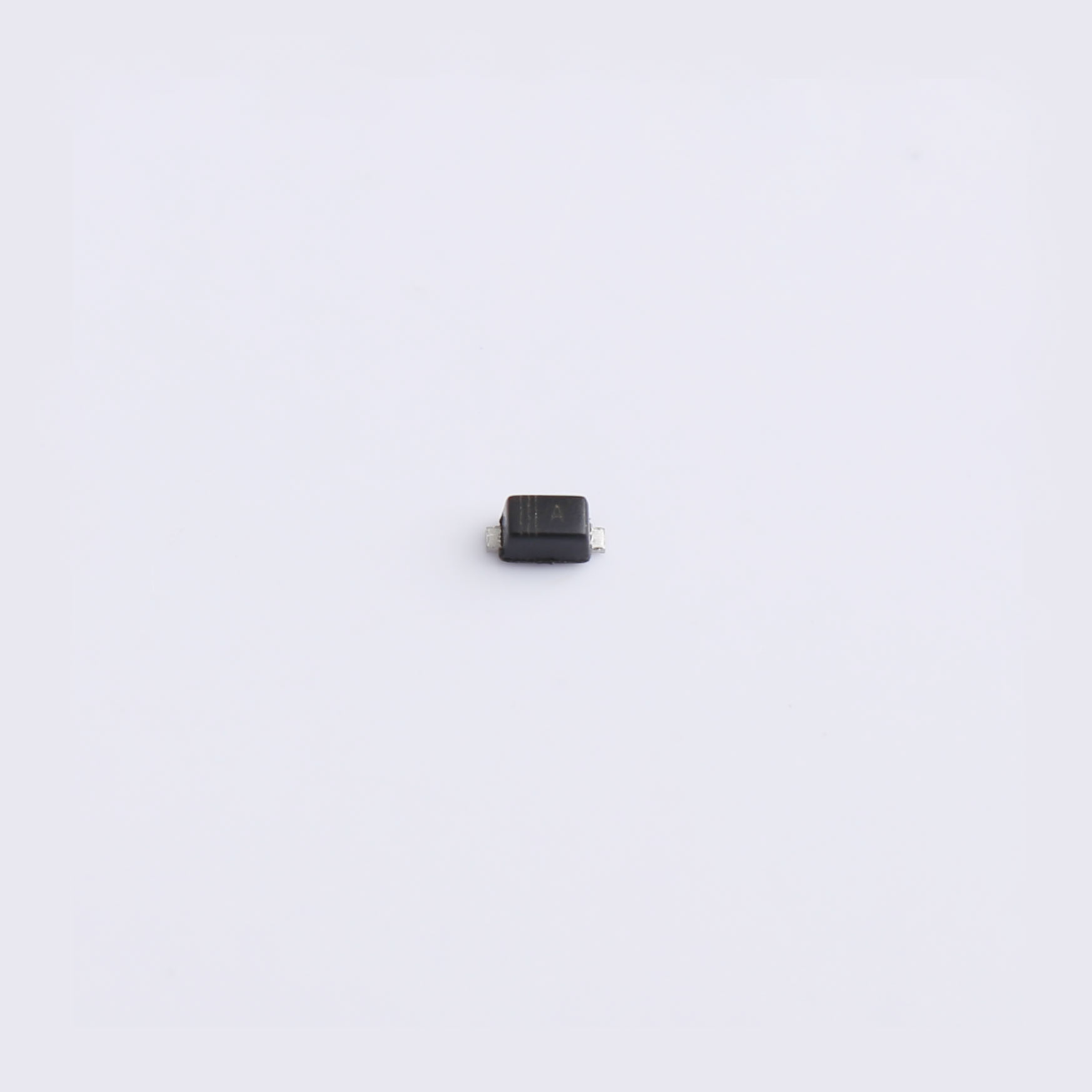

The 1SS400 is a high-performance small signal diode designed for applications requiring precision rectification and low forward voltage drop. With a maximum reverse voltage (Vr) rating of 9V and a forward current (Io) handling capability of 100mA, the 1SS400 is ideal for use in low-power circuits where efficiency and reliability are paramount. It features a low forward voltage drop (Vf) of 1.2V at 1A, minimizing power loss and enhancing energy efficiency. The diode also boasts an ultra-low reverse leakage current (Ir) of only 0.1μA, ensuring stable operation even in sensitive electronic circuits.
Download datasheet InquiryOur adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The 1SS400 is a high-performance small signal diode designed for applications requiring precision rectification and low forward voltage drop. With a maximum reverse voltage (Vr) rating of 9V and a forward current (Io) handling capability of 100mA, the 1SS400 is ideal for use in low-power circuits where efficiency and reliability are paramount. It features a low forward voltage drop (Vf) of 1.2V at 1A, minimizing power loss and enhancing energy efficiency. The diode also boasts an ultra-low reverse leakage current (Ir) of only 0.1μA, ensuring stable operation even in sensitive electronic circuits.
Features
● Small package.
● Extremely small surface mounting type.
● High speed and high reliability.
Applications
● High speed switching.
| File Name | Title | Description |
|---|---|---|

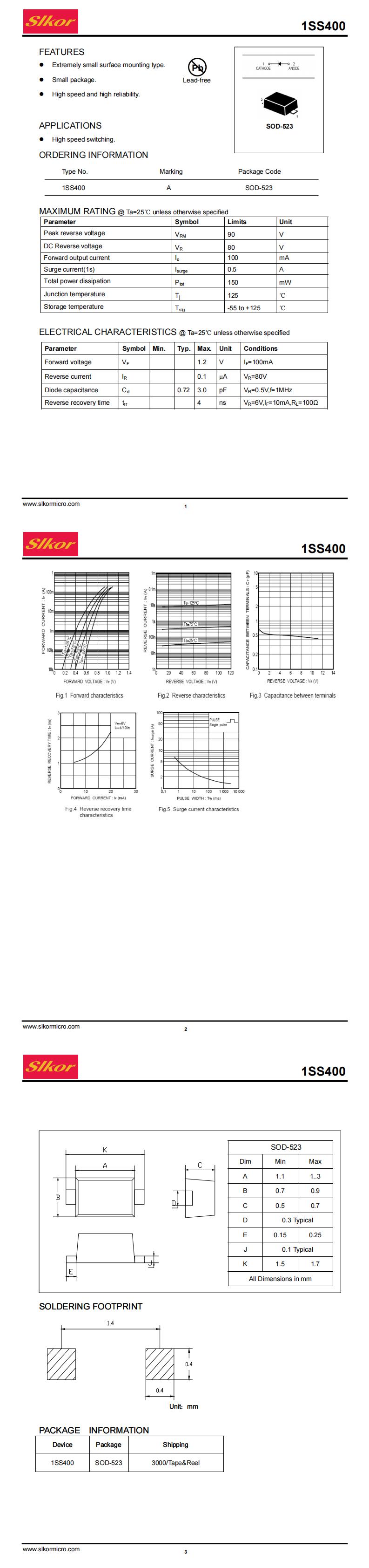

| 1SS400 SOD-523.pdf | 1SS400 SOD-523 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The 1N4007WS is a robust rectifier diode designed for general-purpose electronic circuits where efficient rectification of AC to DC voltage is essential. With a maximum reverse voltage (Vr) rating of 300V and a forward current (Io) handling capability of 300mA, this diode offers reliable performance across a wide range of applications. Featuring a low forward voltage drop (Vf) of 1V and a reverse leakage current (Ir) of 100μA, the 1N4007WS ensures efficient power conversion and stable operation in both forward and reverse bias conditions.
The S10MC is an advanced general-purpose rectifier diode designed to provide robust performance and efficient energy conversion in various electronic circuits. With a maximum reverse voltage (Vr) rating of 1000V and a forward current (Io) capability of 10A, the S10MC diode is ideal for applications requiring high power rectification. It features a low forward voltage drop (Vf) of 1V at 10A, minimizing power dissipation and enhancing energy efficiency. Additionally, the diode exhibits a low reverse leakage current (Ir) of only 5μA at 1000V, ensuring stable and reliable operation in demanding environments.
The 1N4001W is a widely-used general-purpose rectifier diode renowned for its robust performance and versatility in electronic circuits. Designed with a maximum reverse voltage (Vr) of 50V, a forward current (Io) rating of 1A, and optimized electrical characteristics, it ensures r eliable rectification and voltage regulation in a variety of applications.
The S3MC is a versatile general-purpose diode designed to provide efficient rectification and reliable voltage regulation across a wide range of electronic applications. Featuring a robust maximum reverse voltage (Vr) of 1000V, a forward current (Io) rating of 3A, and optimized electrical characteristics, it ensures stable and efficient operation in demanding environments.

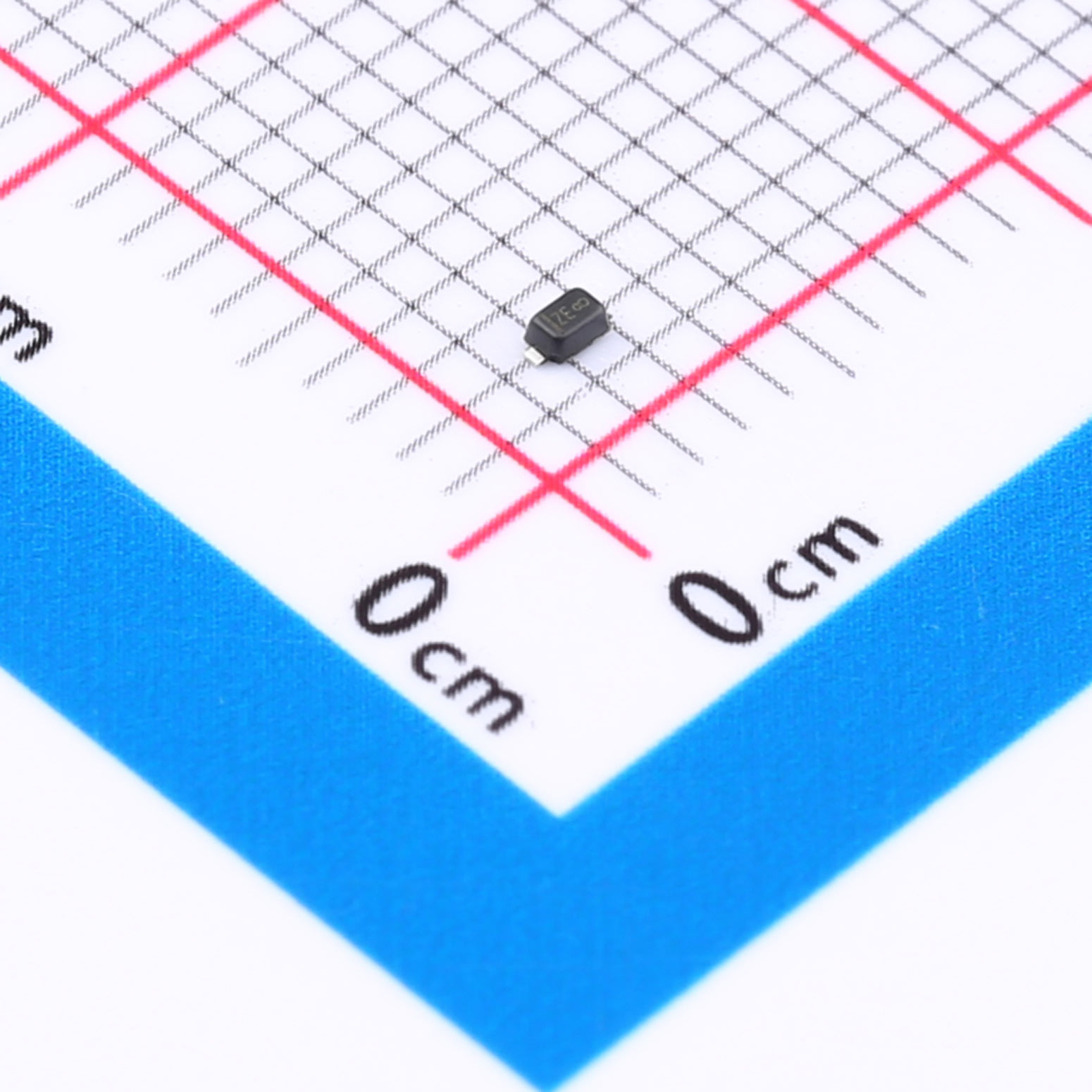

The SLESD3V3D5 Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.

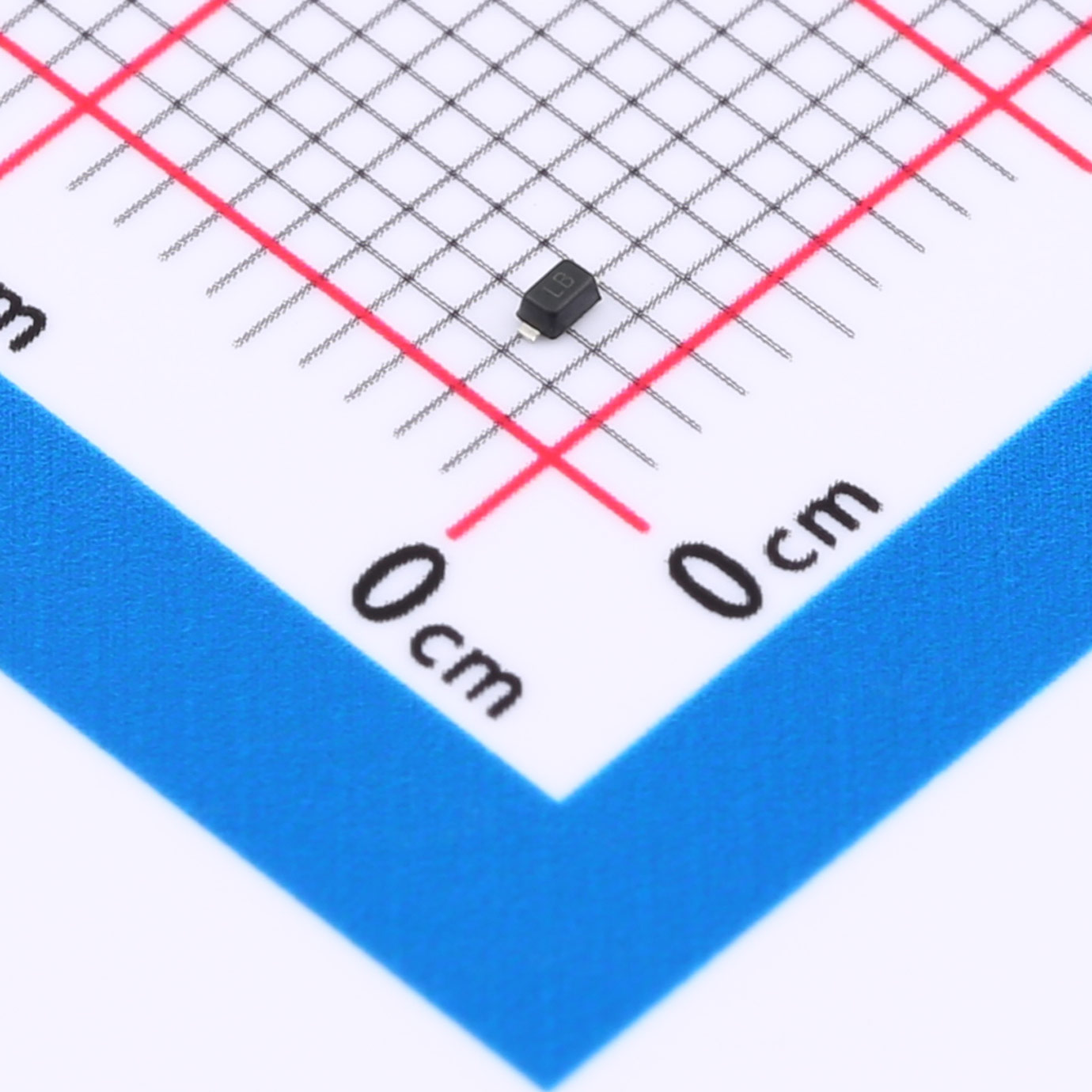

The SLESD5B5CL is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many ther portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
