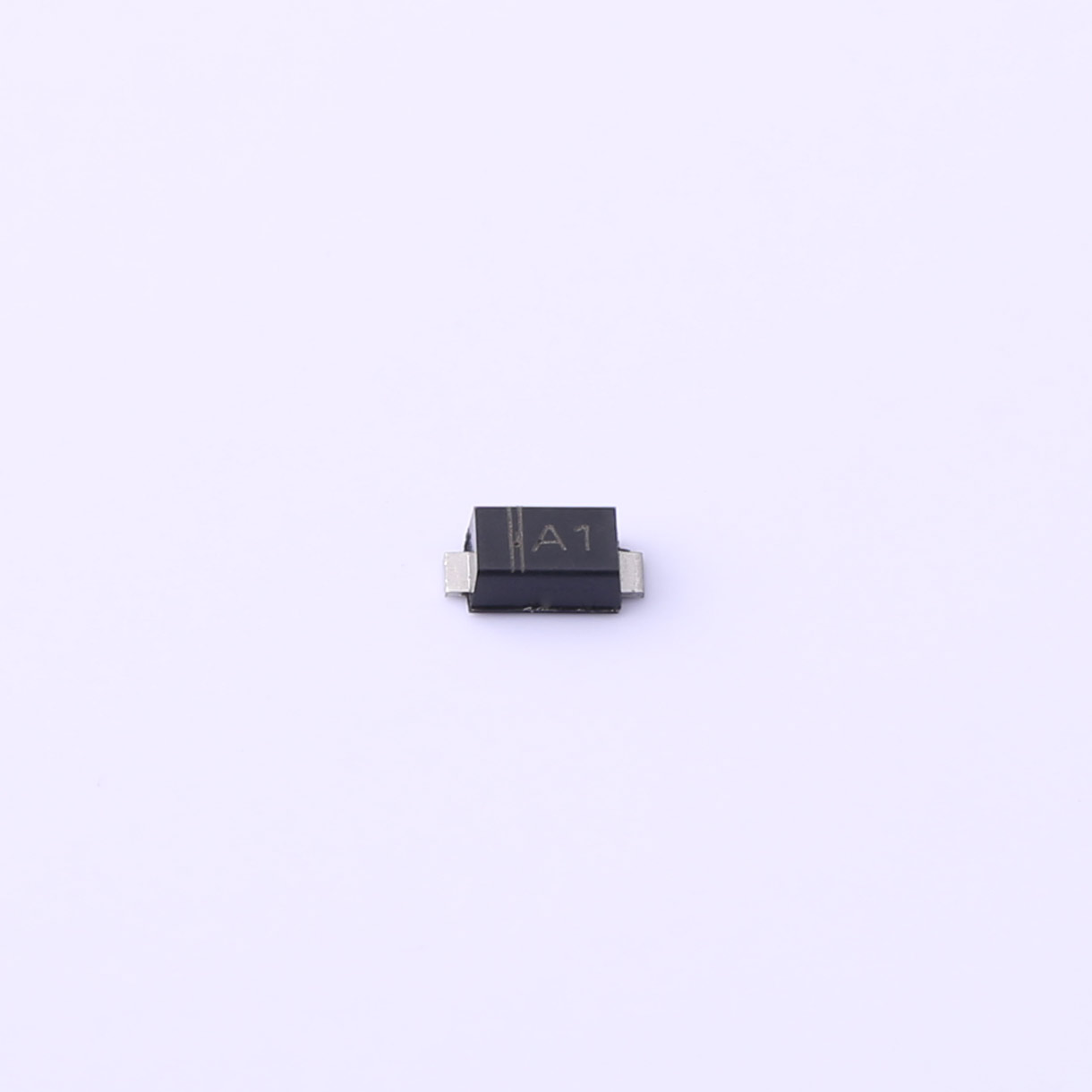

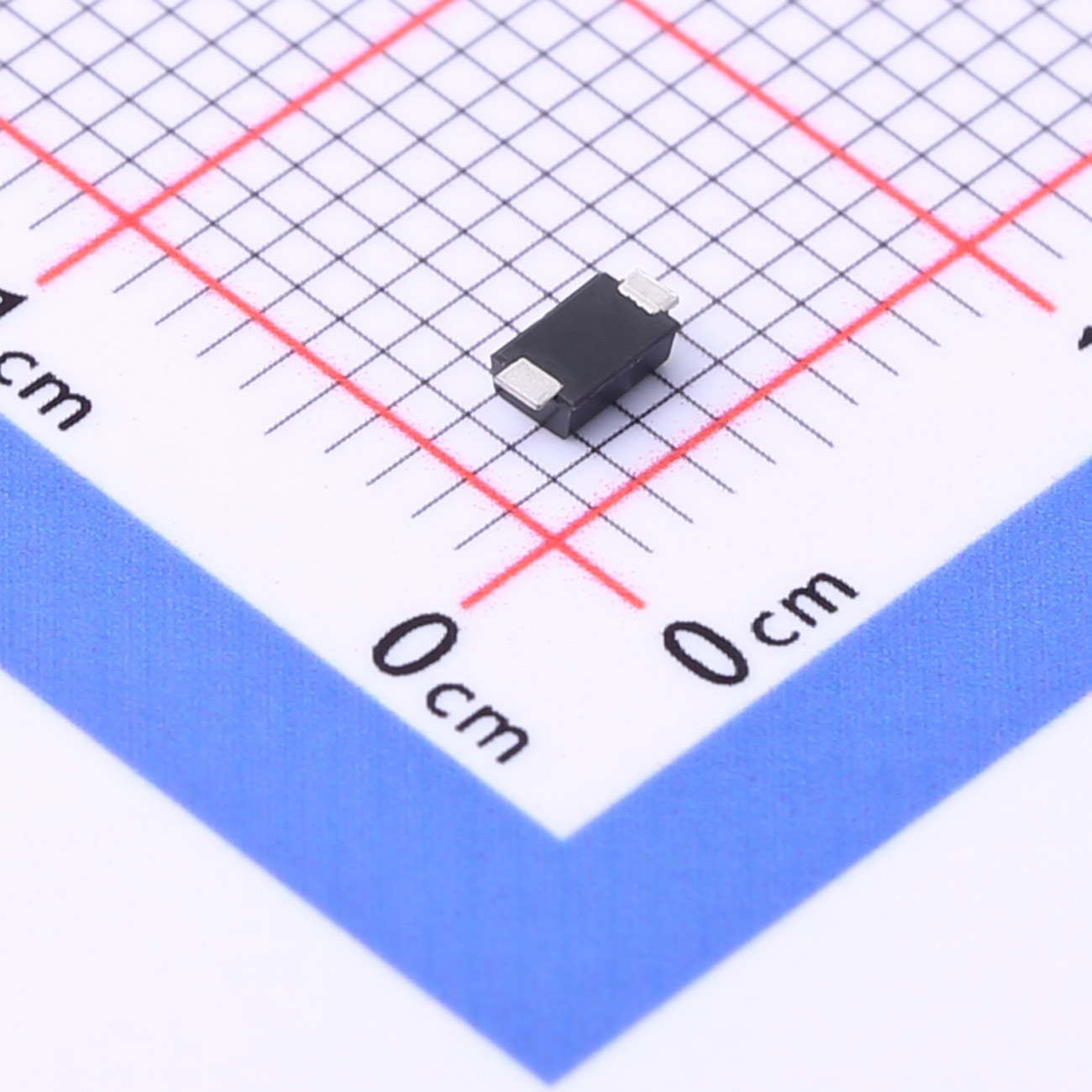

The 1N4001W is a widely-used general-purpose rectifier diode renowned for its robust performance and versatility in electronic circuits.
Designed with a maximum reverse voltage (Vr) of 50V, a forward current (Io) rating of 1A, and optimized electrical characteristics, it ensures r
eliable rectification and voltage regulation in a variety of applications.
SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER
Our adventage
Description
The 1N4001W is a widely-used general-purpose rectifier diode renowned for its robust performance and versatility in electronic circuits.Designed with a maximum reverse voltage (Vr) of 50V, a forward current (Io) rating of 1A, and optimized electrical characteristics, it ensures reliable rectification and voltage regulation in a variety of applications.
Features
● Metallurgically bonded construction
● Low reverse leakage
● High temperature soldering guaranteed:250 C/10 seconds,0.375”(9.5mm) lead length,5 lbs. (2.3kg) tension
● Ideal for surface mouted applications
● Glass passivated device
Applications
● Power Supplies: Ideal for converting AC to DC in power supplies for small electronic devices, chargers, and adapters.
● Rectification: Used in rectifier circuits to convert alternating current (AC) to direct current (DC) efficiently and reliably.
● Signal Demodulation: Applied in signal demodulation circuits to extract baseband signals from modulated carrier waves.
● Protection Diode: Protects sensitive components from reverse voltage and transient spikes in various electronic systems.
| File Name | Title | Description |
|---|---|---|

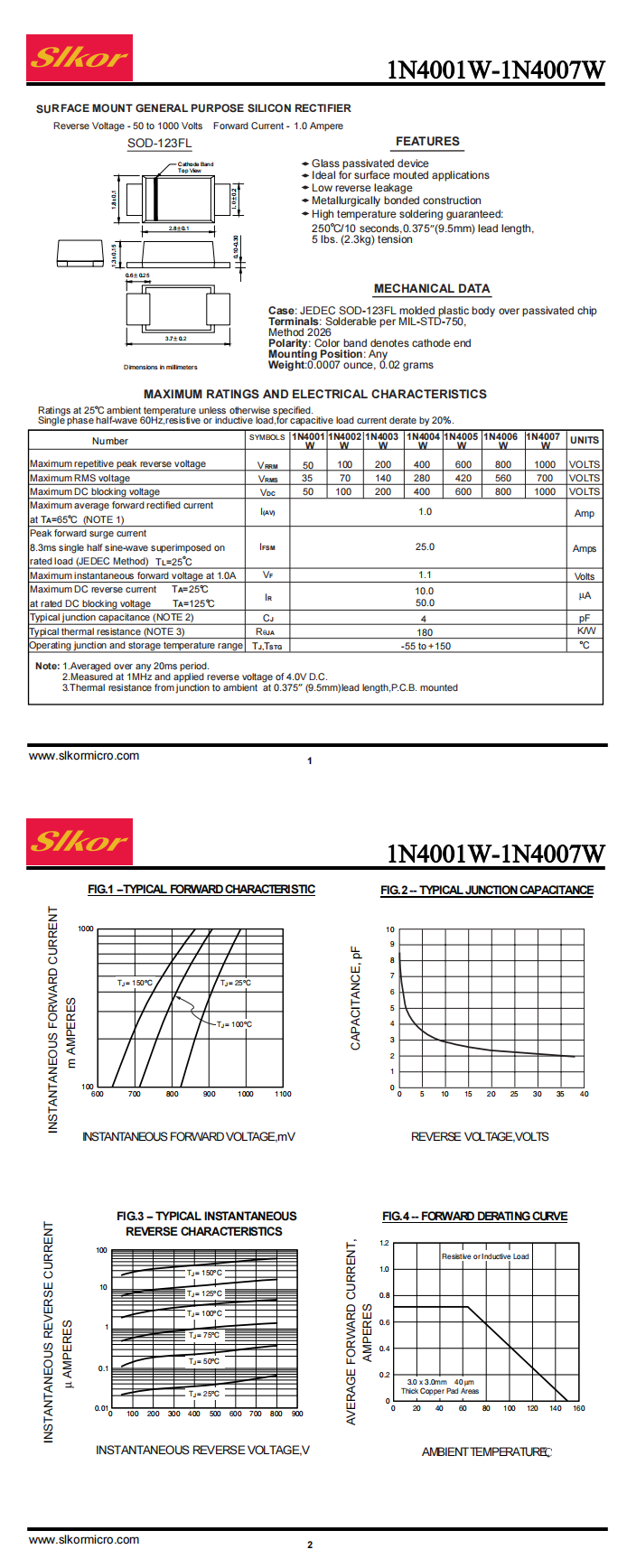

| 1N4001W SOD-123FL.pdf | 1N4001W SOD-123FL | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The 1N4007WS is a robust rectifier diode designed for general-purpose electronic circuits where efficient rectification of AC to DC voltage is essential. With a maximum reverse voltage (Vr) rating of 300V and a forward current (Io) handling capability of 300mA, this diode offers reliable performance across a wide range of applications. Featuring a low forward voltage drop (Vf) of 1V and a reverse leakage current (Ir) of 100μA, the 1N4007WS ensures efficient power conversion and stable operation in both forward and reverse bias conditions.
The 1SS400 is a high-performance small signal diode designed for applications requiring precision rectification and low forward voltage drop. With a maximum reverse voltage (Vr) rating of 9V and a forward current (Io) handling capability of 100mA, the 1SS400 is ideal for use in low-power circuits where efficiency and reliability are paramount. It features a low forward voltage drop (Vf) of 1.2V at 1A, minimizing power loss and enhancing energy efficiency. The diode also boasts an ultra-low reverse leakage current (Ir) of only 0.1μA, ensuring stable operation even in sensitive electronic circuits.
The S10MC is an advanced general-purpose rectifier diode designed to provide robust performance and efficient energy conversion in various electronic circuits. With a maximum reverse voltage (Vr) rating of 1000V and a forward current (Io) capability of 10A, the S10MC diode is ideal for applications requiring high power rectification. It features a low forward voltage drop (Vf) of 1V at 10A, minimizing power dissipation and enhancing energy efficiency. Additionally, the diode exhibits a low reverse leakage current (Ir) of only 5μA at 1000V, ensuring stable and reliable operation in demanding environments.
The S3MC is a versatile general-purpose diode designed to provide efficient rectification and reliable voltage regulation across a wide range of electronic applications. Featuring a robust maximum reverse voltage (Vr) of 1000V, a forward current (Io) rating of 3A, and optimized electrical characteristics, it ensures stable and efficient operation in demanding environments.
The MBRS160 is a high-performance surface mount rectifier diode designed for versatile rectification applications. Encased in the compact SOD-123FL package, this diode provides efficient and reliable rectification with a maximum reverse voltage rating of 60V and a continuous forward current capability of 1A. Its low forward voltage drop and moderate reverse leakage current make it suitable for a range of electronic circuits requiring robust performance.
The SM4007PLA7 is a high-performance surface mount rectifier diode designed for general-purpose rectification applications. Encased in the compact SOD-123FL package, this diode provides reliable rectification with high efficiency and low forward voltage drop. With a maximum reverse voltage rating of 1000V and a continuous forward current capability of 1A, it is well-suited for a wide range of electronic circuits.

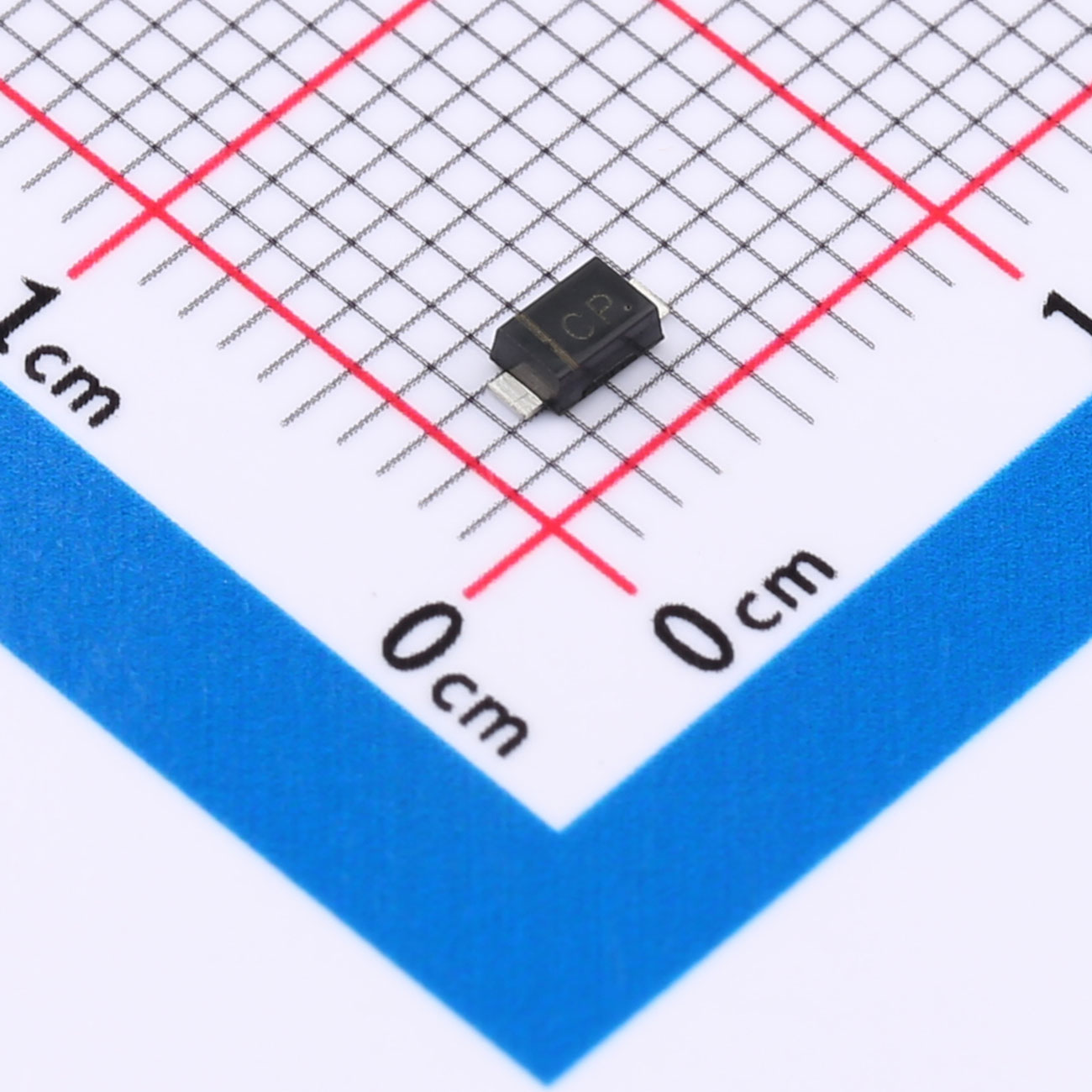

The SMF36A Bidirectional TVS Diodes SOD-123FL is a high-performance semiconductor designed for voltage regulation and over-voltage protection. Featuring a maximum Reverse Working Voltage (VRWM) of 36V, it is ideal for stabilizing and controlling voltage levels in various electronic circuits. With its precision Zener breakdown voltage range between 40V and 44.2V, this diode ensures reliable and consistent voltage regulation in demanding applications.

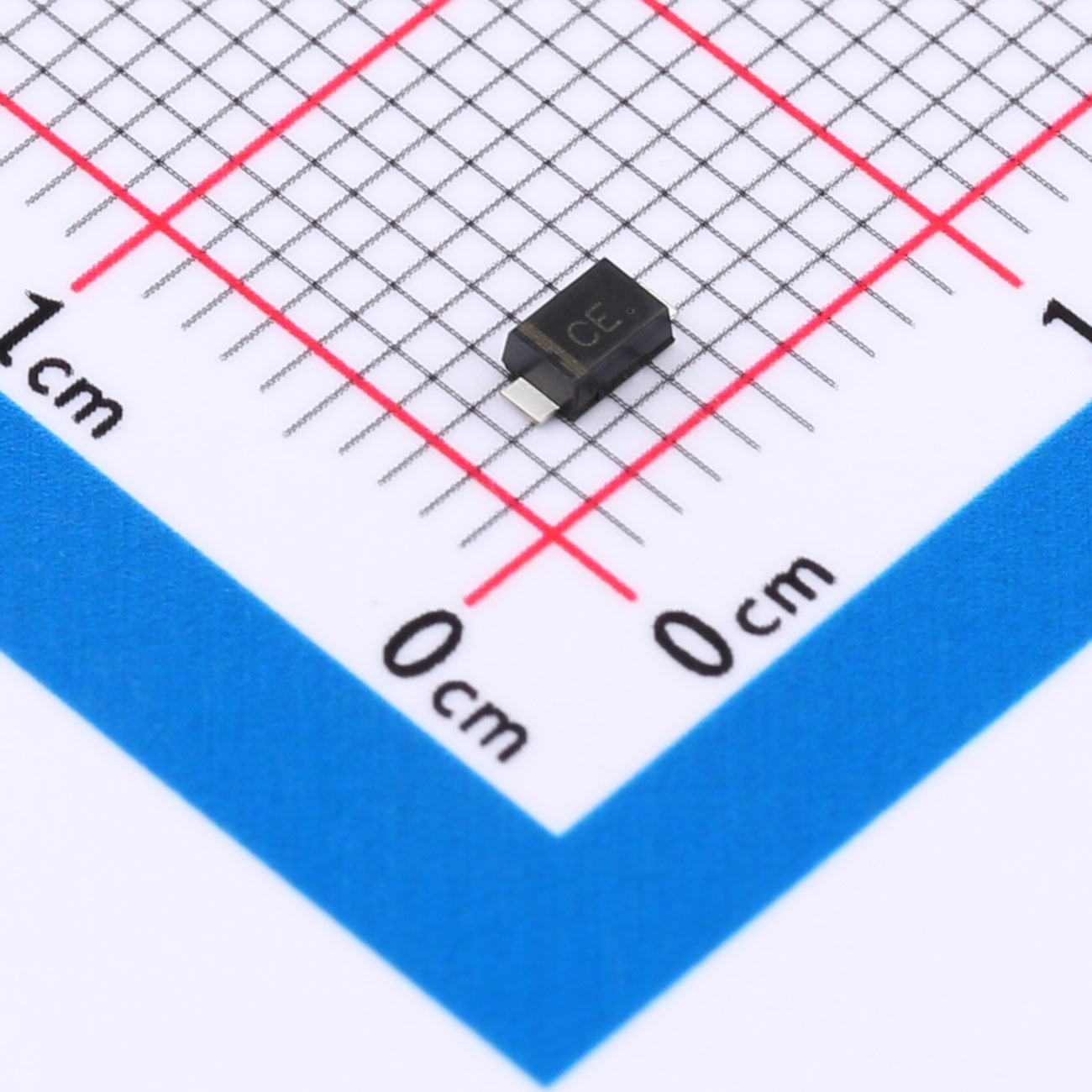

This TVS Diode is engineered to deliver exceptional protection against transient voltage spikes. With a maximum Reverse Working Voltage (VRWM) of 26V and a minimum Breakdown Voltage (VBR) of 28.9V, it ensures your components remain safe under unexpected voltage surges.
